ATEN VS-132 Manuale utente
VS-132
USER MANUAL
Video Splitter
FCC Information
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
RoHS
This product is RoHS compliant.

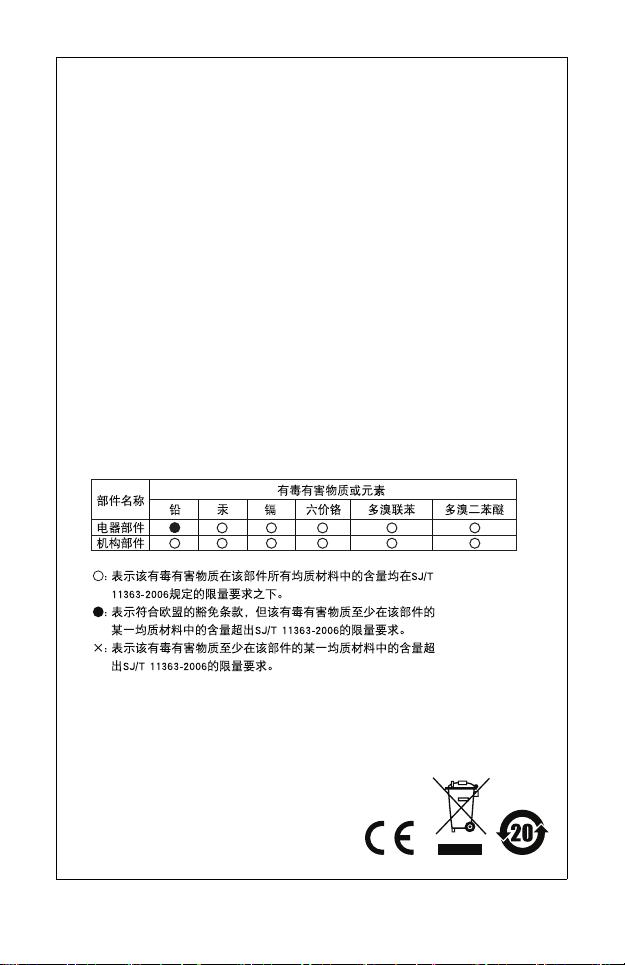

SJ/T 11364-2006
The following contains information that relates to China.
- 3 -
VS-132 User Manual
Package Contents
The VS-132 Video Splitter package contains the following items:
1 VS-132 Video Splitter
1 AC 9V Power Adapter
1 User Manual*
Check to make sure that all the components are present and that
nothing got damaged in shipping. If you encounter a problem,
contact your dealer.
Read this manual thoroughly and follow the installation and
operation procedures carefully to prevent any damage to the unit,
and/or any of the devices connected to it.
*Features may have been added to the VS-132 since this
manual was printed. Please visit our website to download the
most up-to-date version of the manual.
Copyright © 1999–2008 ATEN® International Co., Ltd.
Manual Part No. PAPE-1153-200G
Manual Date: 2008-11-27
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.
- 4 -
Overview
The VS-132 Video Splitter is a boosting device to duplicate the
video signal from one source to two outputs, and is ideal for any
monitor using analog signals. The VS-132 also extends the
transmission distance up to 65 m (210 feet) making it excellent for
public broadcast systems.
To transmit multiple, high quality, VGA, SVGA or Multisync video
signals over long distances without hassle, the VS-132 is your
best choice.
Other useful applications for the VS-132 Video Splitter include:
Financial – the remote display of stock market information
Education – the remote display of lectures and lessons to
lecture halls and classrooms
Business – the remote display of addresses to overflow
rooms; video conferencing; and demos
- 5 -
Features
One video input to two video outputs
Cascadable to three levels – provides up to 8 video signals
Supports up to 350 MHz bandwidth
Long Distance Transmission – up to 65 m (210 ft)
High video quality – 1920 x 1440
DDC, DDC2, DDC2B Compatible (Port 1 only*)
Supports XGA, VGA, SVGA, and multisync monitors
Note: If you connect a DDC type monitor to Video Out 1, all
other monitors must be able to support the highest
video resolution that the DDC monitor can provide.
- 6 -
Hardware Requirements
One or more XGA, SVGA, VGA, and/or multisync compatible
analog monitor(s) with standard PC high density cables
having 15 pin D type male connectors.
Computer with one XGA, SVGA, VGA, and/or multisync
analog video port with a standard PC 15 pin D type female
connector.
Note: 1. This product is not suitable for CGA, EGA, or
Monochrome monitors that use a digital video signal.
2. UL-2919 rated cable is recommended for the best video
quality.
- 7 -
Front View
No. Component Description
1 Signal LED Lights when video data is being transferred.
2 Power LED Lights to indicate the unit is connected to a
power source and is receiving power.
3 Video Out
Ports
Your monitors (or cascaded video splitters) plug
in here.
4 Video In Port The cable that links the VS-132 to the
computer's video port plugs in here.
5 Gain Switch To boost the video signal when the computer is
located at some distance from the unit, slide the
switch to the High position.
- 8 -
Installation
Standalone Installation
Setting up the Video Splitter is simply a matter of plugging in the
cables. Refer to the diagram as you follow the step-by-step
directions below:
1. Make sure that the computer and monitors you are using for
the installation are all powered Off.
2. Plug the female end of a male to female VGA cable into the
Video Splitter's Video In port; plug the male end of the cable
into the computer's video output port.
Note: The VGA cable does not come with the package. It must
be purchased separately: (Part No. 2L-2401).
3. Plug the monitor cables into any available Video Out port.
4. Plug the power adapter (supplied with this package) into an
AC source; plug the adapter's power cable into the Video
Splitter's AC 9V Power Jack.
5. Power On all equipment.
- 9 -
Cascading
To provide video display for more monitors, additional VS-132s
can be cascaded. Use a high density HDB-15 male/female video
extender cable (Part No. 2L-2401), to connect any available
Video Out port on the higher level Video Splitter to the Video In
port of the lower level Video Splitter.
You can cascade as many Video Splitters as there are ports
available. Theoretically, there is no limit to the number of splitters
that can be cascaded, but the quality will deteriorate as you get
further and further away from the video signal.
- 10 -
Specifications
Function VS-132
Display Connections 2
Connectors Video In 1 x HDB-15 Male
Video Out 2 x HDB-15 Female
Power 1 x DC Jack
LEDs 1 x Signal Indicator
1 Power Indicator
Video 1920 x 1440 @80 Hz
Cable Distance Up to 65 m (210 ft.)
Power Consumption AC 9V, 120mA (max.)
Environment Operating Temp. 0–50ºC
Storage Temp. -20–60ºC
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.19 kg
Dimensions
(L x W x H)
10.40 x 9.80 x 2.40 cm
Limited Warranty
IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE
PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THE PRODUCT, DISK OR ITS DOCUMENTATION.
The direct vendor makes no warranty or representation, expressed, implied, or
statutory with respect to the contents or use of this documentation, and specially
disclaims its quality, performance, merchantability, or fitness for any particular
purpose.
The direct vendor also reserves the right to revise or update the device or
documentation without obligation to notify any individual or entity of such revisions,
or update. For further inquires please contact your direct vendor.
