ATOMSTACK MR 20 Manuale utente

ATOMSTACK MR 20

F03-0198-0AA1 Version: A

Note: The picture is for reference only, the actual product shall prevail.

For more information, please scan the QR code

English

Packing List

Laser module TYPE-C data cable Laser signal cable Power cable Z-axis component

Laser slider Knurled screws 2PCS (M4*12) Screws 8PCS (M4X6) Screws 2PCS (M5X8) Screws 4PCS (M4X10)

Allen wrench Control box T-nut 2PCS Instruction manual

ATOMSTACK MR 20

F03-0198-0AA1Version: A

Note: The picture is for reference only,the actual product shall prevail.

For more information, please scan the QR code

English

H2.5

Step 1 Connect the Z-Axis and Slider to the Machine

Option 1 Connect the Z-axis and slider to the machine from the back.

M4*10

Tighten the screws

Precautions:

Do not fold the fiber optic cable

behind the laser.

M4*6

Connect the Z-axis and slider to the machine from the front.

Rotate the handle to

move the slider.

Option 2

M4*6

Tighten the screws

Precautions:Do not fold the fiber optic

cable behind the laser.

M4*6

This type of Z-axis does not require replacement and can be inserted

directly into the laser head.

Tighten the screws

Option 3

Step 2 Replace the control box

Tighten the screws

Don't overtighten it

Remove the original control box and cable Install the control box in the manifest

Install the control box in the manifest Install the T-nut

M5*8

The trial installation control box is paired with the hole position before the type, and the control box is directly installed.

The trial control box is not matched with the hole position in front of the type, and it is necessary to wear a T-nut and

lock two M5*8 screws.

Method 1

Method 2

Step 3 Connecting cables

67 8

Control line

Type-C data cable

Laser signal cable

Note:

To use the original laser

head, there is no need to

disassemble the control box

again. Simply connect these

two wires together.

Step 4 Test Process - Power On

1. Turn on the machine power switch

2. Focus Adjustment

1) Position the test material on the machine.

2) Observe whether the red light spots at the left and right ends of the laser head overlap. If not, adjust the height by rotating the

knob on the Z-axis to make the two spots coincide.

First turn on the power switch of the machine, and then turn on the switch of the fiber laser control box to avoid the

probability of random emission for about 2 seconds after power-up.

√×

Indice

Lingue:

Altri manuali ATOMSTACK Unità di controllo

ATOMSTACK

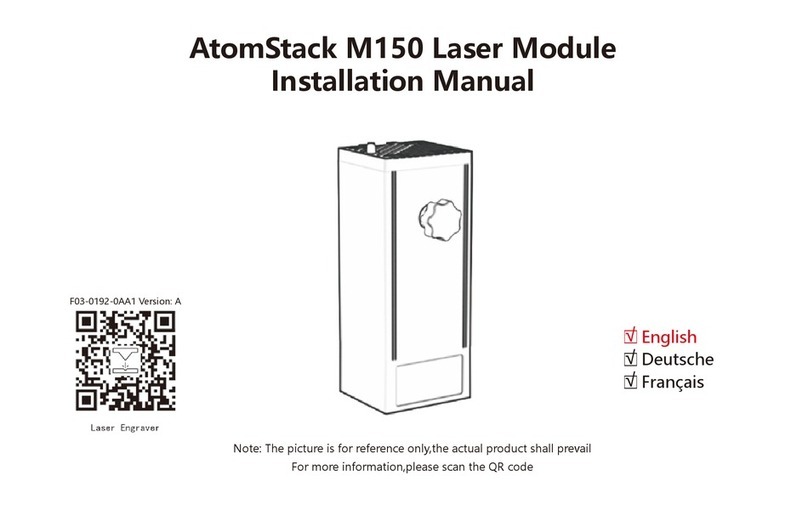

ATOMSTACK M150 Manuale utente
