AUDAC CELO6 Guida

CELO6

User & Installation

Manual

www.audac.eu

Introduction

6” High-end Slim Ceiling Speaker

The CELO6 is the 6” version of AUDAC’s CELO High-end Slim ceiling speaker series

with an RMS power of 60 Watt and Maximum power of 120 Watt, consisting of a 6”

aluminum cone woofer with 1” aluminum cone tweeter.

Due to its slim grill design with very thin border of only 1 mm and a limited grill depth

which extrudes from the ceiling surface by only 3.2 mm, these speakers will become

nearly invisible when mounted. To make them blend in even more, they can be painted

in the same colour as the surrounding surface. This elegant and unobtrusive grill is held

in place by means of powerful neodymium magnets, making assembly and disassembly

very simple, but still reliable enough for keeping the grill in place during the complete

lifetime of the loudspeaker.

When the grill is removed, it’s clear for anyone to see that the CELO speakers are made by

using only the highest quality materials, guaranteeing an unsurpassed sound experience.

One 1” Aluminum cone tweeter is held in place by an acoustically optimized arm in front

of a 6” Aluminum cone woofer. Together with the crossover network which is made of

high-quality components, this results in true to nature sound reproduction for a warm

and detailed sound with an RMS power of 60 Watt.

To guarantee a lifetime stability, secure mounting and easy installation, the loudspeaker

connection is made using Gold plated spring clamp connectors. The mounting of the

loudspeaker into the ceiling should be done by a quick-fixing mechanism which can

be tightened by four screws. The front grill is held into place by neodymium magnets.

Precautions

READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY

• ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER

THROW THEM AWAY

• ALWAYS HANDLE THIS UNIT WITH CARE

• CLEAN ONLY WITH DRY CLOTH

• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS

• NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR

SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON

TOP OF THIS DEVICE

• DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS

OR OTHER APPARATUS THAT PRODUCE HEAT

• DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH LEVEL OF DUST,

HEAT, MOISTURE OR VIBRATION

• THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS

• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE

MANUFACTURER.

• ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN STRUCTURALLY

SUPPORT THE WEIGHT OF THE SPEAKER. IGNORING THIS CAN BRING THE

SPEAKER DOWN.

• DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO MOUNT THE

SPEAKER. IF EXTREME FORCE IS APPLIED TO THE SPEAKER, IT COULD FALL

DOWN

• CAREFULLY CHECK THE UNIT’S CONDITION AFTER UNPACKING.

IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT ITSELF,

INFORM YOUR VENDOR IMMEDIATELY.

CAUTION

• USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER

• USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND

MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM.

• ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE.

EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.

AVOID EXPLOSIONS: DO NOT USE THE SPEAKER AROUND GASOLINE,

THINNER OR OTHER COMBUSTIBLES

• AVOID ELECTRIC SHOCKS: SWITCH OFF THE AMPLIFIER WHEN CONNECTING

THE LOUDSPEAKER

• DO NOT USE THE LOUDSPEAKER FOR AN EXTENDED PERIOD OF TIME AT

DISTORTED SOUND. THIS COULD CAUSE PERMANENT DAMAGE.

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing

to qualified service personnel. Do not perform any servicing

(unless you are qualified to do so.)

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and

further relevant specifications described in following directives:

2004/108/EC (EMC) and 2006/95/EC (LVD)

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The WEEE marking indicates that this product should not be

disposed with regular houshold waste at the end of its product

life. This regulation is created to protect both the environment

and human health.

This product is developed and manufactured with high quality

materials and components which can be recycled and/or reused.

Please dispose this product to your local collection point or

recycling centre for electrical and electronic waste. This will

make to sure that it will be recycled on an environmentally friendly

manner, and will help to protect the environment in which we all

live.

Installing the CELO

Introduction

The CELO speakers feature a quick-fixing mechanism, which allows quick and easy

installation of the loudspeakers in only a few minutes.

The installation of the CELO speakers requires a minimum amount of installation skills.

Before the loudspeaker is installed, the location whereto it will be mounted should be

carefully checked to make sure the surface can support the weight of the speaker and

no lines for water, gas, electricity or other supplies are crossing this point.

Installation procedure

To ensure a safe and secure mounting of the loudspeaker, the installation should be

done according to the procedure described below:

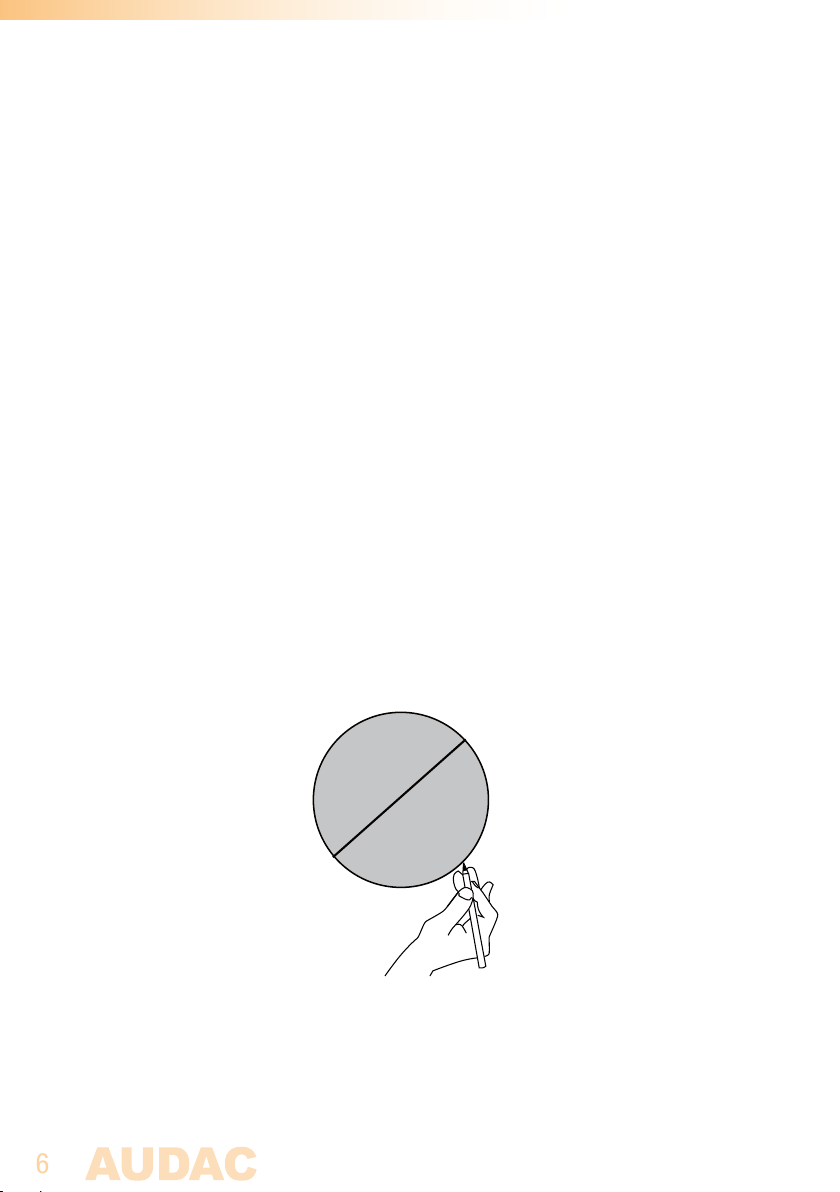

1) Firstly cut a hole in the ceiling on the desired mounting location of the loudspeaker

with a diameter of 210 mm. The included cutout template can be used for an easy

marking of the installation hole.

2) Provide the loudspeaker connection cable through the mounting hole in the

ceiling. Make sure the used connection cable is sufficiently thick. The required cable

thickness depends on its length.

210 mm

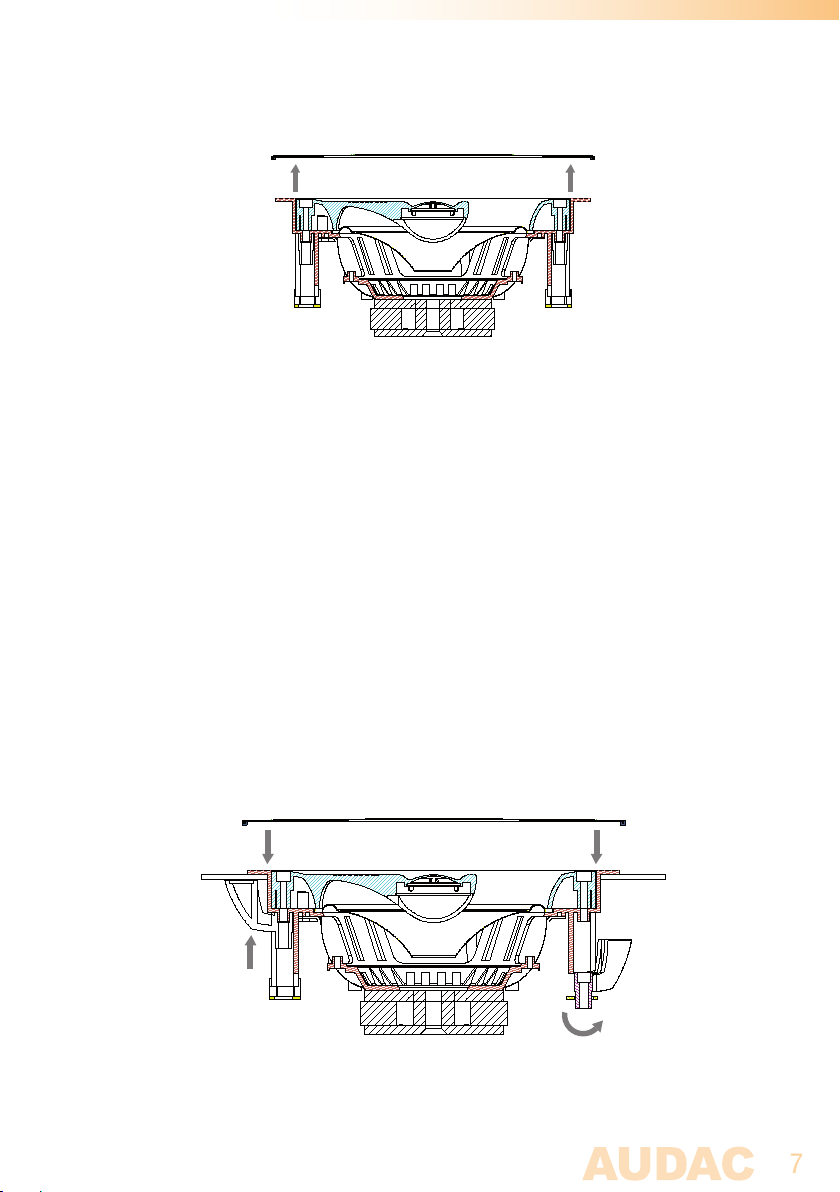

3) Take the loudspeaker, and remove the front grill which is held in place by

neodymium magnets. The front grill can be easily removed by gently pulling it.

4) Connect the loudspeaker connection cable to the gold plated spring clamp

connectors. Press the button of the corresponding terminal down and insert

the connection cable. After releasing the button, the cable is connected to the

loudspeaker. The Red terminal indicates positive (+) pole and the Black terminal

indicates the negative (-) pole.

Mind the polarity markings when wiring the loudspeaker cables.

Maintain the same polarity and wiring colour coding throughout the entire system to

avoid any mistakes causing malfunction or distortion.

5) Once the connections are made, the loudspeaker can be installed in the provided

mounting hole. Make sure the mounting clips of the loudspeaker are rotated inwards,

making the speaker fit through the hole in the ceiling. Insert the speaker through the

provided mounting hole, and use a screwdriver for tightening the fixing screws.

Once the screws are tightened a quarter turn, the mounting clip will rotate outwards

and will be locked behind the ceiling. From then on, the loudspeaker is anchored in

the ceiling and thus can not fall.

6) After the screws are tightened and the speaker is level with the ceiling, the front

grill can be assembled to the loudspeaker.

Additional Information

Technical specifications

RMS Power 60 Watt

Max. Power 120 Watt

Nominal impedance 8 Ohm

Sensitivity 1W / 1m 88 dB

Sound pressure Max W / 1m 106 dB

Frequency response -3 dB 55 Hz - 20 kHz

Cross-over frequency 3.0 kHz

Cross-over network Passive Built-in

Drivers 1” HF Alu tweeter

6” MF / LF Alu woofer

Connectors Gold plated spring clamps

Mounting 4-Screw Quick-Fixing Mechanism

Construction High-Quality ABS

Front finish White Thin edge grill (RAL9003)

(1 mm width x 3.2 mm height edge)

Dimensions Ø 230 x 103 mm

Cut-out measurement Ø 210 mm

Built-in depth 100 mm

Weight 1,5 Kg

Packaging Carton box

Shipping weight & Volume 2,1 Kg - 0,011 Cbm

Accessories included Cut-out template

Instruction manual
