The Audi Q7

Pricing and Specification Guide

Valid from October 2009

Introduction

The Audi Q7

Engines 6

Clean diesel 7

Transmission 8

quattro®9

Model details and prices

Standard models 10

SE models 14

S line models 16

Colour and upholstery

Paint finishes 18

Upholstery options 20

Colour and trim guide 24

Inlays 26

Options

Packages 28

Wheels and tyres 30

Audio and communication 33

Seats 36

Safety and security 38

Interior equipment 40

Exterior equipment 43

Audi Centre-fitted accessories 44

Audi exclusive

Audi exclusive options 48

Audi exclusive line 54

Technical details

Technical data 56

Dimensions 58

Additional information 60

This guide has been designed to help you tailor and

price your Audi Q7 quickly and logically. At the back

of this guide, you will also find information on CO2

emissions-based vehicle excise duty and other services

offered by Audi, including Finance and Insurance.

If you wish, you can also go to audi.co.uk and

configure your Audi Q7 online.

From the website, you can also access the Audi

Channel player and see your potential new car in

action on the following programmes:

Drivetime

www.audi.co.uk/AudiQ7drivetime

Your Audi

www.audi.co.uk/AudiQ7youraudi

A Us r’s Guid Tabl of cont nt Page number

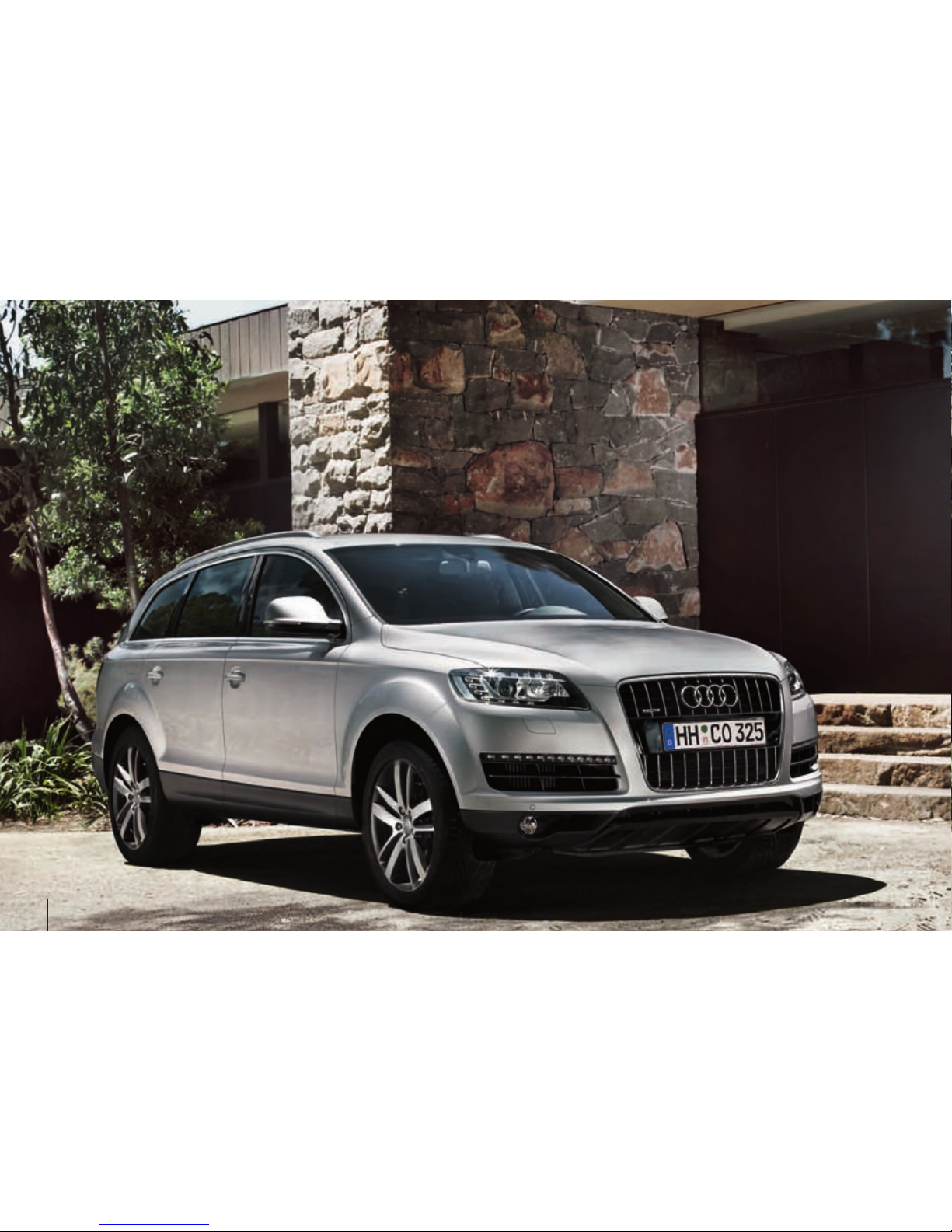

The Audi Q7 combines all the rugged energy of an SUV with the looks and high

performance of a sports coupé. As the ultimate expression of quattro®permanent

all-wheel-drive, it’s designed to take you off the beaten track and beyond – helped

by a choice of highly-developed engines. They provide acceleration not normally

associated with an SUV and efficiency that’s even more remarkable. It’s made

possible by advanced FSI®and TDI®technology, which use direct fuel injection to

make the most of every drop of fuel, and our new clean diesel technology, which

you can read more about on page 7.

But there’s more to the Audi Q7 than the raw power of its engines. It also

includes a redesigned front grille, new door mouldings and restyled bumpers

with under-body protection, while its distinctive ED lights blend seamlessly into

the new tailgate. Inside, you can now take advantage of the latest HDD navigation

and entertainment system, which is capable of displaying exceptionally-detailed,

high-resolution 3D maps. And with space for 6 passengers and up to 2,035 litres

of luggage capacity in the rear, there’s little room left for improvement.

Th Audi Q7

V6 3.6 FSI and V8 4.2 FSI

All Audi Q7 petrol engines feature FSI®direct-injection – a unique Audi technology originally

developed for the e Mans 24-hour endurance race to deliver increased power and torque as

well as enhanced fuel efficiency. The way it does this is, in theory, very simple. Precisely the

right amount of fuel and air are injected directly into the combustion chambers, enabling the

engine to ‘breathe’ more easily. At the same time, electronics monitor the engine load and

adjust the injection process. The result – reduced heat-loss and increased output, with around

a 15% reduction in fuel consumption and significantly lower exhaust emissions. Ideal for the

buyer who wants a sporty, exhilarating drive without the drawbacks of excessive fuel costs or

higher emissions.

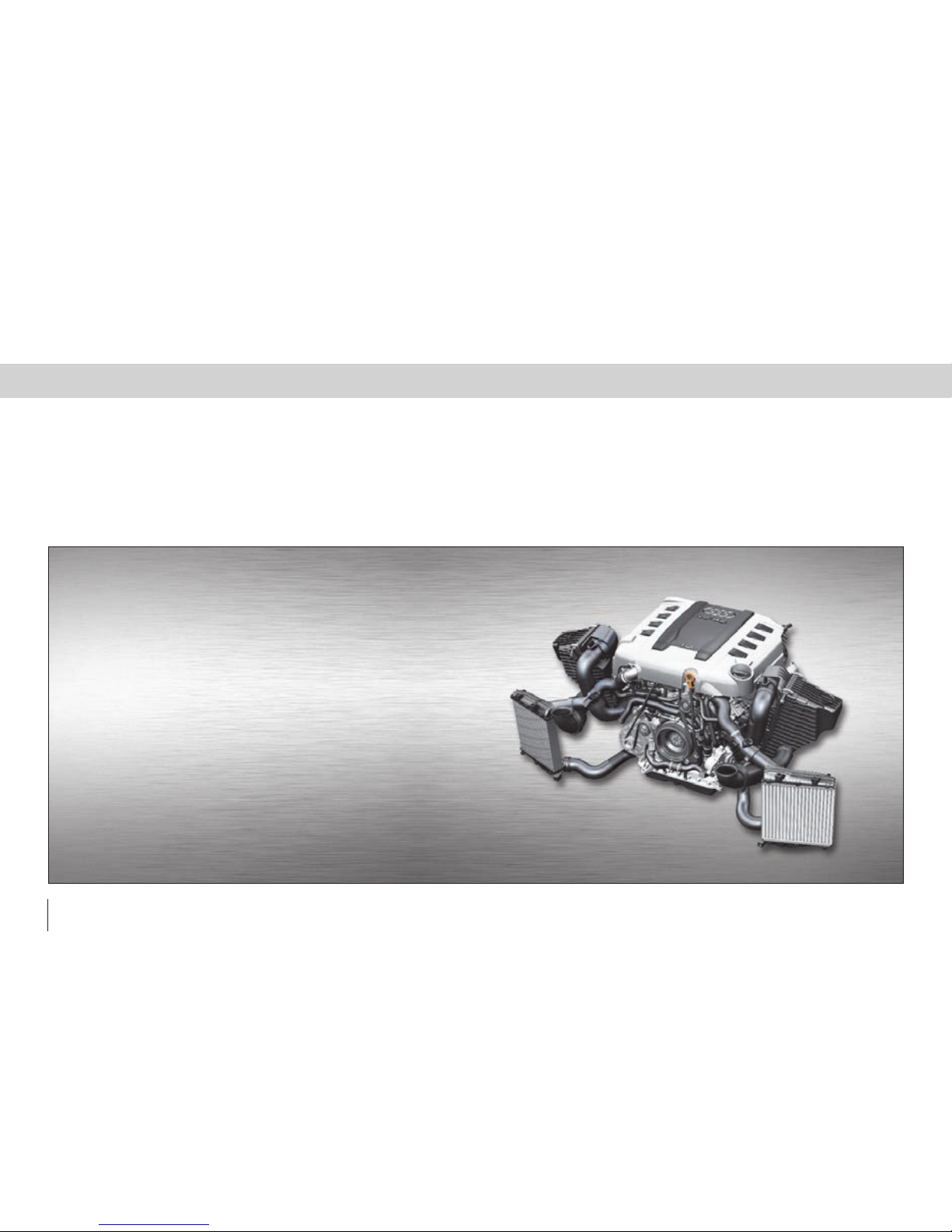

V6 3.0 TDI and V8 4.2 TDI

All diesel engines from Audi are known as TDI. This impressive technology was originally

pioneered by Audi in 1989, marking a departure from the noisy, fuel-thirsty diesel engines of the

past. ike its FSI petrol counterpart, the TDI diesel engine is designed for power and performance,

with low fuel consumption and CO2emissions. All Audi Q7 TDI engines are based on the common

rail system. Here, fuel is stored and kept at constant pressures of up to 600 bar, ready to feed a

series of highly-accurate piezo injectors, which control the rate and point of injection.

Petrol Diesel

Engin s

3.0 TDI cl an di s l

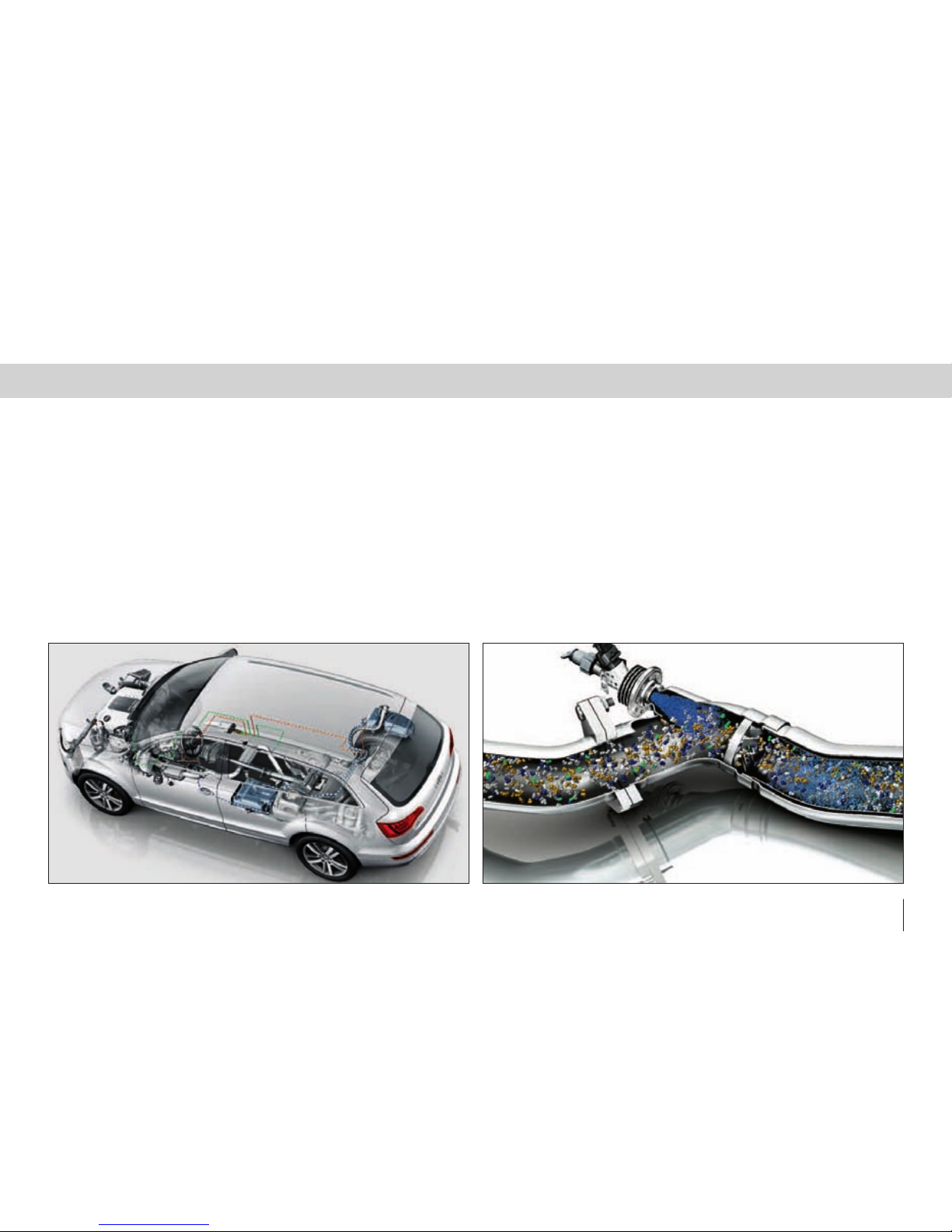

Clean and diesel. The two words may not sound like natural partners, but our advances over the

years have made it possible. The 3.0 TDI engine available in the Audi Q7 features two new

technologies – a DeNOx catalytic converter and AdBlue®tank – which help to make it one of the

cleanest-running diesel cars available today.

The AdBlue®tank contains a biodegradable additive which is injected in tiny doses upstream of

the DeNOx catalytic converter, where it breaks down harmful nitrogen oxides into plain nitrogen

and water. This cuts nitrogen oxide emissions by up to 90 percent, meaning that the Audi Q7 3.0

TDI clean diesel quattro®already complies with the EU 6 emissions standard planned for 2014.

Transmission

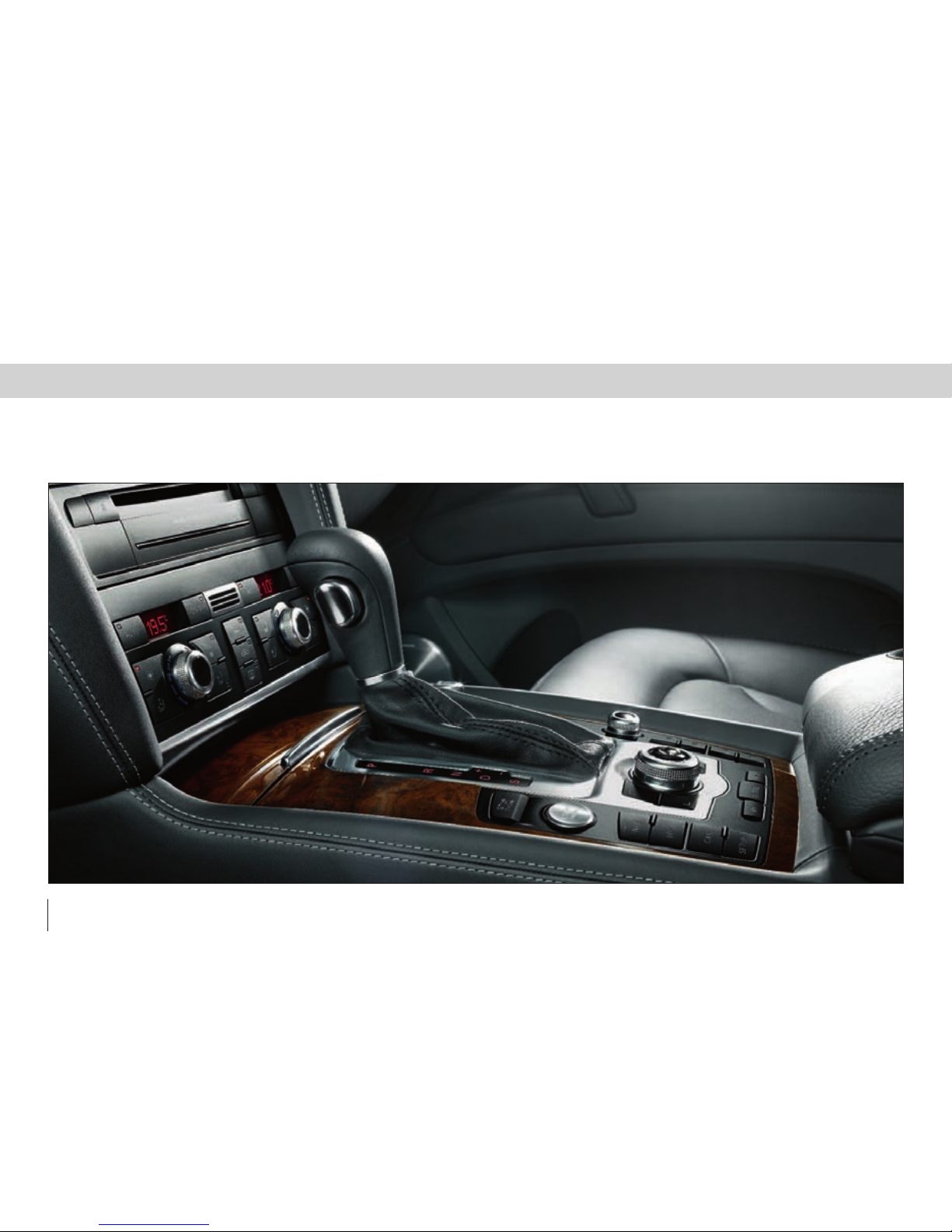

The 6-speed tiptronic transmission system is a form of automatic transmission standard on all

Audi Q7 models. The technology incorporates DSP – or the Dynamic Shift Programme which aligns

and converts the engine’s high power and torque into both sporty performance and operating

convenience, with crisp, fast gear changes, reduced weight and optimised gearshifting.

In the ‘D’ (Drive) and ‘S’ (Sport) programme, the advanced electronics used in tiptronic

respond efficiently to every driver input, helping to prevent unwanted gear-changes.

The driver can override automatic mode by moving the gear lever into a tiptronic shift-gate,

enabling spontaneous gear-changing for a sportier driving style.

tiptronic

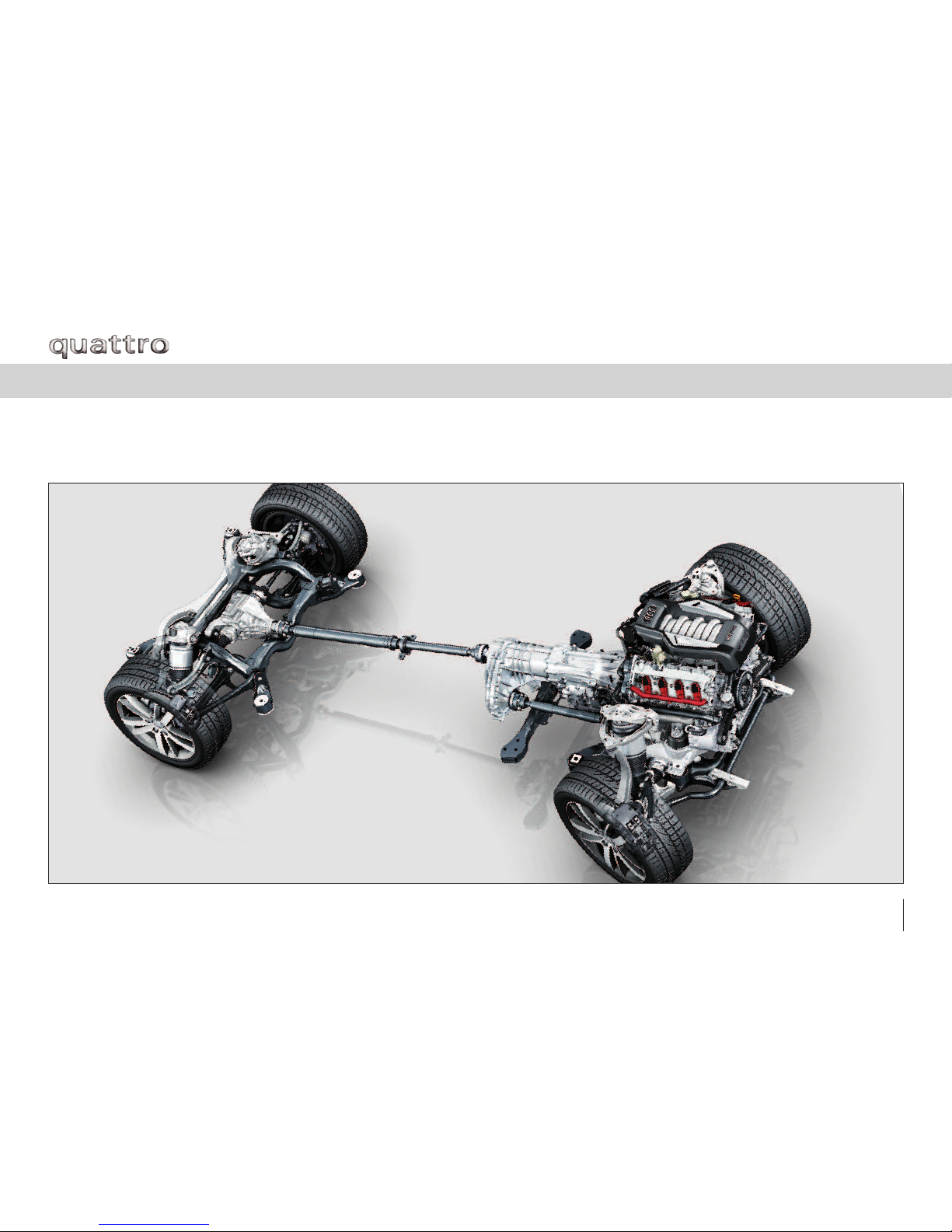

Permanent all-wheel-drive

It’s the technology that has given Audi the edge on the racetrack ever since it was first introduced

over 25 years ago – a technology that delivers ultimate control whilst enhancing the sporty

characteristics which make the Audi Q7 so thrilling to drive. It’s called quattro®permanent

all-wheel-drive. The principle is simple: in the same way that four brakes ensure better

deceleration, four permanently-driven wheels deliver better acceleration and road-holding,

pushing or pulling

the car as needed, for a driving experience that’s both dynamic and safe. In the Audi Q7,

asymmetric-dynamic torque distribution continuously distributes drive power between the

front and the rear axles depending on weather conditions, road surface and gradient, which

increases flexibility for an enhanced, sportier drive.

Wh ls, tyr s and susp nsion

18 x 8J ‘6-arm’ design alloy wheels with 225/55 R18 Y tyres

Adaptive air suspension – electronically controlled

air suspension with continuously adaptive damping

system for all four wheels which regulates ride height

and damping automatically. Choice of 5 modes

(automatic, comfort, dynamic, off-road and lift) selected

via the MMI system

ocking wheel-bolts

quattro®permanent all-wheel-drive with

asymmetric-dynamic torque distribution

Audio and communication

MMI with 8 loudspeakers, monochrome display in dashboard

and 4 function keys

Radio/CD player in front instrument panel

S ats

7 seats (3 rows of seats) – second and third row can be

split and folded flat to form a level load-area

Cosmo cloth upholstery

Saf ty and s curity

Anti-theft alarm (Thatcham Category 1 approved)

Anti-lock Braking System (ABS) and Electronic Brake-force

Distribution (EBD)

Door exit lights at the front

Door lock switches on all 4 doors

Electronic Differential ock (ED )

Electronic Stability Program (ESP) with extended on-

and off-road functions and Trailer Stabilisation system

First-aid kit

All Audi Q7 models have the following items of Standard e uipment:

Standard mod l quipm nt

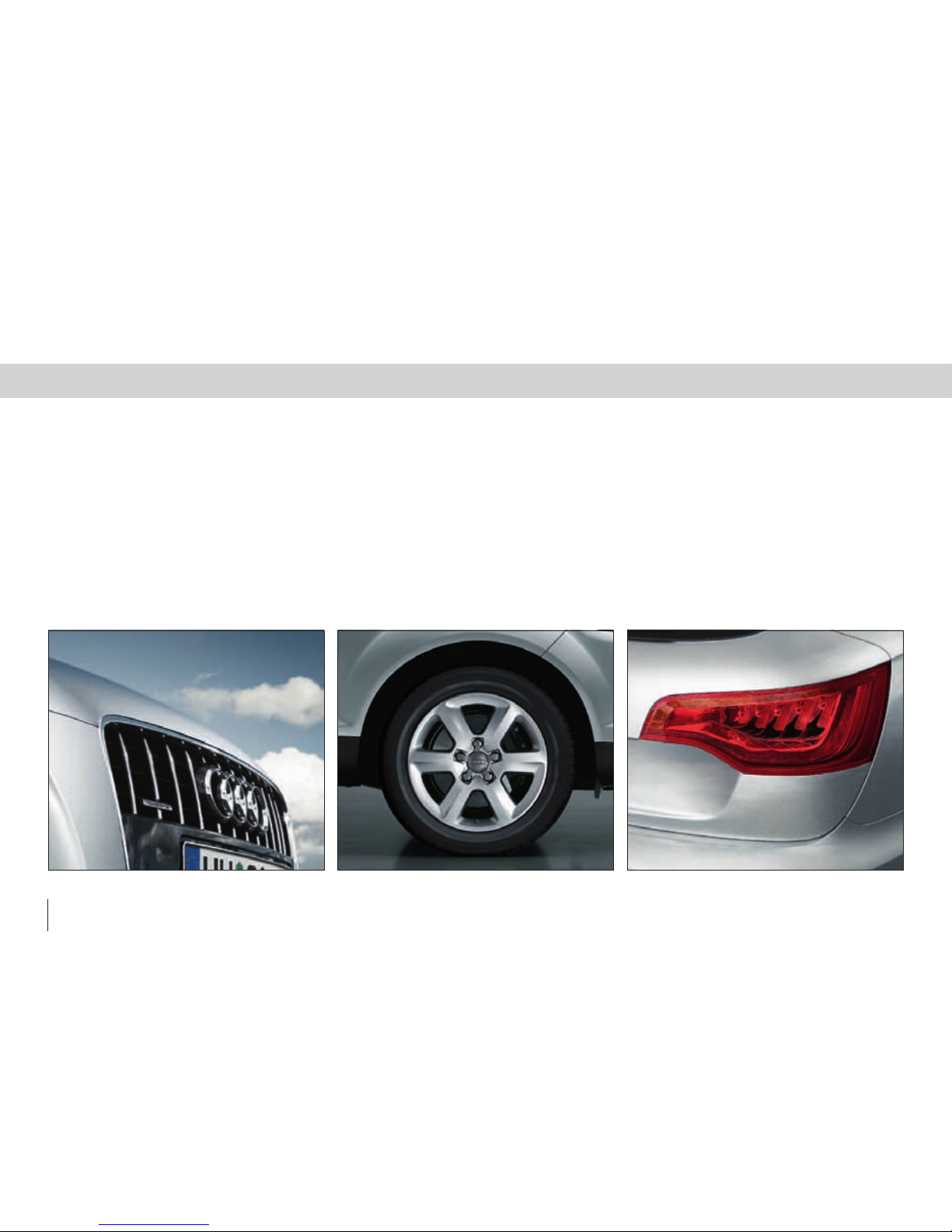

Chrome grille 18 x 8J ‘6-arm’ design alloy wheels Rear ED lights

ISOFIX – front passenger, 2nd and 3rd row seats with front

passenger airbag de-activation switch

Parking brake – foot operated

Rear acoustic parking

Service key which automatically memorises individual

vehicle settings and service information

Side airbags for driver and front passenger

Side-impact protection in the doors

Sideguard head airbag system to protect front

and outer rear passengers in a side collision

Tool kit and car jack

Warning triangle

Int rior quipm nt

4-spoke multi-function leather steering wheel

6-speed automatic tiptronic transmission with Dynamic Shift

Program (DSP)

12V sockets, 1 at front of centre console, 2 at rear of centre

console and 1 in luggage compartment

Automatic climate control with separate driver and front

passenger controls

Auto-dimming rear-view mirror

Cargo nets on backs of front seats

Collapsible spare wheel (with compressor) –

max. speed 50mph

Compartment for glasses in roof module

Cruise control

Cup holders – 2 at front of centre console, 2 in rear

armrest and 2 in side trim of third seating row

Double load-floor with storage compartment

and dirt-resistant tray

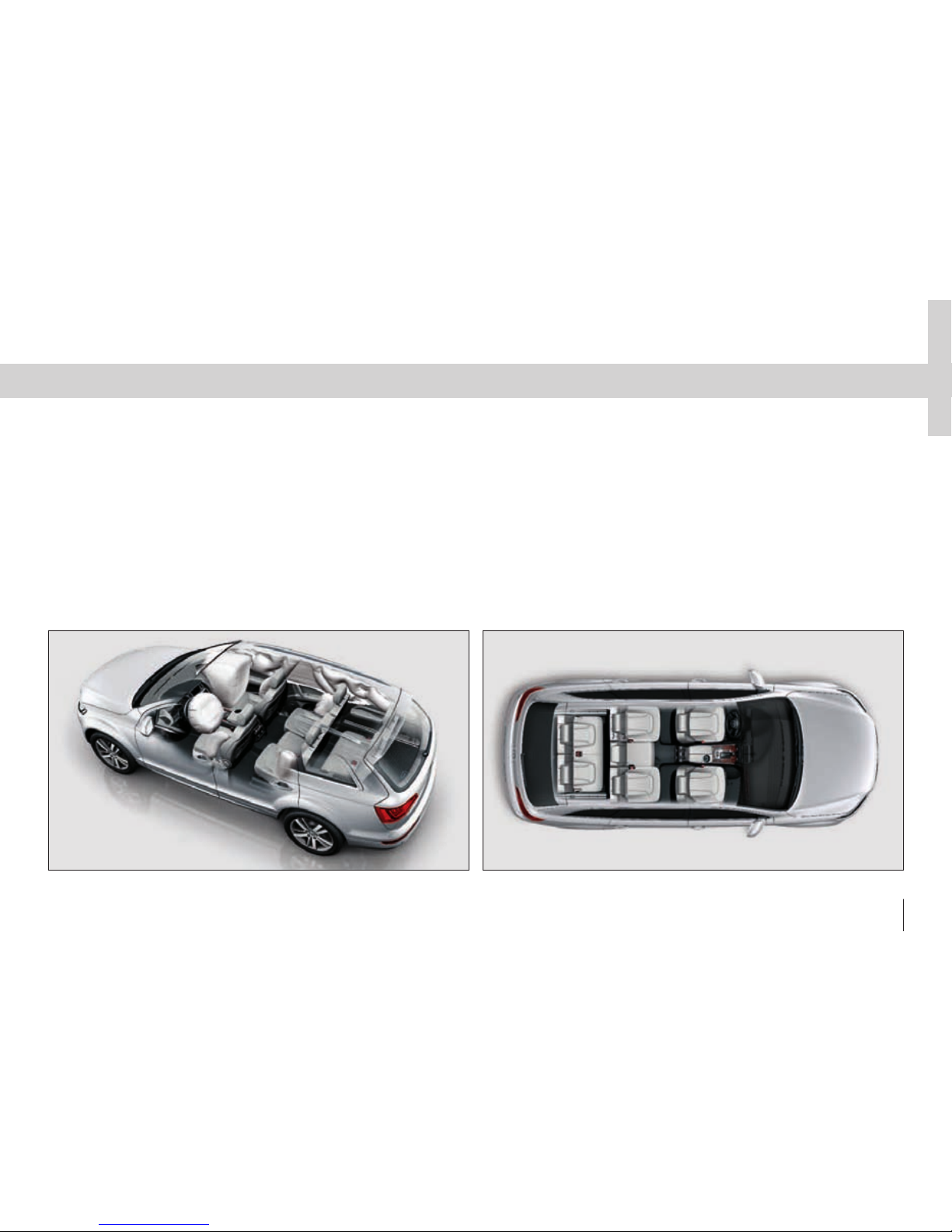

Airbags 7-seats

Model details and prices
