AudioBahn AW1008T Manuale utente

Theile / Small Parameters

7

Model # AW1008T AW1208T AW1508T

Fs 35.1 Hz 28.9 Hz 28.4 Hz

Qts 0.43 0.31 0.32

Qes 0.49 0.36 0.36

Qms 3.3 2.16 2.95

Vas (Liters) 12 Liters 33 Liters 88 Liters

Vas(Cu.Ft.) 0.4Cu.Ft. 1.2Cu.Ft. 3.1Cu.Ft.

Re 1.85 ohms 1.85 ohms 1.90 ohms

Le 1.4mH 1.55mH 2.45mH

Mmd 240 Grams 239 grams 272 grams

Xmax +/-20 mm +/-20 mm +/-20 mm

RMS 1000 watts 1500 Watts 2000 watts

Sd 0.031 M2 0.044 M2 0.075 M2

Freq. Resp. 22Hz-500Hz 20Hz-500Hz 18Hz-500Hz

Efficiency 90 dB 91 dB 89 dB

EBP 72 80 79

Depth 6 1/4" 7" 8 1/4"

Hole 9 1/4" 11 1/8" 14"

Diamater 10 7/8" 12 3/4" 15 1/2"

Displacement 0.22 Cu. Ft. 0.27 Cu.Ft. 0.47 Cu.Ft.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

Dimensions

Audiobahn Woofer Parameters

Vas does not represent the volume of a Box. Vas is just a parameter used when calculating a box.

Box Parameters

8

Model # AW1008T AW1208T AW1508T

Ported

Air Space (Cu. Ft.) 0.625 1.3 1.6

Port Size (Inches) 2 x 6.75 3 x 6.75 4 x 10

Port Vel. (%) 56.94 39.98 34.96

-3dB (Hz) 34 35 38.5

Tune Freq. (Hz) 40 40 40

Sub Disp. (Cu. Ft.) 0.22 0.27 0.47

Port Disp.(Cu. Ft.) 0.01 0.024 0.067

TotalVol.(Cu.Ft.) 0.75 1.5 2

Ported

Air Space (Cu. Ft.) 1.35 2.3 2.65

Port Size (Inches) 3 x 7.25 4 x 7.25 (2) 3 x 8

Port Vel. (%) 27.8 22.61 29.01

-3dB (Hz) 31.5 32.5 33.5

Tune Freq. (Hz) 38 38 37

Sub Disp. (Cu. Ft.) 0.22 0.27 0.47

Port Disp.(Cu. Ft.) 0.027 0.047 0.053

TotalVol.(Cu.Ft.) 1.5 2.5 3

Ported

Air Space (Cu. Ft.) 2.35 3.15 3.55

Port Size (Inches) 4 x 8 (2) 4 x 13 (2) 4 x 11.25

Port Vel. (%) 15.68 10.82 15.91

-3dB (Hz) 30 30 30

Tune Freq. (Hz) 36 35 35

Sub Disp. (Cu. Ft.) 0.22 0.27 0.47

Port Disp.(Cu. Ft.) 0.053 0.181 0.153

TotalVol.(Cu.Ft.) 2.5 3.5 4

EBP 50 80 52

Model #

Sealed NR NR NR

Minimum (Cu. Ft.) 0.5 0.5 0.75

Maximum (Cu. Ft.) 1 1.25 1.5

SPL (dB) 82.2 85.5 89.4

All sealed boxes already include the displacment for the subwoofer. NR = (Not Recommended)

Remember to build your box to the total volume, not just air space, as total volume includes all displacement.

Audiobahn Box Specifications

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

The larger a sealed box is, the lower the sub will play, but the less power it will handle. The smaller a sealed box is,

the higher the frequency the sub will play, and the more power it will handle.

All ports listed are circle ports unless otherwise stated. Surface area of a circle port = (3.14) X (radius) (squared)

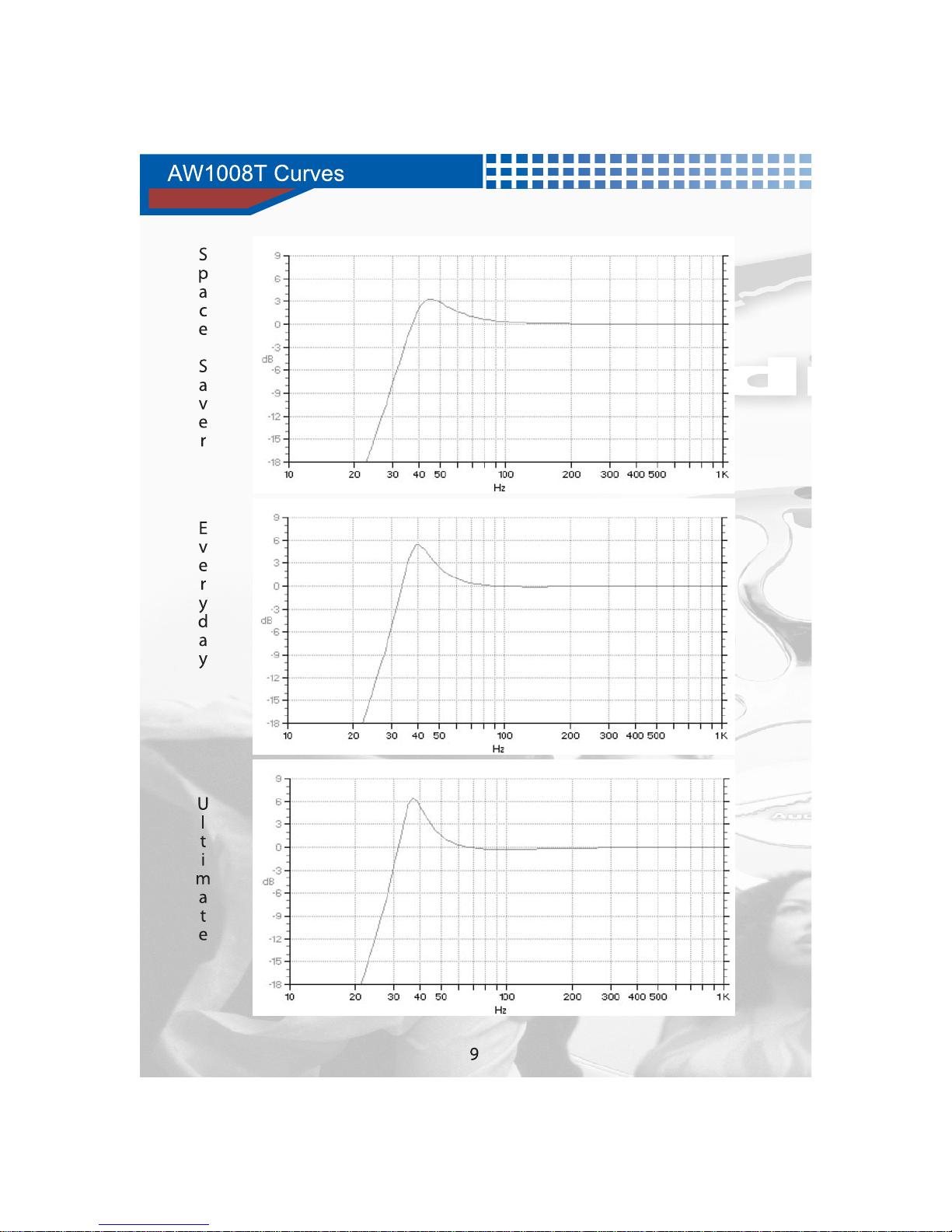

Ultimate SPL Bass Box

(not designed for competition use)

Everyday Bass Performer

Space Saver Bass Design

A port velocity of 20% or under is good for everday use and 5% or under for SPL competition . Port velocity

translates to port noise, so the lower the number, the less port noise you will incur.
