AudioSource AS515 Manuale utente

AS8C Q u a n t i t y: pa i r

IN-CEILING 2-WAY

AS6C Q u a n t i t y: pa i r

IN-CEILING 2-WAY

AS5C Q u a n t i t y: pa i r

IN-CEILING 2-WAY

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 60Hz - 20kHz +/-3dB

Sensitivity 2.83V/1m: 88dB

Cut-Out Diameter: 7 3/4" (197mm)

Mounting Depth: 2 7/8" (73mm)

FEATURES

6.5" Polypropylene Woofer

25mm Silk Dome Swivel Tweeter

Butyl Rubber Surround

Dog-Leg Mounting System

Spray Paintable Frame & Grill

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 40Hz - 20kHz +/-3dB

Sensitivity 2.83V/1m: 88dB

Cut-Out Diameter: 9 5/8" (236 mm)

Mounting Depth: 3 5/8" (92mm)

FEATURES

8" Polypropylene Woofer

25mm Silk Dome Swivel Tweeter

Butyl Rubber Surround

Dog-Leg Mounting System

Spray Paintable Frame & Grill

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 70Hz - 22kHz +/-3dB

Sensitivity 2.83V/1m: 87dB

Cut-Out Diameter: 6 5/8" (203mm)

Mounting Depth: 2 3/4" (70mm)

FEATURES

5.25" Polypropylene Woofer

25mm Silk Dome Swivel Tweeter

Butyl Rubber Surround

Dog-Leg Mounting System

Spray Paintable Frame & Grill

speakers

AS7C Quantity: one

IN-CEILING SUMMED STEREO

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 45Hz - 20kHz +/-3dB

Sensitivity 2.83V/1m: 88dB

Cut-Out Diameter: 7 3/4" (197mm)

Mounting Depth: 2 7/8" (73mm)

FEATURES

6.5" Polypropylene Woofer with Dual Voice Coils

Dual 19mm Balanced Drive Tweeters

Butyl Rubber Surround

Dog-Leg Mounting System

Spray Paintable Frame & Grill

WITH GRILL

speakers

ASLCR6C Quantity: one

IN-CEILING 2-WAY 6.5 LCR

SPECIFICATIONS

Power Handling: 25 - 150 Watts

Impedance: 8

Frequency Response: 55Hz - 18kHz +/- 3dB

Sensitivity 2.83V/1m: 91dB

Cut-Out Diameter: 8 1/8" (206mm)

Mounting Depth: 5" (127mm)

FEATURES

6.5" Polypropylene Woofer

25mm Silk Dome Swivel Tweeter

15 Degree Speaker Inclination

Butyl Rubber Surround

Dog-Leg Mounting System

Spray Paintable Frame & Grill

Left, Center, Right Application WITH GRILL

Phoenix Gold Speaker Selector

IH DSSM6

Phoenix Gold Volume Control

VMT100W

Phoenix Gold has a complete line of speaker

selectors, wall plate controls and cabling to

complement the AudioSource product line.

Ask your sales representative for details.

PHOENIX GOLD ACCESSORIES

speakers

AS5S Q u a n t i t y: pa i r

IN-WALL 2-WAY

AS6S Q u a n t i t y: pa i r

IN-WALL 2-WAY

AS8S Q u a n t i t y: pa i r

IN-WALL 3-WAY

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 70Hz - 22kHz +/-3dB

Sensitivity 2.83V/1m: 87dB

Cut-Out Dimension: 6 1/8 x 9 5/8" (155 x 143mm)

Mounting Depth: 2 1/2" (63mm)

FEATURES

5.25" Polypropylene Woofer

25mm Silk Dome Swivel Tweeter

Butyl Rubber Surround

Dog-Leg Mounting System

Spray Paintable Frame & Grill

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 50Hz - 20kHz +/-3dB

Sensitivity 2.83V/1m: 87dB

Cut-Out Dimension: 7 5/16 x 10 11/16" (186 x 276mm)

Mounting Depth: 3 1/8" (79mm)

FEATURES

6.5" Polypropylene Woofer

25mm Silk Dome Swivel Tweeter

Butyl Rubber Surround

Dog-Leg Mounting System

Spray Paintable Frame & Grill

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 40Hz - 20kHz +/-3dB

Sensitivity 2.83V/1m: 90dB

Cut-Out Dimension: 8 3/4 x 12 3/4" (222 x 324mm)

Mounting Depth: 3 5/8" (92mm)

FEATURES

8" Polypropylene Woofer

50mm Pole Mounted Midrange

25mm Silk Dome Swivel Tweeter

Butyl Rubber Surround

Dog-Leg Mounting System

Spray Paintable Frame & Grill

speakers

SPECIFICATIONS

Power Handling: 25 - 150 Watts

Impedance: 8

Frequency Response: 60Hz - 20kHz +/-3dB

Sensitivity 2.83V/1m: 90dB

Cut-Out Dimension: 13 15/16 x 6 7/8"

(354 x 175mm)

Mounting Depth: 3 1/2" (89mm)

FEATURES

Dual 5.25" Polypropylene Woofers

25mm Silk Dome Swivel Tweeter

Mid-Tweeter-Mid Configuration (MTM)

Butyl Rubber Surround

Dog-Leg Mounting System

Integrated Rear Dust Shield

Spray Paintable Frame & Grill

Left, Center, Right Application

WITH GRILL

IN-WALL 2-WAY LCR AS515 Quantity: one

OPTIMAL CEILING SPEAKER PLACEMENT

Place your ceiling speaker along the longest

centerline of the room for best sound results.

They should be located between 1/6 and

1/3 of the length of the ceiling in from the

end. The closer the speakers are placed

to the side wall, the better the low

frequency (bass) response.

OPTIMAL IN-WALL SPEAKER PLACEMENT

To attain highest in-wall speaker fidelity, place

your speakers on the long wall of the room

between 1/8 and 1/4 of the length of the

wall in from the end. The closer the speakers

are to the side wall, the better the low

frequency (bass) response.

speakers

LS52W Q u a n t i t y: pa i r

INDOOR/OUTDOOR 2-WAY

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 85Hz - 20kHz +/-3dB

Sensitivity 2.83V/1m: 89dB

Weight: 4.2lbs (1.9 kg)

Dimensions: 6 3/4 x 9 1/2 x 6 3/8" (170 x 240 x 160mm)

FEATURES

5.25" Polypropylene Woofer

1" Silk Dome Tweeter

Weather Resistant Speaker System

Butyl Rubber Surround

CAD/CAE Designed, Phase Compensated Crossover

Mounting Brackets and Hardware Included

Rustproof Alumninum Grill

LS42W Q u a n t i t y: pa i r

INDOOR/OUTDOOR 2-WAY

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 100Hz - 20kHz +/-3dB

Sensitivity 2.83V/1m: 85dB

Weight: 2.2lbs (1 kg)

Dimensions: 5 11/16 x 8 x 5" (145 x 203 x 127mm)

FEATURES

4" Polypropylene Woofer

1" Silk Dome Tweeter

Weather Resistant Speaker System

Butyl Rubber Surround

CAD/CAE Designed, Phase Compensated Crossover

Mounting Brackets and Hardware Included

Rustproof Alumninum Grill

LS62W Q u a n t i t y: pa i r

INDOOR/OUTDOOR 2-WAY

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 65Hz - 20kHz +/-3dB

Sensitivity 2.83V/1m: 87.5dB

Weight: 5.5lbs (2.3 kg)

Dimensions: 8 x 11 x 7 1/4" (203 x 280 x 184mm)

FEATURES

6.5" Polypropylene Woofer

1" Silk Dome Tweeter

Weather Resistant Speaker System

Butyl Rubber Surround

CAD/CAE Designed, Phase Compensated Crossover

Mounting Brackets and Hardware Included

Rustproof Alumninum Grill

Also Available in Black

(LS62B)

Also Available in Black

(LS52B)

Also Available in Black

(LS42B)

speakers

LS545 Q u a n t i t y: pa i r

INDOOR/OUTDOOR 2-WAY

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8

Frequency Response: 60Hz to 20kHz +/-3dB

Sensitivity 2.83V/1m: 89dB

Weight: 5.5lbs (2.3 kg)

Dimensions: 9 1/2 x 7 x 6 5/8" (241 x 178 x 169mm)

FEATURES

5.25" Polypropylene Woofer

3/4" Polycarbonate Tweeter

Weather Resistant Speaker System

Mounting Brackets and Hardware Included

White Powder Coated Microperf Grill

INDOOR/OUTDOOR

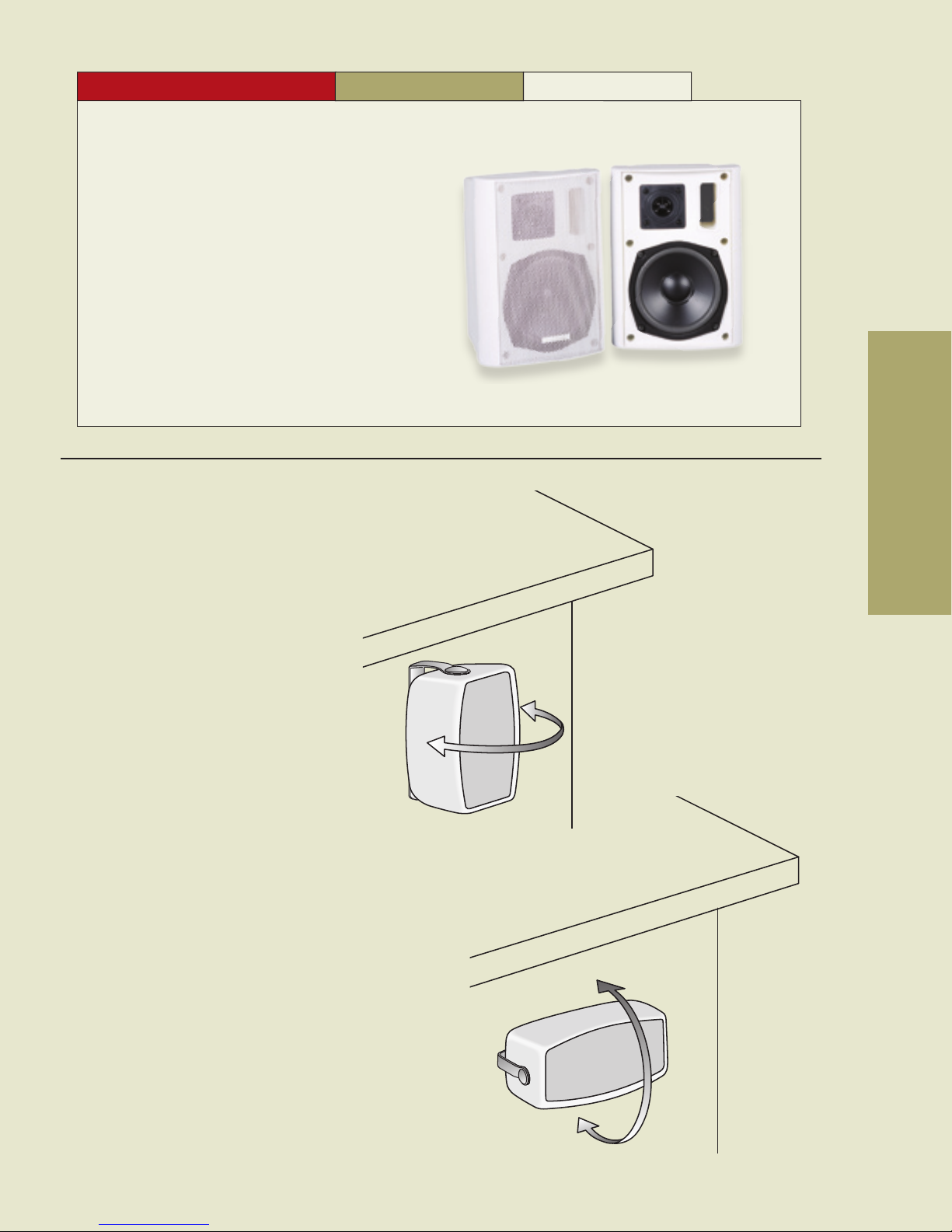

SPEAKER PLACEMENT

Like all speakers, the LS series

of Indoor/Outdoor speakers sound

best when placed in the line of

sight of the listener, with no

obstructions. They can be

mounted vertically or horizontally

and will pivot 180˚.

The LS series of Indoor/Outdoor

speakers are manufactured to

resist a variety of weather

conditions. However, they are

not waterproof, so if you decide

to place your speakers outdoors,

position them so they are not

directly exposed to the elements.

The undersides of most eaves

and overhangs provide the

best protection.

These illustrations provide a visual

guide for optimally placing your

speakers.
