Audiovox VM9223 Manuale utente
VM9223 Quick
Reference Guide
VM9223 Multimedia Receiver
A / V
Input
SRC VOL - VOL + MUTE PIC
DVD, CD, MP3, WMA, USB and
SD Playback
Touch Screen Interface
RCA and Front Panel A/V Input
USB Connector
Composite Video Out
Remote Control
Navigation Ready (NAV102 Only)
Bluetooth Ready (Requires
BTM10)
Featuring:
Navigation operation requires NAV102
installation
Bluetooth operation requires BTM10
installation
Rear Camera operation requires rear camera
installation
VM9223 Multimedia Receiver
A / V
Input
SRC VOL - VOL + MUTE PIC
316 54 10
128
7

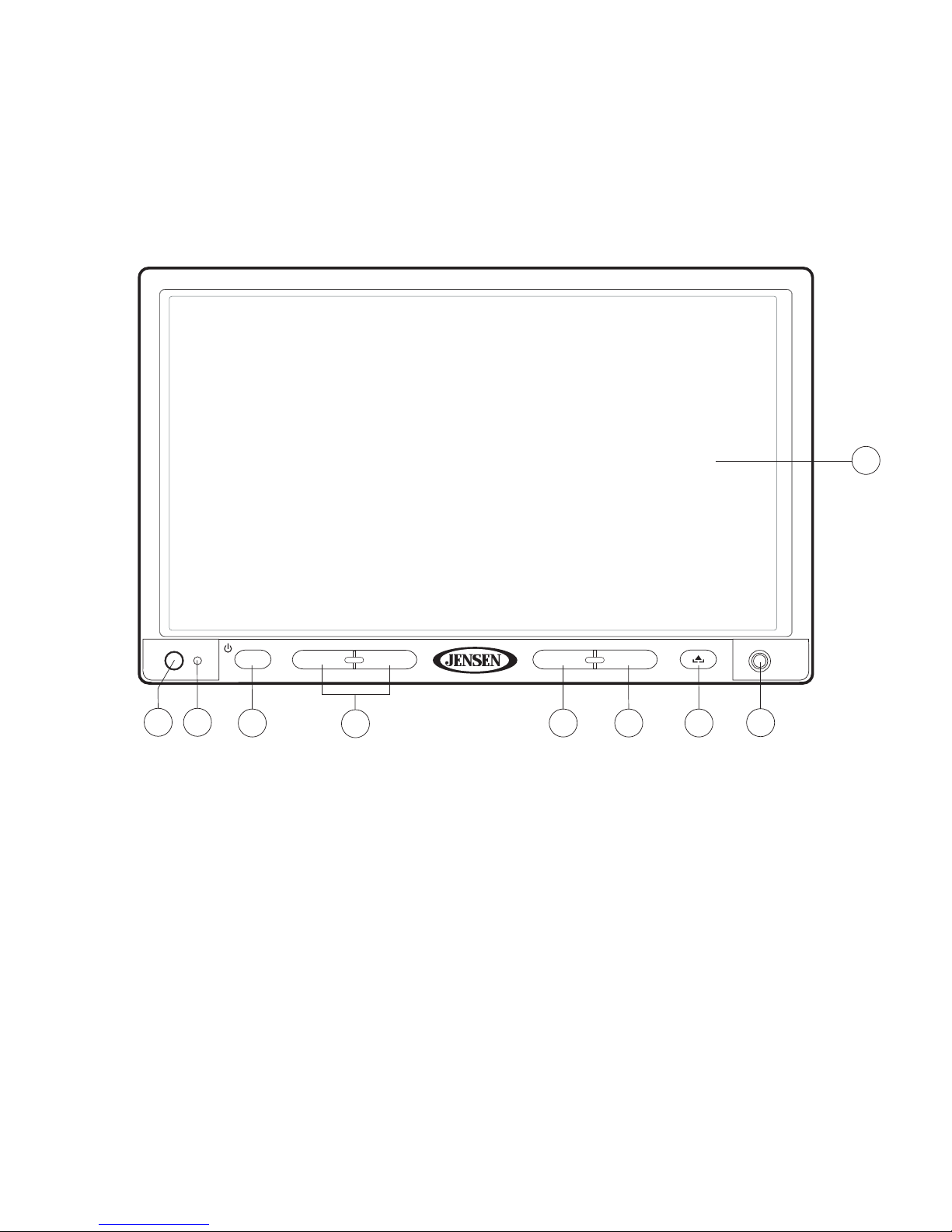

Controls and Indicators
1. Press to silence the audio. Press again to resume the previous volume level. In
radio mode, press and hold to set the LOC/DX function. In all other modes, press
and hold while the volume icon is showing to set the turn-on volume.

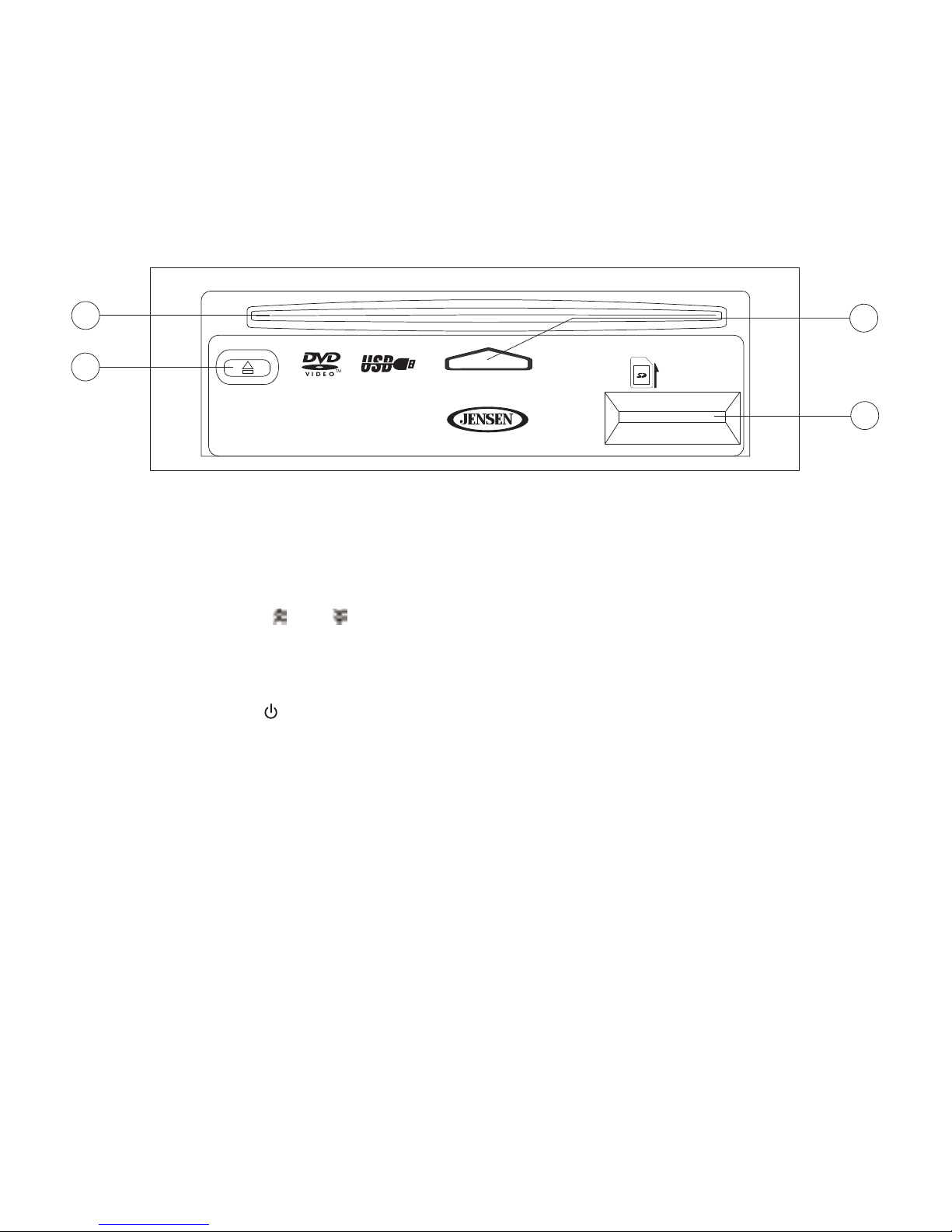

2. Insert SD card for playback of compatible multimedia files.
3. Press to adjust the Brightness and Contrast. Press the PIC button again to move
between Brightness and Contrast. Press the VOL-/VOL+ buttons to adjust the
setting for the selected option.
When the NAV102 is connected, press and hold to display the navigation user
interface.
LABEL SIDE UP
DISC IN
EJECT
9
13
11
2
4. Press to activate the automatic mechanical system and slide the TFT monitor
down to reveal the disc and SD slots. Press again to close the TFT.
Press and hold to activate the tilt function. Use the VOL -/VOL+ buttons to adjust
the angle of the screen while the yellow tilt icon is flashing. You can also adjust
the tilt using the and buttons on the remote control. Press once to adjust the
downward tilt angle of the screen one step at a time or press and hold to adjust
the angle in a continuous motion.
5. Press VOL - to decrease the volume. Press VOL+ to increase the volume.
6. Press the SRC/ button to turn the unit on. Press and hold to turn the unit off.
Press to access the SOURCE MENU.
7. TFT Monitor
8. IR Remote Control Receiver
9. Disc Indicator Light
10. Audio/Video Input
11. Press to eject disc. Press and hold to reset core mechanism position.
12. Press to reset system settings to factory default (except the password and
parental lock setting).
13. Disc Slot
Common User Settings
Audio Control Menu
Touch the EQ button on the left side of the screen to access the Audio Control Menu,
shown below.
1. Use the touchscreen, or press the (>>|)/(|<<) buttons on the remote control to
highlight the audio feature to be adjusted.
2. Touch the screen to select the highlighted option.
3. Touch the +/– buttons on the screen or press the |<<, >>|, >>, or << buttons on
the remote control to adjust the selected feature to the desired setting.
+14 — 0 —
0 — —
–14 — –14 —
EQ User FAD BAL
BASS MID TREB SUB
User
F
R
R
L
The "FAD-BAL"
portion of the
screen uses a
grid control.
Touch inside the
box to move the
cursor and
adjust the Fader
and Balance
level from Front
to Rear and Left
to Right.
NOTE
The EQ mode will automatically change to “USER” when individual
audio functions are adjusted.

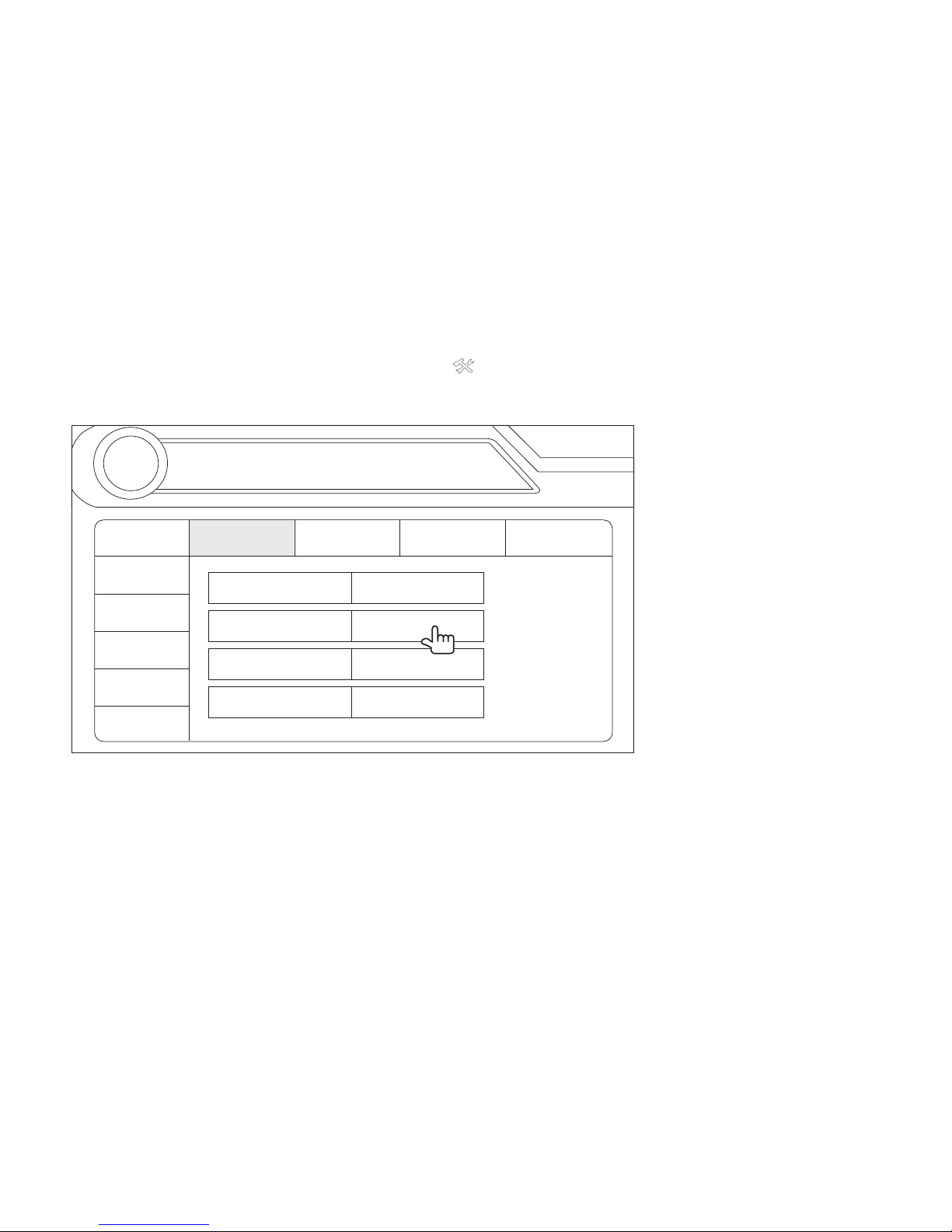

Set Clock
The clock appears in the top right corner of the screen and on the LCD screen during
certain operations.
To set the clock, you must first press the button on the screen to access the SETUP
menu.
1. Use the touch screen or directional buttons on the remote control to select the
Clock option.
2. Use the touch screen or press the >/|| button on the remote control to enter the
adjustment field.
3. Select a new value using the touch screen or >> and << buttons on the remote
control. The AM/PM indication will change as you continue to adjust the hour past
12.
4. Use the touch screen or press >/|| to confirm and exit the SETUP menu.
RADIO
SETUP
Rating
Bluetooth
Hardware
DEMO
P.VOL
TS Cal
General Language Audio Back
Clock Mode 12Hr
Clock 04 : 31 AM
Tuner Region USA
Beep On
Touch the menu titles
across the left and
top of the menu to
see highlighted sub-
menu options in the
center of the screen.
Touch the menu
option you want to
adjust and use the
touch screen to
adjust the setting.
1. Current radio band indicator
2. Radio frequency indicator
3. Clock display
4. Stereo reception indicator
5. Tuning mode indicator (local/distant)
6. Touch to recall preset stations.
7. No function in tuner mode.
8. Touch for quick access to Equalizer level settings.
9. Touch to access the Direct Entry Screen. Enter the
desired frequency and then touch the button.
You can also press GOTO on the remote control to
access the Direct Entry Screen.

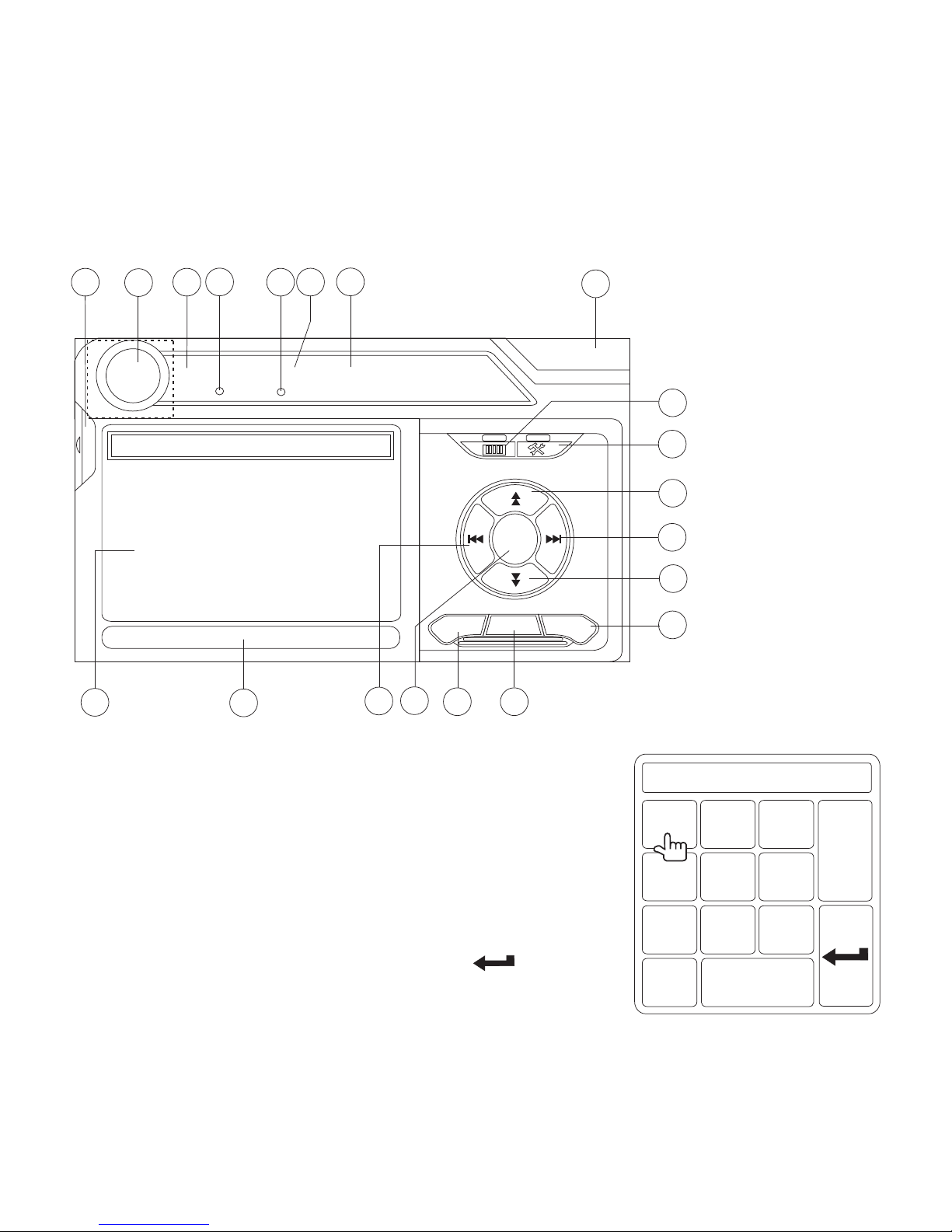

Tuner User Interface
4
110 2
5
7
83
6
17
RADIO
FM-1 P1 87.5 MHz
01:02 PM
E
Q
PS
BAND AS MEM
P1 87.5 MHz
P2 90.1 MHz
P3 98.1 MHz
P4 106.1 MHz
P5 107.9 MHz
P6 102.9 MHz
ST LOC 9
11
12
19
14
15
13
16
18
20
FM: _ _ _ . _ MHz
123
456
789
0Clear
Exit
Direct Entry Screen
10. Preset station indicator
11. |<<: Touch to seek backward.
12. >>|: Touch to seek forward.
13. <<: Touch to tune backward one step.
14. >>: Touch to tune forward one step.
15. BAND: Touch to change bands (FM1, FM2, FM3, AM1,
and AM2).
16. AS: Touch to automatically store stations for the current
band.
17. Touch to view the SOURCE MENU and select a new
playback source. You can also change the source by
pressing the SRC button on the control panel or remote
control.
18. MEM: View screen used to enter current channel into
preset memory. Touch P1 - P6 to store or Exit to leave
the screen.
19. PS (Preview Scan): Touch to scan all stations available,
stopping for 5 seconds at each and continuing until a station is selected.
20. View SETUP menu.
Preset: _
E x i t
P1 P2 P3
P4 P5 P6

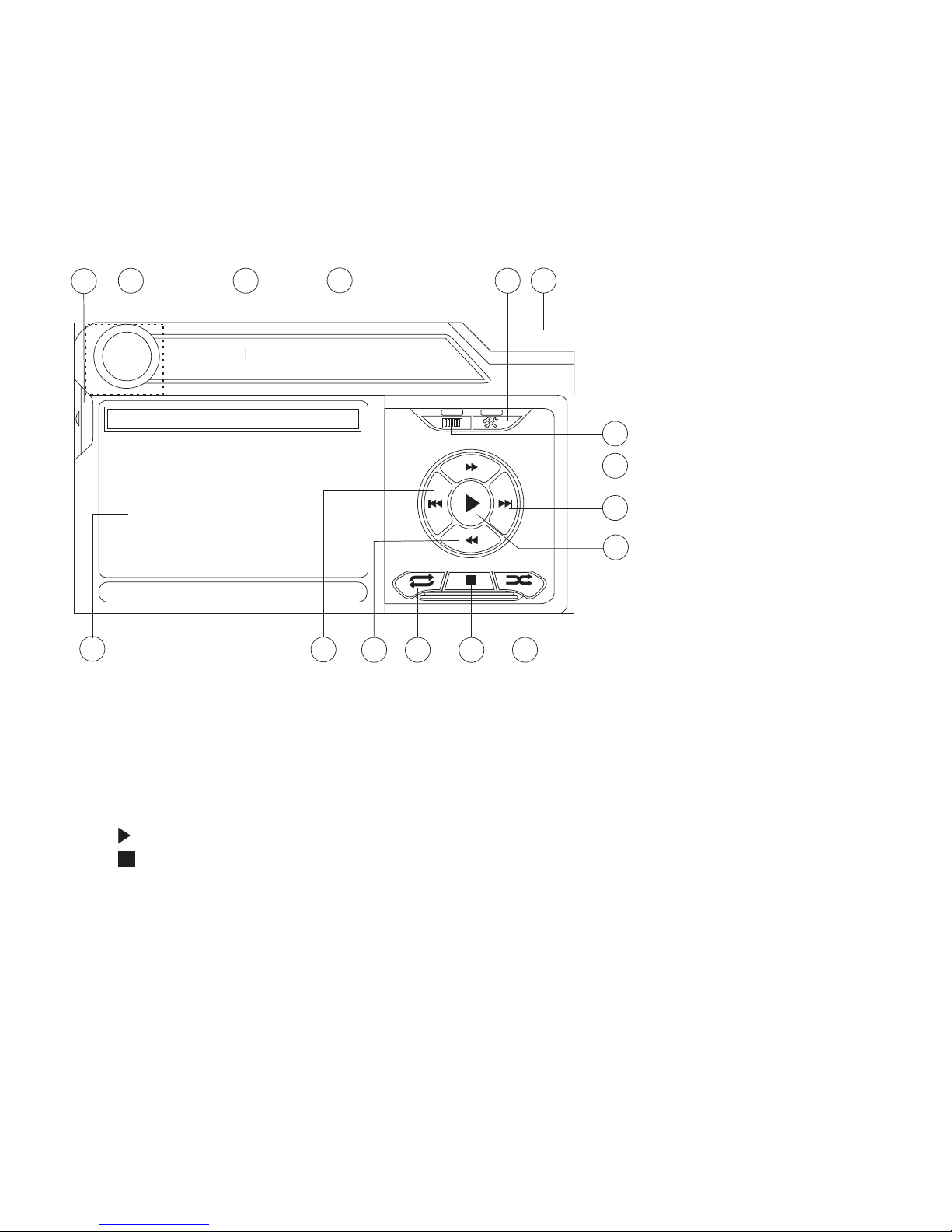

CD/DVD Audio Operation
1. Current track and total number of tracks on disc
2. Elapsed playing time
3. Current time
4. Track titles (if available on disc)
5. Touch to view the SOURCE MENU and select a new playback source
6. /||: Touch to play/pause disc playback
7. : Touch to stop disc playback
8. >>|: Touch to move to next track
9. |<<: Touch to move to previous track
10. >>: Touch to fast forward current track
11. <<: Touch to rewind current track
12. Touch to activate/deactivate Repeat play mode
15
1
7
2
13
16
12
3
5
DISC
CDDA 1/10 00:00:23
01:02
E
Q
Track 1
Track 2
Track 3
Track 4
Track 5
Track 6
14
4911
10
8
6
The VM9223 will play
music or other audio
files from the following
disc media:
CD-DA
CD-R/RW
DVD
DVD+R/RW
DVD-R/RW
CD-R and CD-RW will
not play unless the
recording session is
finalized.
