Audiovox VOD702 Manuale utente

VOD705

ELECTRONICS CORP .

VOD702

DVD PLAYER

WITH

DROP-DOWN

VIDEO TV/

MONITOR

128-6694

POWER

PLAY

STOP

FMM

PREV NEXT

SOURCE

SELECT


SELECT

VOLUME

HEADPHONES

AUX

DOWN

-2-

Important Notice

It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a screen that is located

in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the

driver while operating the vehicle. In the interest of safety, the VOD702 should never be installed where it will be

visible, directly or indirectly, by the operator of the motor vehicle.

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe the

screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the lowest position.

Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome

lights, if left on, can drain the vehicle’s battery.

Do not put pressure on the screen.

Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.

Television Reception

This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television

reception in a moving vehicle will be limited and in some areas will not be possible due to weak and variable signal

strength. Television viewing in a stationary vehicle will result in an improvement, but may still be marginal due to

signal strength. The quality of the picture will not be consistent with home TV reception. Reception may be affected

by weather and distance from TV station. A weak signal may cause the picture to roll, be snowy, or cause some

color loss.

-3-

Congratulations on your purchase of the Audiovox

VOD702 DVD Player with Drop-Down Video TV/

Monitor. The VOD702 has been designed to give you

and your family many years of video entertainment in

the mobile environment. Please read the directions

that follow to familiarize yourself with the product and

to ensure that you obtain the best results from your

equipment.

Please note: Installation options vary, see the

individual owner’s manuals for each component in

your system to obtain a full understanding of each

component’s operation.

Safety Precaution

For safety reasons, when changing video media it is

recommended that the vehicle is not in motion, and

that you do not allow children to unfasten seat-belts

to change video media or make any adjustments to

the system. System adjustments can be

accomplished using the remote control unit, while

seat-belts remain fastened. Enjoy your Audiovox

entertainment system but remember-safety of all

passengers remains the number one priority.

Features

•7 Inch TFT (Thin Film Transistor) Active Matrix

LCD (Liquid Crystal Display) Monitor

•OSD (On Screen Display) for Control of Picture

Quality and Functions

• Built-in TV Tuner

•Full Function Remote Control

•Six Frequency FM Modulator with remote

control and OSD

•Dual Channel Infrared Transmitter for IR

Wireless Headphones (Satellite Radio Ready)

•Two Audio/Video Inputs

•Headphone / Speaker Amplifier

•Two Headphone Jacks

•Forward and Side Remote Sensor

•Dome Lights with Switch

•Backlit Controls for Low Light Operation

•Last Position for DVD

-4-

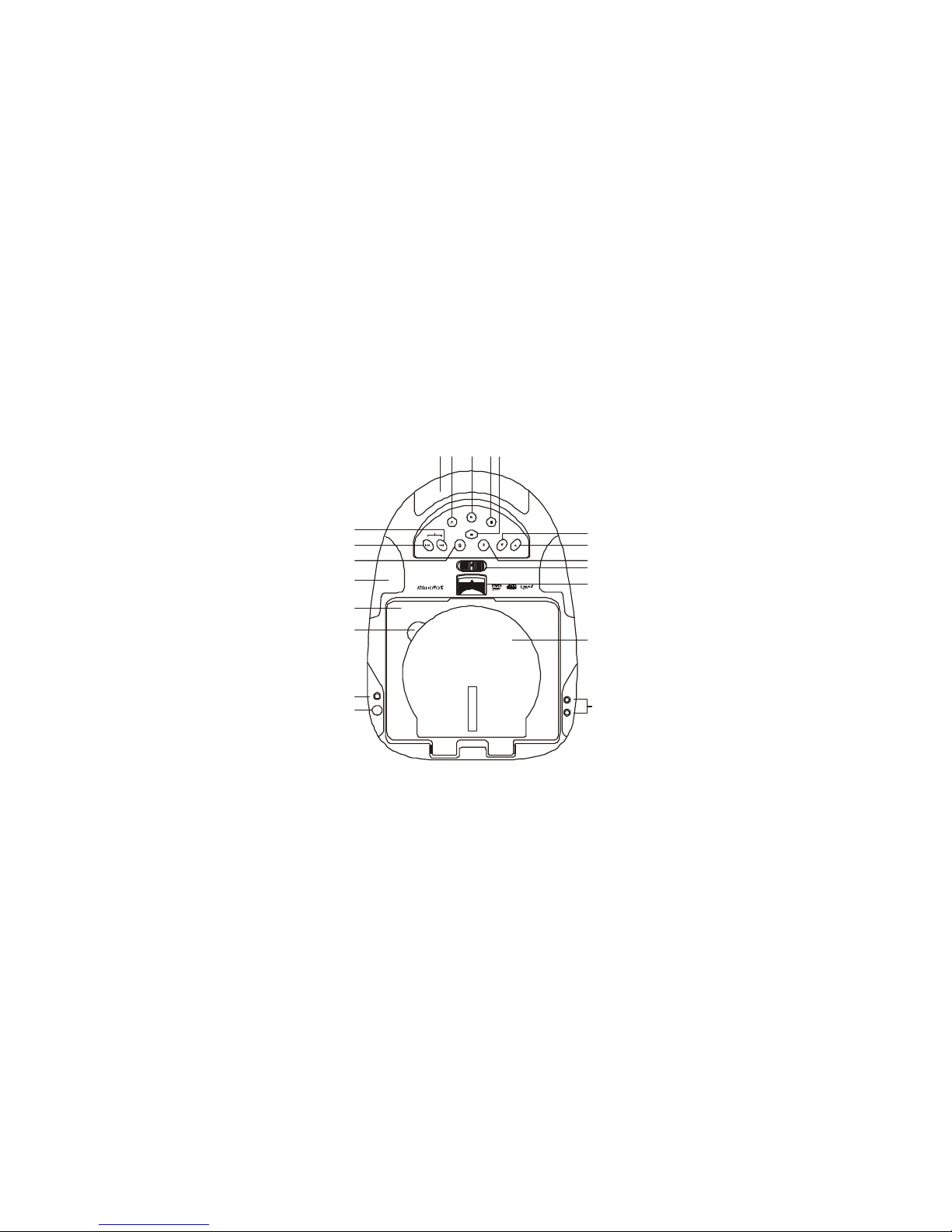

Controls and Indicators Diagram

NOTE : Screen Mode

Button Located on inside

with screen in the closed

position.

15,16,17

18 19

POWER

PLAY

STOP

FMM

PREV NEXT

SOURCE

SELECT


SELECT

VOLUME

ADP

AUX

DOWN

-5-

Main Function Descriptions

1. Infrared Transmitter and Sensor – Use to transmit audio

to wireless headphones. Also allows the remote control to

operate the VOD702 and to control other accessories in the

system.

2. POWER Button – Bright red when system is on dim when

off.

3. PLAY Button – This button is used to enter the play mode .

4. STOP Button.

5. FMM Button – FM Modulator On/Off.

6. VOLUME UP Button – Use this button to raise the volume

level of the headphone jacks. It is also used to make picture

adjustments in picture select mode.

7. VOLUME DOWN Button – Use this button to decrease the

volume level of the headphone jacks. It is also used to

make picture adjustments in picture select mode.

Note : These buttons will not affect the volume of wireless

headphones or the wired RF modulator. When using these

devices the volume must be adjusted with the wireless

headphone volume control or with your radio’s volume control

(see page 15, Wireless Headphones, or page 16, Wired FM

Modulator).

8. PICTURE SELECT Button – Each time this button is

pressed, the on screen picture adjustment display cycles

through “adjustment bars” for BRIGHTNESS, CONTRAST,

COLOR and TINT. Once the desired adjustment bar is

displayed, use the VOLUME UP/DOWN buttons to adjust

the setting. The display will automatically turn off if no

adjustments are made within 6 seconds, or if any other button

is depressed.

9. NEXT Button – Allows the user to advances to the next

chapter, track or scene during playback.

CHANNEL UP Button – Use this button to increase the

channel number to the desired number. Note : When TV

function is selected.

10. PREV Button – Allows the user to goes back to the preceding

chapter, track or scene during playback.

CHANNEL DOWN Button – Use this button to decrease the

channel number to the desired number. Note : When TV

function is selected.

11. SOURCE Select ( TV, AV1, AUX, DVD)

12. Dome Lights – Provide additional interior illumination.

13. Drop Down LCD Panel

-6-

14. OPEN – Opens the DVD Cover.

15. Auxiliary Audio Right Input.

16. Auxiliary Audio Left Input.

17. Auxiliary Video Input.

18.Side Remote Sensor Eye – Allows the remote control to

operate the VOD702, control volume to wired headphone

jacks and control the other accessories.

Note : Audiovox recommends the us of the Audiovox HP275

Headphones when using wired headphones.

19.Headphone Jack – Allow the use of wired headphones with

a 1/8” plug for listening to video program audio.

20.DVD Disc.

21.Screen Release – Moves in direction of the arrow to release

the drop down screen.

22. Three position Dome Light Switch

• Auto – Automatically switches on the dome lights in

conjunction with the vehicle’s interior illumination.

• Off – The dome lights will not turn on in this position.

• On – Turns on the dome lights.

-7-

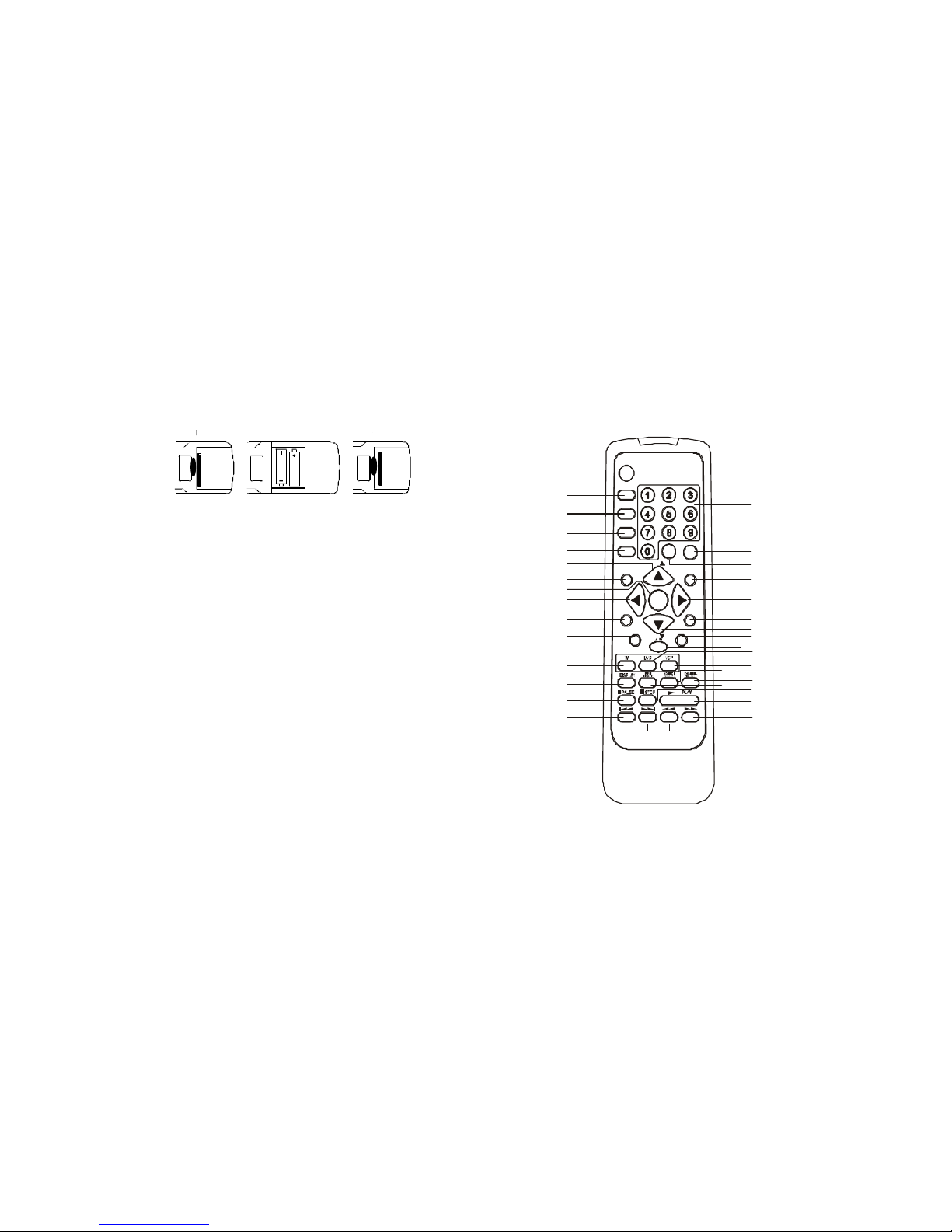

Remote Control Operation

Battery Installation

Before attempting to operate your Remote Control,

install the batteries as described below.

1) Turn the Remote Control face down. Using a

fingernail, lift the battery cover off.

2) Install two “AAA” batteries as shown. Make

sure that proper polarity (+ or -) is observed.

3) Align the cover tabs with the remote control

and press down until the cover clicks.

The remote control will operate the VOD702 and most

Audiovox VCP’s. It is not a universal remote control

and will not control equipment from other

manufacturers

If a universal remote control is to be used with the

VOD702, choose the remote encoding scheme for

Audiovox Televisions when programming the remote

control.

POWER

SOURCE

RETURN

SETUP

PIX

Enter

ERASE/

WRITE

SKIP/

AUTO

MEMORY

VOL

–+

MUTE

REPEAT

-8-

DVD Function Descriptions

*Function control is available on the unit and the remote control.

1. POWER Button*

Press this button to turn the VOD702 on. Press the button again to turn the VOD702 off.

2. SOURCE Button*

Video signals from video equipment connected to the audio / video inputs can be displayed on the monitor by

pressing this button. Each time the button is pressed, the audio / video source will change the sources: DVD,

TV, AV1 and AUX.

3. AUTO MEMORY Button

When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with

signals of sufficient levels are automatically stored. Please refer to page 2 for more information on TV reception.

4. SKIP/SEARCH Button

This button selects between SKIP and SEARCH mode. In “SKIP mode” the TV tuner will tune and stop on

channels that are programmed into memory when CHANNEL UP/DOWN buttons are used. When the SKIP

mode is disable, the TV will stop on all active channels.

5. ERASE/WRITE Button

While tuned to a channel, pressing this button will store or erase the channel from memory. The stored channel

numbers are displayed in “GREEN” on the LCD display screen, and the non-stored channel numbers are in

“RED”.

-9-

6. Channel Up ( ) Button*

Use this button to increase the channel number to the desired channel and to scroll upward in menu options.

7. MUTE Button

Press this button to mute the audio.

Pressing the button again restores sound to the previously set level.

8. ENTER Button

Used to implement setting selected.

9. LEFT ( ) Button

Allows the user to shift left in the menu options.

10. MENU Button

Allows the user to access the main menu.

11. RETURN Button

Allows the user to return to the menu while PBC on.

Note: This function only present on VCD2.0.

12. TV Mode Select Button

Switches certain function keys on the remote control for TV functions.

-10-

13. DISPLAY Button

Press to display DVD Disc current information.

Press DISPLAY button DVD Player Perform

Once Display current TITLE & CHAPTER

Twice Display current SUBTITLE

3 times Display current AUDIO language & channel

4 times Display SURROUND current status

5 times Display current ANGLE

6 times Display A-B current status

7 times Display REPEAT current status

8 times Display is turn off

For Title & Chapter, use cursor buttons to do title/chapter selection, then press Enter button to implement the selection.

For Subtitle, Audio, Surround, Angle, A to B & Repeat, press Enter key repeatedly to change the options. These options

may vary from disc to disc.

14. PAUSE ( ) Button

Allows the user to pause the playback.

15. PREVIOUS ( ) Button*

Allows the user to return to the previous chapter or track.

16. NEXT ( ) Button*

Allows the user to skip to the next chapter or track.

Indice

Altri manuali Audiovox Sistema video per auto

Audiovox

Audiovox DVD1627 Guida alla pianificazione

Audiovox

Audiovox VE640 - VE - 640 Manuale utente

Audiovox

Audiovox VOD10 - Car - Overhead LCD Monitor Manuale utente

Audiovox

Audiovox Mobile Video VOD128A Manuale utente

Audiovox

Audiovox VOD 808 Manuale utente

Audiovox

Audiovox 50-0300A-002 SERIES Manuale utente

Audiovox

Audiovox VOH703 Manuale utente

Audiovox

Audiovox MM92HR Manuale utente

Audiovox

Audiovox VOD10PS2 - Car - 16:9 Flipdown Monitor Manuale utente

Audiovox

Audiovox VME 9315BTA BTM 10 Manuale utente

Audiovox

Audiovox HR7012 Manuale utente

Audiovox

Audiovox VOD850 - Car - Overhead LCD Monitor Manuale utente

Audiovox

Audiovox Mobile Video VOD128A Manuale utente

Audiovox

Audiovox Mobile Video HR7010PKG Manuale utente

Audiovox

Audiovox Movies 2 Go MMD70 Manuale di servizio

Audiovox

Audiovox MMD7HRPKG - Movies2Go - DVD Player Manuale utente

Audiovox

Audiovox VOD850 - Car - Overhead LCD Monitor Manuale utente

Audiovox

Audiovox VOD122 - DVD Player With LCD Monitor Manuale utente

Audiovox

Audiovox Movies 2 Go AVXMTGHR1M Scheda tecnica

Audiovox

Audiovox 50-0311x-015 Series Manuale utente

Audiovox

Audiovox Movies2Go MMD154 Manuale utente

Audiovox

Audiovox PROV 710 P Manuale utente

Audiovox

Audiovox VOD701 Manuale utente

Audiovox

Audiovox Mobile Video VOD128 Manuale utente

Manuali Sistema video per auto popolari di altre marche

Stinger

Stinger HEIGH10 RB10RAM13B Manuale utente

Eonon

Eonon E1057 Manuale utente

Milion

Milion D2223 Manuale utente

Metra Electronics

Metra Electronics 99-8153 Manuale utente

Voxx Electronics

Voxx Electronics HR8MA1 Manuale utente

Axxera

Axxera AV604Bi Manuale utente

Clarion

Clarion NX706E Manuale utente

Pyle view

Pyle view PLDN74BTi Manuale utente

Clarion

Clarion NX602 Manuale utente

PowerAcoustik

PowerAcoustik PTID-5850N Manuale utente

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guida utente

Lanzar

Lanzar SVDVD5 Manuale utente

Kia

Kia MTXM100YPPE Manuale utente

Eonon

Eonon E1060 Manuale utente

Macrom

Macrom M-AN900 Manuale utente

Hyundai

Hyundai BAPE-L3000N Manuale utente

r.LiNK

r.LiNK RL2-UCON8-SM Manuale utente

Blaupunkt

Blaupunkt DVP 01C Manuale utente
