Audiovox LCM58N Manuale utente

LCM5N 5 Inch Navigation Monitor

LCM58N 5.8 Inch NavigationMonitor

with

1 Video Input Capability

Operation Manual

Important Notice

It is unlawful in most jurisdictions for a person to

drive a motor vehicle which is equipped with

a television viewer or screen that is located in the

motor vehicle at any point or that is visible directly

or indirectly, to the driver while operating the

vehicle.

CAUTION

1. Do not operate the monitor at temperatures below -20oC or above

+70oC.

2. Keep the monitor clean and dry.

3. Always seek qualified personnel to perform repairs. Never attempt

your repairs.

4. Do not drop the monitor or expose to strong impacts.

5. Do not expose to direct sunlight for extended periods of time.

-2-

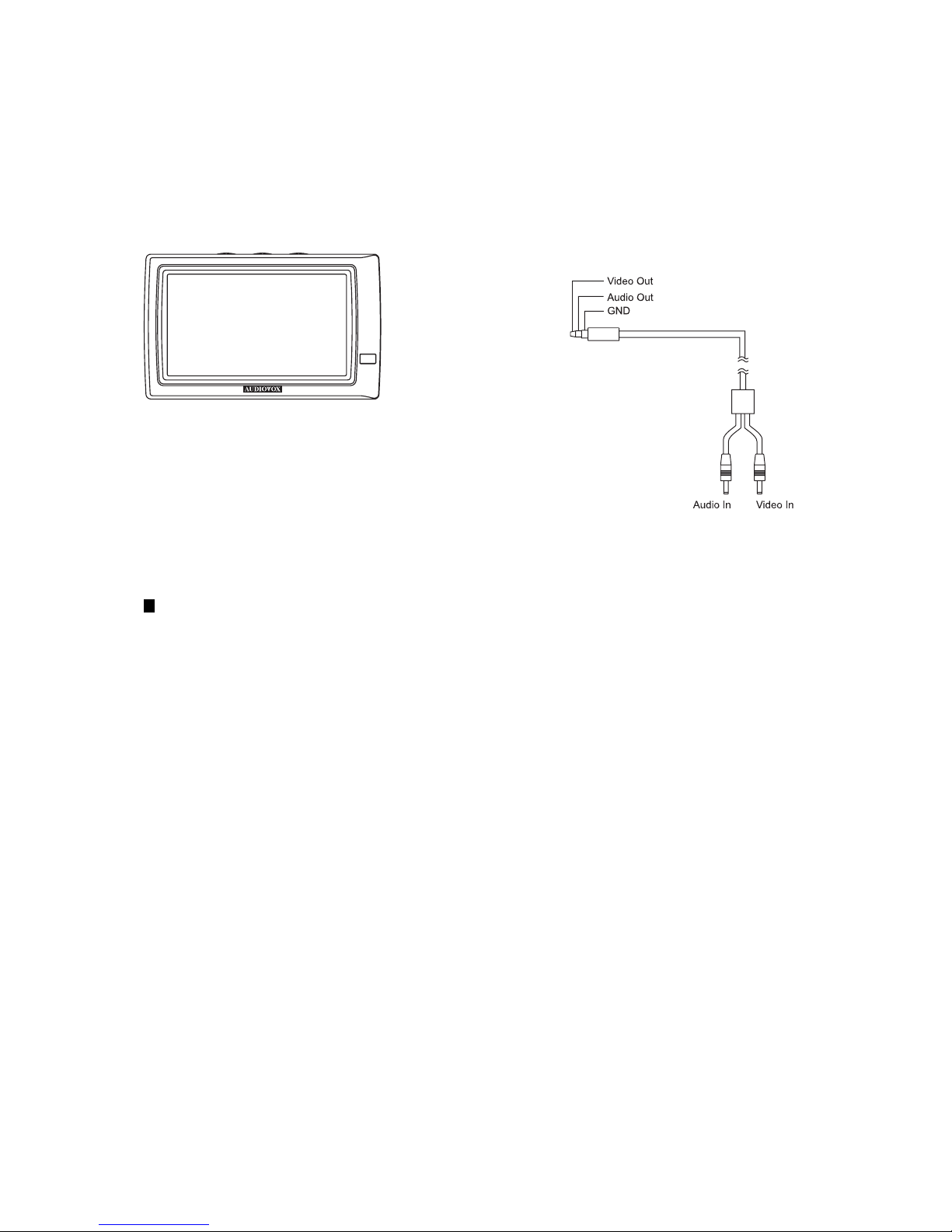

(External VCR device connection wire)

1) Type of Cable : Two RCA to One Stereo Cable.

AUX Cable

-3-

OSD Menu Structure

Monitor Panel Control

-4-

( - button )

( + button )

This page describes the function of the control keys and the OSD menu

structure.

The relevant menu (video or nav) will be detected automatically, depend-

ing on the input mode given by the display control line or by VCR-

connector.

On Screen Display

-5-

Monitor Settings

The color display is equipped with On-Screen Display (OSD)

prompting for the monitor settings.

There are 3 buttons on top of the monitor.

These will be used for the OSD control. They are as follows:

“Menu” = Menu

“ + “ = Plus

“ – “ = Minus

“Menu” button is used to select the desired function.

The desired function will be highlighted in red.

“+” And “-“ buttons are used to adjust the desired function.

Note: If a button has not been pressed for 5 seconds, then the

OSD menu is automatically hidden again.

Invoking OSD menu

Briefly press the menu button on top of the monitor.

The OSD menu “ Navigation settings” is displayed and

Volume will be highlighted in Red.

In the OSD menu you can adjust the following settings:

* Volume: Adjust Volume level of the built-in

monitor loudspeaker

* Brightness: Adjust brightness of the display.

* Display mode: Screen display; the selected setting

is indicated in red.

Possible selections include:

“Full Screen “ (16:9)

“Normal” (4:3)

-6-

Adjusting settings

1 . Press the Menu button until the desired function appears

in red.

2 . Adjust the desired setting with the +or –buttons.

If necessary, invoke the next menu item by pressing the

Menu Button.

-7-

* If you use the built-in monitor loudspeaker, leave

the volume level in the OSD menu on the middle

setting. Adjust the volume level for the audible

messages of the navigation system with the + or –

buttons on the remote control.

* The volume level of the built in monitor speaker can

also be set without invoking the OSD menu. Press the +

or – button on the monitor. The display automatically

changes to the menu for setting the volume. Set the

volume desired by pressing the + or – buttons.

Set up Menu

The monitor offers you the possibility of performing the following

settings in the Setup Menu:

* Brightness Control: Day/Night

* Loudspeaker: On/Off

- VIDEO MENU (AUX cable : Connection, Navigator cable : Connection)

* VOLUME : This function is used to control the audio volume.

* BRIGHTNESS : This function is used to control the overall

brightness of the picture displated on the monitor.

* COLOR : This function is used to increase or decrease the overall

color saturation of the picture displayed on the monitor.

* CONTRAST : This function is used to increase or decrease the

overall contrast of the picture displayed on the monitor.

* TINT : This function is used to increase or decrease the overall color

schme of the picture displayed on the monitor.

* DISPLAY MODE (NORMAL, FULL SCREEN, CINEMA) : Make

reference to 9 page. .

Invoking the Setup Menu

Press all three buttons at the top of the monitor at the same

time.

The Setup Menu appears

Brightness will be highlighted in red.

Press + or – to select Day or Night highlighted in red. Day

selection will be bright, Night will be dark.

Note: If brightness control is set for Night, It will return to Day

mode whenever the Ignition is turned off for more then 30

seconds.

1 . Press the menu button to highlight Loudspeaker in red

2. Press + or – button to select ON or Off.

-8-

1. Press MENU to get the On Screen Display (OSD).

2. Select Display Mode.

3. Press the + or the - to switch the screen aspect ratio.

Display Mode

FULL SCREEN: 16:9 picture is fully displayed.

CINEMA : Picture is displayed with uniform vertical enlargement.

NORMAL : When 4:3 pictured is displayed on a wide screen, black bands

appear on the right and left of the picture

-9-

MONITOR SPECIFICATIONS

Type a-Si TFT Active Matrix LCD

Display Screen Size LCM5N : 110.4(W) x 62.244(H)(mm)

LCM58N : 127.2(W) x 71.838(H)(mm)

Resolution 1200(W) x 234(H)

Pixels LCM5N : 200(X), 117(Y) Center of display area

LCM58N : 200(X), 117(Y) Center of display area

Back Light CCFL with 3 ware-length spectrum

LCM5N : Straight Type

LCM58N : U Type

Power Source +12 Vdc

Power Consumption LCM5N : 500mA 6W

LCM58N : 600mA 7.2W

Connection 1-Navigator Connection Wire

1-AUX Connection Wire

Operating Temperature -20oC ~ +70oC

Storage Temperature -30oC ~ +80oC

Monitor Cabinet LCM5N : 148(W) x 90(H) x 30(D)(mm)

(without Packing) LCM58N : 164(W) x 103(H) x 30(D)(mm)

Weight LCM5N : 2.5K

LCM58N : 2.7K

Video Format NTSC (Only)

-10-
