Audiovox LCM5869NP Istruzioni per l'installazione

128-6324

1 of 22

LCM5869NP & LCM7069NP

Remote Controlled Color Display Monitor

Installation and Owner's Manual

Released:03-27-02.

ELECTRONICS COR

5.8-Inch Color Display Monitor

7-Inch Color Display Monitor

128-6324

2 of 22

EXPLANATION OF GRAPHIC SYMBOLS

WARNING:

TOPREVENTFIRE ORELECTRIC SHOCKHAZARD,DO NOTEXPOSE

THISPRODUCT TO RAINOR MOISTURE.

CAUTION:

1. This product is designed to operate with a 12 volt, negative ground bat-

tery system.

2. Disconnect the ground wire from the battery terminal before connecting

the electrical system. Refer to the electrical connection diagram to avoid

wrong connection of the electrical system.

Always use authorized service center for service assistance.

3. Do not operate the monitor at temperatures below 32°F (0°C) or above

104°F (40°C).

4. Keep the monitor clean and dry.

5. Never attempt your own repairs. This unit should be installed and re-

paired by qualified technicians or service personnel..

6. Do not drop the monitor or expose to strong impacts.

7. Do not expose to direct sunlight for extended periods of time.

8. Use proper insulation material to prevent short-circuiting of the supply

system.

9. Tighten all loose wires after installation.

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK DO

NOT REMOVE COVER (OR BACK) NO SERVICEABLE PARTS

INSIDE REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with the arrowhead within a triangle is in-

tended to alert tell the user that parts inside the product are

capable of producing an electric shock .

The exclamation point within a triangle is intended to alert the

user that important operating and servicing instructions are

being provided.

128-6324

3 of 22

MATERIALS LIST

1. System Monitor (LCM5869NP=136C2185) or

(LCM7069NP=136C2184) (1pc.)

2. Remote Control Unit (136B2156, used with LCM5869NP

and LCM7069NP) with Lithium Battery, 3V,CR 2025 (1pc.)

3. Interconnect Box (136B2183, used with LCM5869NP and

LCM7069NP) (1pc.)

4. Monitor Cable, 8' (112B3151, used with LCM5869NP and

LCM7069NP) (1pc.)

5. Headrest Mounting Tray (LCM5869NP=102C3739)

or (LCM7069NP=102B3738) (1pc.)

6. Trim Ring for Mounting Tray (LCM5869NP=102C3746)

or (LCM7069NP=102B3745) (1pc.)

7. Power Cable, 2.46' (112B3127, used with LCM5869NP

and LCM7069NP) (1pc.)

8. Removal Tool (108B3632) (1pc.)

 !

128-6324

4 of 22

SYSTEM OVERVIEW

The LCM5869NP is comprised of a 5.8" Thin Film Transistor (TFT) Liq-

uid Crystal Display ( LCD) Monitor. The LCM7069NP is comprised of a 7"

Thin Film Transistor (TFT) Liquid Crystal Display ( LCD) Monitor. The

Monitor for both of these systems have a 16:9 Aspect Ratio display that

allows the user to select between two video sources (Not Supplied). The

Monitors display all functions with the comprehensive On Screen Display

(OSD). Can be used with optional one or two channel Wireless Infrared

Headphones.

OPTIONAL AUDIO CONNECTION

Materials Needed for Optional Audio Connection:

Option #1

1) IRT456 (CHA) Infrared Transmitter, Single Channel............. (1pc)

2) MVIRHS Single Channel (A) Infrared Headphone(s) ............. (1pc)

Option #2

1) IRT457 (CHB) Infrared Transmitter, Dual Channel ............... (1pc)

2) IR2CHS Dual Channel (A/B) Infrared Headphone(s) ............ (1pc)

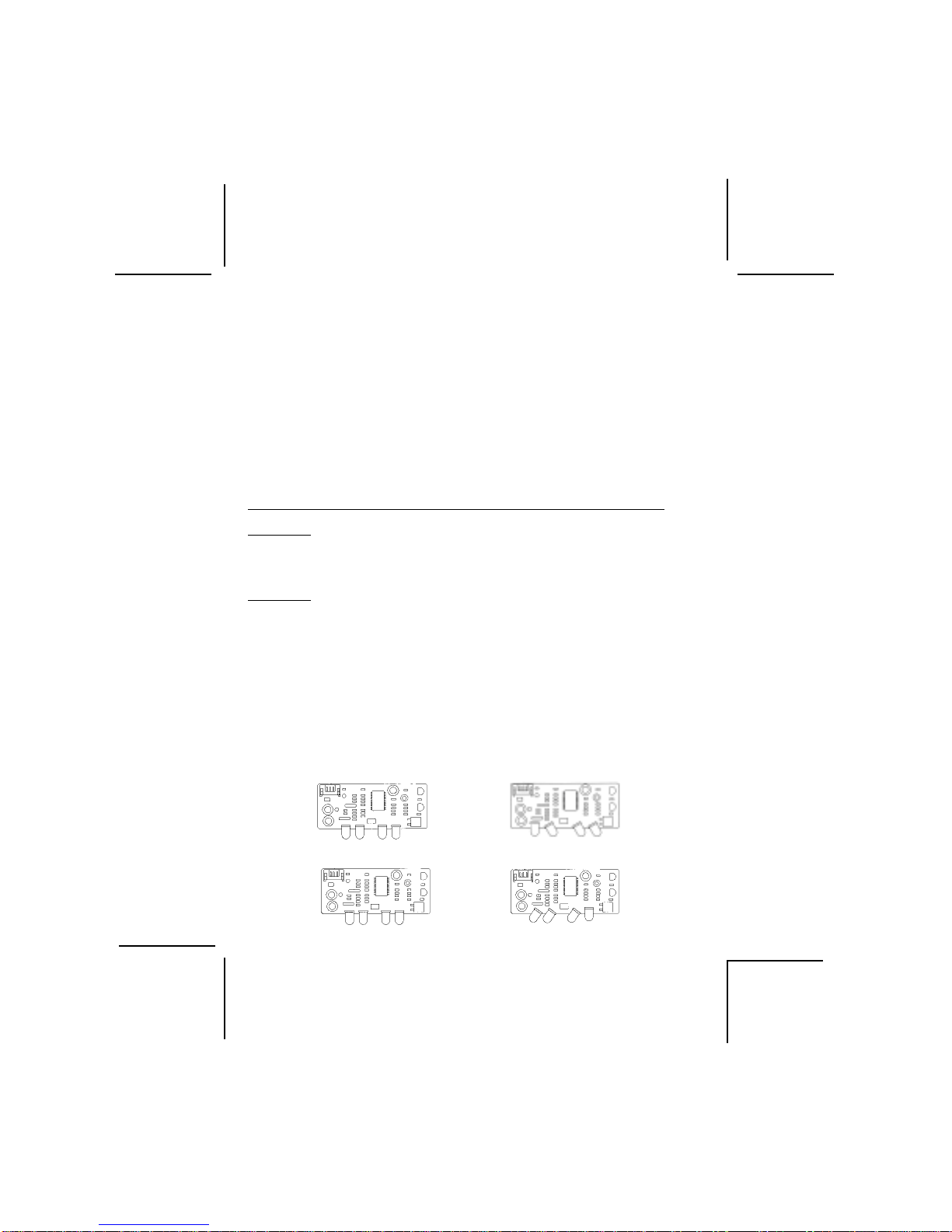

Before installing the IRT boards gently bend the three IR LEDs closest to

the center of the vehicle toward the center of the vehicle.

NOTE: When installing two screens, install one IRT456 Single Channel

Infrared Transmitter into the left Headrest Mounting Tray and one IR2CHS

Dual Channel Infrared Transmitter into the left Headrest Mounting Tray.

IRT456CHABEFORE

IRT457CH BBEFORE IRT457CHBAFTER

IRT456CHAAFTER

128-6324

5 of 22

Insert the IRT boards into their respective compartments in the Headrest

Mounting Tray and insert the plug into the IRT board. When the user

switches the video source utilizing the ON/OFF/MODE switch, the A/B

switch (see illustration below) on the IR2CHS Headphones must also

be switched to select the desired audio source.

IMPORTANTNOTICE

It is unlawful in most jurisdictions to drive a motor vehicle which is

equipped with a television viewer or screen that is located at the point

forward of the back of the driver’s seat, or that is visible directly or indi-

rectly, to the driver while operating the vehicle.

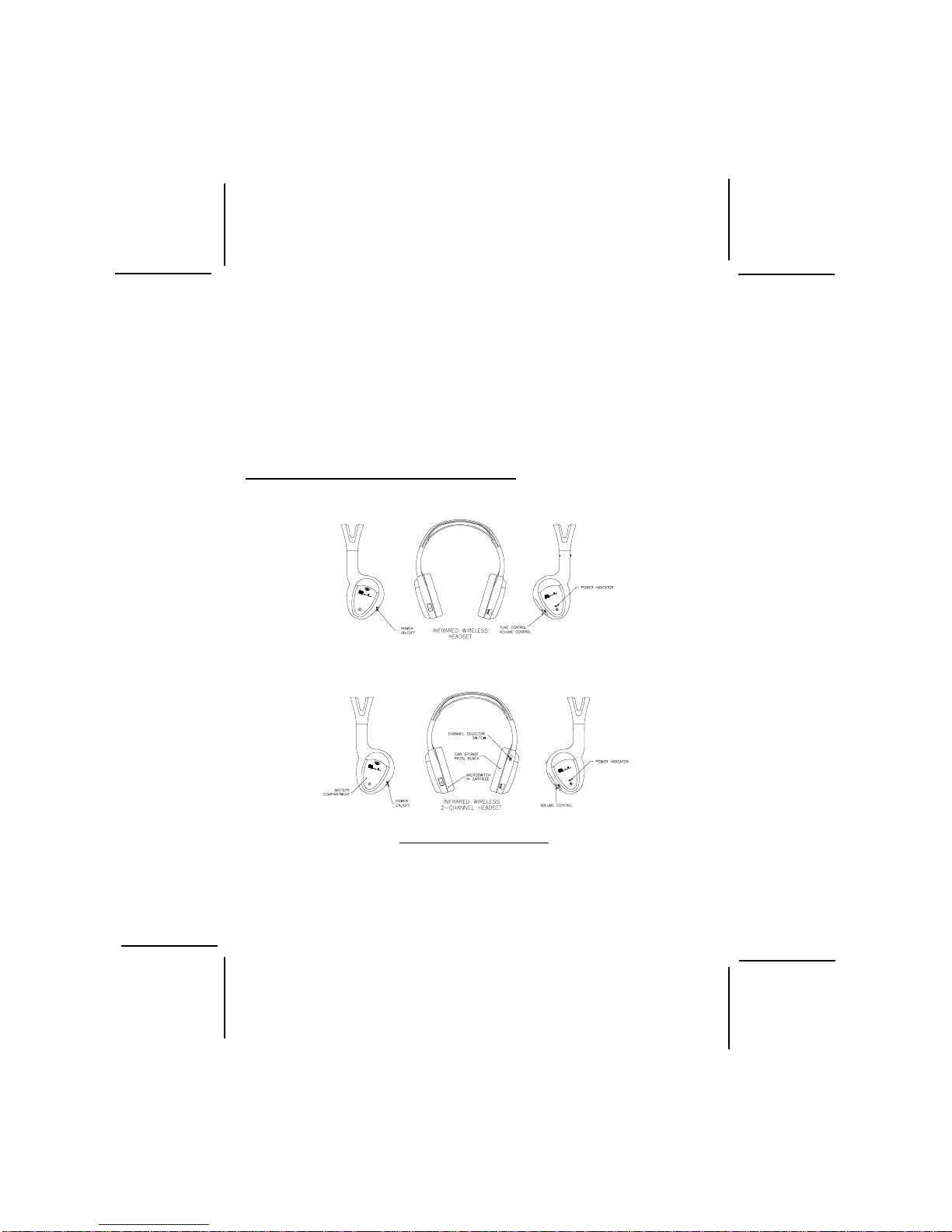

1) Wireless Headphones (1 Channel) .......................P/N=MVIRHS

1) WirelessHeadphones(2Channel) .................. P/N=IR2CHS

POWER

VOL

POWER

OFFON

INFRAREDHEADPHONES

AUDI

O OX

AUDI

O OX

INFRAREDHEADPHONES

CH.A

CH.B

POWE

OFF-ON

NOTE: The following IRT board installation procedure should be per-

formed between steps 10 and 11of the Headrest Mounting procedure on

page 10.

Optional Wireless Headphones:

POWER

VOL

POWER

OFFON

INFRAREDHEADPHONES

AUDIO OX

INFRAREDHEADPHONES

128-6324

6 of 22

VEHICLE PREPARATION

1) Decide on the system configuration and the options that will be in-

stalled (i.e.what components,VCP,DVD, TV Tuner,VideoGame,

Monitor,FMModulator,etc.).

2) Read the manuals and get familiar with the electrical requirements

andconnections.

3) Decideonthemountinglocationsandmethodsofmountingtheprod-

ucts.

4) Preparethe vehicleby removingany interiortrim necessaryto gain

accesstothevehicle'swiringaswellasallareaswhereinterconnect-

ingwireharnesseswillbelocated.Ifanyaccessholesneedtobecut

intothevehicle,headrests,orothertrimcomponents,thisshouldbe

performednow.(RefertotheInstallationProcedure).

5) Runthewiringharnessesandcablingthroughoutthevehicleasnec-

essary.(Refertothewiringinstructionsfortheindividualcomponents

andaccessoryoptionsbeinginstalled).Besure,thatallthewiringis

protectedfromsharpedgesandisroutedinsuchamannerthatitwill

not be pinched, when it is fully installed. Be sure to leave enough

slack in the wiring at each component to allow sufficient working

room.

6) Remove all the A/V system components from their packaging and

thenplacetheminthevehicleattheirrespectivelocations.

7) Locateanaccessorypowersource(RedWire)(+12VDCpresentwhen

theignitionkey is in the accessoryand run positions. 0VDC should

bepresent, whentheignition keyis intheOFFposition).Generally,

thesewirescanbefound attheignitionswitchor fusebox.

8) LocateaConstantPowerSource(YellowWire)(+12VDCpresentat

all times).

NOTE: Ensure that the accessory power is fused at the source.

Failure to do so may result in vehicle wiring damage.) Ground the

blackwire to a chassis groundclose to the mountinglocation of AV

sources.

9) Connectallthecomponentstogether(electrically)andverifythatthe

proper operation of all the system functions. NOTE: This is best

doneBEFOREthecomponentsarepermanentlymounted.

128-6324

7 of 22

10) After verifying the proper operation of the system, proceed to mount

each component.

11) The mounting method, and the location will vary from vehicle to

vehicle; this manual will focus on typical Headrest installation pro-

cedures.

12) The best location for the system components is:

a) Monitor: Headrest or bracket (optional) mounted onto a

flat surface.

b) System Interconnection Box (AVX-6869): In line with all the

system cabling and in an area where it can be easily accessed.

c) System Main Cable: Under either seat where monitors

are located.

Tools and Materials Required:

Utility knife or box cutter with sharp blade.

Permanent Marker.

Tie Wraps.

INSTALLATION

Mounting with Optional Bracket:

This procedure describes mounting the system monitor using an op-

tional Surface Mount Bracket (sold separately, P/N FB1)

1) Start by firmly attaching the Surface Mount Bracket onto a clean flat

surface.

128-6324

8 of 22

3) Adjust viewing angle of monitor by tightening the fastener at the

side.

4) When the system components are mounted, test the system to

verify that it is functioning correctly. Make sure that no wiring was

pinched, or connected improperly during the final installation.

Surface Mount

MountingBracket

FastenerWheel

Monitor

2) Slide monitor onto Surface Mount Bracket and then tighten the

fasten wheel.

SurfaceMountFastener

128-6324

9 of 22

1) Remove the headrest from the

vehicle for easiest installation.

2) Lay headrest on a flat surface.

3) Center trim collar on headrest

as shown.

NOTE: Depending on the angle of

the headrest the Trim Ring and

housing may be mounted upside

down.

4) Using a permanent marker,

mark headrest material along

the interior of the Trim Ring.

5) Remove the Trim Ring and

mark an “X” from corner to cor-

ner as shown.

Headrest Mounting:

Monitor Mounting

Tray Trim

Ring Headrest

128-6324

10 of 22

9) Using your fingers, tear the foam

out of the headrest leaving a re-

cess where the shell will be in-

serted.

NOTE: At this point you will need to

install the harness up through the area

into the recess. It may be helpful to

follow one of the posts and tie wrap it

to the post for restraint.

6) Usingtheutility knife, cut the head-

rest material along the “X” lines.

Do not cut the material along the

other lines at this time.

7) This will leave you with an “X” cut

as shown.

8) Pull the flaps up and cut the foam

beneath the material to the proper

depth. Cut all four sides of the

foam.
