Audiovox LCM-0565 Manuale utente

LCM-0565

5.6" Active Matrix LCD Monitor

Owners Manual

AUDIO OX

EXPLANATION OF GRAPHIC SYMBOLS

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

Thelightningflashwiththearrowheadwithin

a triangle is intended to alert tell the user

that parts inside the product are capable of

producing an electric shock .

The exclamation point within a triangle

is intended to alert the user that important

operating and servicing instructions are

being provided.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

1. Type: Color Liquid Crystal Display (LCD)

Monitor

2. Display Screen Size: 5.6 inches

(114.2 x 83mm) ( W x H )

Element : TFT LCD

Format : 960 (W) x 234 (H) dot

Total 224,640 dot

3. Back Light: Cold Cathode Fluorescent Lamp

4. Power Source: +12 VDC

5. Power Consumption: 11W

6. Connection Terminals: Video Input Jack (RCA)

External Power Jack (DC IN 12V)

IR Jack

7. Operating Temperature: 32°F - 104°F

(0°C - 40°C)

8. Storage Temperature: -4°F - 176°F

(-20°C - +80°C)

9. Cabinet Dimensions: 6.29 in x 4.52 in X 1.57 in (WxHxD)

(160 x 115 x 40 mm)

10. Weight: 1.33 lbs (500g)

11. Video Format: NTSC

SPECIFICATIONS

CONTROLS AND INDICATORS

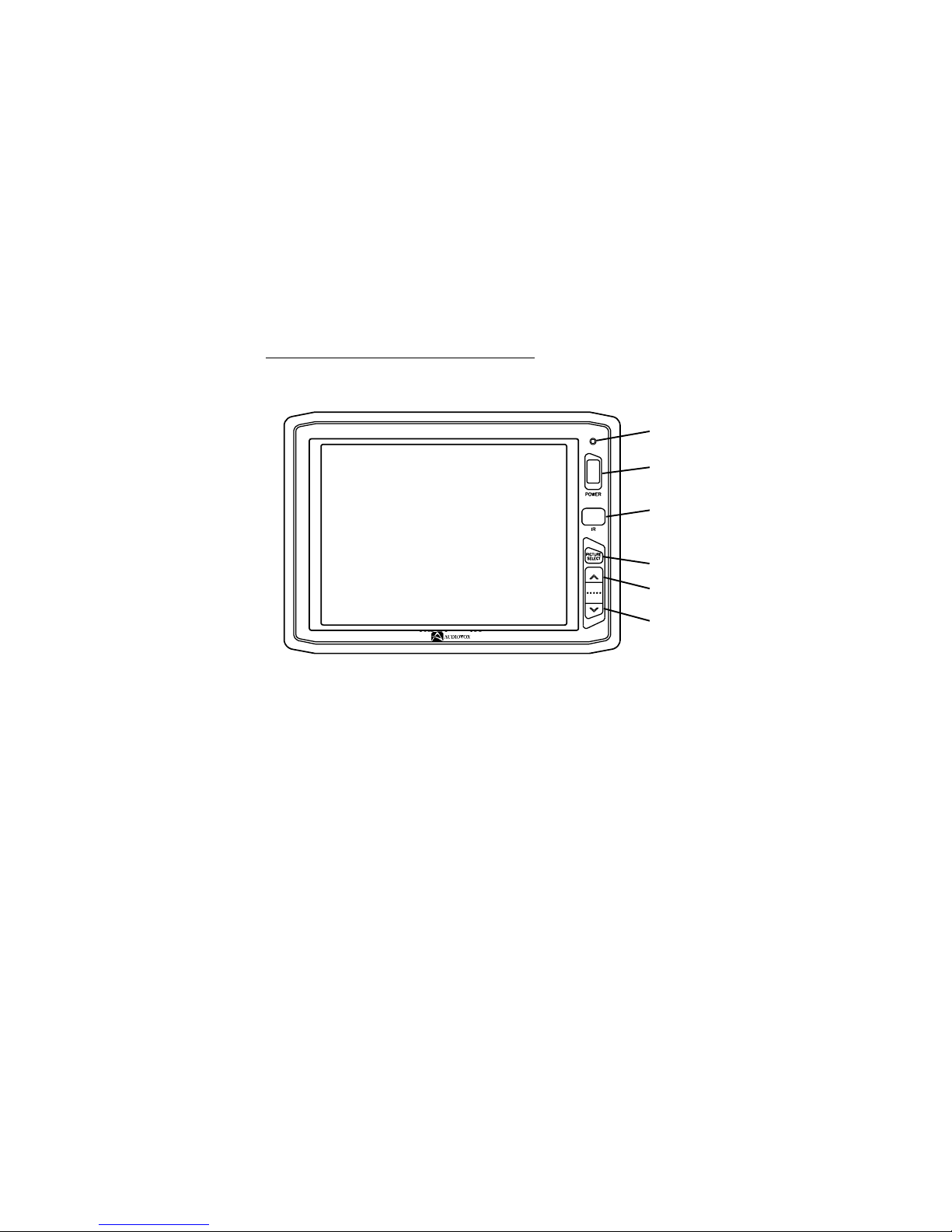

FRONT PANEL

1. Power On LED Indicator

2. Power On/Off Switch

3. Remote Control Sensor

4. Picture Select

5. On Screen Adjustment Up Button

6. On Screen Adjustment Down Button

AUDIO OX

REAR PANEL

7. Power Input Connector: Red = +12 VDC

Black = ground

8. Video Signal Input Connector

9. IR Repeater Connector

10. IR Repeater Transmitter

NOTE: This cable (10) is utilized to connect to Video Cassette Players

that do not accept the IR Repeater 1/8" (3.5mm) style

plug (9). The IR Repeater Transmitter is provided with an

adhesive that allows it to adhere to Video Cassette Player

remote sensor. Remove the backing covering the adhesive

and place the IR Repeater Transmitter directly over the

Video Cassette Player remote sensor.

OPERATION

1. Connect the monitor power input plug (7) to a DC power

source (Red plug +12 VDC, Black plug (-) to ground).

2. Connectthe externalvideo sourceoutput signal(from VCP/

DVD, TV Etc.) to the VIDEO IN jack (8).

3. Press power On/Off button (2) to the On position. The LED

power indicator will light red.

4. Press the Picture Select button (4) to adjust the picture

display characteristics. The adjustments will be shown on

the OnScreen Displayinthe followingsequence: Contrast,

Brightness, Color, and TINT.

5. Whilein thevideo adjustmentmode, pressthe upbutton (5)

to increase the selected adjustment level or press the

down button (6) to decrease the level.

GENERAL INSTALLATION INFORMATION

1. Installation will vary from vehicle to vehicle, as headrests in

vehicles are not standard.

2. This unit is intended for installation by professional installers.

3. The kit consists of the screen assembly, a mounting

housing, key to remove screen from housing, wiring harness

and remote control unit.

4. To release screen from housing, slide the key on either the

right or left side of the screen between the housing and

screen assembly to release the two clips which hold the

screen assembly in the housing.

5. To install the screen assembly into the housing simply

insertthe screenassemblyuntilyouhear theclips clickinto

the locking position.

6. Headrests will have to be cut to install the screen assembly

housing.

Caution - Do not over-cut the headrest beyond the height and

width of the housing.

7. To fasten the housing to the headrest, use either screws or

tie wraps. Find a suitable mounting surface in the headrest

to secure the housing.

Caution - Use the proper length screws, which will vary with

each headrest. If a suitable mounting surface cannot be

found, use tie wraps to secure the housing.

8. Attach the wiring to the screen, through the housing into

and down the headrest and seat before permanently

mounting the housing and screen assembly.

9. Follow the wiring diagram in the owner’s manual for proper

wiring connections.

NOTE: A Remote Control Unit is included which will perform

the Functions and adjustments of Operation items 3,

4, and 5 as well as additional features as noted below.

REMOTE CONTROL FUNCTIONS:

LCD/VCP:........ Power button for LCD/VCP

REPLAY: .......... Press to rewind tape and automatically go to

play mode.

PICTURE SEL: .On Screen Display (OSD) for color, tint,

brightness, contrast. Use ± to adjust.

REW: ................Rewinds tape

FWD: ................Fast Forward tape

PLAY: ................Plays tape

STOP:...............Stops tape

CAUTION

1. Do not operate the monitor at temperatures below 32°F

(0°C) or above 104°F (40°C).

2. Keep the monitor clean and dry.

3. Always seek qualified personnel to perform repairs.

Never attempt your own repairs.

4. Do not drop the monitor or expose to strong impacts.

5. Do not expose to direct sunlight for extended periods of

time.
