Audiovox LCM50 Manuale utente
128-6549
1 of 12
LCM50
Headrest 5.0" LCD Monitor
Released: 12-5-02
Owner’s Manual
AUDIO OX
128-6549
2 of 12
EXPLANATION OF GRAPHIC SYMBOLS
WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
OPEN
CAUTION:
1. This product is designed to operate with a 12 volt, negative ground
battery system.
2. Disconnect the ground wire from the battery terminal before connect-
ing the electrical system. Refer to the electrical connection diagram to
avoid wrong connection of the electrical system.
Always use authorized service center for service assistance.
3. Do not operate the monitor at temperatures below 32°F (0°C) or above
104°F (40°C).
4. Keep the monitor clean and dry.
5. Never attempt your own repairs. This unit should be installed and re-
paired by qualified technicians or service personnel..
6. Do not drop the monitor or expose to strong impacts.
7. Do not expose to direct sunlight for extended periods of time.
8. Use proper insulation material to prevent short-circuiting of the supply
system.
The lightning flash with the arrowhead within a triangle is
intended to alert tell the user that parts inside the product
are
The exclamation point within a triangle is intended to alert
the user that important operating and servicing instructions
2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE COVER (OR BACK) NO SERVICEABLE PARTS
INSIDE REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
128-6549
3 of 12
A. Precaution:
1. Before installation, verify that it will not damage electrical wires, fuel
lines, brake lines, hoses, exhaust systemcomponents or any other
items that will impair the operation of the vehicle.
2. Ensure the cable has already been pulled through the supporting
pipe before installing the base into the headrest. Ensure there is no
foreign material trapped inside the enclosure before installing the
monitor into the base.
3. Tighten all screws/bolts/nuts securely for installation.
4. To avoid electrical hazards, do not disassemble the cabinet of the
monitor.
5. Use only the supplied DIN cable. Disconnect the cable from the
signal source before disconnecting it from the monitor, after turning
off the whole system.
6. Do not use gasoline, thinners or other thinning liquids to clean the
unit. Remove dust and stains with a damp cloth.
3
IMPORTANT
An LCD panel and/or video monitor may be installed in a motor vehicle
and visible to the driver if the LCD panel or video monitor is used for
vehicle information, system control, rear or side observation or naviga-
tion. If the LCD panel or video monitor is used for television reception,
video or DVD play, the LCD panel or video monitor must be installed so
that these features will only function then the vehicle is in ‘park’ or when
the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or
DVD play that operates when the vehicle is in gear or when the parking
brake is not applied, must be installed to the rear of the driver’s seat
where it will not be visible, directly or indirectly, to the operator of the
motor vehicle.
128-6549
4 of 12
4

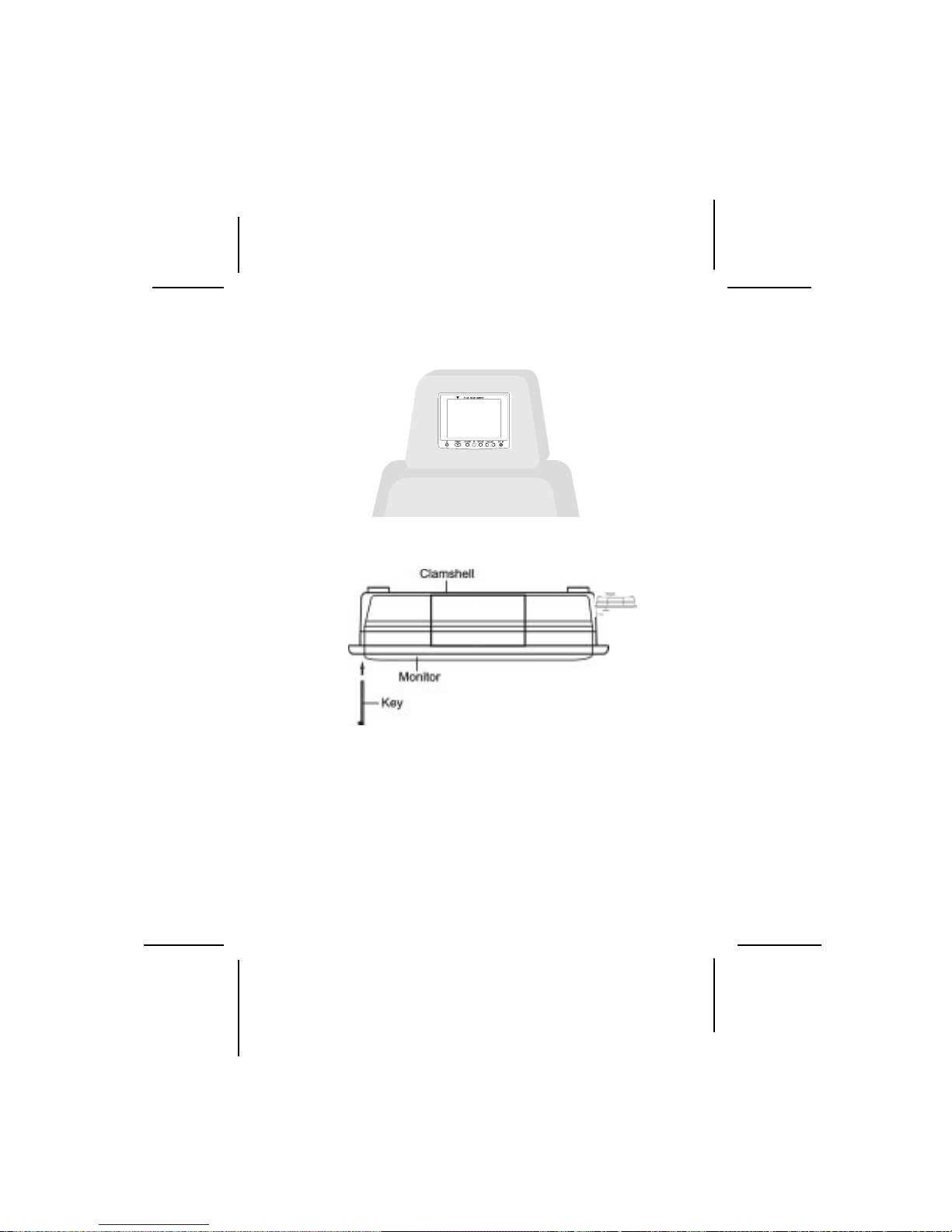

B. Installation:
Front View
Top View
1.Installation will vary from vehicle to vehicle, as headrests in vehicles
are not standard.
2. This unit is intended for installation by professional installers.
3. The kit consists of the screen assembly, a clam shell housing, a trim
ring, 1 key to remove the screen from the housing, and a wiring
harness.
AUDIO OX
128-6549
5 of 12

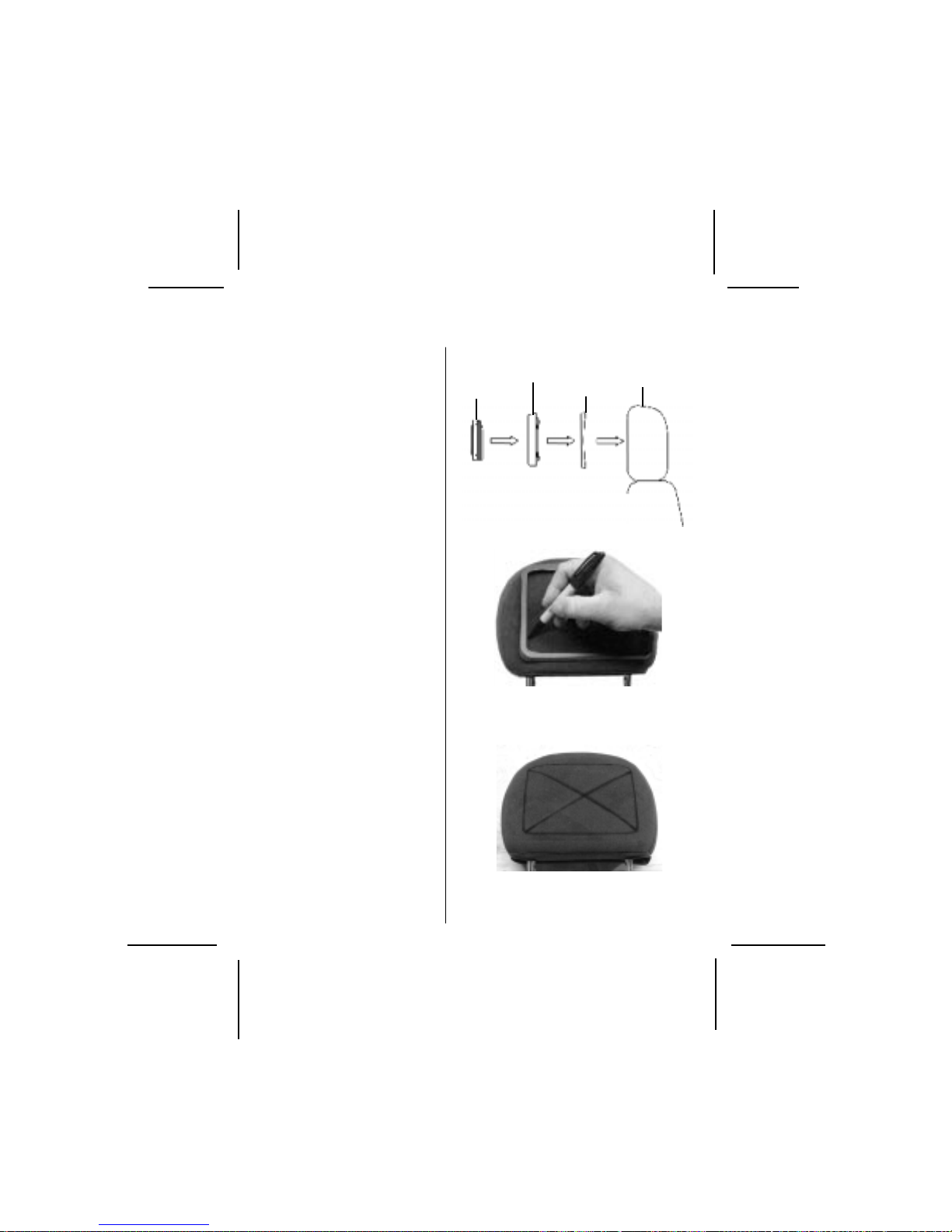

1) Remove the headrest
from the vehicle for easi-
est installation.
2) Lay headrest on a flat sur-
face.
3) Centertrimcollaronhead-
rest as shown.
NOTE: Depending on the
angleof theheadrest,the Trim
Ring and housing may be
mounted upside down.
4) Using a Permanent Marker,
mark headrest material
along the interior of the
Trim Ring.
5) Remove the Trim Ring
and mark an “X” from cor-
ner to corner as shown.
Headrest Mounting:
Monitor
Mounting
Tray Trim
Ring Headrest
5
128-6549
6 of 12
9) Using your fingers, tear the
foam out of the headrest leav-
ingarecesswheretheshellwill
be inserted.
NOTE: At this point you will need
toinstall theharnessupthrough the
areainto therecess.Itmaybe help-
ful to follow one of the posts and tie
wrap it to the post for restraint.
6) Using the utility knife, cut the
headrest material along the
“X” lines. Do not cut the mate-
rialalong the otherlinesatthis
time.
7) This will leave you with an “X”
cut as shown.
8) Pull the flaps up and cut the
foam beneath the material to
the proper depth. Cut all four
sides of the foam.
6
128-6549
7 of 12

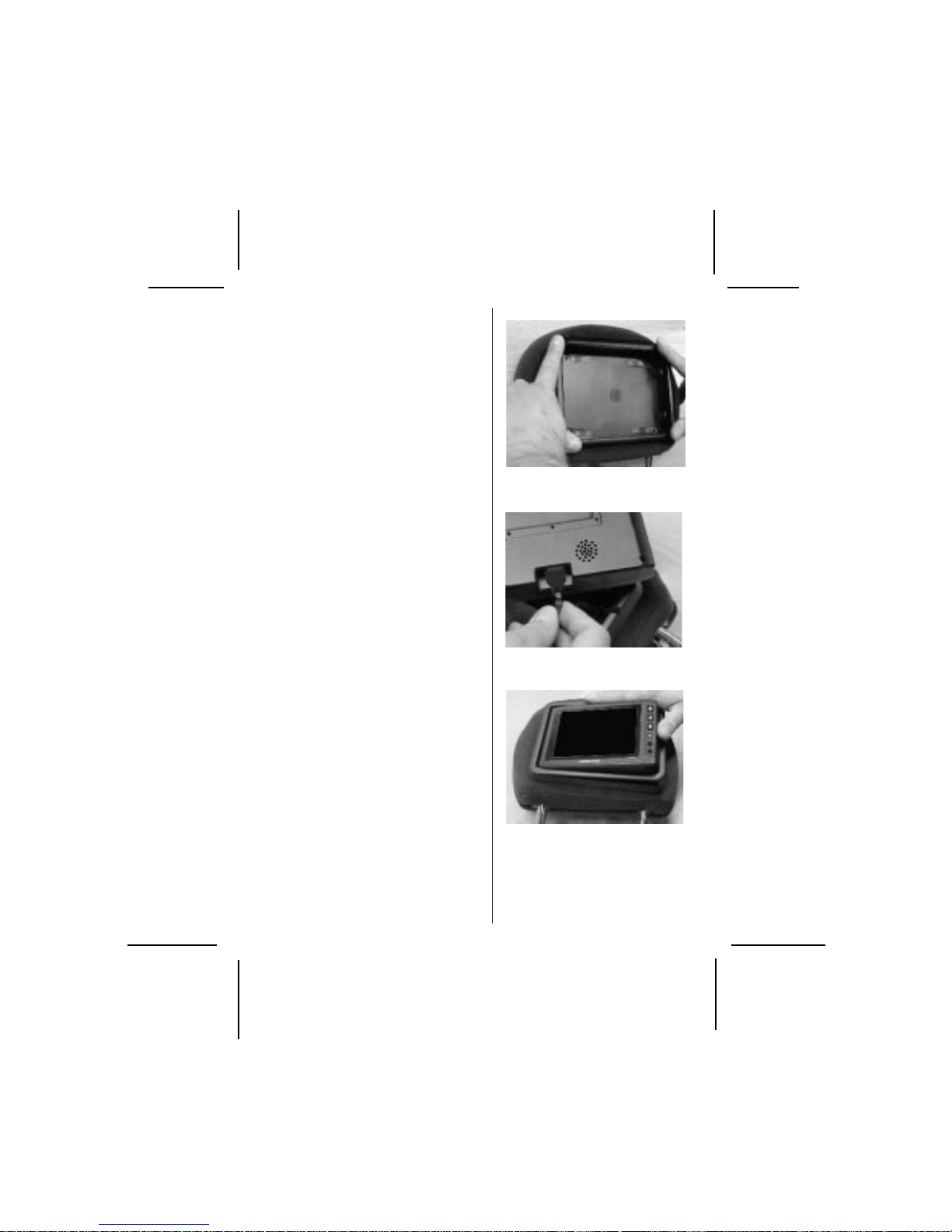

11) Guide the cable through the side
openingof theMountingTrayand
plugitintotheMonitor. Makesure
theconnectorlocksintoplace. In-
sert the Monitor into the Mount-
ing Tray and secure the cable
using tie wraps or screws
12) Turn the Monitor around and in-
sert it into the Mounting Tray
housing. Snap into place.
10) Lay the flaps of the headrest ma-
terialdown intotherecessandin-
sertthe MountingTrayintothere-
cess. Check for fit. If it does not
fit properly, you may need to re-
move some more foam.
NOTE: The Mounting Tray will need
to be secured to the headrest, either
by using tie straps, screws, etc...
13) Connect the Monitor power input
plug to a DC power source (Red
plug +12 VDC, Yellow plug +12
VDC Constant and Black plug (-)
to ground).
14) Connect the external video
source output signal (from VCP/
DVD, TV Etc.) to the VIDEO IN
jack. Test the system to verify
proper installation. 7
128-6549
8 of 12
8
C. Controls/Indicators/Connectors:
Front View
1. Headphone Jack
2. Power Button
3. Source Button
4. IR Sensor
5. Picture Select Button
6. Volume Down Button
7. Volume Up Button
8. AV3 In Jack
12 3456
78
AUDIO OX
128-6549
9 of 12
Rear View
9. DIN Jack
10. DC 12V Input (Red=+12V DC, Black = Ground)
11. Audio Input L #2
12. Audio Input R #2
13. Video Input #2
14. Audio Input L #1
15. Audio Input R #1
16. Video Input #1
17. IR Repeater Connector
18. IR Repeater Transmitter
9
128-6549
10 of 12
10
Note: This cable (18) is used to connect to a Video Cassette Player
or DVD player that doesn't accept the IR Repeater 1/8" (3.5mm)
style plug (17). The IR Repeater Transmitter is provided with an
adhesive that allows it to adhere to the remote sensor of the
Video Cassette Player or DVD player. Remove the backing
covering the adhesive and place the IR Repeater Transmitter
directly over the Video remote sensor of Cassette Player or
DVD player.
D. Operation:
1. Connect the monitor power input plug (10) to a DC power source
(Red plug +12 VDC, Black plug (-) to ground).
2. Connect the external video source output signal (from VCP, DVD, TV
etc.) to the VIDEO IN jack (13 or 16).
3. Press power button (2) to turn the monitor on and off. The backlight
for the button will turn brighter.
4. Press the volume up (5) or down (6) button to adjust the volume level.
5. Press the picture button (4) to adjust the picture display characteris-
tics. The adjustments will be shown on the On Screen Display in the
following sequence: Color, Brightness, Contrast, and TINT. While in
the picture select mode (video adjustment), press the up button (5)
to increase the selected adjustment level or press the down button
(6) to decrease the level.
