Audiovox GMRS2VMK Manuale utente

GenerGener

General Mobile Radio Seral Mobile Radio Ser

al Mobile Radio Seral Mobile Radio Ser

al Mobile Radio Service (GMRS)vice (GMRS)

vice (GMRS)vice (GMRS)

vice (GMRS)

Model: GMRS2VMKModel: GMRS2VMK

Model: GMRS2VMK

OwnerOwner

Owner’s Man’s Man

’s Man’s Man

’s Manualual

ualual

ual

Customer Service

1-800-290-6650

SCAN

EMG

MODE

EMG

CTC

OUT OF

RANGE

EMG

OUT OF

RANGE

HI LO

CTC ID

FAST INTELLIGENT CHARGER

CAUTIONS

Never attempt to charge alkaline or dry cell batteries, as batteries may burst causing

personal injury and damage to the product. When recharging nickel metal hydride

(NiMH) batteries with the Audiovox charger, use only Audiovox approved re-

chargeable batteries. The Audiovox rechargeable batteries were designed to provide

optimum operation for your radio in various environmental conditions. Use of the

Audiovox charger with other brands of batteries is not recommended, as battery

charging times will vary with different brands. Refer to the manufacturer’s instruc-

tions for charging other brands of batteries. Avoid placing the GMRS2VMK radio

transceiver for prolonged periods of time in direct sunlight or temperatures below -

4° F (-20° C) or above 140 ° F (60° C).

Keep the antenna at 1 inch (2.5 cm) away from your head and body. Do not use

your GMRS2VMK radio transceiver with a damaged antenna.

Place the rubber cover on jacks when not in use.

Check the laws and regulations on the use of radio products in the area

where you drive. Always obey them.

When using the radio product while driving, please:

• Give full attention to driving and to the road.

• Pull off the road and park before transmitting or receiving a call if

driving conditions so require.

GMRS license:

Use of this radio within the United States requires an FCC GMRS license. An

individual 18 years of age or older, who is not a representative of a foreign

government, is eligible to apply for a GMRS system license. You will need two

forms from the FCC; FCC Form 159 and FCC Form 605 Main Form and

Schedule F. You can find the forms online at: http://www.fcc.gov/formpage.html,

or call 1-800-418-3676.

Your GMRS2VMK Radio is a portable, easy to use, two-way radio that you can carry

almost anywhere. The Fast Intelligent Charger can be mounted in a vehicle and

is designed for a vehicle environment. The GMRS2VMK is skillfully constructed to

give you reliable communications for many different applications. The GMRS2VMK

is ideal for use around the house, in your boat, on hunting and camping trips, on

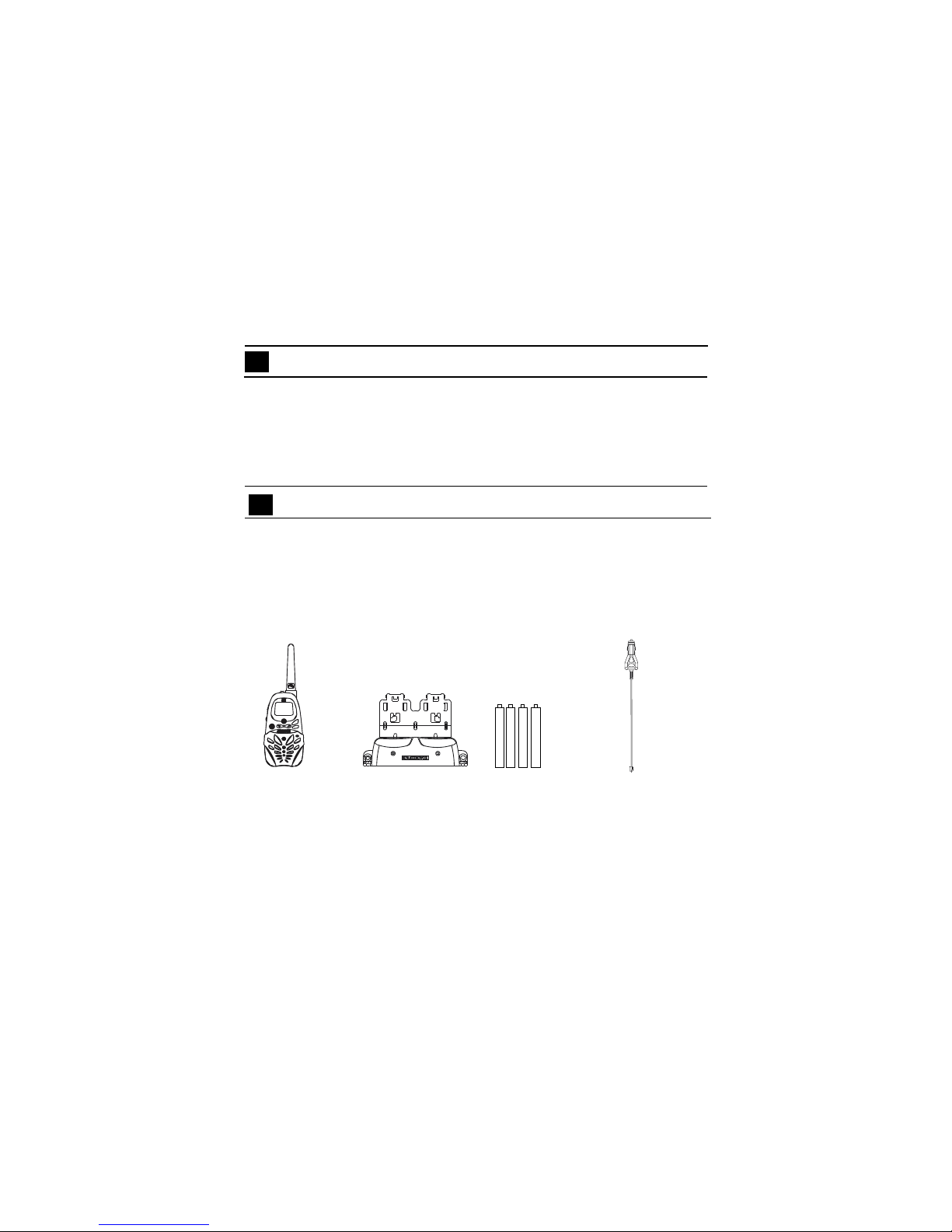

the ski slopes or at the mall. The GMRS2VMK is comprised of the items below:

Your transceiver will achieve its maximum operating range when communi-

cating with other transceivers in a flat open area with no trees or buildings

obstructing its signal. Range may be up to five miles under such conditions.

Obstacles such as buildings, trees or mountains will tend to reduce the

transceiver’s effective range. The transceiver is designed to operate using

the Audiovox supplied four AAA rechargeable NiMH batteries.

FEATURES

PERFORMANCE

SCAN

CAN

EM G

MO DE

Radio Part

Number

GMRS-1200

Fast Intelligent

Charger Part

Number

2VMKCHG

Cigarette

Lighter

Adapter Cable

Part Number

2VMKCIG

Rechargeable

Batteries

Part Number

HR4U

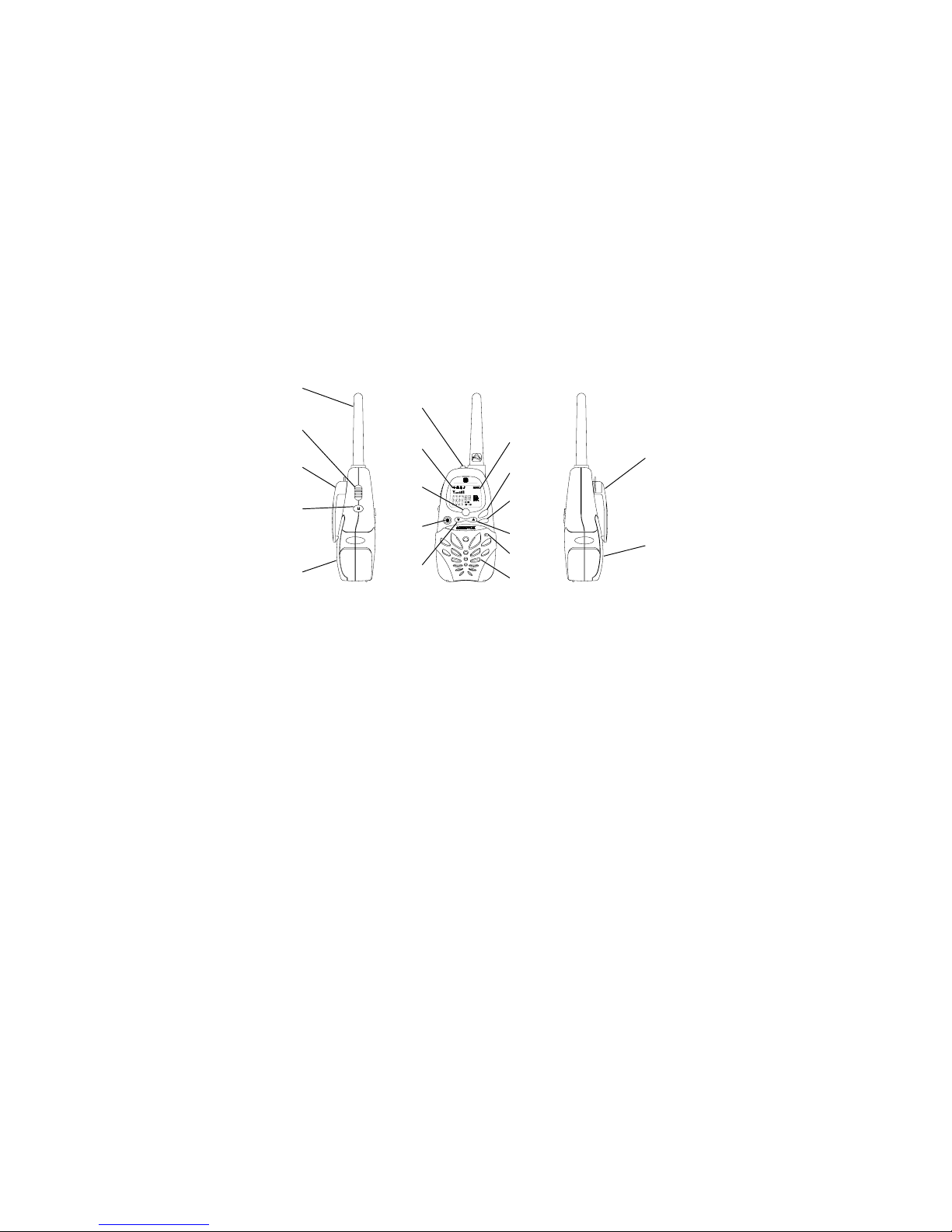

1. Battery Door

2. Monitor/Backlight Button

3. Detachable Carry Clip

Part Number 2VMKBLT

4. Push-To-Talk (PTT) Button

5. Antenna

6. External Speaker(SPK)/Micro-

phone (MIC) Jacks

7. Built-in Speaker

8. Liquid Crystal Display (LCD)

9. Built-in Microphone

GMRS2VMK (FCC License Required)

10. Up Channel/Volume Button

11. Down Channel/Volume

Button

12. MODE Button

13. SCAN/Lock Button

14. Emergency (EMG) Call

Button

15. Power On/Off Control

16. Combination Transmit Indi-

cator (Red)/Receive and

Monitor Indicator (Green)

SCAN

EMG

MODE

EMG

CTC

OUT OF

RANGE

EMG

OUT OF

RANGE

HI LO

CTC ID

(REF)

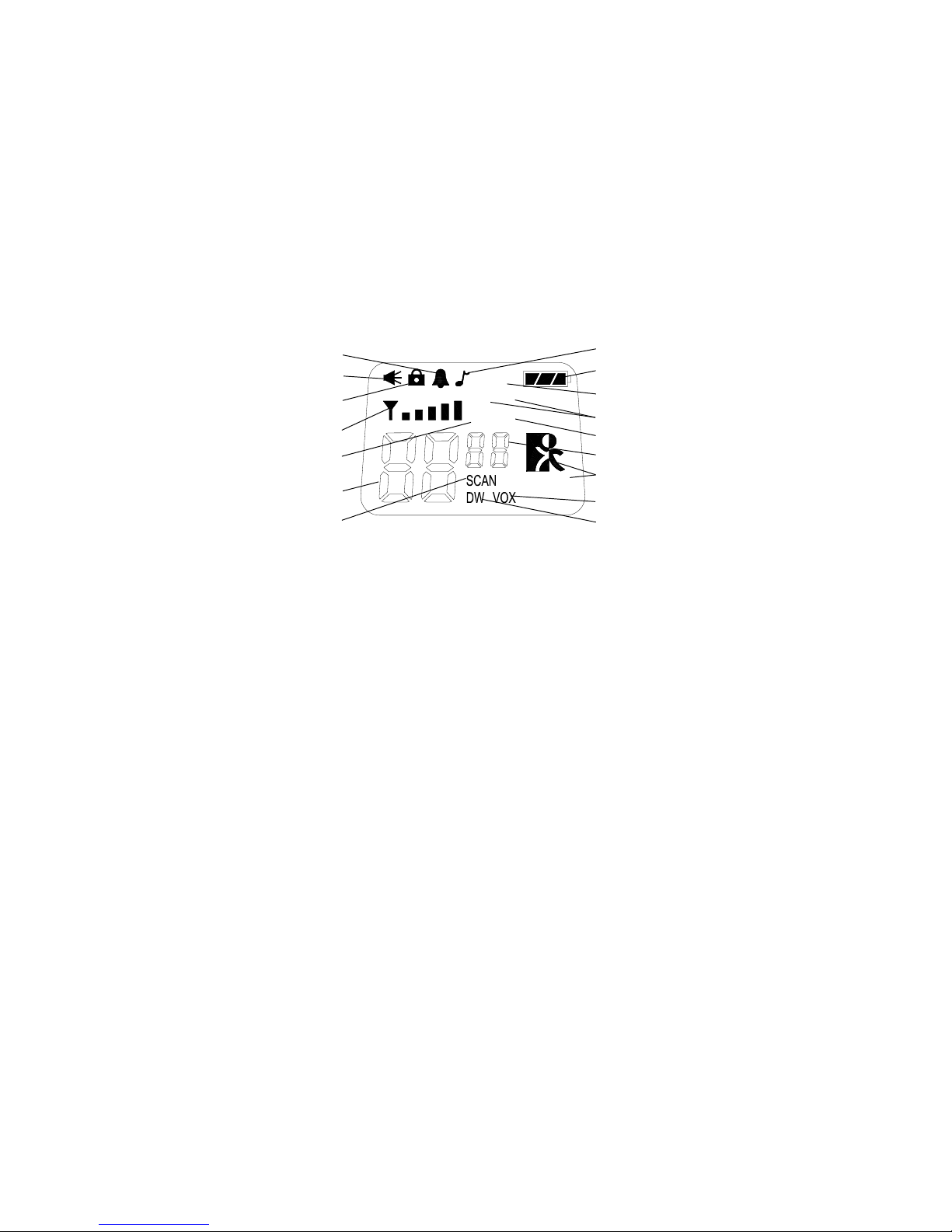

GMRS2VMK DISPLAY

1. Beep Tone Indicator: Icon appears when beep button confirmation

tone is selected; icon disappears when tone is off.

2. Monitor Indicator: Icon appears when the Monitor (M) button is

pressed and the channel monitor function is activated.

3. Key Lock Indicator: Icon appears when the keypad is locked. This

function disables keys such as channel up/down and MODE.

4. Signal Strength Indicator: Icon appears when a signal is being

received. The icon consists of five bars to indicate the received signal

level.

5. Coded Tone Controlled Squelch System (CTC) Indicator: Indicator

appears when the CTCSS tone function is active.

6. Large Segment Display: Indicates the channel number in use.

7. Scan Indicator: This function allows the user to scan a channel and/

or a tone code every .5 second to search for a valid signal.

8. RogerBeep Tone On/Off Indicator: This icon appears when the

Roger Beep tone is on, and disappears when tone is not in use.

9. Battery Level Indicator: Icon indicates the battery charge level.

10.Emergency Indicator: EMG Icon appears when the EMG button is

pressed. (The frequency is NOT monitored by authorities).

11. HI/LO Indicators: Appropriate indicator appears when the transmit

power is set to desired output power on the GMRS channels.

EMG

OUT OF

RANGE

HI LO

CTC ID

12.Caller Identification (ID) Indicator: This indication appears when

you select a caller identification code (between 1 and 10). ID selection

operates in conjunction with the small segment display, and can also

be used to identify a calling party in the monitor mode.

13.Small Segment Display: Displays the CTCSS tone option in the

channel from (00-38).

14.Out of Range Indicator: Icon will be on steady when received signal

strength is normal; icon flashes when signal strength becomes weak

and intermittant.

15.Voice Activated Transmission (VOX) Indicator: This function allows

hands free conversation. The indicator appears when the VOX mode

is activated.

16.Dual Watch Mode Indicator: Indicator appears when dual watch mode

is active.

Powering the transceiver:

Your GMRS2VMK radio transceiver operates on four AAA batteries. Only

Audiovox approved rechargeable batteries should be recharged in the

radio transceiver using the Fast Intellegent Charger. This will ensure

optimum performance for the GMRS2VMK. Use of the Fast Intellegent

Charger with other brands of batteries is not recommended as battery

charging times will vary. Refer to the manufacturer’s instructions for

charging other brands of batteries.

Batteries

There are three methods of powering the GMRS2VMK:

1. Alkaline Batteries.

WARNING: Do not attempt to recharge Alkaline batteries.

2. Audiovox Rechargeable NiMH Batteries -It is strongly recom-

mended that only Audiovox approved rechargeable batteries and

the Fast Intelligent Charger be used while charging batteries

internal to the transceiver.

NOTE: To extend battery life, avoid overcharging the batteries.

2. Slide the cover

down and then lift

cover at bottom to

open.Remove

cover.

3. Insert four AAA batteries

(positive (+) end toward

the bottom begining at

left side and alternating

positive terminals as

shown).

1. Using thumb,

press down on

battery cover at

arrow and slide

cover down to

open.

3. Various Brands of Rechargeable Batteries - Use of the supplied

Audiovox charger with other brands of rechargeable batteries is

not recommended, as battery charging times will vary with different

brands of batteries. Refer to the manufacturer’s instructions for

charging other brands of batteries.

Installing the batteries:

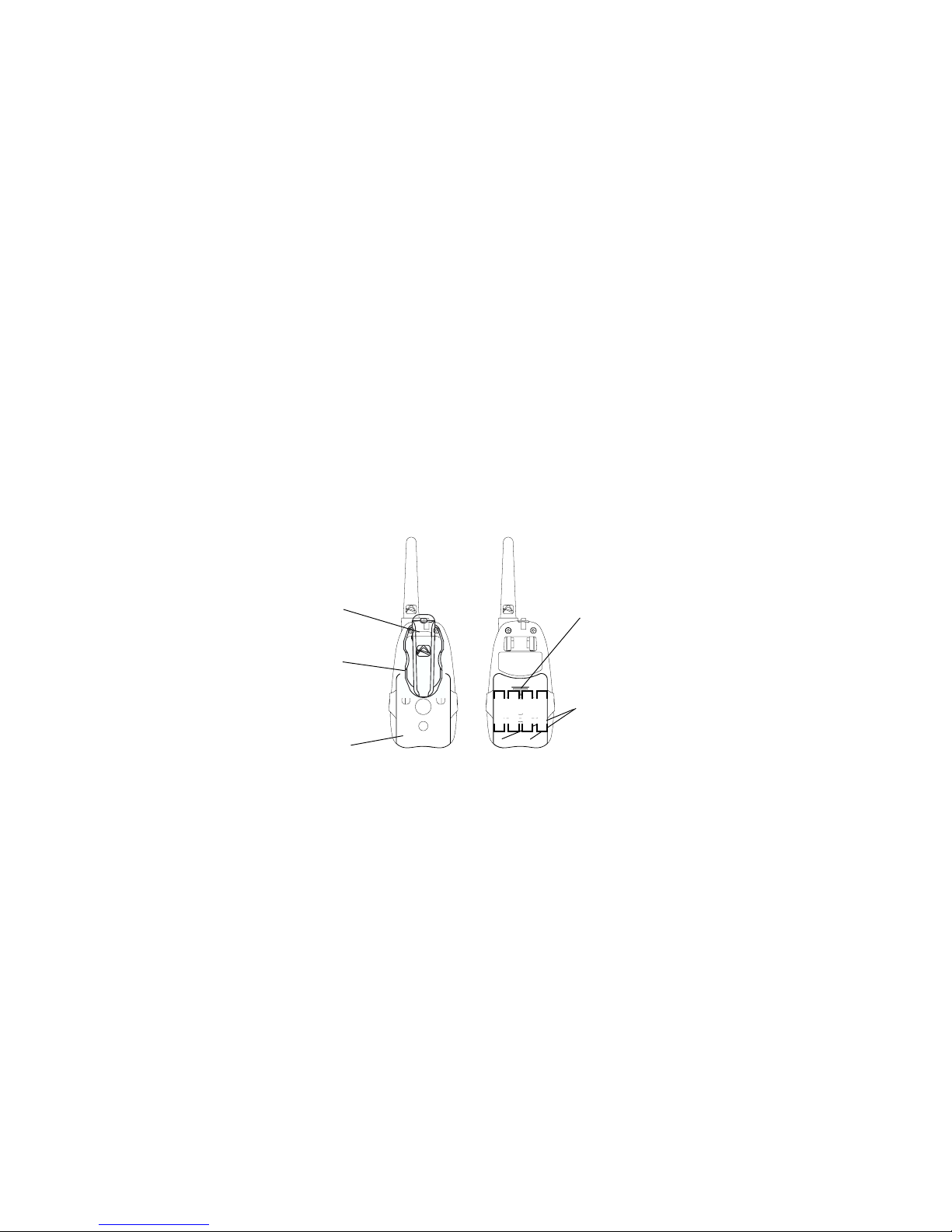

Battery installation is made more convenient when the carry clip is removed.

To do this, release the spring latch securing the clip to radio and slide the

clip downward and away from the radio body. Next, press down with the

thumb at the embossed arrow, slide the battery cover down and lift off the

battery cover. Insert four AAA batteries (alternate positive ends (+) toward

the bottom of the transceiver, (starting left-to-right).

SPRING

LATCH

BATTERY

COVER

CARRY

CLIP

PART

NUMBER

2VMKBLT

COVER

ARROW

+ +

POSITIVE

TERMINALS

Mounting the Charger

The Fast Intelligent Charger can be mounted horizontally or vertically in

a vehicle. Mount the Fast Intelligent Charger using the following proce-

dure:

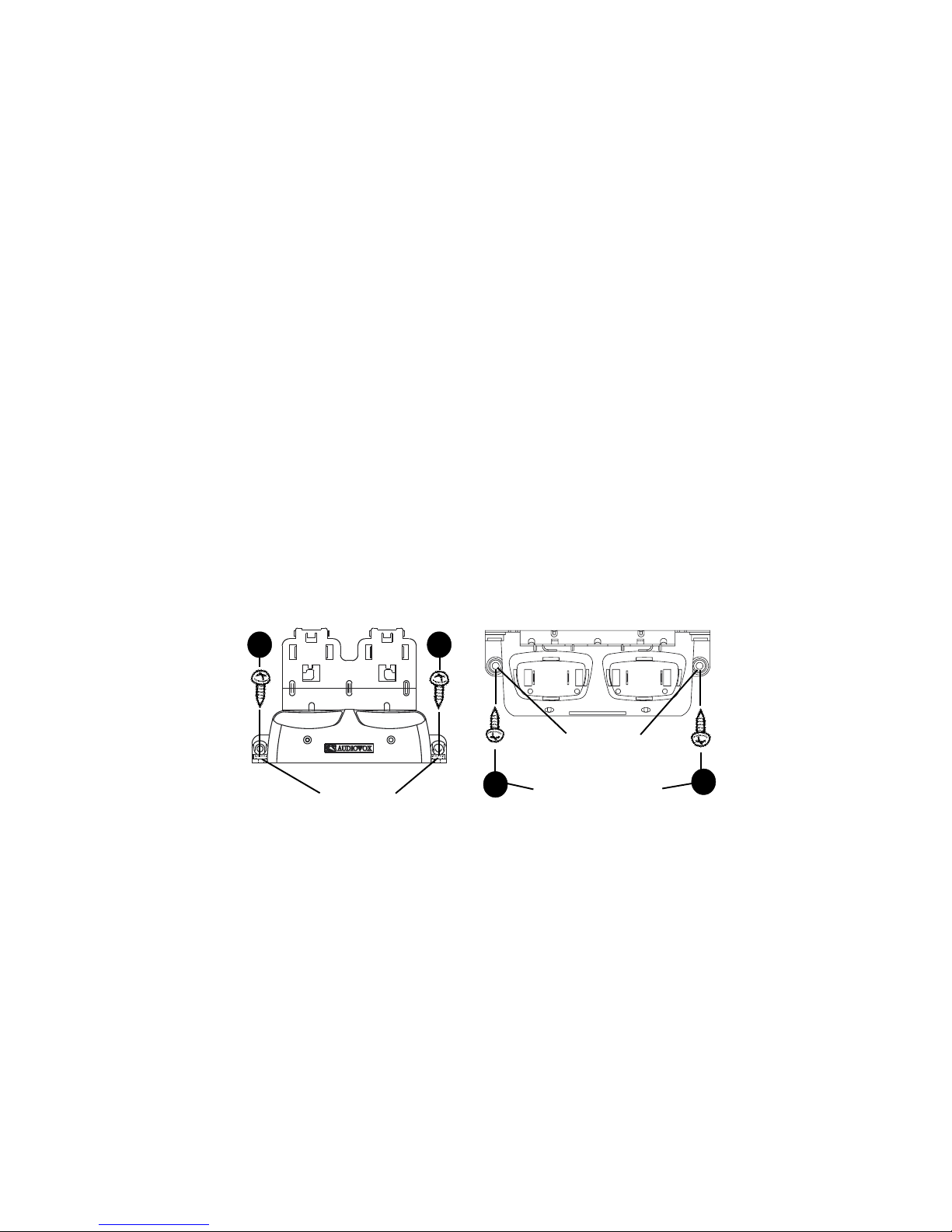

1. Hold the charger up to the surface where is to be mounted.

2. Using a marker, mark the location of where the mounting holes are

going to made.

WARNING!

Never install above your fuel tank as the holes you must drill may pierce the

tank or the fuel lines. Also check for other obstructions such as wires, etc.

3. Drill the mounting holes and using the screws provided, mount

the charger in the desired location.

4. Cover the screw heads of the mounting screws with the covers pro-

vided.

VERTICAL MOUNTING HORIZONTAL MOUNTING

MOUNTING

SCREW

HOLES

MOUNTING SCREW

COVERS

MOUNTING

SCREW

HOLES

Where to Install the Charger

The Fast Intelligent Charger can be mounted horizontally or vertically

in any suitable location within the trunk, passenger compartment or

rear cargo area of your vehicle. When mounting the charger in the trunk

it maybe necessary route the cigarette lighter adapter wiring from the

trunk to your car dashboard if no closer power outlet is available. The

cigarette lighter adapter cable is approximately 16 feet long.

WARNING!

Never install above your fuel tank as the holes you must drill may pierce

the tank or the fuel lines. Also check for other obstructions such as wires,

etc.

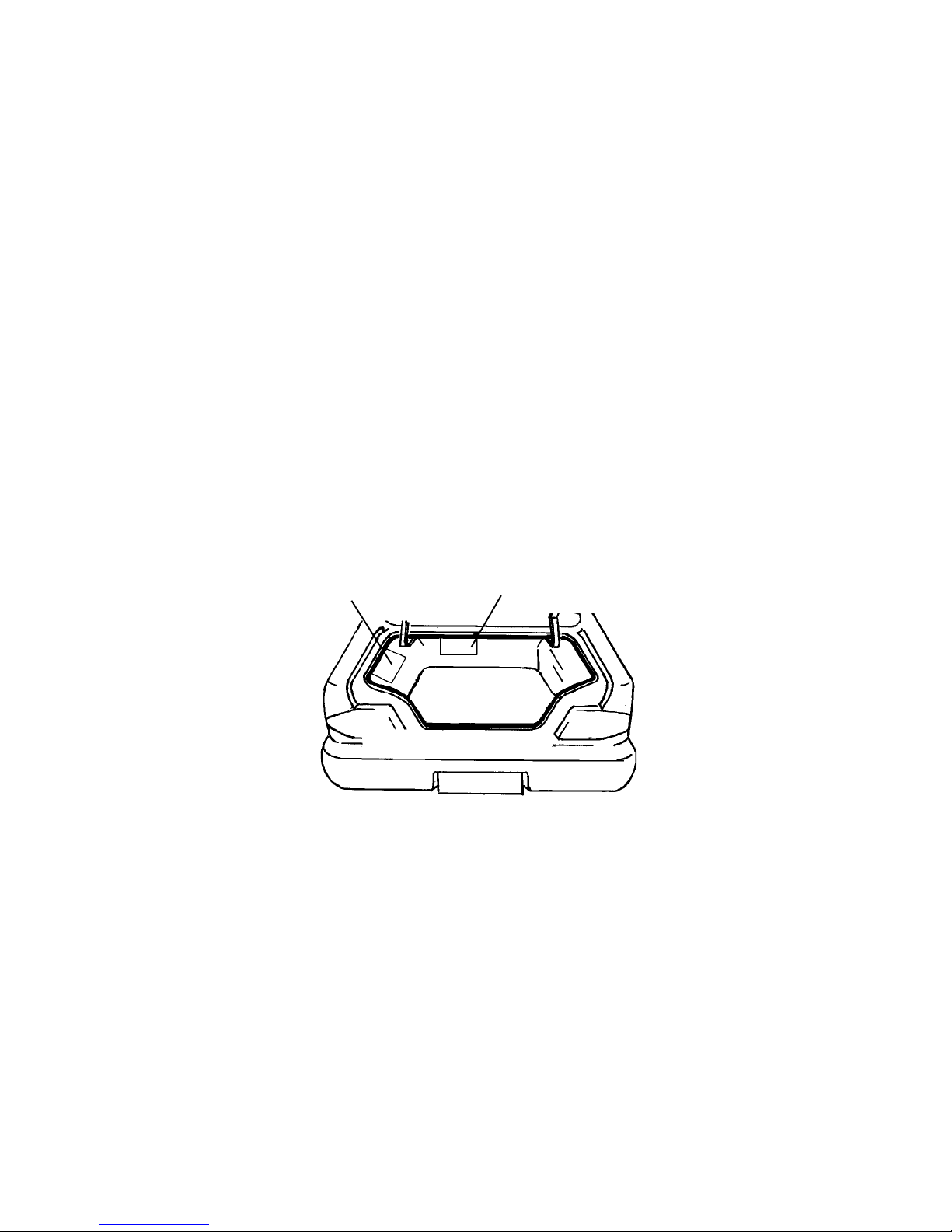

MOUNT UNDER LIP OF TRUNK

MOUNT ON SIDE WALL

Using the Fast Intelligent Charger

The Fast Intelligent Charger will typically fully charge the transceivers

in two hours. LEDs mounted on the front of the charger provide visual

status of the charging process.

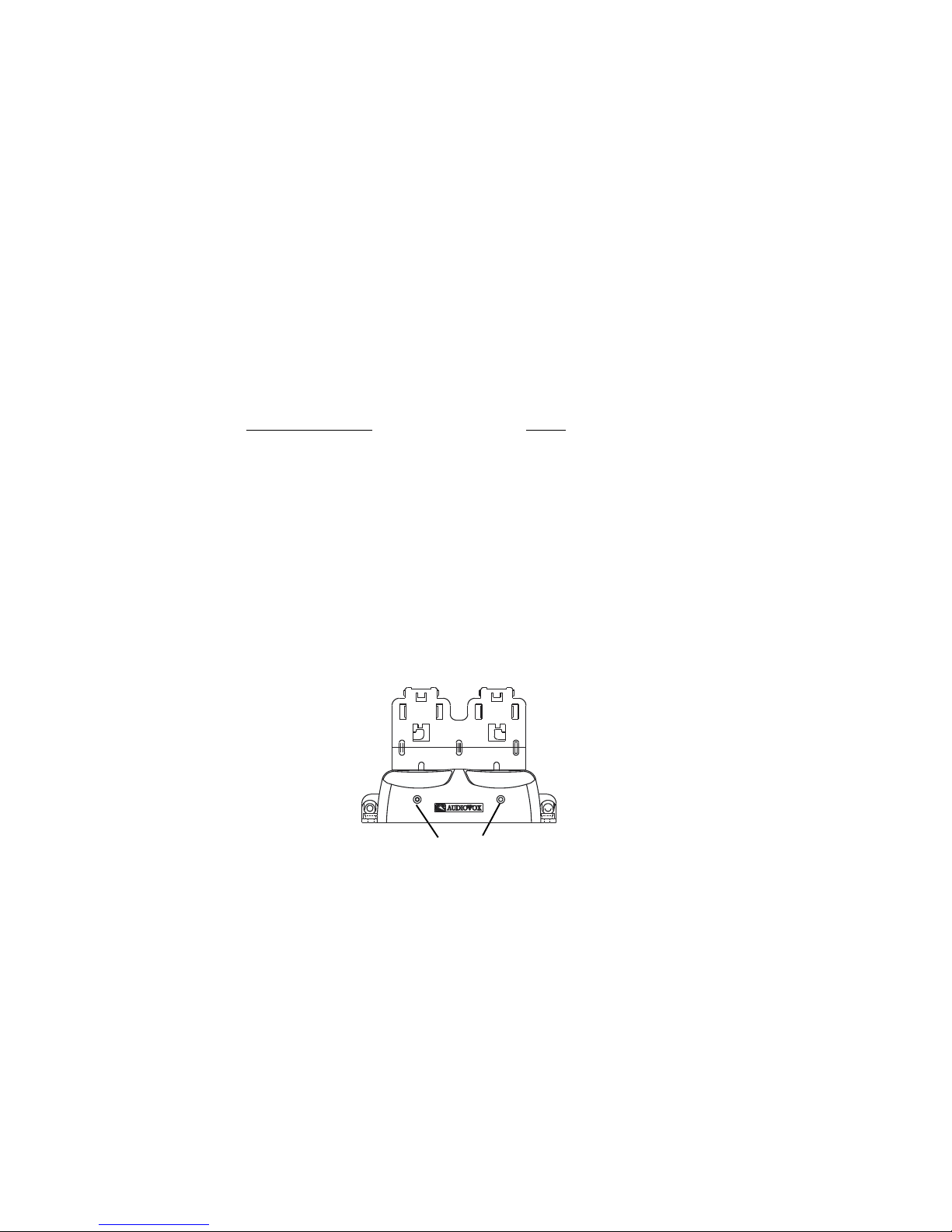

Charging Indicators Status

Steady Yellow: The charging process is not taking place.

Charging will not occur at temperatures below

14 degrees Fahrenheit (-10 degrees Celsius)

or above 140 degrees Fahrenheit (60 degrees

Celsius).

Blinking Red: The charging process is not taking place. The

batteries need to be replaced.

Steady Red: Charging in progress.

NOTE: Observe the charging LED indicators after one

minute to ensure that charging is taking place.

If charging LEDs are blinking, replace the

batteries.

Steady Green: Batteries are fully charged.

CHARGING LED INDICATORS

Indice

Altri manuali Audiovox Radio

Audiovox

Audiovox MS160 Manuale utente

Audiovox

Audiovox XMp3i Manuale utente

Audiovox

Audiovox Sirius SIR-HK1 Manuale utente

Audiovox

Audiovox XT·250 XTRA series Manuale utente

Audiovox

Audiovox GMRS-7000 Manuale utente

Audiovox

Audiovox Satellite Radio Receiver Manuale utente

Audiovox

Audiovox XM CNP-1000C Manuale utente

Audiovox

Audiovox SIR-CK3 Manuale utente

Audiovox

Audiovox GMRS8000-2 Manuale utente

Audiovox

Audiovox Xpress EZ Manuale utente

Audiovox

Audiovox SIRIUS SRSIR-001 Manuale utente

Audiovox

Audiovox GMRS6000-2CH Manuale utente

Audiovox

Audiovox GMRS7001-2CH Manuale utente

Audiovox

Audiovox GMRS200 Manuale utente

Audiovox

Audiovox GMRS120 Manuale utente

Audiovox

Audiovox GMRS100 Manuale utente

Audiovox

Audiovox XpressR XMCK-20KC Manuale utente

Audiovox

Audiovox SIR-PNP1 Istruzioni per l'installazione e il funzionamento

Audiovox

Audiovox XPRESSEZ XMCK-5P Manuale utente

Audiovox

Audiovox GMRS672 Manuale utente

Audiovox

Audiovox SIR-HK3 Manuale utente

Audiovox

Audiovox GMRS121-2 Manuale utente

Audiovox

Audiovox XAPH1 Manuale utente

Audiovox

Audiovox GMRS500SLK Manuale utente

Manuali Radio popolari di altre marche

EisSound

EisSound KBSound iSelect Manuale utente

Midland

Midland 1001LWX Manuale utente

Konig

Konig HAV-SR41 Manuale utente

Roberts

Roberts exprssion Manuale utente

VDigi

VDigi DD3.0 Manuale utente

Radio Shack

Radio Shack 21-1863 Manuale utente

Roberts

Roberts Stream 207 Manuale utente

Sony

Sony Walkman SRF-M97 Manuale utente

Stanley

Stanley FatMax FMC770 Manuale utente

auna

auna DAB-Radio 10026947 Manuale utente

SOUNDMASTER

SOUNDMASTER UR190 Manuale utente

HYT

HYT TC-320 Manuale utente

auna multimedia

auna multimedia Yellowstone 10026851 Manuale utente

B-Tech

B-Tech GMRS-V2 Manuale utente

Weierwei

Weierwei VEV-V8 Manuale utente

SOUNDMASTER

SOUNDMASTER DAB750 Manuale utente

Telefunken

Telefunken TF-1505 Manuale utente

Makita

Makita LXRM03 Manuale utente
