LOHI FM
General Mobile Radio Service (GMRS)
Model : GMRS762CH
Ultra-Slim Twin Pack
Owner’s Manual
128-7627
2 of 28
2
THIS PAGE LEFT BLANK INTENTIONALLY
128-7627
3 of 28
CAUTION:
SAFETY INFORMATION
Your wireless hand-held portable transceiver contains a power trans-
mitter. When the PTT button is pushed (or the VOX mode is enabled) it
sends out radio frequency (RF) signals. The device is authorized to
operate at a duty factor not to exceed 50%. In August 1996, the Federal
Communications Commissions (FCC) adopted RF exposure guide-
lines with safety levels for hand-held wireless devices.
Important: To maintain compliance with the FCC’s RF exposure guide-
lines hold the transmitter at least 1 inch (2.5 centimeters)
from your face and speak in a normal voice, with the an
tenna pointed up and away. If you wear the handset on your
body while using the headset accessory, use only the
Audiovox supplied carry clip for this product and ensure that
the antenna is at least 1 inch (2.5 centimeters) from your
body when transmitting. Use only the supplied antenna. Do
not use your transceiver with a damaged antenna. Unau-
thorized antennas, modifications, or attachments could
damage the transmitter and may violate FCC regulations.
Performance:
Your transceiver will only achieve its maximum operating range when
communicating with other transceivers across open and flat areas or
between elevated points. Normally occurring environmental factors such
as buildings, trees, terrain and weather, or interference from other radio
or electrical equipment, may have adverse effects on the transceiver’s
effective range. These are not indicative of a fault condition.
Avoid placing the GMRS762CH radio transceiver for prolonged periods
of time in direct sunlight or temperatures below -4°F(-20°C) or above
140°F (60°C). 3
128-7627
4 of 28
WARNINGS:
Battery Care
Never attempt to charge other brands of batteries, as batteries may
burst causing personal injury and damage to the product. When recharg-
ing Lithium-ion(Li-ion) batteries with the AUDIOVOX charger, use only
supplied Audiovox-approved rechargeable batteries. Use of the Audiovox
charger(alsosupplied)withotherbrandsofbatteriesisnot recommended,
as battery charging times will vary with different brands. Refer to the
Manufacturer’s instructions for charging other brands of batteries.
Battery Disposal
In general, if handled improperly, batteries pose a risk of fire or burns. Do
not disassemble, crush, puncture, short external contacts, or dispose of
the batteries in fire or water. Dispose of the batteries in a environmentally
safe manner and recycle whenever possible.
CAUTION:Make sure wrist strap is securely fastened to wrist strap ring
to prevent unit loss or damage.
FCC WARNING
Replacementorsubstitutionoftransistors,diodesorotherpartsofaunique
nature, with parts other than those recommended by the manufacturer,
maycause a violation of the technicalregulationsof Part 15 of FCCRules.
GMRS LICENSE:
USEOFTHIS RADIO WITHIN THE UNITED STATES REQUIRESAN
FCCGMRS LICENSE.AN INDIVIDUAL18YEARSOFAGEOROLDER,
WHOISNOTAREPRESENTATIVEOFAFOREIGN GOVERNMENT,IS
ELIGIBLETOAPPLYFORAGMRS SYSTEM LICENSE.YOUWILL
NEED TWO FORMS FROMTHE FCC: FCC FORM 159,AND FCC
FORM 605 (MAIN FORMAND SCHEDULE F). YOU CAN FIND THE
FORMSONLINEAT:HTTP:// WWW. FCC. GOV/FORMPAGE.HTML, OR
CALL 1-800-418-3676.
4
128-7627
5 of 28

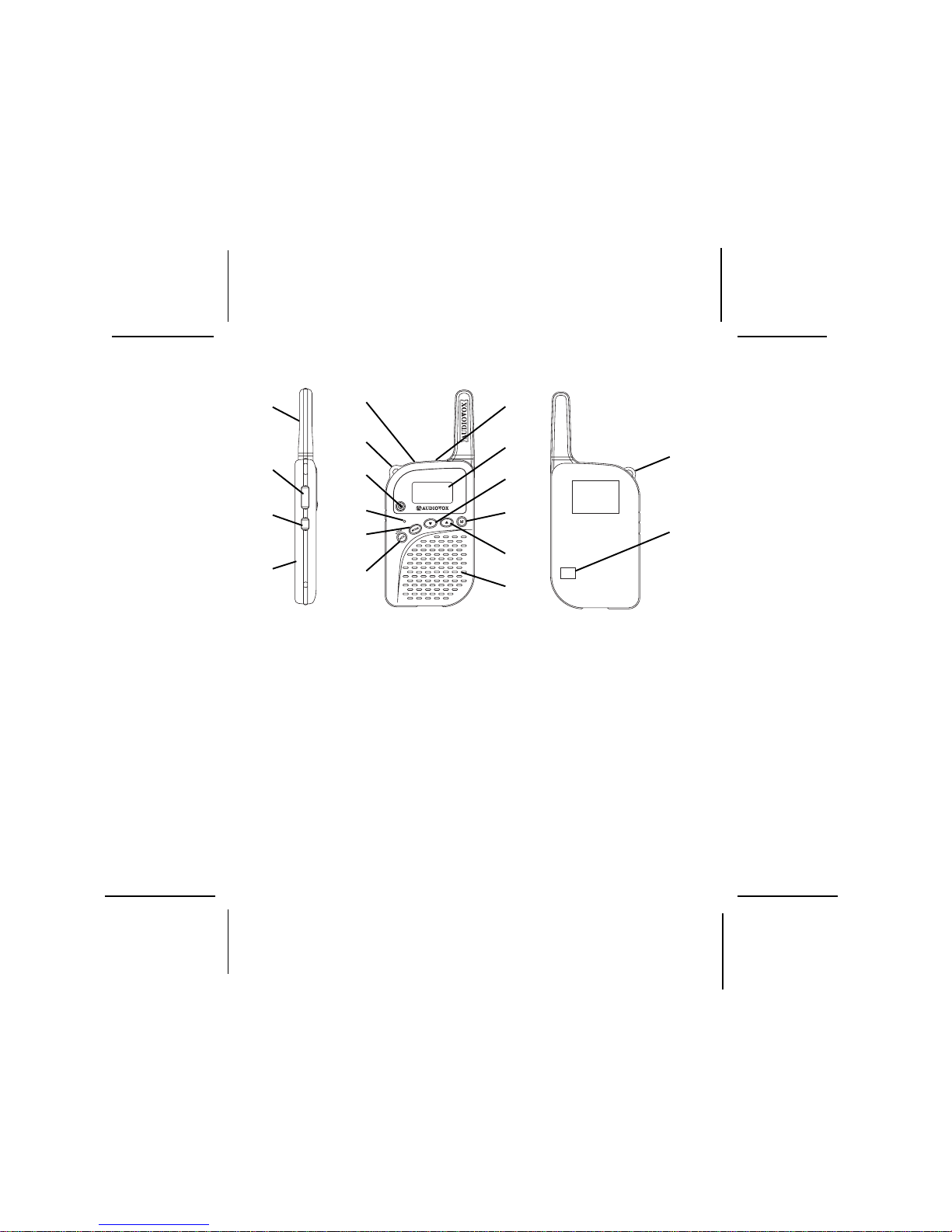

1. Battery(Internally Installed)
2. Flashlight Enable Button
3. Push-To-Talk (PTT) Button
4. Antenna
5. VOX/LOCK Button
6. MODEButton
7. Built-inMicrophone
8. Power On-Off/SCAN
Button
9. Wrist strap ring
Model GMRS762CH (FCC License Required)
10. White Flashlight LED
11. External Speaker/Micro-
phone/Charge Jack
12. Liquid Crystal Display
(LCD)
13. Down Channel/Volume
Button
14. Monitor/BacklightButton
15. Up Channel/Volume Button
16. Built-in Speaker
17. Battery Charging Contacts
5
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
9
REF
128-7627
6 of 28
6

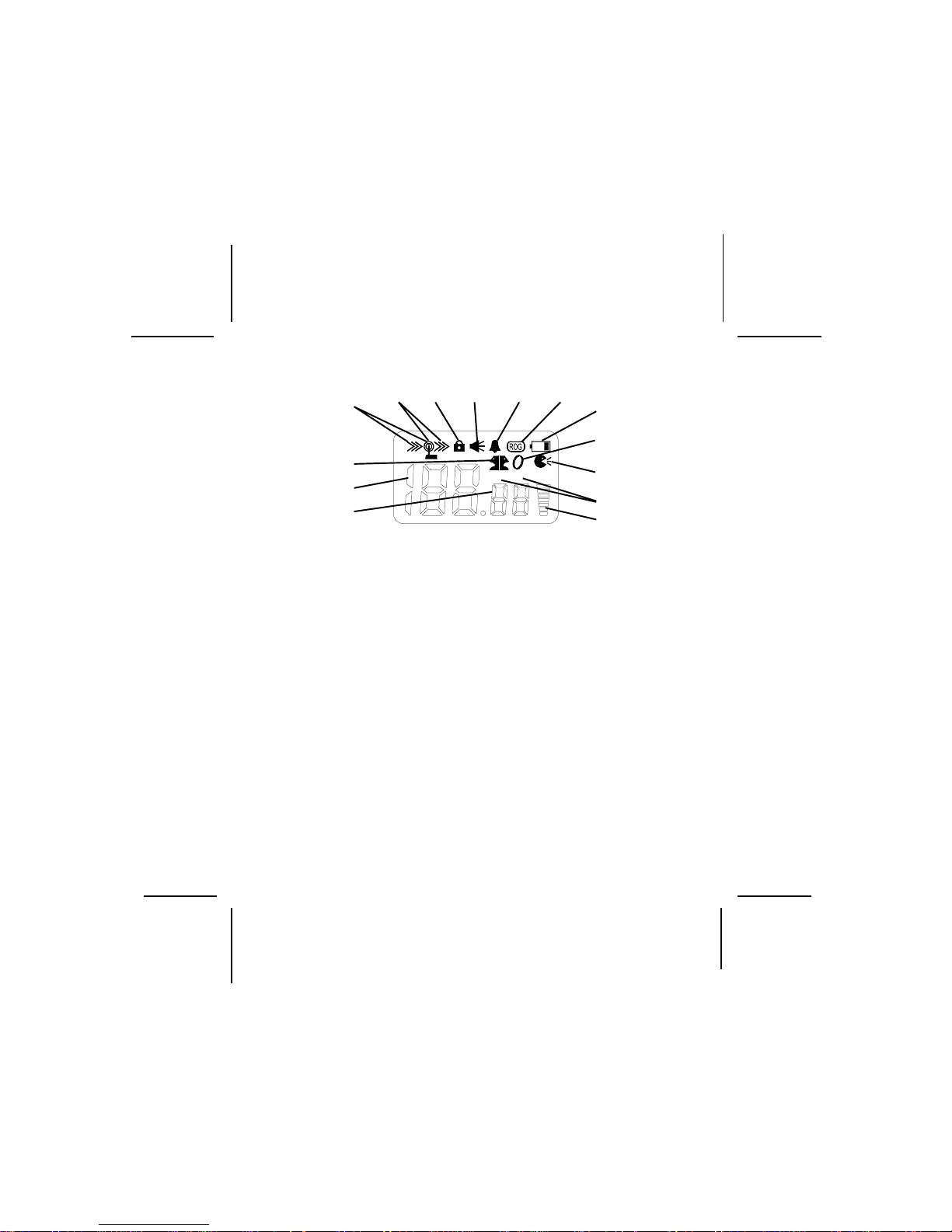

Model GMRS762CH Display
1. Small Segment Display: Displays the CTCSS tone option for
each main channel from 01-38.
2. Large Segment Display: Indicates the channel number in use.
3. Dual Watch Mode Indicator: Indicator appears when dual watch
mode is active.
4. Signal Receive Indicator: Busy icon appears when a signal is
being received.
5. Signal Strength Indicator: Icon appears when a signal is being
transmitted.
6. Key Lock Indicator: Icon appears when the keypad is locked.
This function disables keys such as channel up/down, SCAN and
MODE.
7. Monitor Indicator: Icon appears when the Monitor (M) button is
pressed and the channel monitor function is activated.
8. Beep Tone Indicator: Icon appears when beep button confirma-
tion tone is selected; icon disappears when tone is off.
9. Roger Beep Tone On/Off Indicator: This icon appears when the
Roger Beep tone is on, and disappears when tone is not in use.
10. Battery Level Indicator: Icon indicates when the battery is low
and in need of charging.
LOHI FM
1
2
3
456 7 8 910
11
12
13
14
128-7627
7 of 28
7
11. Scan Indicator: This function allows the user to scan a channel
(and tone code, if present) every .5 second to search for a valid
signal.
12. Voice Activated Transmission (VOX) Indicator: This function
allows hands free conversation. The indicator appears when the
VOX mode is activated.
13. HI/LO Indicators: Power level indicator appears when the
transmit power is set to desired output power on the GMRS
channels.
14. Volume Level Indicator: Indicator appears the volume level
Equipment and Accessories Supplied
1. Radio (2) GMRS762CH
2. Owner’s Manual 128-7627
3. Dual Desktop Charger GMRS6DST
. 4. AC Wall Adapter GMRS6AC
5. Rechargeable (Li-ion) Battery GMRS5BAT
6.Wrist Strap GMRS5WRST
Powering the transceiver:
Your GMRS762CH radio transceiver operates on internally installed
Li-ion batteries. Only Audiovox approved rechargeable batteries should
be recharged in the radio transceiver using the charging accessories.
This will ensure optimum performance for the GMRS762CH. Battery
charging time is typically 11 - 13 hours. Use of the Audiovox charging
equipment with other brands of rechargeable batteries is not recom-
mended as battery charging times will vary. Refer to the
manufacturer’s instructions for charging other brands of batteries.
CAUTION: Prior to initial use, make sure to fully charge the Lithium-
Ion battery; otherwise, if the battery is allowed to dis-
charge too much, battery damage could result. The
battery should be fully charged in approximately 12 hours.
128-7627
8 of 28
Battery Charging
Useonly anAudiovox approvedrechargeable battery and chargingequip-
ment when charging the battery internal to the unit.
WARNING: Do not attempt to charge the battery using another
manufacturer’s charging equipment.
NOTE: Toextendbatterylife,avoidoverchargingthebattery. Do not leave
the unit(s) in the charger for extended periods of time.
8

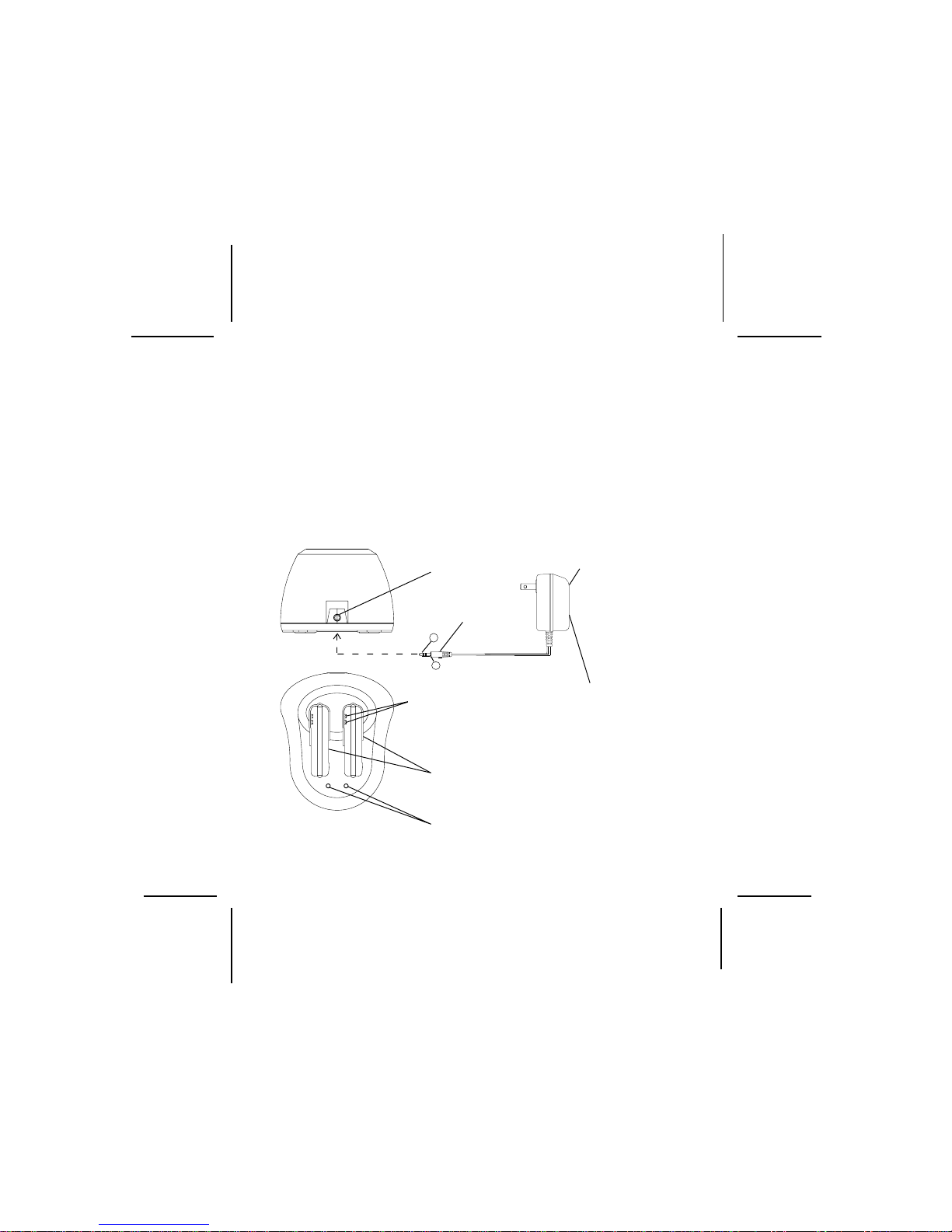

DC 9V
INPUT: 120VAC
OUTPUT: 9.0 VDC
DESKTOP CHARGING STAND
MODELGMRS6DST
CHARGING STAND
PWR JACK
ADAPTER
POWER
PLUG
GMRS RADIO
CHARGING
COMPARTMENTS
(2)
CHARGING
COMPARTMENT
LEDs:
ON - CHARGING
OFF - CHARGING
COMPLETE
-
AC WALL ADAPTER/
CHARGING TRANSFORMER
MODEL:GMRS6AC
+
CHARGING
COMPARTMENT
CONTACTS
NOTE: Only Audiovox
approved rechargeable
battery (Model GMRS5BAT)
can be recharged in the
radio transceiver.
RED LED: ON - CHARGING
OFF - CHARGING
COMPLETE
128-7627
9 of 28
Power On-Off/SCAN (8) Button
Press and hold the power on/off button ( s) for at least 2 seconds.
You will hear a confirming melody to indicate the unit is on. To turn the
unit off, press and hold the button for at least 2 seconds. When the unit
is on, press this button momentarily to enable or disable the scan
mode.
GMRS762CH Operational Modes
9
Controls:
LEDFlashlightEnableButton (2)
When the unit is on, press this button on the left side of the Trans-
ceiver to light the white flashlight LED (10) on top of the unit.
Charging Indications
When either, or both, units are being charged in the charging stand, the
associated red LED charging indicator will light steadily. In addition, the
AC wall adapter LED will also light steadily. When fully charged, the
LEDs will be off.
Adjusting the Volume (13, 15)
With the unit powered on, press the Up Channel/Volume button (S) to
increase volume and the Down Channel/Volume button (T) to decrease
volume. The display will indicate the current volume level between 0 to 7
bars on the right lower side of the LCD.
128-7627
10 of 28
Monitor/Display Backlight Button (14)
This button is used to check activity on the current frequency before
transmitting. Check activity by pressing the Monitor (M) Button longer
than 2 seconds; the icon will appear on the display and you will hear
static if frequency is clear. Do not transmit if you hear conversation.
Hold down the Monitor Button again longer than 2 seconds and the
icon will disappear from the display.
The monitor function will temporarily bypass the squelch setting and
play all signals on a given channel. This feature is useful when commu-
nicating with other parties at extreme range.
By pressing the monitor button momentarily, the LCD backlight is turned
on accompanied by a beep tone (if enabled); the LCD backlight will turn
offautomaticallyinabout5seconds,orwhenthemonitorbutton is pressed
momentarily once again.
Push To Talk (PTT) Button (3)
Pressing and holding this button will allow you to speak to any trans-
ceiver that is set to the same channel and privacy code setting as yours.
Hold the transceiver approximately 1 to 2 inches from your face as you
speak into the built in microphone (7). After you have finished speaking,
release the PTT Button to allow reception of incoming signals. It is not
possible to transmit and receive at the same time. The Transmit Signal
Level indicator ( ) will display the relative strength of the transmitted
signal. When receiving an incoming signal, the ( ) icon will appear in
the upper right quadrant of the display. The PTT button can also be used
as a two-way
10
Indice
Altri manuali Audiovox Radio
Audiovox
Audiovox ACD-30 Manuale di programmazione
Audiovox
Audiovox TTR1 Manuale utente
Audiovox
Audiovox GMRS7001-2CH Manuale utente
Audiovox
Audiovox GMRS120 Manuale utente
Audiovox
Audiovox GMRS-1545 Manuale utente
Audiovox
Audiovox GMRS672 Manuale utente
Audiovox
Audiovox GMRS6000-2PK Manuale utente
Audiovox
Audiovox XMCK20P - XPRESSR XM Radio Tuner Manuale utente
Audiovox
Audiovox GMRS862CH Manuale utente
Audiovox
Audiovox SIR-HK3 Manuale utente
Audiovox
Audiovox Sirius SIR-PNP3 Manuale utente
Audiovox
Audiovox GMRS1262CH Manuale utente
Audiovox
Audiovox GMRS200 Manuale utente
Audiovox
Audiovox GMRS-1200CH Manuale utente
Audiovox
Audiovox XMRVRFM002 - Commander MT XM Radio Tuner Manuale utente
Audiovox
Audiovox GMRS600SLK Manuale utente
Audiovox
Audiovox GMRS8000-2 Manuale utente
Audiovox
Audiovox SIR-PNP1 Istruzioni per l'installazione e il funzionamento
Audiovox
Audiovox GMRS862 Manuale utente
Audiovox
Audiovox XpressR XMCK-20KC Manuale utente
