Audyssey Wireless Speakers Manuale utente

Wireless Speakers

Product Manual

Version 1.3

Audyssey Wireless Speakers Manual 2

Table of Contents

WELCOME............................................................................

WHAT’S IN THE BOX...........................................................

TOUR THE AUDYSSEY WIRELESS SPEAKERS.....................

CONNECTING YOUR WIRELESS SPEAKERS........................

BLUETOOTH®WIRELESS TECHNOLOGY ............................

STREAMING AUDIO VIA BLUETOOTH

WIRELESSTECHNOLOGY.....................................................

PLAYING AUDIO USING THE

3.5 MM (1/8-INCH) AUDIO INPUT JACK..............................

LISTENING WITH HEADPHONES........................................

VOLUME CONTROL & STANDBY MODE.............................

UNDER THE HOOD...............................................................

AUDIO TECHNOLOGIES INSIDE..........................................

TROUBLESHOOTING............................................................

SAFETY..................................................................................

WARRANTY..........................................................................

Audyssey Wireless Speakers Manual 3

Audyssey®knows audio. Our sound-optimizing technologies are used

in studios, movie theaters, home theaters and automobiles. These

Wireless Speakers use Audyssey EQ®, Audyssey Dynamic EQ®and

Audyssey BassXT®in a feature-rich product to provide a powerful

and intuitive all-in-one audio solution for your media. It works with

tablets, smart phones and iPods® and, if needed, can be wired to

nearly anything with a 3.5 mm (1/8-inch) audio output jack.

With the Audyssey Wireless Speakers you can:

r Stream music wirelessly without tying up your phone. Check

email, send text messages or use your favorite app without

missing a beat.

r Get deeper bass with BassXT than any other compact speaker.

r Enjoy music at soft volume levels with Audyssey Dynamic EQ.

r Overcome common room distortion with Audyssey EQ for

clear balanced sound.

r Connect your iPod, tablet or laptop with Bluetooth wireless

technology.

Audyssey engineers start by designing loudspeaker drivers,

electronics and the speaker cabinets from the ground up. We

optimize these components so they work in unison with our audio

algorithms then tune and rigorously test the complete system

for clear and natural playback. The speakers adapt in real time to

reproduce music or movies accurately. From our labs to your home,

Audyssey technology is delivering better sound.

Welcome

The Audyssey Journey

What’s in the Box

Audyssey Wireless Speakers

Power Supply

3.5 mm (1/8 in) audio cable

Speaker interconnect cable

Power supply

Warranty booklet

Quick Start Guide

Note: Your Audyssey Wireless Speakers will

come with region-specic power cords to

match the requirements of your country.

Audyssey Wireless Speakers Manual 4

7(09

057<;

AUX PWR

Tour the Audyssey Wireless Speakers

1. Volume control & standby knob

2. Tweeter (high frequency driver)

3. Woofer (bass driver)

4. 3.5 mm headphone output

5. Power LED

RIGHT SPEAKER FRONT RIGHT SPEAKER BACK

CABLES

6. Bluetooth pairing button

7. Bluetooth LED

8. Power cable plug

9. 3.5 mm audio input jack (stereo)

10. Passive bass radiator

11. Speaker interconnect cable jack

12. Power cable

13. 3.5 mm stereo audio cable

14. Speaker interconnect cables

Audyssey Wireless Speakers Manual 5

1. Before plugging your speakers in to an AC wall socket,

connect them to each other using the speaker interconnect

cables [14].

Connecting Your Wireless Speakers

The Audio Dock Air comes in 2 versions,

110 V and 220 V. When using the Audio

Dock Air in a country of a different

voltage than your unit, you must

use a Step Up or Step Down voltage

transformer of the appropriate wattage.

JUST A NOTE

2. Connect the supplied power cable [12] to the Wireless

Speakers’ power cable plug [8].

3. Connect the other end of the power cable [12] to an AC wall

socket. Notice the power LED [5] will glow a solid red. Your

speakers are now in standby mode.

4. Turn on your speakers. Press and release the front of the

standby knob [1]. The power LED is now a solid green.

Note: You can open the speaker interconnect cable jack [11] by pressing down on the spring-

loaded button above each jack.Twist the ends of the speaker interconnect cables [14] so the

strands are not loose. The wires and jacks are color coded; match the colors and plug them in.

Note: For proper stereo playback, make sure the speaker with the volume control [1] is placed

on the right.

Audyssey Wireless Speakers Manual 6

Pairing and connecting using Bluetooth wireless technology is very

easy. The Wireless Speakers provide visual and audible feedback so

you know they’re paired and connected.

Press the Bluetooth pairing button [6] on the back of the right

speaker. You will hear a short two-note beep and the Bluetooth LED

[7] will begin ashing green to indicate discoverable mode. You can

now pair your device to the Wireless Speakers.

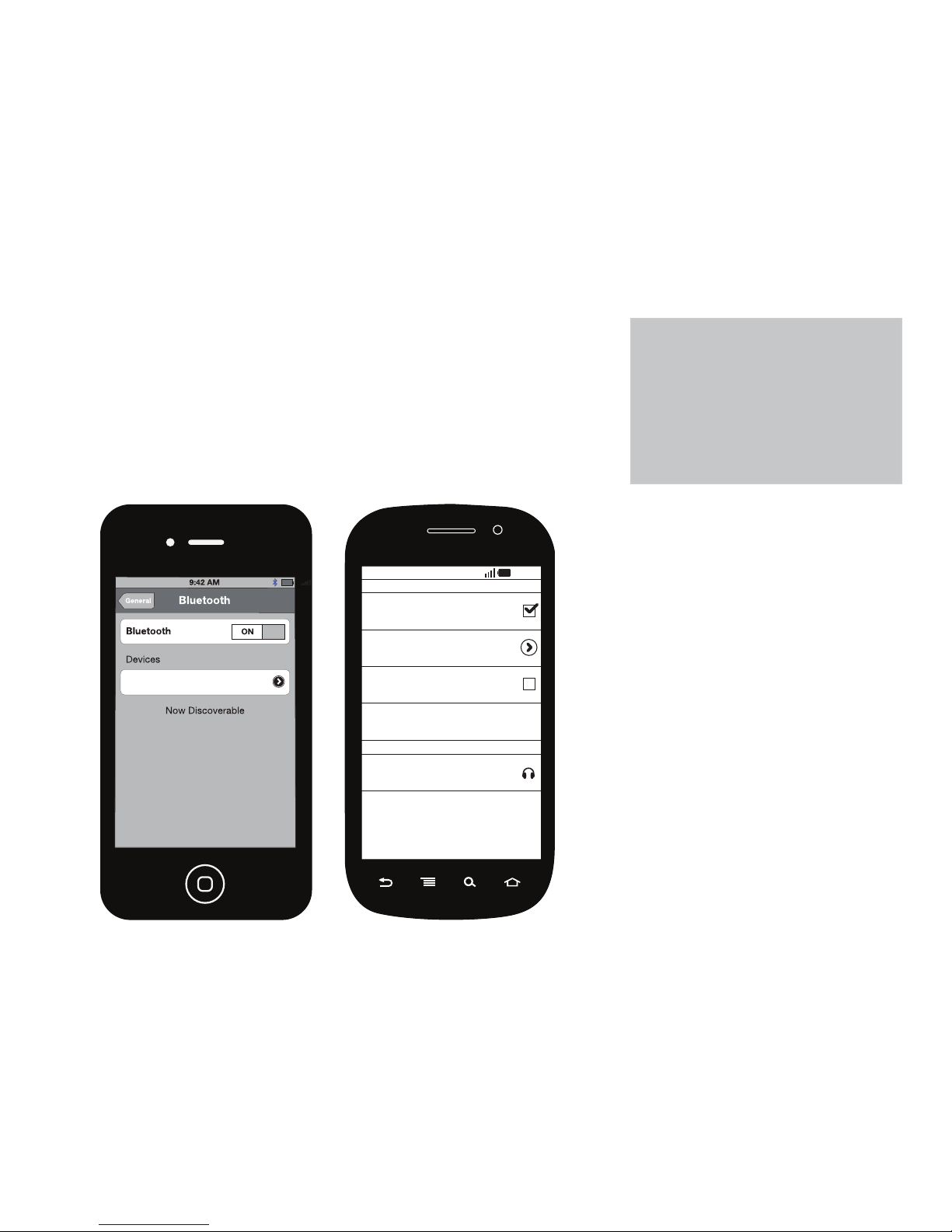

Enable Bluetooth on the device you are pairing and, from its

Bluetooth settings, select “Audyssey Wireless Speakers.”

When you hear a single beep you’ll know that the device has

successfully paired. The Bluetooth LED [7] will also turn a solid

green. Some devices may ask for a password and if yours does just

enter “0000.”

A few seconds may elapse before the

Wireless Speakers appear as “Audyssey

Wireless Speakers” in the device list—

they may come up rst as “Headset” or

something similar.

JUST A NOTE

Bluetooth®Wireless

Technology Setup

You are now able to stream audio to the Wireless Speakers.

If you have more in-depth questions about Bluetooth pairing, please

check out the Troubleshooting portion of this manual.

Note: The Wireless Speakers will remember the last device they’ve been connected to. So, after

you leave the Wireless Speakers’ Bluetooth range and become disconnected, when you reenter

the Wireless Speakers’ range the Speakers (if they are on) will automatically reconnect to your

device. And the Speakers will chime with a single beep just to let you know that your audio is

ready to stream.

Audyssey Wireless... Not PairedAudyssey Wireless... Connected

10:03

Bluetooth Settings

Visible

Device name

ANDROID DEVICE

Make device visible

Connected

Scan devices

Audyssey Wireless Speakers

Audyssey Wireless Speakers Manual 7

You can stream audio to the Wireless Speakers from any device

equipped with the Bluetooth A2DP prole. Most smart phones,

portable audio players, laptops and tablets have this capability. If

you’re unsure whether your device does, please see your device’s

owner’s manual.

First, make sure you’ve paired your music player to the Wireless

Speakers using Bluetooth wireless technology. If you haven’t

already done this, see the instructions in the “Bluetooth Wireless

Technology Setup” section of this manual.

The following demonstrations for streaming music to the Wireless

Speakers use an iPhone® and an Android phone as examples. If

you’re using a different device, your procedure will be similar—but

you may need to generalize these specic examples.

Streaming Audio via Bluetooth®

Wireless Technology

Here on the left you see an iPhone that has been connected with the

Wireless Speakers but is not using Bluetooth wireless technology

to play audio. By touching the output device icon and selecting the

Wireless Speakers from the list, you will let the iPhone know to

stream audio to the Speakers via Bluetooth wireless technology as

show here on the right.

Any music you play now will be streamed to the Wireless Speakers.

On your iPhone, you’ll notice the output

device icon to the right of the volume

bar will be blue, indicating Bluetooth

wireless technology streaming. Tapping

this icon will allow you to toggle audio

playback between your Speakers and

your device. To toggle in an Android, you

will use the same pull up menu from

the example on the next page.

JUST A NOTE

*(990,9 ! 74

1HTLZ;H`SVY

*HYVSPUH0U4`4PUK

.YLH[LZ[/P[Z

!

VM

!

CARRIER 3:59 PM

James Taylor

Carolina In My Mind

Greatest Hits

0:33

3 of 31

-3:27

Before Selecting “Audyssey

Wireless Speakers”

After Selecting “Audyssey

Wireless Speakers”

Audyssey Wireless Speakers Manual 8

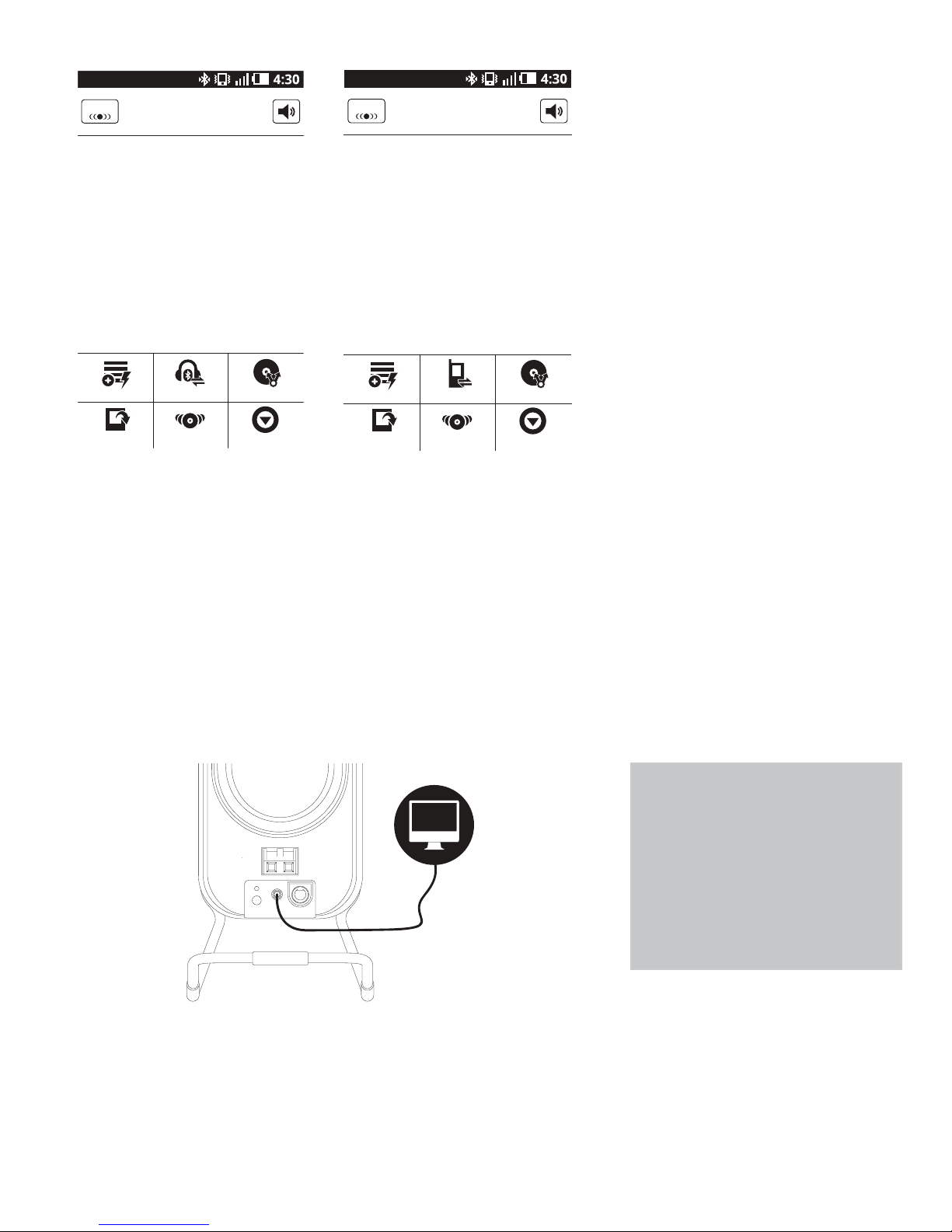

On the back of the right Wireless Speaker you’ll nd the 3.5 mm (1/8-

inch) audio input jack [9]. Just plug your audio source in here and

press play.

Note: Some computer headphone or line-level outputs may have abnormally high signals. If

you hear audio distortion from your computer, simply turn down its volume level.

Playing Audio Using the 3.5 mm

(1/8-inch) Audio Input Jack

The audio input jack on the back

of the Wireless Speakers operates

simultaneously with the Bluetooth

input, so you can listen to two audio

sources at the same time. Now you can

listen to music from your iPod while

still hearing your computer system

sounds through the Wireless Speakers.

JUST A NOTE

In the Android example above the Android phone has also already

been connected to the Wireless Media Speakers. By using the pull

up menu and selecting “Via Bluetooth” the phone’s audio will be

streamed to the Speakers.

Playing Music through

your Phone

Playing Music through

Audyssey Wireless Speakers

My First Earthquake

The Neighborhood

Pick Up Stick Up

5.1Ch

Add to quick list Via Bluetooth Share music via

Set as Go to disc view More

My First Earthquake

The Neighborhood

Pick Up Stick Up

5.1Ch

Add to quick list Via phone Share music via

Set as Go to disc view More

Audyssey Wireless Speakers Manual 9

To adjust the volume or mute the sound, use the volume control

[1] on the Wireless Speakers. Clockwise will make your Speakers’

output louder and counter-clockwise will make it quieter. Turn it

counter-clockwise the entire way to mute your Wireless Speakers.

You can place the Wireless Speakers in standby mode by pressing

the standby knob [1]. One click toggles the Speakers between

standby and on. You can tell the difference by the power LED [5]. Red

is Standby. Green is On.

Volume Control

Adjusting the Volume

Standby Mode

After two hours The Wireless Speakers

will automatically go into standby

mode. They can be turned back on by

simply pressing the standby knob [1].

In order to take full advantage of

Audyssey’s Dynamic EQ we recommend

you maximize the level of the output

signal coming from the source (set

the volume at MAX) and make any

adjustments to the volume using the

Wireless Speakers’ volume control.

JUST A NOTE

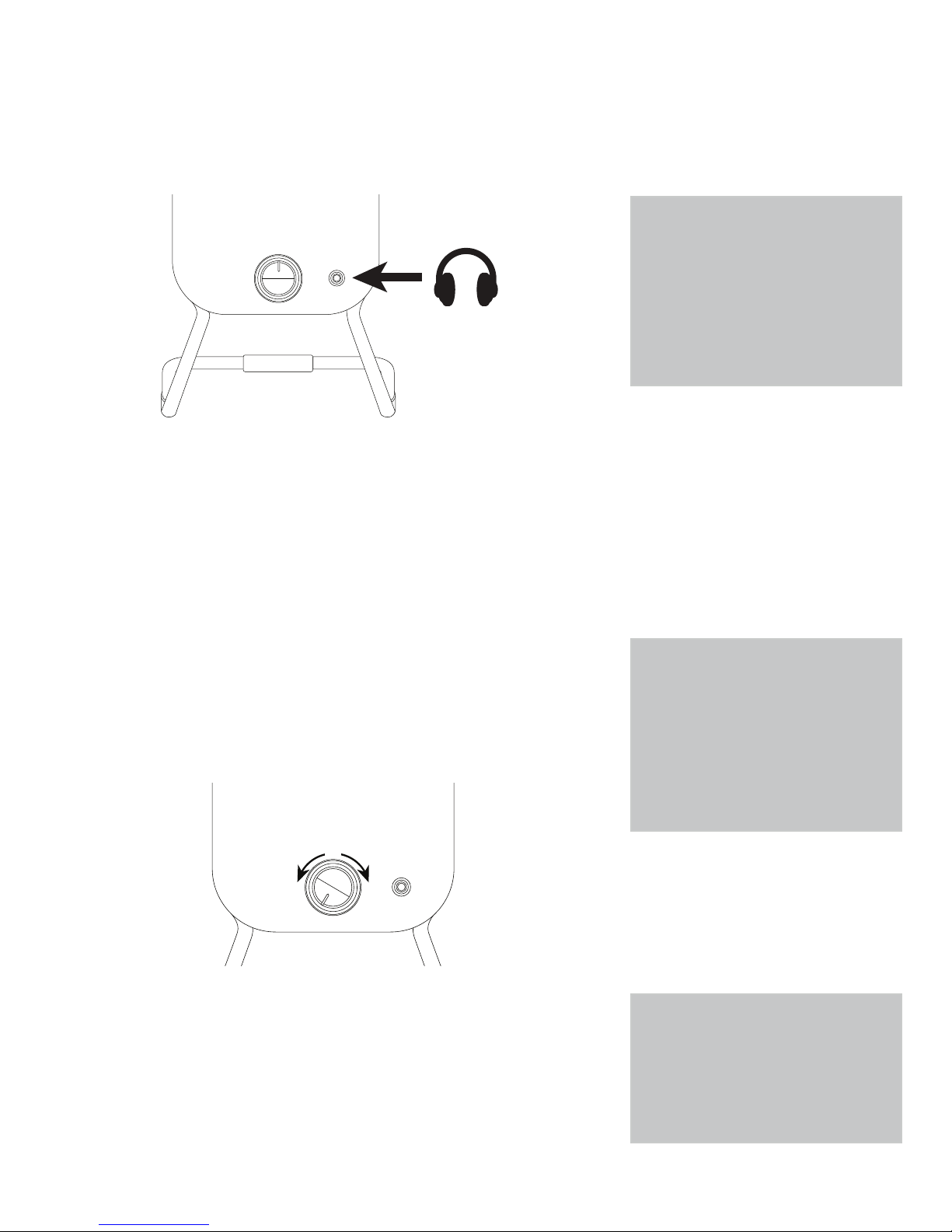

To listen to music over headphones, plug the headphones into the

3.5 mm headphone output [4] on the front of your Wireless Speakers.

To adjust the headphone volume, just use the volume control [1].

Listening with Headphones

Before listening to music over

headphones, adjust the volume control

[1] to a low level. Once your headphones

are plugged into the 3.5 mm headphone

output [4], slowly begin turning up the

volume to a comfortable listening level

in order to protect your ears.

JUST A NOTE

Audyssey Wireless Speakers Manual 10

Under the Hood

The Audyssey Audio Dock Air speaker systems feature high quality

construction and components.

Two .75 in tweeters

Two 3 in woofers

Two 4 in passive bass radiators

Audyssey EQ

Audyssey BassXT

Audyssey Dynamic EQ

Electroacoustic

Physical I/O

Bluetooth

Power

Physical

Devices

Maximum SPL @1m Approximately 106 dB SPL using fantastic rock-n-roll program material

Cabinet Two sealed enclosures

Audio 3.5 mm (1/8-inch) stereo input; 3.5 mm(1/8-inch) stereo output

Dimensions 4.9” (w) x 6.8” (d) x 9” (h); 12.5 cm (w) x 17.3 cm (d) x 23 cm (h)

Boxed Weight 7 lbs; 3.2 kg

Works With Bluetooth®enabled devices

All iPhone®models

All iPad®models

All iPod®models

Smart phones

Tablets

Laptops

Game consoles

Proles A2DP, HFP

Pairing Name Audyssey Wireless Speakers

Pairing Code 0000

Input Voltage 100VAC-120VAC (50/60 Hz) Factory set based on location

220VAC -240VAC (50 Hz) Factory set based on location

Power Draw Quiescent: 5.5 W

Max 18 W

Altri manuali Audyssey Altoparlanti

Audyssey

Audyssey Wireless Speaker Manuale utente

Manuali Altoparlanti popolari di altre marche

argon audio

argon audio IE20 Manuale utente

Denon

Denon SC-N7 Manuale utente

Gemline

Gemline Ace 3952 Manuale utente

Focal

Focal ON WALL 300 Manuale di istruzioni

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuale utente

SoundLogic

SoundLogic BCCS-6/6395 Manuale utente

Peavey

Peavey DTH 218 Manuale utente

Avantree

Avantree Pluto Air Manuale utente

Morel

Morel Integra Series INTEGRA OVATION 4 Manuale utente

Oppo

Oppo SONICA Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Rocksteady

Rocksteady Stadium Manuale utente

Bowers & Wilkins

Bowers & Wilkins 4 Manuale utente

Sonance

Sonance SONOS OUTDOOR Series Manuale utente

Electro-Voice

Electro-Voice EVID FM4.2 Manuale utente

Pioneer

Pioneer XW-HTD630 Manuale utente

Onn

Onn BWA16AA002 Manuale utente

HP GL313AA - USB Speakers PC Multimedia Manuale utente
