User manual ver. 20200920
The document contains information on the safety, installation and use of the AURATON
Auriga device.
A daily, wired temperature controller
AURATON Auriga is a daily, wired temperature controller designed to work with a gas or
electric heating device.
AT FrostGuard function to
protect the room against freezing.
&Possibility to temporarily lower the programmed temperature
For a period of 6 hours, every day, at the same time.
LCD
Backlit LCD display The
backlit display enables the device operation supervision even in
poorly lit rooms.
Description of AURATON Auriga
daily, wired temperature controller
26/10/21, 1:37 μ.μ.
AURATON Auriga - AURATON manuals
3/23
On the front part of the housing there are a backlit LCD display and four function
buttons.

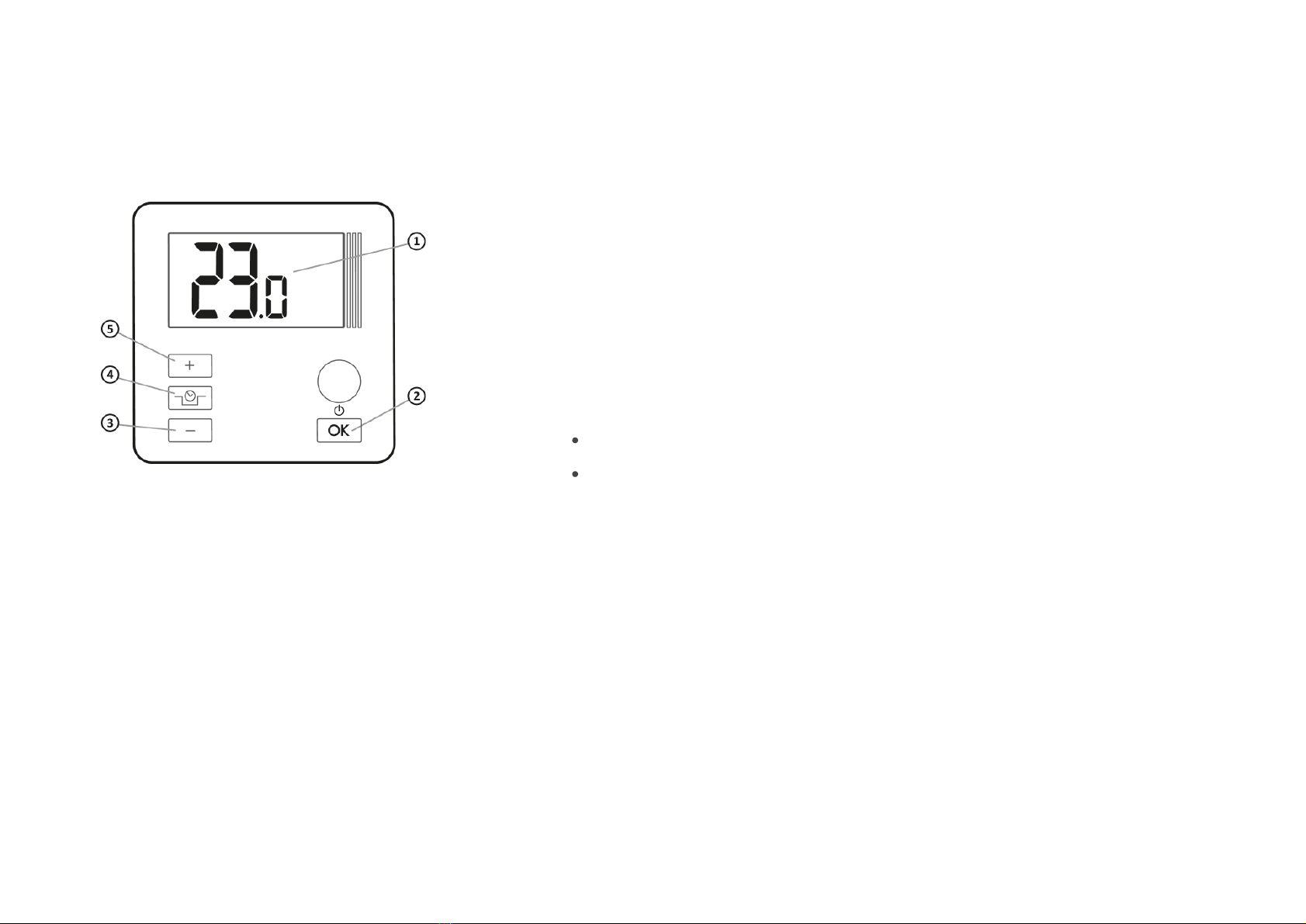

1. LCD display
2. confirm button or on / off button
regulator
3. temperature decrease button
4. button for the temporary
temperature reduction mode
5. temperature increase button
dhold - on / off regulator ( F )
short press - confirms the
temperature setting ( # )
Display
1.Temperature
In normal operation mode, the
AURATON Auriga displays the
temperature of the room in which it
is currently installed.
26/10/21, 1:37 μ.μ.
AURATON Auriga - AURATON manuals
4/23
2. Battery exhausted ( X )
The indicator is visible when the
minimum permissible battery
voltage is exceeded. Replace the
batteries as soon as possible.
NOTE: To maintain AURATON
Auriga settings, battery replacement
should take less than 30 seconds.
3.Temporary temperature reduction
duration indicator
Shows how long the temporary
temperature reduction mode will
remain active.
4.Temperature unit ( R )
Indicates that the temperature is
displayed in degrees Celsius.
5.Temporary temperature decrease
program mode indicator ( S )
Indicates the user scheduled
"temporary temperature decrease"
mode. It appears when the mode is
not currently implemented, but the
"temporary temperature reduction"
function is active (more information
in the "Temporary temperature
reduction mode setting" chapter)
26/10/21, 1:37 μ.μ.
AURATON Auriga - AURATON manuals
5/23
6. AURATON Auriga activation
indicator ( a )
Pictogram informing about the
device's operating status. Visible
when the controlled device is turned
on.
7.Temporary temperature decrease
mode indicator ( T )
Appears while the temporary
temperature decrease program is
running.
Choosing the right location for AURATON Auriga
26/10/21, 1:37 μ.μ.
AURATON Auriga - AURATON manuals
6/23
The correct operation of AURATON Auriga is largely influenced by its location. Location
in a place with no air circulation or direct sunlight may result in incorrect temperature
control. AURATON Auriga should be installed on the internal wall of the building
(partition wall), in an environment with free air circulation. Avoid the proximity of heat
emitting devices (TV, heater, refrigerator) or locations exposed to direct sunlight.
Problems in proper operation may be caused by the vicinity of the door, exposing
AURATON Auriga to possible vibrations.
26/10/21, 1:37 μ.μ.
AURATON Auriga - AURATON manuals
7/23
Connecting the cables to the AURATON Auriga
To connect the wires, remove the cover as shown below:
The cable clamps are located on the back of the AURATON Auriga, under the plastic
cover.
26/10/21, 1:37 μ.μ.
AURATON Auriga - AURATON manuals
8/23

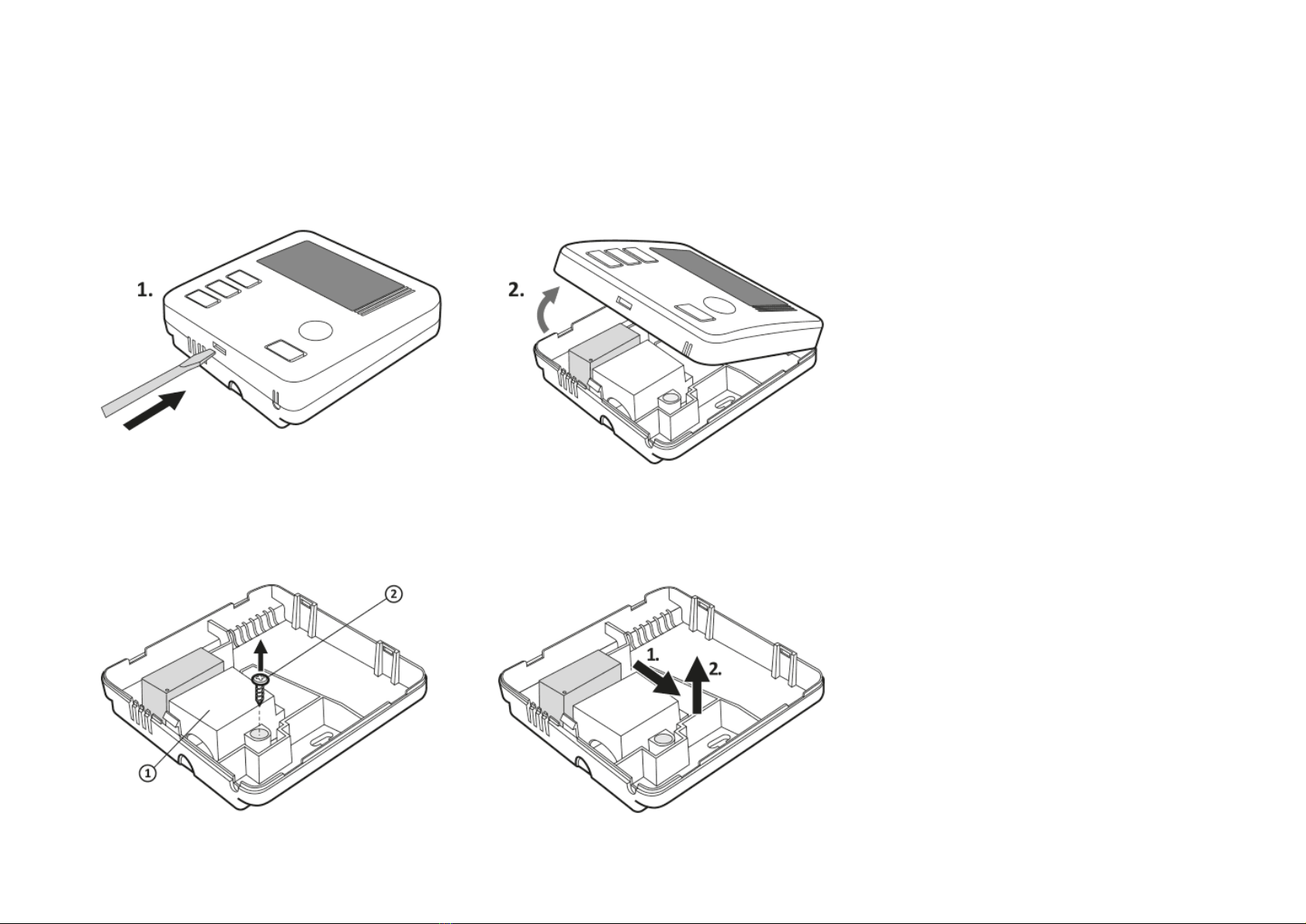

1. cover
2. screw
3. wire clamps
It is a typical single-pole two-state relay. In most cases, the NC terminal is not used.
NOTE:
After connecting the wires, put the plastic cover back on.
Installing / replacing the battery
26/10/21, 1:37 μ.μ.
AURATON Auriga - AURATON manuals
9/23
The battery socket is located inside the regulator on the front of the housing. To install
the batteries, remove the controller housing as shown in the chapter "Connecting the
cables to the AURATON Auriga".
NOTE:
We recommend alkaline batteries to power AURATON controllers. Do not use
rechargeable batteries because the rated voltage is too low.
26/10/21, 1:37 μ.μ.
AURATON Auriga - AURATON manuals
10/23

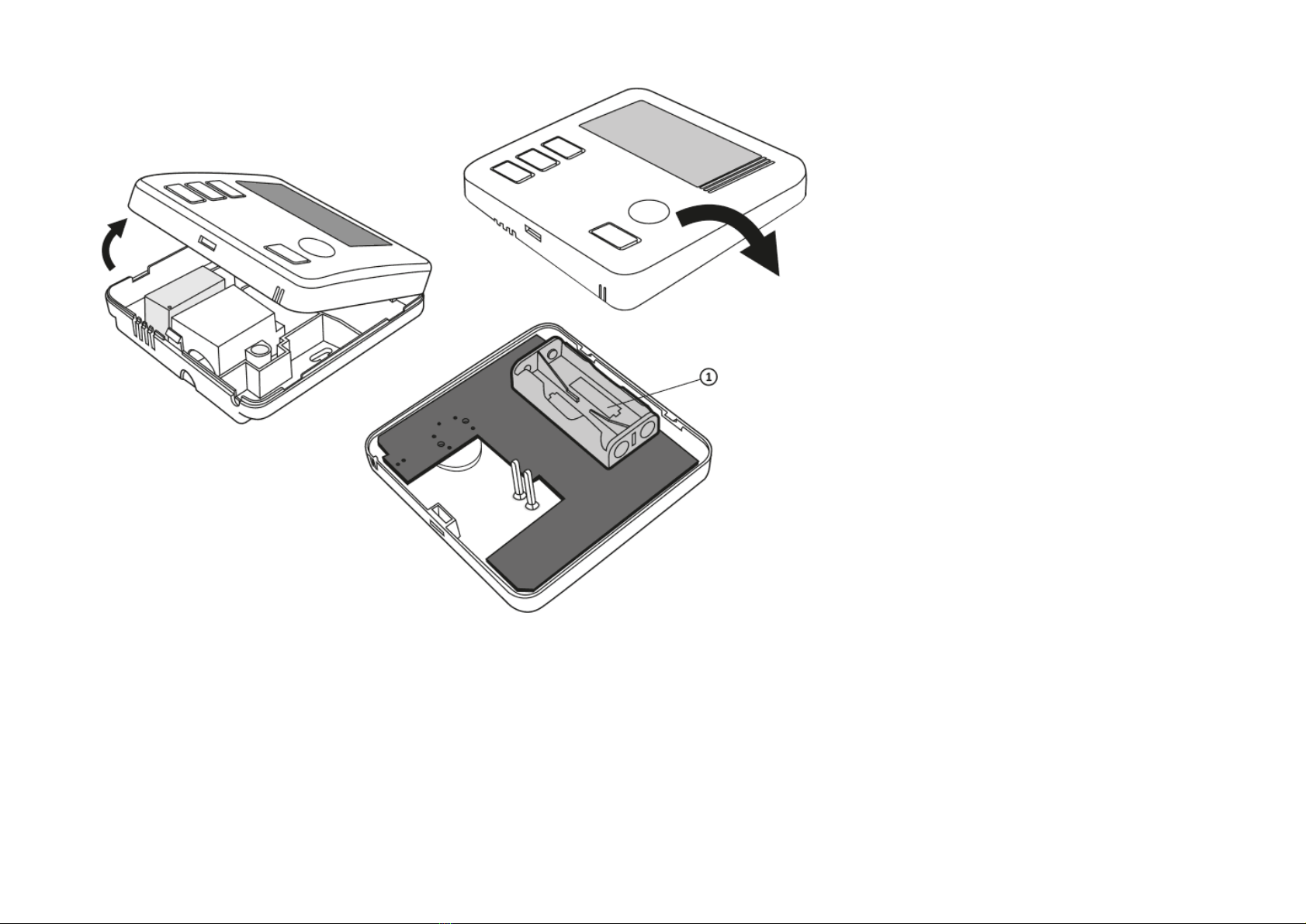

1 - battery socket 2 x AAA 1.5V
Insert two AAA 1.5V batteries into the battery socket, paying attention to the correct
polarity of the batteries.
