AUVIO 4000372 Manuale utente

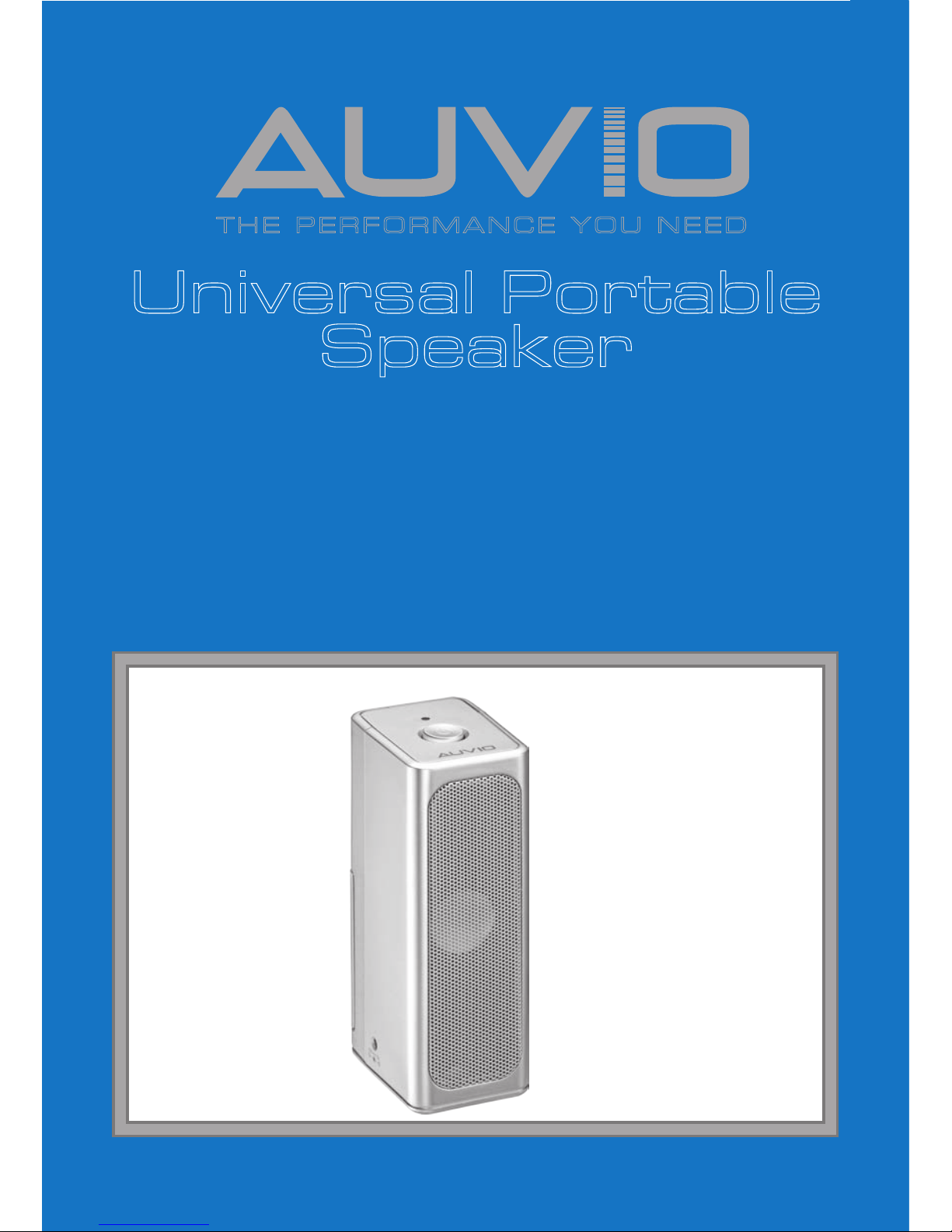

THE PERFORMANCE YOU NEED

Universal Portable

Speaker

User’s Guide 4000372

Please read this user’s guide before using

your new speaker.

Package Contents

Speaker D User’s Guide

Features

Works with any audio device that

has a 1/8” (3.5mm) headphone jack

for music enjoyment on the go

4.7” (120mm) stereo cable

contained in a specially designed

slot to help prevent it from getting

in the way

Install Batteries

Insert 3 AAA

batteries (not

included) into

the battery

compartment

matching the

marked polarity.

Battery Notes:

Dispose of batteries promptly and

properly. Do not burn or bury them.

Use only fresh batteries of the required

size and type.

Do not mix old and new batteries,

different types of batteries (alkaline or

rechargeable), or rechargeable batteries

of different capacities.

If you do not plan to use the speaker

for a long time, remove the batteries.

Batteries can leak chemicals that can

damage electronic parts.

Use an Adapter (Optional)

You can power the speaker with an AC

adapter (not included). Connect a AC

adapter to the DC 5V jack.

nNote: The power source must supply 5V

DC and deliver at least 1A. Its center tip must

be set to positive and its plug must ﬁt the

DC 5V jack. Using an adapter that does not

meet these speciﬁcations could damage the

speaker or adapter.

Connect the Speaker

1. Turn off your

audio source.

2. Press the tip of

the plug to lift

out and connect

it to your audio

source.

Use the Speaker

1. Turn on your audio source and adjust

the volume to minimum.

2. Press G to turn on the speaker. The

Power LED lights.

3. Adjust the volume to a comfortable

listening level.

4. Press G again to turn off the speaker.

G ON/OFF

Speciﬁcations

Power Supply..................................................

....3 x AAA batteries or a DC 5V adapter (not

included)

Driver .................................... 1.25” (3.17cm)

Output .................................................... 2W

Battery Life ...................... about 4 – 5 hours

Impedance......................................... 4 ohm

Frequency Response ............ 180Hz – 16kHz

S/N Ratio........................................... ≥65dB

Speciﬁcations are subject to change and

improvement without notice. Actual product may

vary from the images found in this document.

Limited Warranty

Ignition L.P. warrants this product against defects

in materials and workmanship under normal use by

the original purchaser for ninety (90) days after the

date of purchase. IGNITION L.P. MAKES NO OTHER

EXPRESS WARRANTIES.

This warranty does not cover: (a) damage or failure

caused by or attributable to abuse, misuse, failure

to follow instructions, improper installation or

maintenance, alteration, accident, Acts of God

(such as ﬂoods or lightning), or excess voltage or

current; (b) improper or incorrectly performed repairs

by persons who are not a Ignition L.P. Authorized

Service Facility; (c) consumables such as fuses or

batteries; (d) ordinary wear and tear or cosmetic

damage; (e) transportation, shipping or insurance

costs; (f) costs of product removal, installation,

set-up service, adjustment or reinstallation; and (g)

claims by persons other than the original purchaser.

Should a problem occur that is covered by this

warranty, take the product and the sales receipt as

proof of purchase date to the place of purchase.

Ignition L.P. will, at its option, unless otherwise

provided by law: (a) repair the product without charge

for parts and labor; (b) replace the product with the

same or a comparable product; or (c) refund the

purchase price. All replaced parts and products, and

products on which a refund is made, become the

property of Ignition L.P. New or reconditioned parts

and products may be used in the performance of

warranty service. Repaired or replaced parts and

products are warranted for the remainder of the origi-

nal warranty period. You will be charged for repair or

replacement of the product made after the expiration

of the warranty period.

IGNITION L.P. EXPRESSLY DISCLAIMS ALL WAR-

RANTIES AND CONDITIONS NOT STATED IN THIS

LIMITED WARRANTY. ANY IMPLIED WARRANTIES

THAT MAY BE IMPOSED BY LAW, INCLUDING THE

IMPLIED WARRANTY OF MERCHANTABILITY AND,

IF APPLICABLE, THE IMPLIED WARRANTY OF

FITNESS FOR A PARTICULAR PURPOSE, SHALL

EXPIRE ON THE EXPIRATION OF THE STATED

WARRANTY PERIOD.

EXCEPT AS DESCRIBED ABOVE, IGNITION L.P.

SHALL HAVE NO LIABILITY OR RESPONSIBILITY

TO THE PURCHASER OF THE PRODUCT OR ANY

OTHER PERSON OR ENTITY WITH RESPECT

TO ANY LIABILITY, LOSS OR DAMAGE CAUSED

DIRECTLY OR INDIRECTLY BY USE OR PERFOR-

MANCE OF THE PRODUCT OR ARISING OUT OF

ANY BREACH OF THIS WARRANTY, INCLUDING,

BUT NOT LIMITED TO, ANY DAMAGES RESULTING

FROM INCONVENIENCE AND ANY LOSS OF

TIME, DATA, PROPERTY, REVENUE, OR PROFIT

AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR

CONSEQUENTIAL DAMAGES, EVEN IF IGNITION

L.P. HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES.

Some states do not allow limitations on how long an

implied warranty lasts or the exclusion or limitation

of incidental or consequential damages, so the above

limitations or exclusions may not apply to you. This

warranty gives you speciﬁc legal rights, and you may

also have other rights which vary from state to state.

You may contact: Ignition L.P. at Ignition L.P. , 3102

Maple Ave., Suite 450, Dallas, TX 75201 02/09

For product support, call

1-866-315-0426

Complies with the European Union’s “Restriction

of Hazardous Substances Directive,” which

protects the environment by restricting speciﬁc

hazardous materials and products.

Auvio is a registered trademark used by

Ignition L.P.

Printed

in China

07A12

4000372

Get more from your audio and video equipment. See

what you’ve been missing. With Auvio, you control the

experience.

Auvio was established by a group of technophiles to

provide high quality audio and video products without

the high sticker price. The Auvio philosophy is for you to

experience audio and video as it was intended to be: pure

and distortion free.

We know electronics can be intimidating. Auvio simpliﬁes

your experience by providing the right products, with the

right specs, to work with your equipment.

Be conﬁdent about your purchase: your new Auvio

product incorporates the latest technology, is built to the

highest quality standards, and reduces environmental im-

pact by complying with RoHS environmental restrictions.

Protect the environment by recycling used

electronics. Go to E-CyclingCentral.com to ﬁnd an

electronic recycling center near you.
