Avalue Technology EBM-945GSE Manuale utente

Part No. E2017581202R

EBM-945GSE

5.25" Intel® 945GSE Atom™ N270 Mini Module

Quick Installation Guide

3rd Ed – 01 Aug. 2010

EBM-945GSE Quick Installation Guide

2 EBM-945GSE Quick Installation Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time.

For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

A Message to the customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Quick Installation Guide

EBM-945GSE Quick Installation Guide

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Headquarters and Branch

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei, Taiwan

Tel: +886-2-8226-2345 Fax: +886-2-8226-2777

Information: [email protected] Service:[email protected]

Avalue USA Avalue Europe

Avalue Technology Inc.

200 Tornillo Way, Suite 210, Tinton Falls,

NJ 07712

Tel: +1-732-578-0200

Fax: +1-732-578-0250

Information: [email protected]

Service: [email protected]

Avalue Europe A/S

Moelledalen 22C, 3140

Aalsgaarde, Denmark

Tel: +45-7025-0310

Fax:+45-4975-5026

Information: [email protected]

Service: [email protected]

BCM Advanced Research Avalue China

BCM Advanced Research

an Avalue Company

7 Marconi, Irvine, CA92618

Tel: +1-949-470-1888

Fax: +1-949-470-0971

Information: BCMSales@bcmcom.com

Web: www.bcmcom.com

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,

Caohejing Development Area,

Xuhui District, Shanghai

Tel: +86-21-5169-3609

Fax:+86-21-5445-3266

Information: sales.china@avalue.com.cn

Service: [email protected]

EBM-945GSE Quick Installation Guide

4 EBM-945GSE Quick Installation Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following materials have been shipped:

z1 x EBM-945GSE Intel® 945GSE Atom™ N270 Mini Module

z1 x Quick Installation Guide for EBM-945GSE

z1 x DVD-ROM or CD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

Quick Installation Guide

EBM-945GSE Quick Installation Guide

2. Hardware

Configuration

EBM-945GSE Quick Installation Guide

6 EBM-945GSE Quick Installation Guide

2.1 Product Overview

Quick Installation Guide

EBM-945GSE Quick Installation Guide

2.2 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A

jumper is the simplest kind of electric switch.

It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

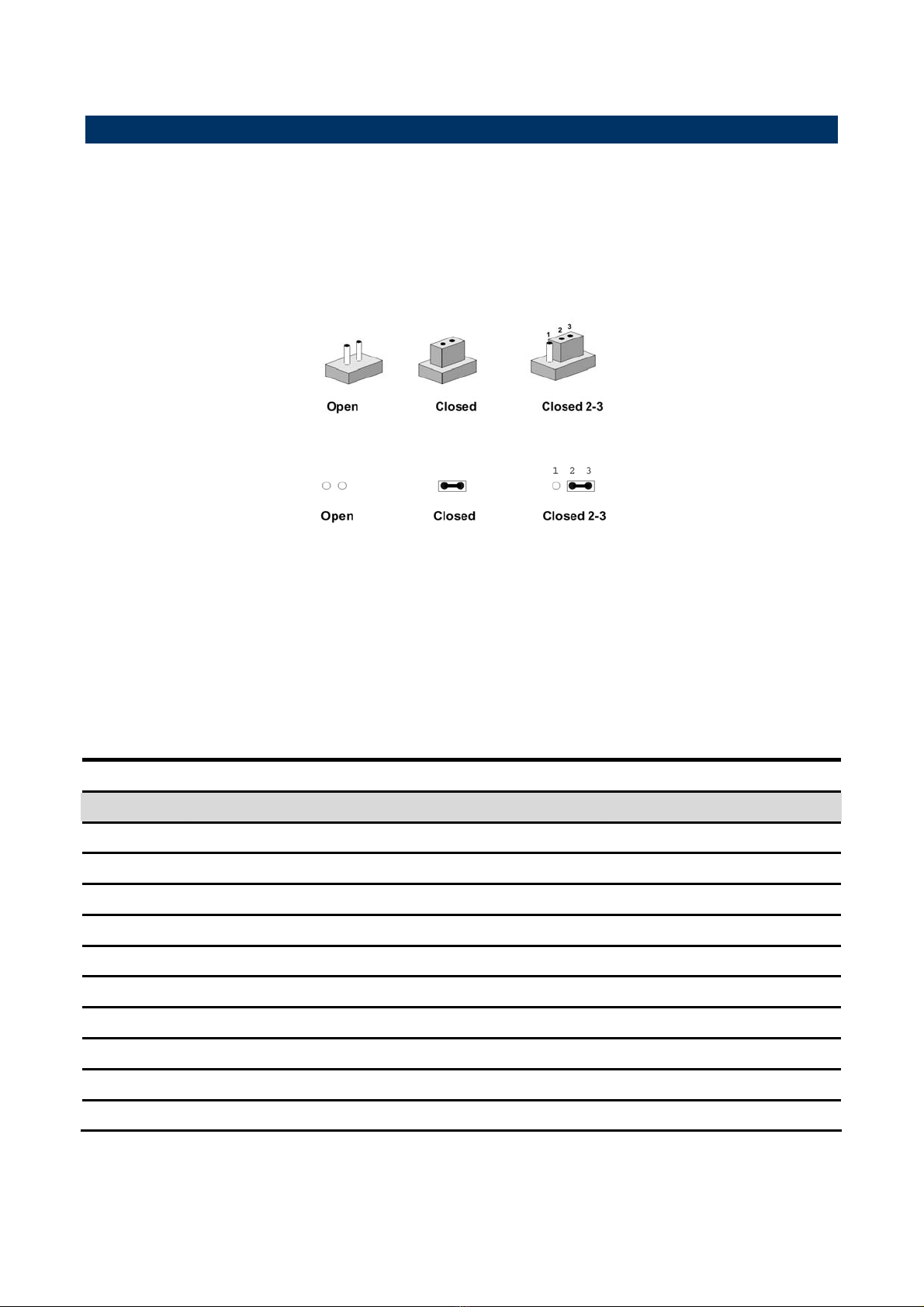

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.

Connectors on the board are linked to external devices such as hard disk drives, a

keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to

configure your system to suit your application.

If you have any doubts about the best hardware configuration for your application, contact

your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board's jumpers and connectors.

Jumpers

Label Function Note

JCMOS1 Clear CMOS 3 x 1 header, pitch 2.0mm

JIDEMS1 CF Master/Slave Select 3 x 1 header, pitch 2.0mm

JPC1 COM1--Ring, +5V, +12V power select 3 x 2 header, pitch 2.0mm

JPC2 COM2--Ring, +5V, +12V power select 3 x 2 header, pitch 2.0mm

JPC3 COM3--Ring, +5V, +12V power select (Optional) 3 x 2 header, pitch 2.0mm

JPC4 COM4--Ring, +5V, +12V power select (Optional) 3 x 2 header, pitch 2.0mm

JPC5 COM5--Ring, +5V, +12V power select (Optional) 3 x 2 header, pitch 2.0mm

JPC6 COM6--Ring, +5V, +12V power select (Optional) 3 x 2 header, pitch 2.0mm

JPSA1 JSATA1 Pin7 select 3 x 1 header, pitch 2.0mm

JPSA2 JSATA2 Pin7 select 3 x 1 header, pitch 2.0mm

EBM-945GSE Quick Installation Guide

8 EBM-945GSE Quick Installation Guide

Connectors

Label Function Note

E3 LED connector

JCF1 Compact Flash card connector

JCOM1 Serial Port 1 connector

JCOM2 Serial Port 2 connector 5 x 2 header, pitch 2.0mm

JCOM3 Serial Port 3 connector (Optional) 5 x 2 header, pitch 2.0mm

JCOM4 Serial Port 4 connector (Optional) 5 x 2 header, pitch 2.0mm

JCOM5 Serial Port 5 connector (Optional) 5 x 2 header, pitch 2.0mm

JCOM6 Serial Port 6 connector (Optional) 5 x 2 header, pitch 2.0mm

JDIMM1 200-pin DDR2 SODIMM socket

JDIO1 General purpose I/O connector 10 x 2 header, pitch 2.0mm

JDVI1 DVI Connector (Optional) HIROSE DF13-40DP-1.25V

JEAR1 Audio Connector

JIDE1 Primary IDE connector 22 x 2 header, pitch 2.0mm

JINV1 LCD Inverter Connector 5 x 1 wafer, pitch 2.0mm

JINV2 LCD Inverter Connector 5 x 1 wafer, pitch 2.0mm

JIR1 IrDA connector 5 x 1 header, pitch 2.54mm

JKBMS2 PS/2 keyboard & mouse connector 4 x 2 header, pitch 2.54mm

JLAN1 RJ-45 Ethernet 1

JLAN2 RJ-45 Ethernet 2

JLED1 LED indicator connector

JLVDS1 LVDS Connector 1 HIROSE DF13-40DP-1.25V

JLVDS2 LVDS Connector 2 HIROSE DF13-40DP-1.25V

JMPCI1 Mini-PCI connector

JMPCIE1 Mini-PCIe slot

JAUD1 Audio connector 6 x 2 header, pitch 2.0mm

JPB1 Power bottom connector 2 x 1 header, pitch 2.0mm

JPSATA1 SATA1 power input 2 x 1 wafer, pitch 2.54mm

JPWR1 Power connector 2 x 2 wafer, pitch 4.2mm

JPWR2 Power connector

JPRT1 Print port connector (Optional)

JSATA1&2 Serial ATA connector 1&2 Wafer 7P pitch 1.27mm

JSUS1 ATX Power connector 3 x 1 wafer, pitch 2.54mm

Quick Installation Guide

EBM-945GSE Quick Installation Guide

JSPI1 SPI interface connector 3 x 2 header, pitch 2.0mm

JFAN1&2 Fan connector 3 x 1 wafer, pitch 2.54mm

JTP1 Touch panel connector (Optional) 5 x 2 header, pitch 2.54mm

JUSB1 USB connector 0 & 1

JUSB2 USB connector 2 & 3 5 x 2 header, pitch 2.0mm

JUSB3 USB connector 4 & 5 5 x 2 header, pitch 2.0mm

JUSB4 USB connector 7 5 x 2 header, pitch 2.0mm

JVGA1 VGA connector

JVR1 LCD backlight brightness adjustment 3 x 2 header, pitch 2.0mm

JTV1 TV-out connector 3 x 2 header, pitch 2.0mm

S1 Reset/Power bottom

SS1 4/5/8-wire Touch Screen Select & AT/ATX

Select

DIP SW-6

EBM-945GSE Quick Installation Guide

10 EBM-945GSE Quick Installation Guide

2.3 Setting Jumpers & Connectors

2.3.1 Clear CMOS (JCMOS1)

* Default

Protect*

Clear CMOS

2.3.2 CF Master/Slave select (JIDEMS1)

* Default

Master*

Slave
