Avalue Technology ECM-PNV Manuale utente

Part No. E2017383002R

ECM-PNV (for Rev. C1 –Onboard 18bit LVDS)

Intel® Atom™D525 Dual-Core 3.5” Micro Module with Intel®

ICH8-M Chipset

Quick Installation Guide

2nd Ed –22 April 2014

ECM-PNV Quick Installation Guide

2 ECM-PNV Quick Installation Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to improve

design and/or performance. Avalue Technology assumes no responsibility or liability for the

use of the described product(s), conveys no license or title under any patent, copyright, or

masks work rights to these products, and makes no representations or warranties that

these products are free from patent, copyright, or mask work right infringement, unless

otherwise specified. Applications that are described in this manual are for illustration

purposes only. Avalue Technology Inc. makes no representation or warranty that such

application will be suitable for the specified use without further testing or modification.

ECM-PNV Quick Installation Guide

ECM-PNV Quick Installation Guide 3

Life Support Policy

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN

LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL

OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,

when properly used in accordance with instructions for use provided in the labeling, can

be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure

to perform can be reasonably expected to cause the failure of the life support device or

system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

ECM-PNV Quick Installation Guide

4 ECM-PNV Quick Installation Guide

Content

1. Getting Started............................................................................................................5

1.1 Safety Precautions..........................................................................................5

1.1 Packing List....................................................................................................5

2. Hardware Configuration.............................................................................................6

2.1 Product Overview...........................................................................................7

2.2 Jumper and Connector List ............................................................................8

2.3 Setting Jumpers & Connectors.....................................................................10

2.3.1 Clear CMOS (JBAT)..............................................................................10

2.3.2 Serial port 1 pin 9 signal select (JRI1)...................................................10

2.3.3 Touch panel mode select (JTOUCH_SEL)............................................11

2.3.4 Miscellaneous setting connector (JFP)..................................................11

2.3.5 LCD backlight brightness adjustment (JVR)..........................................12

2.3.6 5VSB connector in ATX (PWR_SB)......................................................12

2.3.6.1 Signal Description –AT/ ATX mode & Input power type......................13

2.3.7 Battery connector (BAT)........................................................................14

2.3.8 CPU fan connector (CPU_FAN)............................................................14

2.3.9 Serial port 2 in RS-422/485 mode (J422/485_1)...................................15

2.3.10 Audio connector (JAUDIO)....................................................................16

2.3.11 Serial port 2 connector (JCOM2)...........................................................16

2.3.12 General purpose I/O connector (JDIO)..................................................17

2.3.13 Touch panel connector (JTOUCH)........................................................18

2.3.14 SPI connector (JSPI).............................................................................18

2.3.15 USB connector (JUSB2/ JUSB3) ..........................................................19

2.3.16 LVDS connector (JLVDS)......................................................................20

2.3.17 LCD Inverter Connector (JBKL) ............................................................21

2.3.17.1 Signal Description –LCD Inverter Connector (JBKL)..........................21

2.3.18 Power connector (PWR)........................................................................22

2.3.19 SATA power connector (S_PWR1) .......................................................22

2.4 Audio / USB Daughter Board User’s Guide ..................................................23

2.4.1 Jumper and Connector Layout..............................................................23

2.4.2 Jumper and Connector List...................................................................23

2.4.3 Setting Jumper and Connector..............................................................24

ECM-PNV Quick Installation Guide

ECM-PNV Quick Installation Guide 5

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Always note that improper disassembling action could cause damage to the

motherboard. We suggest not removing the heatsink without correct

instructions in any circumstance. If you really have to do this, please contact

us for further support.

1.1 Packing List

Before you begin installing your single board, please make sure that the

following materials have been shipped:

1 x 3.5” ECM-PNV Micro Module

1 x Quick Installation Guide for ECM-PNV

1 x AUX-032 daughter board

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

1 x Cable set contains the followings:

—1 x Audio cable (12pin, 2.0mm pitch)

—2 x USB cable (10P/2.54mm-10P/2.0mm)

—1 x Serial ATA cable (7-pin, standard)

—1 x Serial ATA cable (15-pin, 2P/2.0mm)

1 x CPU & North Bridge Cooler

Onboard 18bit LVDS converter Board

ECM-PNV Quick Installation Guide

6 ECM-PNV Quick Installation Guide

2. Hardware

Configuration

ECM-PNV Quick Installation Guide

ECM-PNV Quick Installation Guide 7

2.1 Product Overview

ECM-PNV Quick Installation Guide

8 ECM-PNV Quick Installation Guide

2.2 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A

jumper is the simplest kind of electric switch.

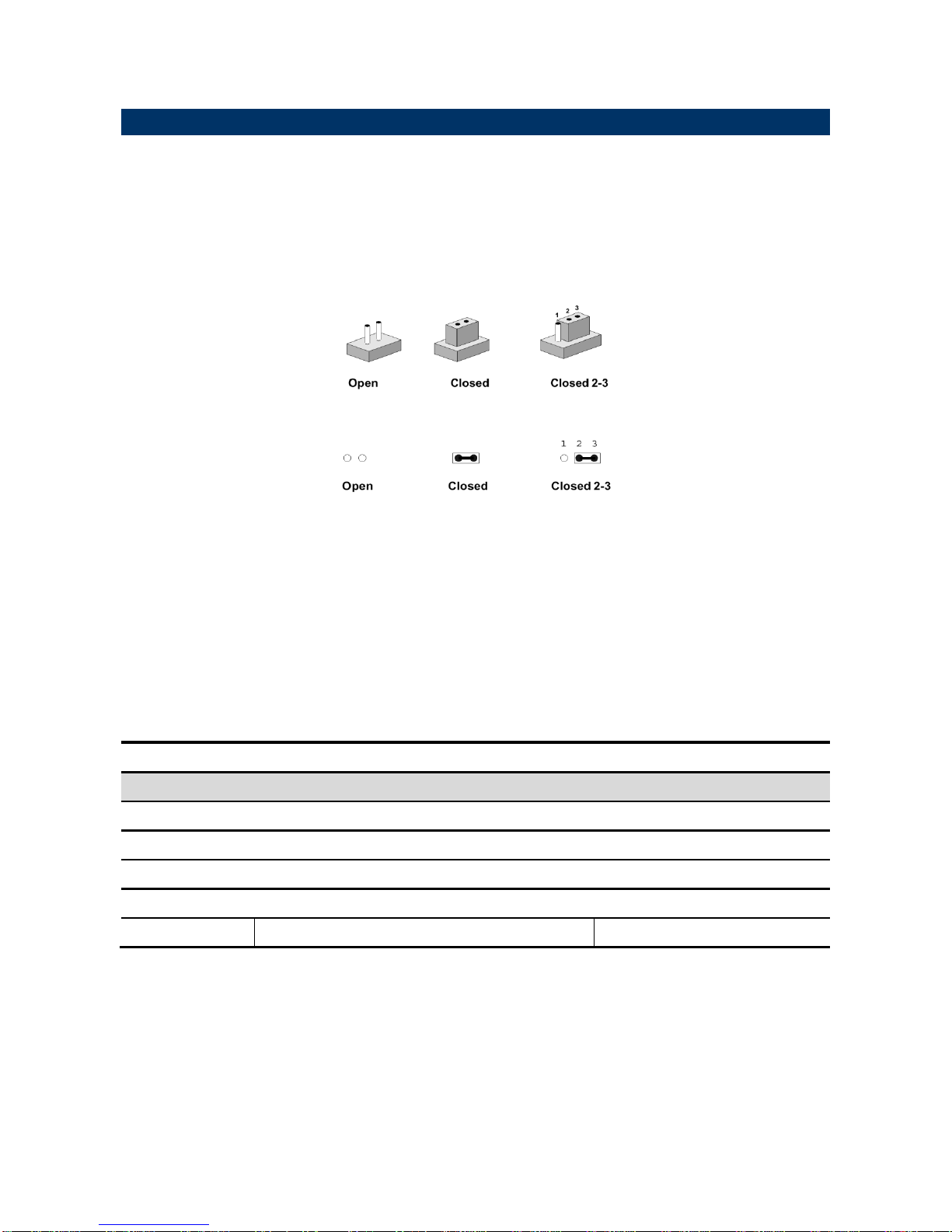

It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.

Connectors on the board are linked to external devices such as hard disk drives, a

keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to

configure your system to suit your application.

If you have any doubts about the best hardware configuration for your application, contact

your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board’s jumpers and connectors.

Jumpers

Label

Function

Note

JBAT

Clear CMOS

3 x 1 header, pitch 2.54 mm

JFP

Miscellaneous setting connector

6 x 2 header, pitch 2.0 mm

JRI1

Serial port 1 pin 9 signal select

3 x 2 header, pitch 2.0 mm

JTOUCH_SEL

Touch panel mode select

3 x 1 header, pitch 2.54 mm

JVR

LCD backlight brightness adjustment

3 x 2 header, pitch 2.0mm

ECM-PNV Quick Installation Guide

ECM-PNV Quick Installation Guide 9

Connectors

Label

Function

Note

BAT

Battery connector

2 x 1 wafer, pitch 1.25 mm

COM1

Serial port 1 connector

D-sub 9-pin, male

CPU_FAN

CPU fan connector

3 x 1 wafer, pitch 2.54 mm

J422/485_1

Serial port 2 in RS-422/485 mode

3 x 2 header, pitch 2.0 mm

JTOUCH

Touch panel connector

9 x 1 header, pitch 2.0 mm

JAUDIO

Audio connector

6 x 2 header, pitch 2.0 mm

JCOM2

Serial port 2 connector

5 x 2 header, pitch 2.0 mm

JDIO

General purpose I/O connector

10 x 2 header, pitch 2.0 mm

JLPC

(Reserved for debug)

7 x 2 header, pitch 2.0 mm

JSPI

SPI connector

3 x 2 header, pitch 2.0 mm

JUSB2

USB connector

5 x 2 header, pitch 2.0 mm

JUSB3

USB connector

5 x 2 header, pitch 2.0 mm

JLVDS1

LVDS connector

2 x 10 header, pitch 1.25mm

JBKL

LCD inverter connector

5 x 1 wafer, pitch 2.0mm

LAN1

RJ-45 Ethernet connector

LAN2

RJ-45 Ethernet connector

LED2

LED connector

PWR

Power connector

2 x 2 wafer, pitch 4.2 mm

PWR_SB

5VSB connector in ATX

3 x 1 wafer, pitch 2.54 mm

S_PWR1

SATA power connector

2 x 1 wafer, pitch 2.0 mm

SATA1

Serial ATA connector 1

SATA2

Serial ATA connector 2

RSTBTN

Reset button

USB1

USB connector

Double Deck

VGA

VGA connector

D-sub 15-pin, female

ECM-PNV Quick Installation Guide

10 ECM-PNV Quick Installation Guide

2.3 Setting Jumpers & Connectors

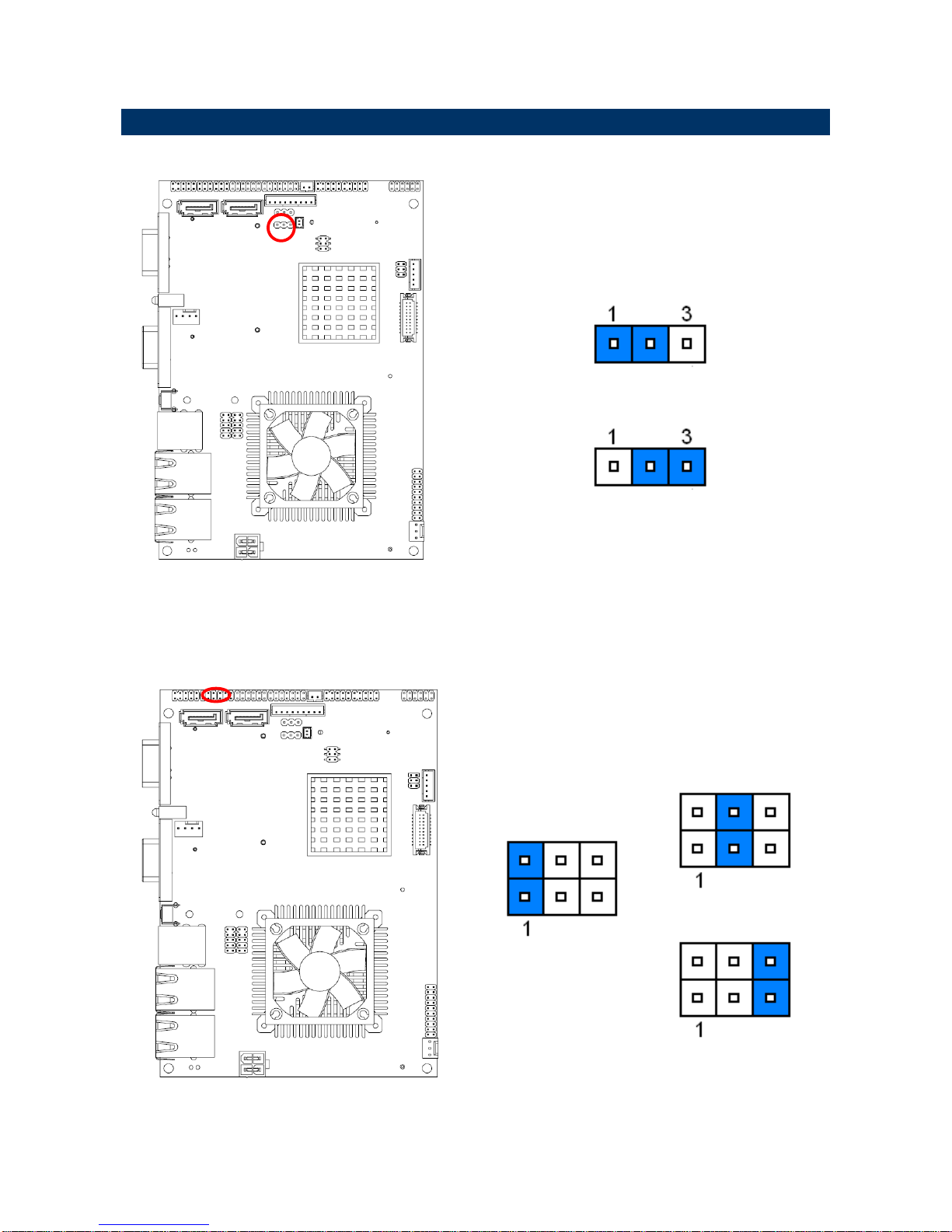

2.3.1 Clear CMOS (JBAT)

* Default

Protect*

Clear CMOS

2.3.2 Serial port 1 pin 9 signal select (JRI1)

* Default

Ring*

+5V

+12V

Indice

Altri manuali Avalue Technology Scheda madre

Avalue Technology

Avalue Technology EMX-BYT3 Manuale utente

Avalue Technology

Avalue Technology BBM-BSW A2 Manuale utente

Avalue Technology

Avalue Technology EAX-915GV Manuale utente

Avalue Technology

Avalue Technology EMX-SKLUC Manuale utente

Avalue Technology

Avalue Technology EMX-BYTC Manuale utente

Avalue Technology

Avalue Technology EMX-QM67 Manuale utente

Avalue Technology

Avalue Technology SEAX-H81 Manuale utente

Avalue Technology

Avalue Technology ENX-CDD Manuale utente

Avalue Technology

Avalue Technology EAX-C246P Manuale utente

Avalue Technology

Avalue Technology ERX-G41 Manuale utente

Avalue Technology

Avalue Technology AMD Geode E2047551001R Manuale utente

Avalue Technology

Avalue Technology SENX-BYT Manuale utente

Avalue Technology

Avalue Technology EMX-B75 Manuale utente

Avalue Technology

Avalue Technology EMX-SKLGP Manuale utente

Avalue Technology

Avalue Technology EAX-C246P-B1 Manuale utente

Avalue Technology

Avalue Technology ECM-QM77 Manuale utente

Avalue Technology

Avalue Technology ECM-BSW Manuale utente

Avalue Technology

Avalue Technology ECM-US15WP Manuale utente

Avalue Technology

Avalue Technology ERX-H61 Manuale utente

Avalue Technology

Avalue Technology ENX-PNV Manuale utente

Avalue Technology

Avalue Technology SEMX-H81 Manuale utente

Avalue Technology

Avalue Technology XTX-PNV Manuale utente

Avalue Technology

Avalue Technology EMX-ADLP-B1 Manuale utente

Avalue Technology

Avalue Technology EMX-PNV Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
