Avalue Technology EMX-QM57 Manuale utente

Part No: E2017QM5701R

EMX-QM57

Intel®i7/i5 Processor Mini-ITX Motherboard

Quick Installation Guide

2nd Ed –August 16, 2011

EMX-QM57

EMX-QM57 Quick Installation Guide 2

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time.

For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective

owners.

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to improve

design and/or performance. Avalue Technology assumes no responsibility or liability for the

use of the described product(s), conveys no license or title under any patent, copyright, or

EMX-QM57

EMX-QM57 Quick Installation Guide 3

masks work rights to these products, and makes no representations or warranties that

these products are free from patent, copyright, or mask work right infringement, unless

otherwise specified. Applications that are described in this manual are for illustration

purposes only. Avalue Technology Inc. makes no representation or warranty that such

application will be suitable for the specified use without further testing or modification.

Life Support Policy

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN

LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL

OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,

when properly used in accordance with instructions for use provided in the labeling, can

be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure

to perform can be reasonably expected to cause the failure of the life support device or

system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

EMX-QM57

EMX-QM57 Quick Installation Guide 4

If you still cannot find the answer, gather all the information or questions that apply to your

problem, and with the product close at hand, call your dealer. Our dealers are well trained

and ready to give you the support you need to get the most from your Avalue’s products. In

fact, most problems reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Avalue’s engineers every business day.

We are always ready to give advice on application requirements or specific information on

the installation and operation of any of our products. Please do not hesitate to call or e-mail

us.

Headquarters and Branch

Avalue USA

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei,

Taiwan

Tel:+886-2-8226-2345

Fax: +886-2-8226-2777

Information:s[email protected].tw

Service: service@avalue.com.tw

Avalue Technology Inc.

9 Timber Lane, Marlboro, NJ 07746-1443

Tel: (732) 414-6500

Fax: (732) 414-6501

Information: sales@avalue-usa.com

Service: support@avalue-usa.com

BCM Advanced Research

Avalue Europe

BCM Advanced Research

an Avalue Company

7 Marconi, Irvine, CA92618

Tel: +1-949-470-1888

Fax: +1-949-470-0971

Information: BCMSales@bcmcom.com

Web: www.bcmcom.com

Avalue Europe A/S

Moelledalen 22C, 3140

Aalsgaarde, Denmark

Tel: +45-7025-0310

Fax:+45-4975-5026

Information: sales.e[email protected]

Service: service.europ[email protected]

Avalue China

Avalue Japan

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,

Caohejing Development Area,

Xuhui District, Shanghai

Tel: +86-21-5169-3609

Fax:+86-21-5445-3266

Information: sales.chi[email protected]

Service: service@avalue.com.tw

Avalue Technology Inc.

2F keduka-Bldg, 2-27-3 Taito,

Taito-Ku, Tokyo 110-0016 Japan

Tel: +81-3-5807-2321

Fax: +81-3-5807-2322

Information: sales.japa[email protected]

Service: service@avalue.com.tw

EMX-QM57

EMX-QM57 Quick Installation Guide 5

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following parts have been shipped:

1 x Intel i7/i5 Processor Mini-ITX Main board

1 x CD-ROM contains the followings:

User’s Manual in PDF file

Drivers

1 x COM1 Cable (9P/260mm)

1 x SATA Cable Kit (SATA/Power)

1 x SATA DATA Cable

1 x I/O Shield

1 x Startup Manual

1 x Cooler

EMX-QM57

EMX-QM57 Quick Installation Guide 6

2. Hardware

Configuration

EMX-QM57

EMX-QM57 Quick Installation Guide 7

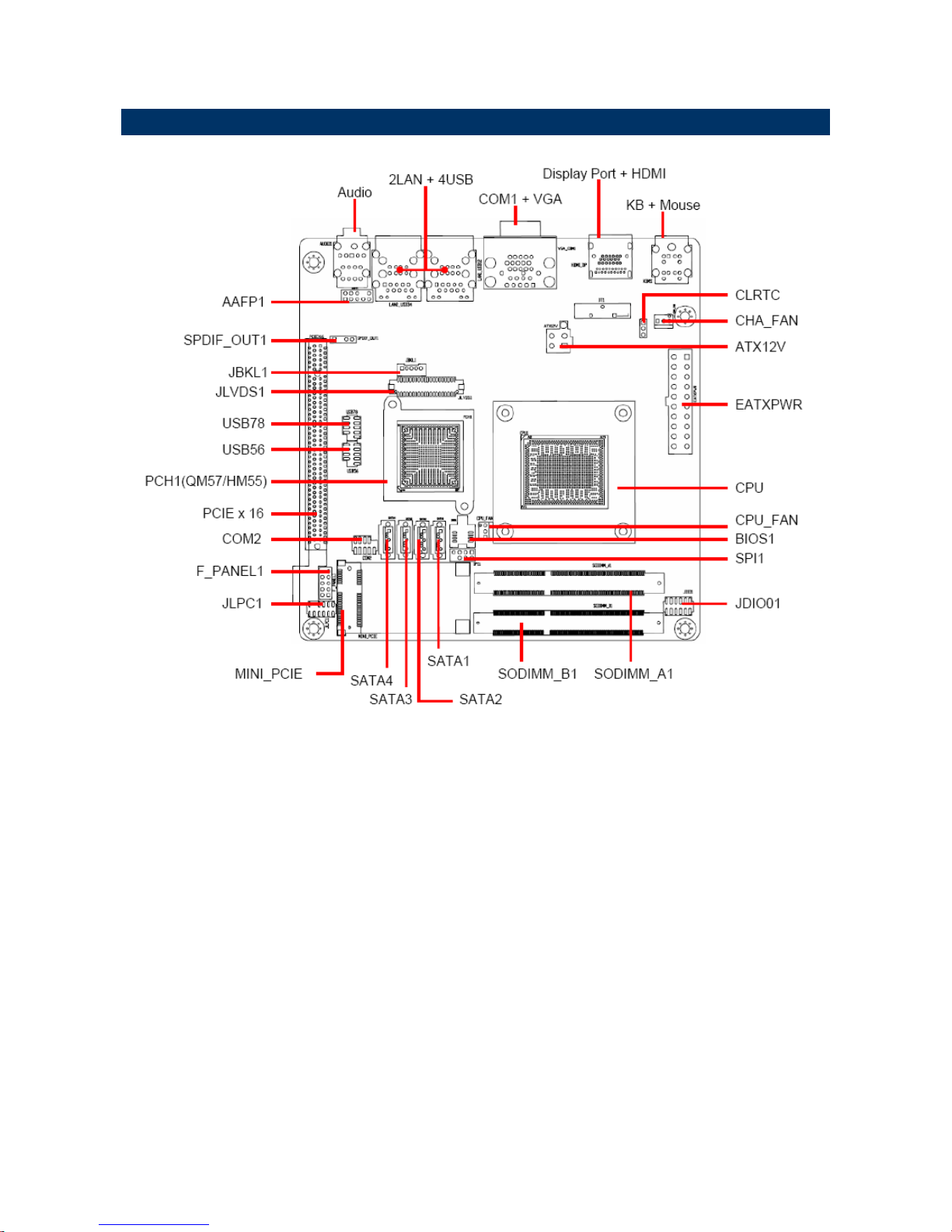

2.1 Product Overview

EMX-QM57

EMX-QM57 Quick Installation Guide 8

2.2 Specifications

System

CPU

Intel Core i7/i5 Mobile Processor

BIOS

AMI 8MB SPI BIOS”

System Chipset

Intel QM57/HM55 Chipset

I/O Chipset

Winbond W83667HG-A

Memory

2 x 204-pin SODIMM socket supports up to 8 GB Dual channel DDR3 1066/800

SDRAM

Watchdog Timer

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

H/W Status Monitor

Monitoring CPU temperature, voltage, and cooling fan status. Auto throttling

control when CPU overheats

Expansion Slots

1x PCI-E x16 (PEG & SDVO)

1x Mini PCI-E x1

S3 Support

SmartFan Control

Yes

I/O

MIO

2 x COM(1F/1R) with power 4 x SATA/SATAII

1 x Display Port 1 x HDMI

1 x VGA 1 x LVDS

1 x LVDS backlight

USB

8 x USB 2.0 ports

DIO

8-bit General Purpose I/O for DI and DO

Display

Chipset

Intel Graphics Media Accelerator HD

Display Memory

Intel DVMT supports 1.7GB video memory

Resolution

2048 x 1536 @ 32 bpp(@ 60Hz)

Dual Display

CRT + LVDS, CRT + Display Port ,CRT + HDMI

LVDS

Dual-channel 24-bit LVDS

Display Port

Support eDP Standard Version 1.1

HDMI

TI Level Shift SN75DP139RGZR

Audio

Audio Codec

Realtek ALC888 Audio Codec

5.1+2 CH. with two independent audio stream

Audio Interface

Mic in, Line in, Line out

EMX-QM57

EMX-QM57 Quick Installation Guide 9

Ethernet

LAN1

Intel® 82577-LM Gigabit LAN

LAN2

Realtek RTL8111C PCI-E Gigabit LAN

Mechanical & Enviormental

Power Type

ATX

Operating Temperature

0~60°C (32~140°F)

Operating Humidity

0%~90% relative humidity, non-condensing

Size (L x W)

6.69" x 6.69" (170 mm x 170 mm)

Weight

0.88 lbs (0.4 Kg)

EMX-QM57

EMX-QM57 Quick Installation Guide 10

2.2 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A

jumper is the simplest kind of electric switch.

It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

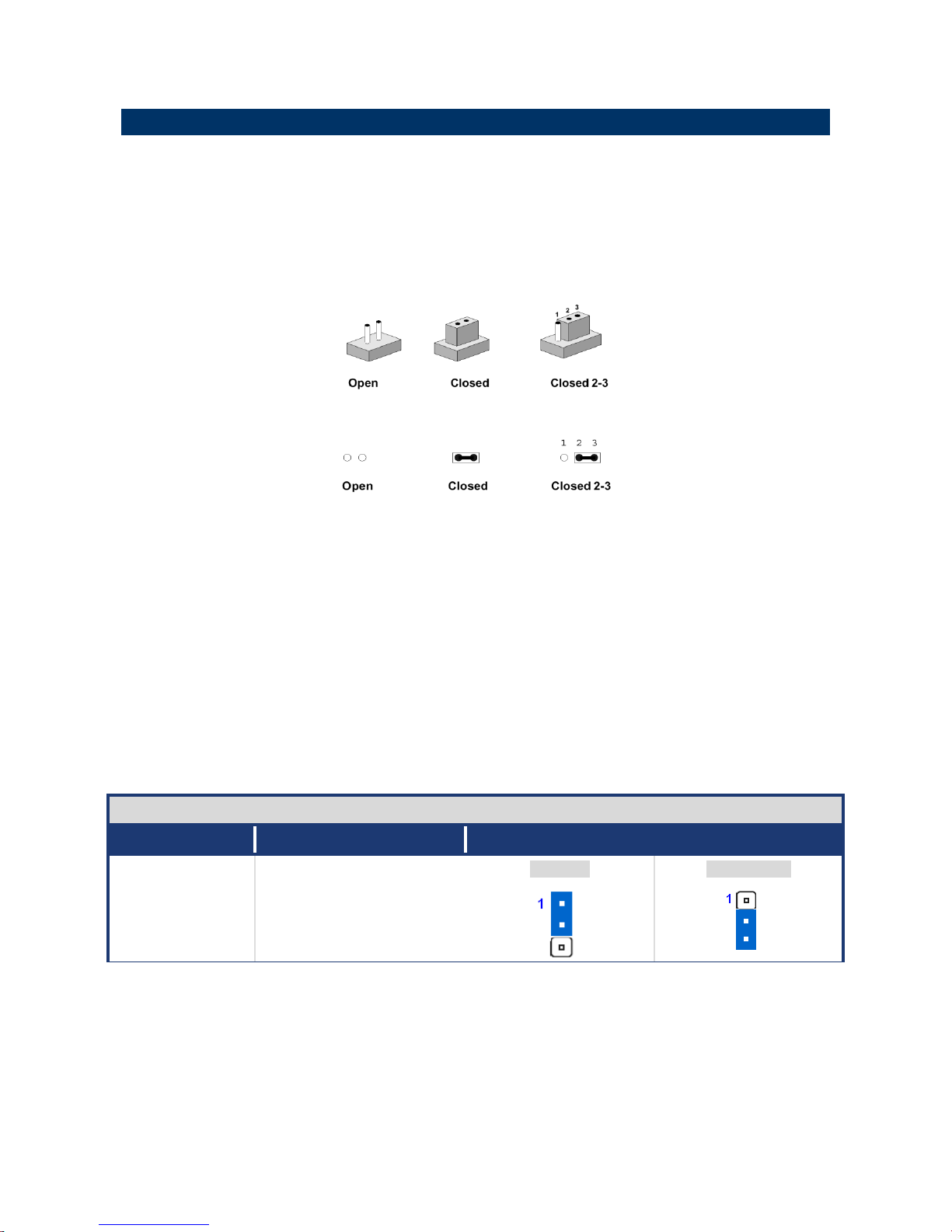

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.

Connectors on the board are linked to external devices such as hard disk drives, a

keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to

configure your system to suit your application.

If you have any doubts about the best hardware configuration for your application, contact

your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board’s jumpers and connectors.

Jumpers

Label

Function

Note

CLRTC

Clear CMOS

Normal *

Clear CMOS

Altri manuali per EMX-QM57

Indice

Altri manuali Avalue Technology Scheda madre

Avalue Technology

Avalue Technology EMX-APLP-34 Manuale utente

Avalue Technology

Avalue Technology EMX-QM77 Manuale utente

Avalue Technology

Avalue Technology EMX-H110KP Manuale utente

Avalue Technology

Avalue Technology EAX-785E Manuale utente

Avalue Technology

Avalue Technology EAX-C246BP Manuale utente

Avalue Technology

Avalue Technology EBM-LX800 Manuale utente

Avalue Technology

Avalue Technology ACP-PNVDV-A1-ATXR Manuale utente

Avalue Technology

Avalue Technology EMX-A55E Manuale utente

Avalue Technology

Avalue Technology EMX-H110P Manuale utente

Avalue Technology

Avalue Technology BBM-BSW A2 Manuale utente

Avalue Technology

Avalue Technology EAX-Q170P Manuale utente

Avalue Technology

Avalue Technology EMX-PNV Manuale utente

Avalue Technology

Avalue Technology ECM-KBLU Manuale utente

Avalue Technology

Avalue Technology EMX-NM70 Manuale utente

Avalue Technology

Avalue Technology REV-Q703 Manuale utente

Avalue Technology

Avalue Technology EMX-H110DC Manuale utente

Avalue Technology

Avalue Technology EAX-H81P Manuale utente

Avalue Technology

Avalue Technology EMX-VX11P Manuale utente

Avalue Technology

Avalue Technology AMD Geode E2047551001R Manuale utente

Avalue Technology

Avalue Technology EMX-PNV Manuale utente

Avalue Technology

Avalue Technology ECMG3-Q170 Manuale utente

Avalue Technology

Avalue Technology EMX-WHLGP Manuale utente

Avalue Technology

Avalue Technology EAX-C236KP-B1 Manuale utente

Avalue Technology

Avalue Technology ENX-US15WP Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
