Avalue Technology AID-173SBT Manuale utente

Part No. E2017A7S1A2R

AID-173SBT

17.3” Medical PC

Quick Reference Guide

3rd Ed –17 September 2015

AID-173SBT

2 AID-173SBT Quick Reference Guide

Content

1. Getting Started.................................................................................................3

1.1 Safety Precautions.............................................................................................3

1.2 Packing List.......................................................................................................3

1.3 System Specifications ........................................................................................4

1.4 System Overview...............................................................................................6

1.4.1 I/O View.........................................................................................................................6

1.5 System Dimensions ...........................................................................................7

1.6 Mounting ...........................................................................................................8

2. Hardware Configuration...................................................................................9

2.1 AID-173SBT connector mapping....................................................................... 10

2.1.1 VGA connector (VGA) ...................................................................................................10

2.2 EMX-BTX Overviews........................................................................................11

2.3 EMX-BTX Jumper & Connector list....................................................................12

Quick Reference Guide

AID-173SBT Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not make

connections while the power is on. Sensitive electronic

components can be damaged by sudden power surges.

Only experienced electronics personnel should open the PC

chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Risk of Explosion if Battery is replaced by an Incorrect Type.

Dispose of Used Batteries According to the Instructions.

Français:

Attention!

Débranchez le câble d'alimentation de votre châssis chaque

fois que vous travaillez avec le matériel. Ne faites pas de

connexion lorsque le système est allumé. Les composants

électroniques sensibles peuvent être endommagés par les

surtensions soudaines. Seule les personnels expérimentés

de l'électronique peuvent ouvrir le châssis du PC.

Précaution!

Il faut toujours mettre à la masse pour éliminer l’électricité

statique avant de toucher la carte CPU. Les appareils

électroniques modernes sont très sensibles aux électricité

statique. Pour des raisons de sécurité, utilisez un bracelet

électrostatique. Placez tous les composants électroniques

sur une surface antistatique ou dans un sac antistatique

quand ils ne sont pas dans le châssis.

Risque d'explosion si la batterie est remplacée par un type

incorrect. Jetez les piles usagées selon les instructions

1.2 Packing List

1 x AID-173SBT 17.3” Medical PC

1 x Adapter

1 x Power cord

AID-173SBT

4 AID-173SBT Quick Reference Guide

1.3 System Specifications

Component

Mother Board

EMX-BTX

CPU

Intel Celeron Processor N2930

CPU Cooler (Type)

Heatsink on board

Memory

Dual Channel DDR3L-1333 MHz SDRAM

2 x SODIMM sockets

Max. 8GB

Graphics Controller

Intel® Gen7 Intel® Graphics DX 11, OGL3.2

Power Supply

12 ~ 24V WideRange Input

Adapter

AC/DC Adapter 100 ~ 240V 50~60Hz, 12V/5A FSP060-DBAE1

System Fan

Fanless

Audio Codec

Realtek® ALC662

Wireless LAN

Intel AC7260 WIFI

Operating System

Windows Embedded Standard 7, Windows 7

Storage

Other Storage Device

1 x 16GB mSATA Industrial Grade

Panel

LCD Panel

17.3” HD + Panel from CMO-Innolux

LCD Control Board

LCD Built-in Inverter

B/L Inverter/Converter

LCD Built-in LED Backlight

Touch Screen

17.3” Resistive Touch Panel

Touch Controller

5-W USB RS232 Touch Ctrl PM6202B-CZ5

Others

Consigned 3M privacy filter with OCA

External I/O

USB Port

2 x USB 3.0 Port, 2 x USB 2.0 Port

Video Port

1 x HDMI Port (Supports HDMI 1.4a, max resolution 1920 x 1200)

LAN Port

1 x RJ-45 LAN (10/100/1000 Mbps GbE LAN Realtek)

Wireless LAN Antenna

2 x Built-In Wireless LAN Ant.

Switch

Capacitive Touch Button

Expansion Slots

Mini-PCIe: 1 (half size) + 1 (full size) shared with mSATA

mSATA: 1 (shared with SATA2_2)

PCIe: 1

VGA Port

1 x VGA

Others

1 x power button

Mechanical

Power Type

12V ~ 24VDC

Quick Reference Guide

AID-173SBT Quick Reference Guide

Power Connector Type

1 x 12V ~ 24VDC Input

Dimension

448 (L) x 281 (H) x 45 (D)mm (w/o MSR/HS)

Weight

4.7Kgs

Color

White

Fan-less

Yes

Reliability

EMI Test

FCC Class B

Dust and Rain Test

IP-65on Front Panel

Vibration Test

Standard(0.00454G²/Hz,1.5Grms 5 ~ 500Hz)

Mechanical Shock Test

Standard

Drop Test

EC-60068-2-32 (96.5cm)

Operating Temperature

0 ~ 40C

Operating Humidity

10 ~ 90%

Storage Temperature

-20 ~ 60C

Note: Specifications are subject to change without notice.

AID-173SBT

6 AID-173SBT Quick Reference Guide

1.4 System Overview

1.4.1 I/O View

Connectors

Label

Function

Note

USB

2 x USB 2.0 connector

2 x USB 3.0 connector

LAN

RJ-45 Ethernet connector

HDMI

HDMI connector

POWER

Power on button

VGA

VGA connector

DB-15 female connector

Note:

UL Certified Cables are required & purchased from the distributors.

Français:

Il est nécssaire que vous achetez des câbles certifiés par UL auprès des distributers.

Quick Reference Guide

AID-173SBT Quick Reference Guide

1.5 System Dimensions

(Unit: mm)

AID-173SBT

8 AID-173SBT Quick Reference Guide

1.6 Mounting

(Unit: mm)

Quick Reference Guide

AID-173SBT Quick Reference Guide

2.Hardware

Configuration

For advanced information, please refer to:

1- EMX-BTX included in this manual.

Note: If youneed more information, please visit our website:

http://www.avalue.com.tw

AID-173SBT

10 AID-173SBT Quick Reference Guide

2.1 AID-173SBT connector mapping

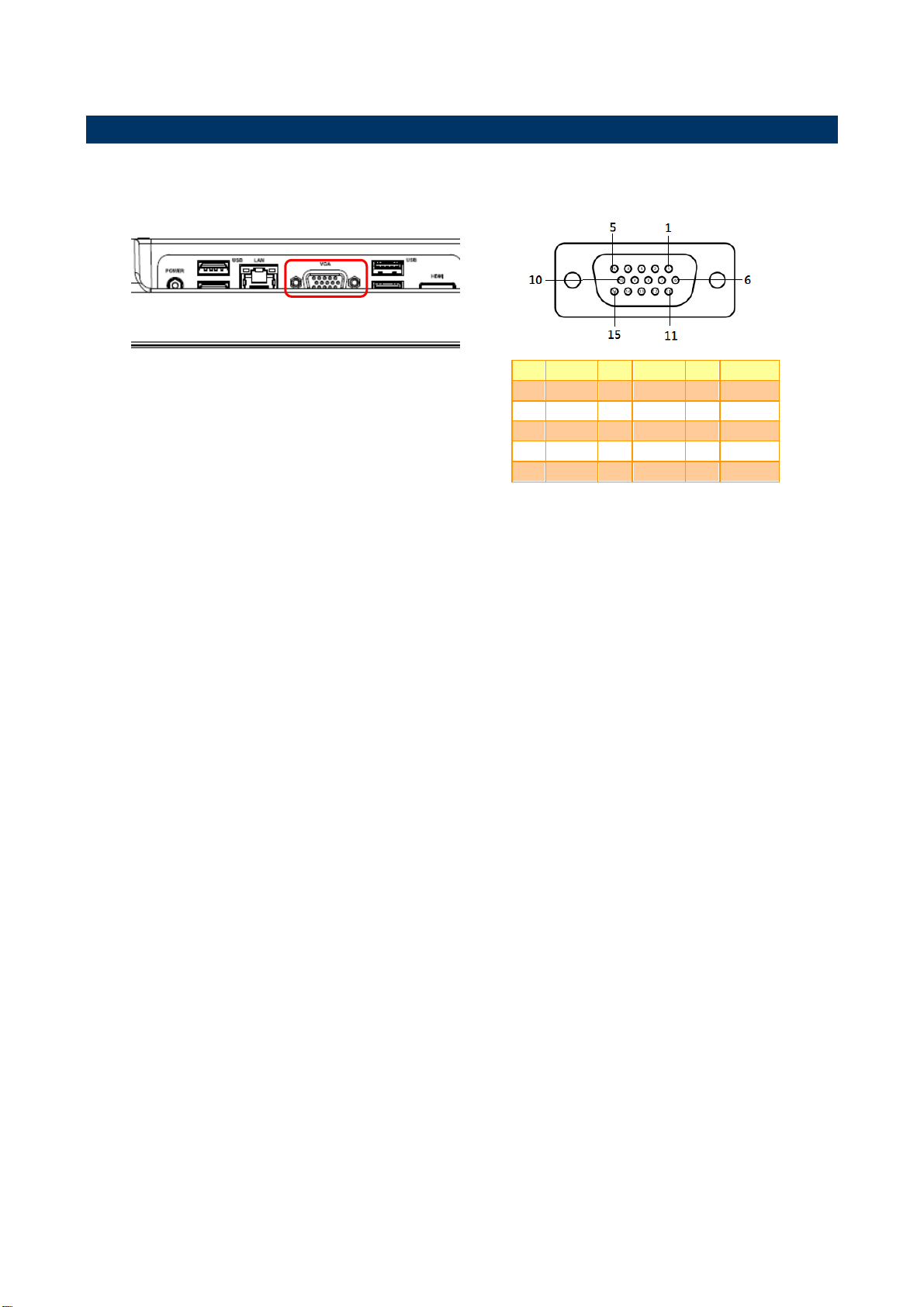

2.1.1 VGA connector (VGA)

Signal

GND

DATA

GND

HSYNC

+5V

VSYNC

GND

CLK
