Avalue Technology BFC-10R1 Manuale utente

Part No. E2017BF10A1R

BFC-10R1

10.1" RISC Bezel Free Panel PC with FreeScale IMX51

Quick Reference Guide

2nd Ed –24 October 2018

BFC-10R1

2 BFC-10R1 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Quick Reference Guide

BFC-10R1 Quick Reference Guide

CONTENT

1. Getting Started............................................................................................................4

1.1 Safety Precautions ................................................................................................4

1.2 Packing List...........................................................................................................4

1.3 System Specifications ...........................................................................................5

1.4 System Overview...................................................................................................7

1.4.1 Front & Top View ......................................................................................................................... 7

1.4.2 Right Side View............................................................................................................................ 7

1.4.3Left Side View.............................................................................................................................. 8

1.4.4 Rear View..................................................................................................................................... 8

2. Hardware Configuration.............................................................................................9

2.1 Jumper & connector list.......................................................................................10

2.2 Jumper & connector settings...............................................................................10

2.2.1 COM1 & COM2 connector......................................................................................................... 10

2.2.2 Boot Mode selector (SW2)......................................................................................................... 11

2.2.3 DC power-in connector.............................................................................................................. 11

2.3 Installing PCIE device (BFC-10R1) .....................................................................12

2.4 Installing SD Card (BFC-10R1) ...........................................................................13

BFC-10R1

4 BFC-10R1 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x 10.1”RISC Bezel Free Panel PC System.

Other major components include the following:

—1 x Power Adapter(12V/5A)

Quick Reference Guide

BFC-10R1 Quick Reference Guide

1.3 System Specifications

Panel

Model

BFC-10R1-M51

BFC-10R1-M51W

BFC-10R1-M51P

LCD size

10.1”

Display type

WSVGA TFT

Resolution

1024 x 600

Color

262K

Pixel pitch

0.1905mm(H) x 0.189mm(V)

Luminance

180cd/m²

Contrast ratio

300

Viewing angle

15(U), 35(D), 45(L), 45(R)

Response time

30 ms

Backlight

LED

Touch Type

Projective capacitive touch

Touch Light Transmission

93%

Integrated Module

n/a

w/ WiFi Module

w/ POWERED LAN

Module

System

Board

RSC-IMX51

CPU

Freescale i.MX515 ARM Cortex-A8 800MHz

PMIC

Freescale MC13892AJVL

Flash

Onboard 4GB eMMC

Memory

Onboard 512MB DDR2 SDRAM

SSD

SD or SDHC

Rear Panel I/O

Serial Port

1 x RS-232, 1 x RS-232/ 422/ 485

USB

2 x USB 2.0

Mini USB

1 x Mini-USB

Ethernet

1 x RJ-45

Mechanical & Environmental

Color

Front & Rear panel Black

Power Requirement

+12 VDC Input

Operating Temperature

0°C to 40°C (32°F to 140°F)

Relative Humidity

0%~90% relative humidity, non-condensing

Storage Temperature

-20°C to 60°C

Mounting

Wall/Stand/VESA 100 mm X 100 mm

Dimensions

251.9mm x 154.5mm x 42.7mm

BFC-10R1

6 BFC-10R1 Quick Reference Guide

Weight

1Kgs

Note: Specifications are subject to change without notice.

Quick Reference Guide

BFC-10R1 Quick Reference Guide

1.4 System Overview

1.4.1 Front & Top View

1.4.2 Right Side View

Connectors

Label

Function

Note

SD Card Slot

SD/SDHC card socket

Right side

Mini USB

USB client connector

Right side

BFC-10R1

8 BFC-10R1 Quick Reference Guide

1.4.3 Left Side View

Connectors

Label

Function

Note

USB1~2

USB 2.0 connector 1~2

Left side

1.4.4 Rear View

Connectors

Label

Function

Note

COM1~2

Serial port connector1~2

DB-9 male connector

DC-IN

+12V DC power-in connector

LAN

RJ-45 Fast Ethernet connector

MODE SWITCH

Boot Mode selector

Powered LAN

RJ-45 Powered LAN connector

For BFC-10R1-M51P

Power S/W

System power switch

RESET

Reset button

Quick Reference Guide

BFC-10R1 Quick Reference Guide

2.Hardware

Configuration

Jumper and Connector Setting, Driver and BIOS Installing

For advanced information, please refer to:

1- RSC-IMX51 Installation Guide or User’s Manual

2- EPM-PSE and AUX-MPCIE (Optional) Installation Guide.

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

BFC-10R1

10 BFC-10R1 Quick Reference Guide

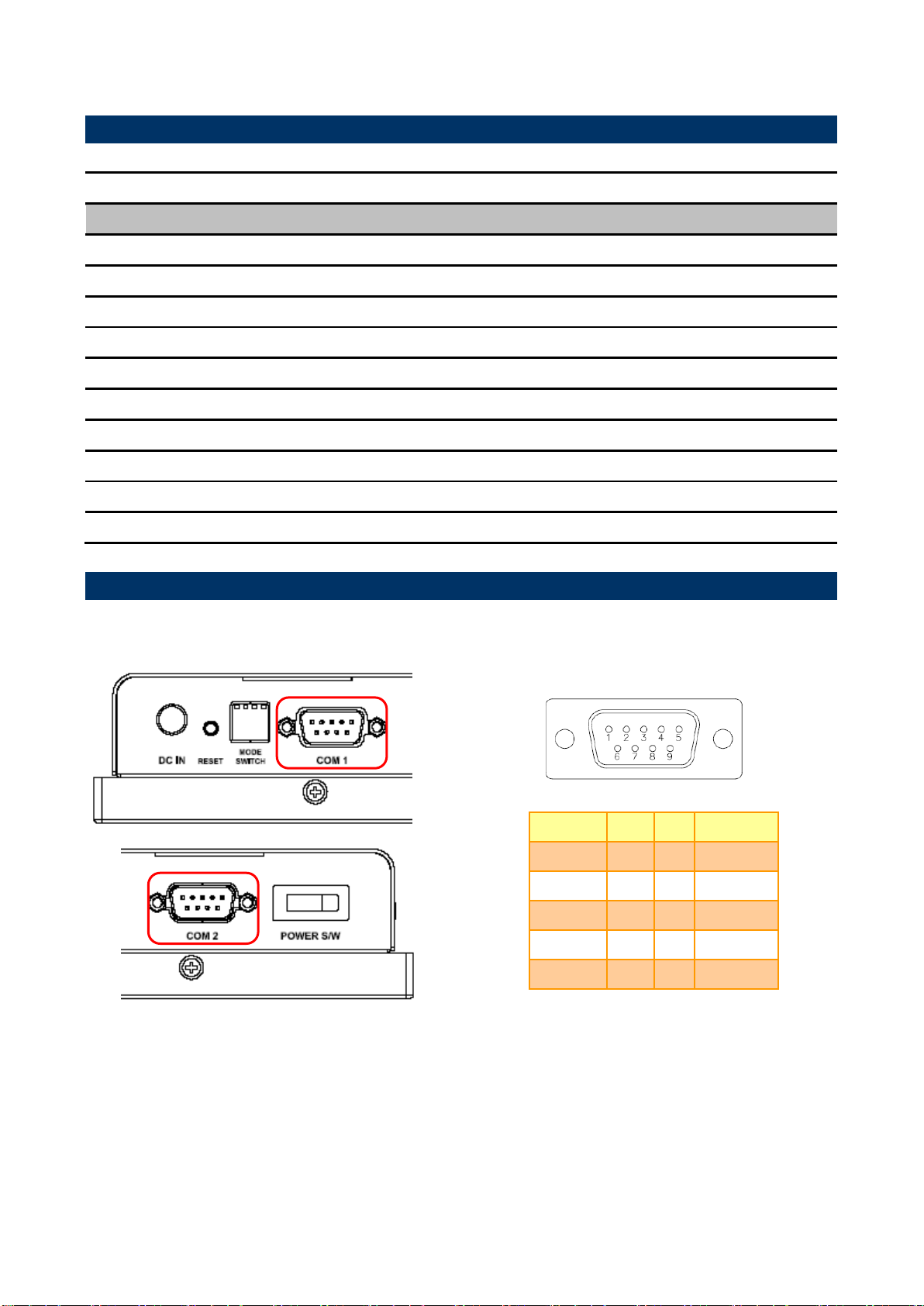

2.1 Jumper & connector list

Connectors

Label

Function

Note

COM1~2

Serial port connector1~2

DB-9 male connector

DC-IN

+12V DC power-in connector

LAN

RJ-45 Fast Ethernet connector

MODE SWITCH

Boot Mode selector

Powered LAN

RJ-45 Powered LAN connector

For BFC-10R1-M51P

Power S/W

System power switch

RESET

Reset button

SD Card Slot

SD/SDHC card socket

Right side

Mini USB

USB client connector

Right side

USB

USB 2.0 connector 1&2

Left side

2.2 Jumper & connector settings

2.2.1 COM1 & COM2 connector

Signal

RX1

TX1

GND

RTS

CTS
