Avalue Technology MPC-21W7 Manuale utente

Part No. E201721W7A0R

MPC-21W7

21" FHD Fanless Digital Signage Panel Computer

with ATOM Dual Core Solution

Quick Reference Guide

1st Ed –24 April 2013

MPC-21W7

2 MPC-21W7 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x MPC-21W7 21" FHD Fanless Digital Signage Panel Computer

with ATOM Dual Core Solution

1 x Quick Reference Guide

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—WiFi drivers and utilities

—Touch controller drivers and utilities

—Chipset drivers and utilities

1 x Power Adapter (12V/7A)

4 x screws for VESA (M4 x 6mm)

4 x screws for 2.5" HDD device (M3 x 5mm)

—4 x screws for mPCIe device (M2 x 4mm)

Quick Reference Guide

MPC-21W7 Quick Reference Guide

1.3 System Specifications

Panel

LCD size

21.6", 16:9

Resolution

1920 x 1080 HD, 16.7M

Pixel pitch

0.248mm(H) x 0.248mm(V)

Luminance

250 cd/m²

Contrast ratio

1000

Viewing angle

80(U), 80(D), 85(L), 85(R )

Response time

5 ms

Backlight

4 x CCFL

Touch Type (Optional)

Resistive

Touch Light transmission

80%

Touch Interface

USB

System

Board

EBM-CDV

CPU

Intel® Atom™ Dual-Core D2550 1.86GHz CPU

BIOS

AMI 8M-bit SPI BIOS

System Chipset

Intel® NM10 Express Chispet

I/O Chip

E/C IT8518E

System Memory

One SODIMM socket supports up to 4GB DDR3 800/1066 SDRAM

SSD

One CompactFlash Type I/II socket

Hard Driver Bay

Optional One 2.5”HDD or SSD

WiFi

Optional Mini PCIe WiFi 802.11b/g/n

Watchdog Timer

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

H/W Status Monitor

Monitoring system temperature and voltage. Auto throttling control

when CPU overheats

Expansion

1 x Mini-PCIe (mSATA supported)

Rear I/O

Serial Port

1 x RS-232/422/485 (selected by jumper)

Ethernet

1 x RJ-45

VGA

1 x HDMI

Audio port

Line out

USB

2 x USB 2.0

Speaker

2 x 1W

Mouse & K/B

1 x PS/2 KB & MS

Display

Chipset

Intel NM10 Express Chipset

MPC-21W7

4 MPC-21W7 Quick Reference Guide

Resolution

CRT: up to 2048x1536@ 60 Hz

Dual Display

CRT + LVDS with clone mode

Audio

AC97 Codec

Realtek ALC892 supports 5.1CH Audio

Audio Interface

Line out (jack), AMP Line-in, Line-out, Mic-in (in header)

Ethernet

LAN Chip

Intel® 82574L Gigabit LAN (optional dual 82574L Gigabit LAN)

Ethernet Interface

10/100/1000 Base-Tx Fast Ethernet compatible

Mechanical & Environmental

Color

Front & Rear panel Black

Mounting

Wall/Stand/VESA 100 mm x 100 mm

Power Input

100~250 Vdc/ 47~63 Hz

System Power Requirement

+12~28V DC Power Input

Power Type

AT/ATX

Operating Temp.

32 to 122°F (0 to 50°C)

Storage Temp.

-4 to 167°F (-20 to 75°C)

Operating Humidity

5%~90% relative humidity, non-condensing

Dimensions

508.2 x 301.3 x 53.1 mm

Weight

6 Kgs / 6.69 Kgs (with Touch)

Quick Reference Guide

MPC-21W7 Quick Reference Guide

1.4 System Overview

1.4.1 I/O View

Connectors

Label

Function

Note

Power

Power-in connector

COM1

Serial port 1

DB-9 male connector

KB/MS/LAN2

Keyboard-Mouse connector

DC-IN

DC power-in connector

VGA/HDMI

CRT connector/HDMI connector

Reset

Reset button

USB

USB connector

LAN1

RJ-45 Ethernet connector 1

LINE OUT

Line-out audio jack

HDD

HDD indicator

PWR

System power indicator

Compact Flash/

COM2

Compact Flash card connector

MPC-21W7

6 MPC-21W7 Quick Reference Guide

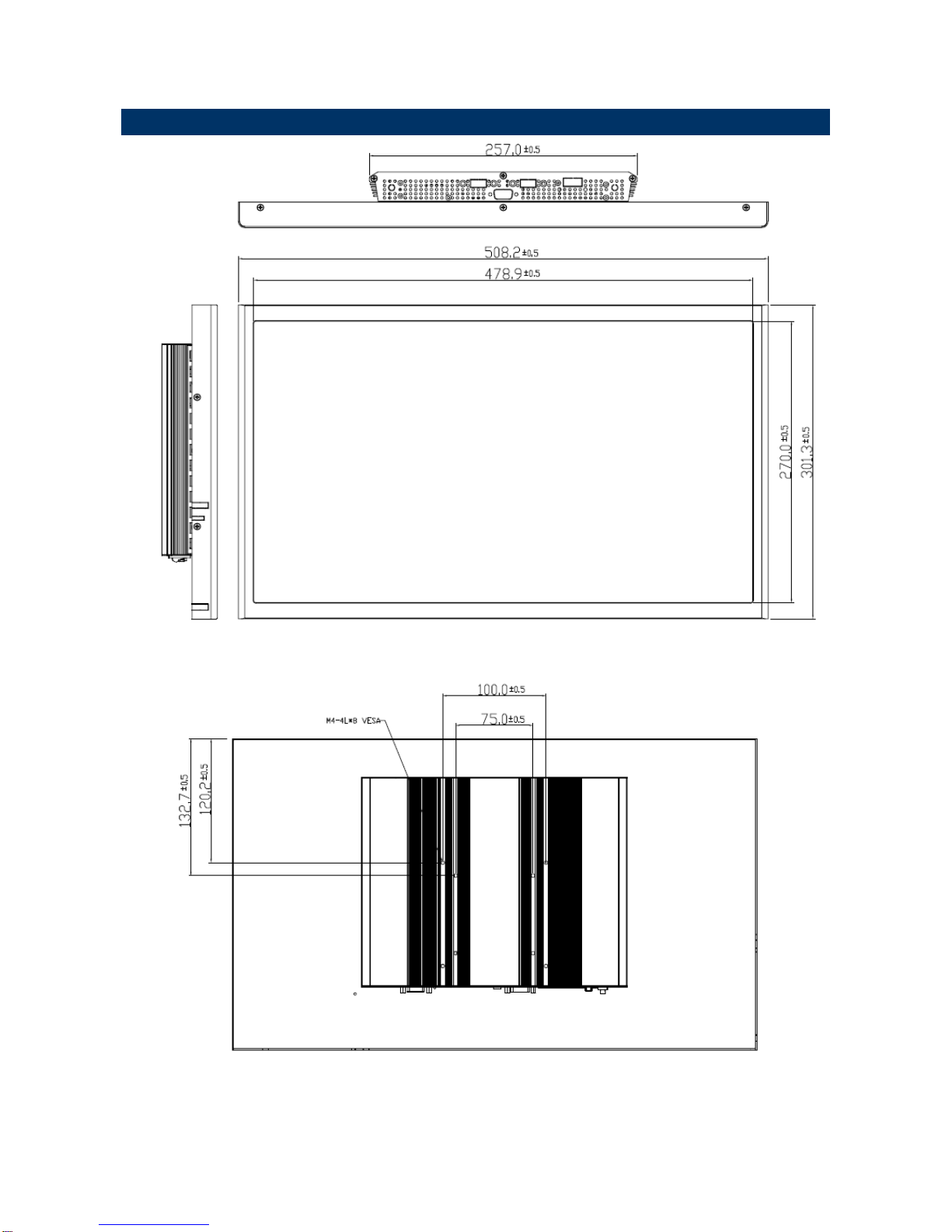

1.5 System Dimensions

(Unit: mm)

Quick Reference Guide

MPC-21W7 Quick Reference Guide

2.Hardware

Configuration

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

MPC-21W7

8 MPC-21W7 Quick Reference Guide

2.1 Installing HDD & MPCIE

Step 1. Unfasten 6 screws from the case. Then take off the top chassis.

Step 2.1. Insert the SODIMM into the memory socket.

Step 2.2. Remove 2 screws to release the HDD bracket.

Quick Reference Guide

MPC-21W7 Quick Reference Guide

Step 3. Secure HDD by means of 4 screws.

Step 4. Insert the HDD into the Drive Bay. Remember to place the HDD down to the bottom

exactly in order to screw the device tightly.
