Avenview C-COMP-HDM Manuale utente

www.avenview.com

Component Video with Audio

Converter to HDMI.

Model #: C-COMP-HDM

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

www.avenview.com

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 4

1.6 Before Installation.................................................................................................................. 4

1.7 Parts Required ....................................................................................................................... 5

1.8 Panel Description................................................................................................................... 6

1.1 Installation Hardware ............................................................................................................ 7

1.2 General Troubleshooting ....................................................................................................... 7

Section 2: Specifications......................................................................................................................... 7

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The C-COMP-HDM converter has been tested for conformance to safety regulations and requirements, and

has been certified for international use. However, like all electronic equipment’s, the C-COMP-HDM should be

used with care. Read the following safety instructions to protect yourself from possible injury and to minimize

the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

Avenview C-COMP-HDM Converter is designed to convert your High Definition component (YPbPr) video AND

Audio R/L connection to a digital connection (DVI or HDMI). In the AV world where component available

Monitors are becoming obsolete; we developed this product so clients can still have enjoy their component

(YPbPr) products as long as they last on any DVI or HDMI Monitors. Useful with gaming and video devices such

as PSP, PS2, Wii, XBOX, STB, DVD, Player and Projector etc.

Perfect for you home theater that is designed with Component devices and your new display has only HDMI

Inputs.

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-C-COMP-HDM x 1

-Wall Adapter DC 5V/2A x1

-User’s Manual x1

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the Composite, S-Video and HDMI. It can cause malfunction.

www.avenview.com

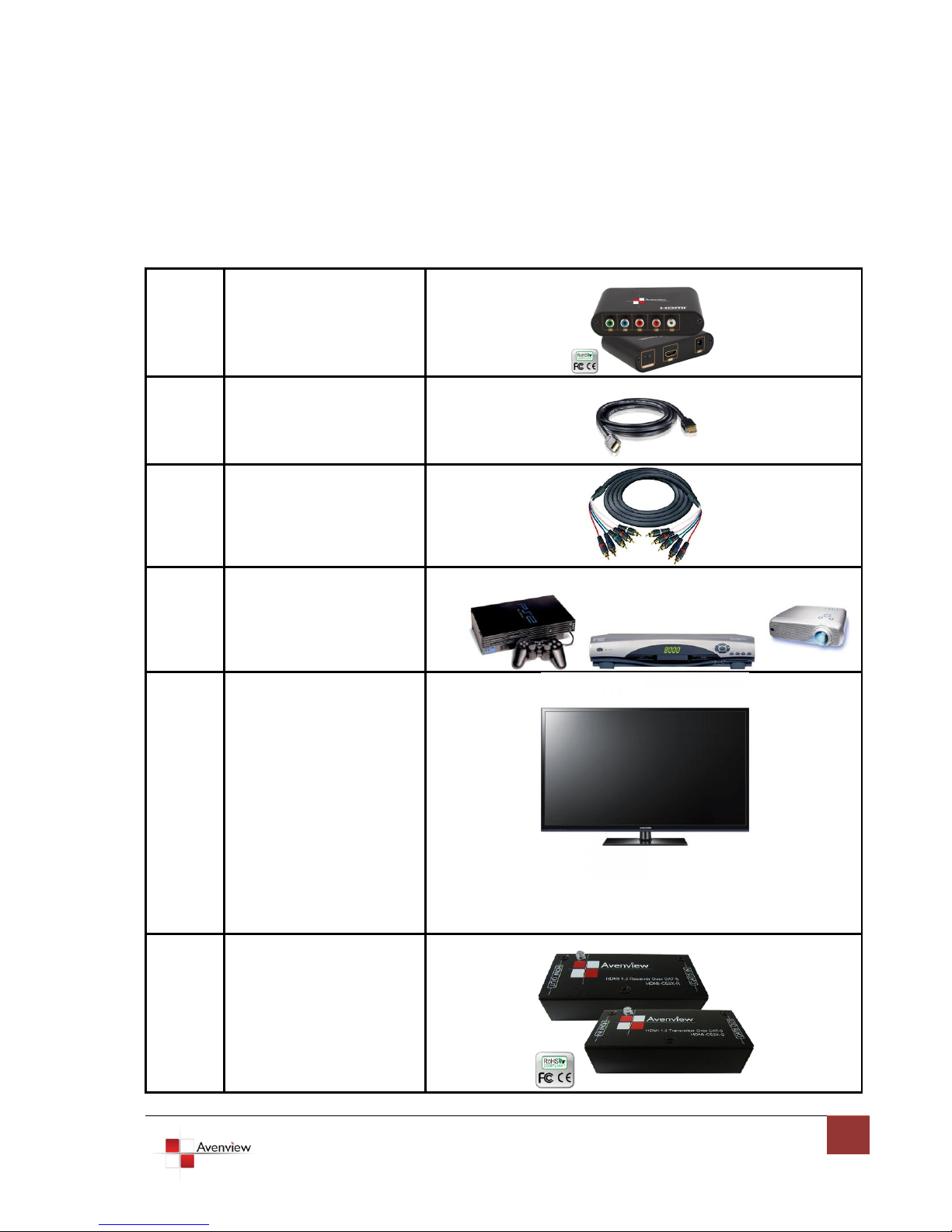

1.7 Parts Required

C-CVID-HDM

HDMI CABLE

OUTPUT

COMPONENT (YPbPr)

INPUT

COMPONENT (YPbPr)

Source

HDMI MONITOR

LCD OR HD MONITOR

Optional

HDMI EXTENDER

HDM-C53X-SET

Can be added to the

solution

www.avenview.com

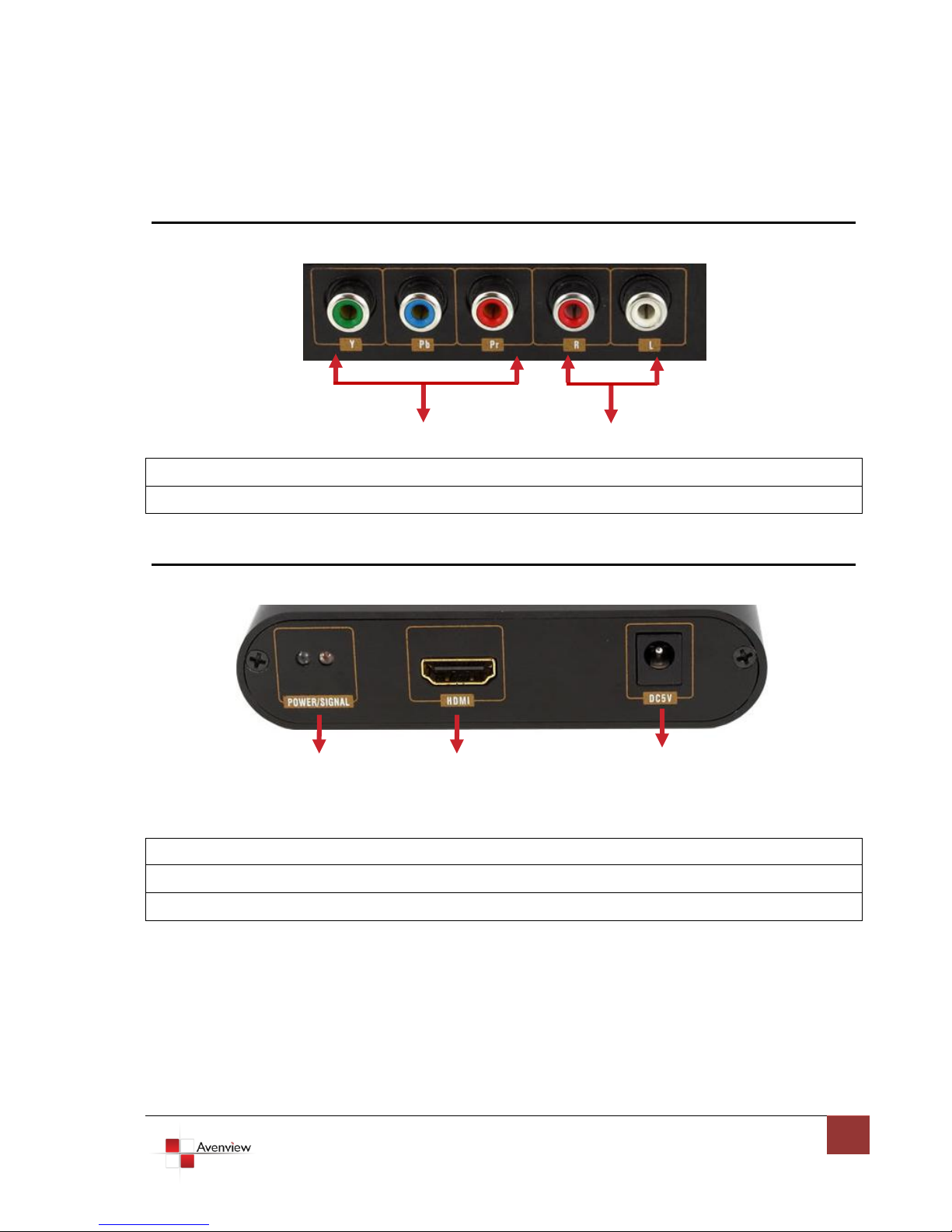

1.8 Panel Description

2. FRONT PANEL

1: YPbPr INPUT:3 RCA component video connections. Red Green Blue

2: AUDIO IN: 2 RCA audio connections. Red White

3. REAR PANEL

1: LED Indicator: Power LED when powered GREEN / Signal LED when signal is transmitting RED

2: HDMI Out: Connect to a HDMI display with HDMI M-M Cable

3: Power: +5V DC: Power Connector

www.avenview.com

1.1 Installation Hardware

1. Power On source such as Cable BOX (STB), Projector or Gaming System

2. Connect your C-COMP-HDM to source device with component cable

3. Connect Male to Male HDMI to HDMI Output of C-COMP-HDM

4. Connect other end of HDMI cable to TV or projector with HDMI input

1.2 General Troubleshooting

Problem

Possible Solution

No image output or abnormal display

Re-Cycle the power on Display

Image is not as clear

Please check the all cable input connections

Video –No Sound

Please ensure the RED and White RCA connections are secure.

Section 2: Specifications

Item

Description

Units

C-COMP-HDM

Unit Description

Component converter to HDMI

Installation

No Programming Needed

Supported Resolutions

Full range of component video resolutions supported, DTV/HDTV:

480i, 480p, 576i, 576p, 720i, 720p, 1080i

Impedance

75Ω

HDMI Transmission

5Gbps

LED Power Detection

GREEN LED

LED Video Detection

RED LED

Input

1 x YPbPr 3 RCA 1 x Red/White Audio 2 RCA

Output

1 x HDMI

HDMI Connector

Type A (19 pin female)

Dimensions (L x W x H)

4.2” x 3” x 1”

Power Supply

DC 5V

Power Consumption

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Temperature

-4˚~ 140˚F (-20˚~ 60˚C)

Relative Humidity

20~90% RH (no condensation)

www.avenview.com

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the

operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of

Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of

anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the

Avenview hardware, software, or other products and documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability,

function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties

regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and

non-infringement.
