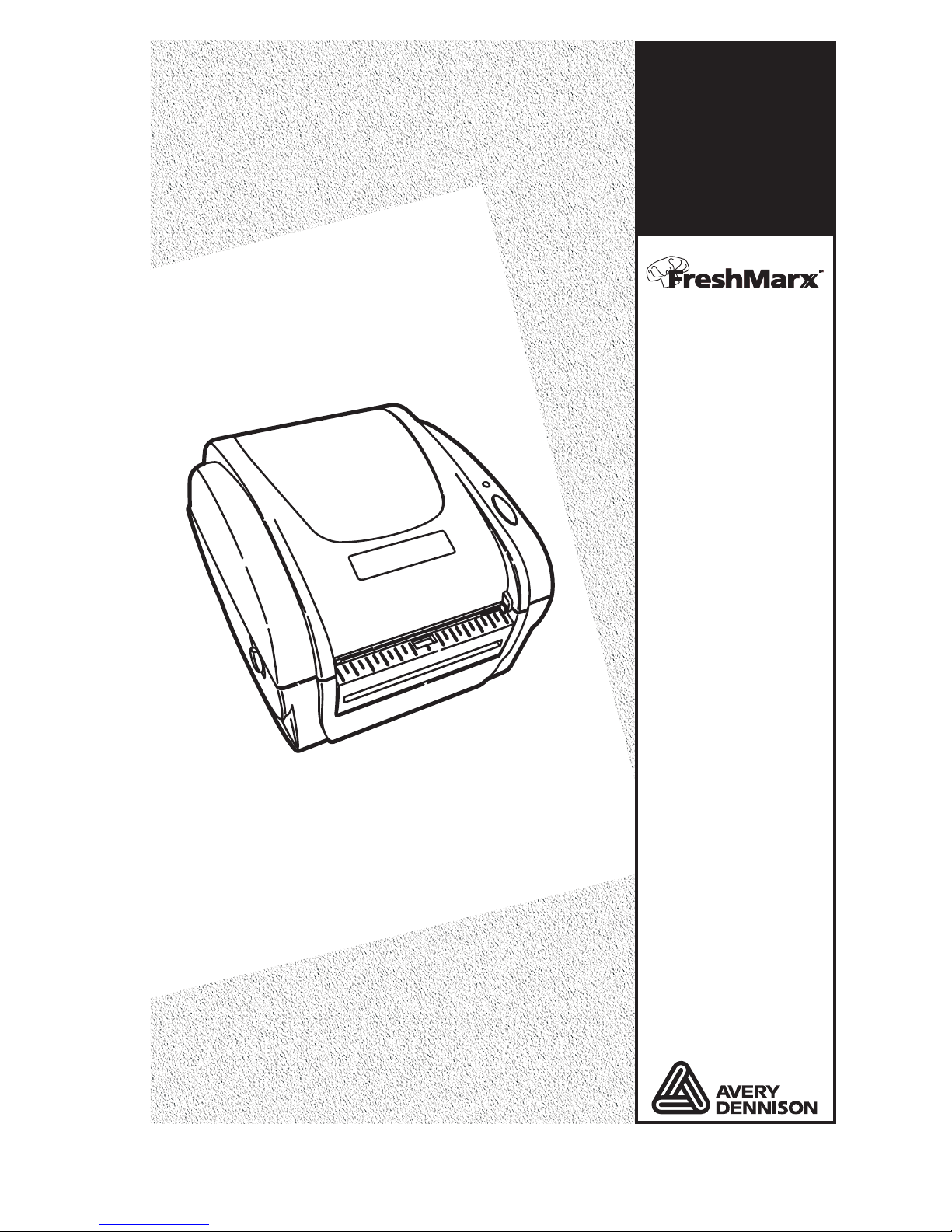

Avery Dennison FRESHMARX 9416 Documento tecnico

Monarch

9416

System

FreshMarx™

Equipment

Manual

Equipment

Manual

Each product and program carries a respective written warranty, the only

warranty on which the customer can rely. Paxar reserves the right to

make changes in the product, the programs, and their availability at any

time and without notice. Although Paxar has made every effort to

provide complete and accurate information in this manual, Paxar shall

not be liable for any omissions or inaccuracies. Any update will be

incorporated in a later edition of this manual.

transmitted, stored in a retrieval system, or translated into any language

in any form by any means, without the prior written permission of Paxar

Americas,Inc.

WARNING

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

CANADIAN D.O.C. WARNING

This digital apparatus does not exceed the Class A limits for radio noise

emissions from digital apparatus set out in the Radio Interference

Regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de la classe A

prescrites dans le Réglement sur le brouillage radioélectrique édicte par le

ministère des Communications du Canada.

Trademarks

MONARCH® and 9416® are trademarks of Paxar Americas, Inc.

FreshMarx™ is a trademark of Paxar Americas, Inc.

Paxar® is a trademark of Paxar Corporation.

Avery Dennison® is a trademark of Avery Dennison Corporation.

Microsoft, Windows, NT, and Office are trademarks of Microsoft Corporation

in the United States and/or other countries.

Avery Dennison Printer Systems Division

170 Monarch Lane

Miamisburg, Ohio 45342

Table of Contents i

TABLE OF CONTENTS

Getting Started................................................................1-1

Unpacking the FreshMarx System..................................1-1

Connecting the Printer’s Power Supply ..........................1-2

Reading the Indicator Light...........................................1-4

Loading Labels............................................................1-5

Calibrating the Supply................................................ 1-10

Checking the Die Cut Sensor ...................................... 1-10

Using The Keypad............................................................2-1

Connecting the Keypad’s Power Supply .........................2-1

Connecting the Communication Cable............................2-3

About the Keypad ........................................................2-4

Setting up the FreshMarx System..................................2-5

Setting the Date and Time ............................................2-5

Processing the Product ................................................2-7

Printing a Use First Label.............................................2-8

Using the Stop Printing Function...................................2-8

Future Upgrades..........................................................2-8

Using the Update Utility...................................................3-1

Before You Begin.........................................................3-2

Editing the Overlay ......................................................3-3

Changing a Key’s Color.............................................3-6

Defining Custom Colors.............................................3-8

Deleting a Key .........................................................3-9

Printing the Overlay................................................... 3-11

Updating the Keypad.................................................. 3-12

Communication Settings.......................................... 3-13

ii Table of Contents

Care and Maintenance......................................................4-1

Clearing Label Jams.....................................................4-1

Cleaning the Printhead .................................................4-2

Cleaning the Platen Roller and Printer............................4-2

Troubleshooting...............................................................5-1

Template Sample.............................................................A-1

Getting Started 1-1

GETTING STARTED

Use this system for product freshness. The

system consists of a Monarch®9416®printer and a

keypad with the FreshMarx™ application.

This chapter includes information about

♦ unpacking the FreshMarx system

♦ connecting the printer’s power supply

♦ reading the printer’s indicator light

♦ loading labels

♦ calibrating the supply

♦ checking the die cut sensor

To use the keypad, see Chapter 2, “Using the

Keypad,” for more information.

Unpacking the FreshMarx System

After you unpack the system, you should have the

following:

♦ 9416 Printer and power supply

♦ power strip

♦ communications cable

♦ keypad and AC adapter

♦ software kit

For missing items, service, technical assistance or

ordering labels, please call Monarch at the number on

the back of this manual.

Keep all packaging material in case you need to move

or return the system.

1-2Getting Started

Connecting the Printer’s Power Supply

To connect the power supply to the printer:

Caution

Do not touch the electrical connectors while

setting up the printer. Electrostatic discharge

can damage or destroy the printhead or

electronic components.

1. Place the printer on a table in a location that

allows easy access to the front of the printer.

Note: Never operate the printer resting on its side

or upside down.

2. Turn off the printer. Press the power switch on

the back of the printer to the off (O) position.

3. Place the power supply in a suitable location,

preferably on a table, near an electrical outlet.

4. Plug the three-hole end of the AC adapter cable

into the three-pronged outlet in the printer’s power

supply.

Caution

The printer’s power supply uses a different

voltage than the keypad. To connect the wrong

power supply could permanently damage the

keypad or the printer.

Getting Started 1-3

5. Plug the round end of the power supply cable into

the socket at the back of the printer.

6. Plug the three-pronged end of the AC adapter

cord into a grounded electrical outlet.

WARNING

The printer and power supply should never be

operated in a location where either one can get

wet. Personal injury could result.

1-4Getting Started

Reading the Indicator Light

The indicator light monitors the printer's status.

Indicator Light Description

GREEN Printer is on and ready to use.

FLASHING

GREEN Printer is paused. Press the FEED

button to resume printing.

FLASHING RED Printer error condition. See Chapter

5, “Troubleshooting” for error

conditions and solutions.

ORANGE The printer is detecting the labels.

No light Printer is off. Make sure the power

supply is connected properly. See

"Connecting the Power Supply" earlier

in this chapter.

Indicator Light

Feed Button

Getting Started 1-5

Loading Labels

Note: If you run out of labels while printing, do not

turn off the printer when reloading the labels.

You may lose your data. The printer resumes

printing when reloaded.

1. Remove and discard the tape or wrapping from a

new roll of labels.

2. Press the cover release levers (located on both

sides of the printer) towards the front of the

printer to release the cover.

3. Lift open the cover.

1-6Getting Started

4. Remove a supply holder guide from one end of the

supply holder. The supply holder is normally

attached with a line to the inside of the printer.

5. Slide a roll of labels onto the supply holder.

Note: If the core diameter on your roll of labels is 1

inch in diameter, remove the 1.5-inch supply

core adapters from the supply holder guides.

6. Slide the supply holder guide back onto the end of

the supply holder.

Supply Holder Guides

Supply Holder

1.5” Supply Core

Adapter
