System Administrator Manual

TC9485SA Rev. AB 7/12

Table of Contents

1. INTRODUCTION

1-1 Using This Manual 3

1-2 Using the Menu Chart 3

1-3 Using the Display and Buttons 4

1-3-1 Selecting a Menu 5

1-3-2 Exiting a Menu 5

1-3-3 Printing 5

1-4. Selecting a Language 6

2. USING DIAGNOSTICS

2-1 Diagnostics 7

2-1-1 Printer 8

2-1-2 Display 14

2-1-3 Buttons 15

2-1-4 RAM 16

2-1-5 Data Dump 17

2-1-6 About 18

3. SETTING UP THE PRINTER

3-1 SETUP 19

3-1-1 Stock PWR 20

3-1-2 Backlight 21

3-1-3 Contrast 22

3-1-4 Printer 23

3-1-5 Serial Communications 35

3-1-6 Power Management 39

1. INTRODUCTION

1-1. Using This Manual

1-2. Using the Menu Chart

Subjects Contents

1Introduction Notes before using printer

2Diagnostics How to print test label, check sensor, check print position, etc.

3Setting Up the Printer How to use the Setting Menu to adjust stock

and printer settings

The black boxes show present position, the boxes with a thick line show how you got there.

Wi-Fi 41

4-1 RF Network 41

4-2 Using the Wi-Fi Settings Dialog 50

4-3 Using the Web Interface 52

4-4 Wi-Fi Glossary 82

4-5 Wi-Fi specications 87

Bluetooth 88

5-1 Using the Bluetooth Settings Dialog 88

5-2 Bluetooth Interface 91

1-3. Using the Display and Buttons

1. Press Enter( ) button to enter the Menu

2. Move cursor to the menu using Up(▲) / Down(▼) buttons, and select the Menu by

pressing Enter( ) button.

Select Exit Menu or press the power ( )button to return to the previous menu

There are three ways to print.

1. When turning on the printer, press and hold the power ( ) button and the Down(▼)

button. The printer prints a batch (if sent) or prints the printer status information.

2. Select a test label from the Diagnostics menu.

3. Send batch data to the printer.

NOTE

button operates as feed button in ready condition only.

Screen displays Meaning

Selects the highlighted option.

Moves position of Menu upwards by one step.

Moves position of Menu downwards by one step

Moves the cursor to the position to change.

Increases set value

Decreases set value

Returns to higher Menu without saving the setting

Returns to higher Menu after saving the setting

1-3-1. Selecting a Menu

1-3-2. Exiting a Menu

1-3-3. Printing

Display

Enter button

Power button

Up button

Paper Feed /

Down button

▶

FEED

▼

▲

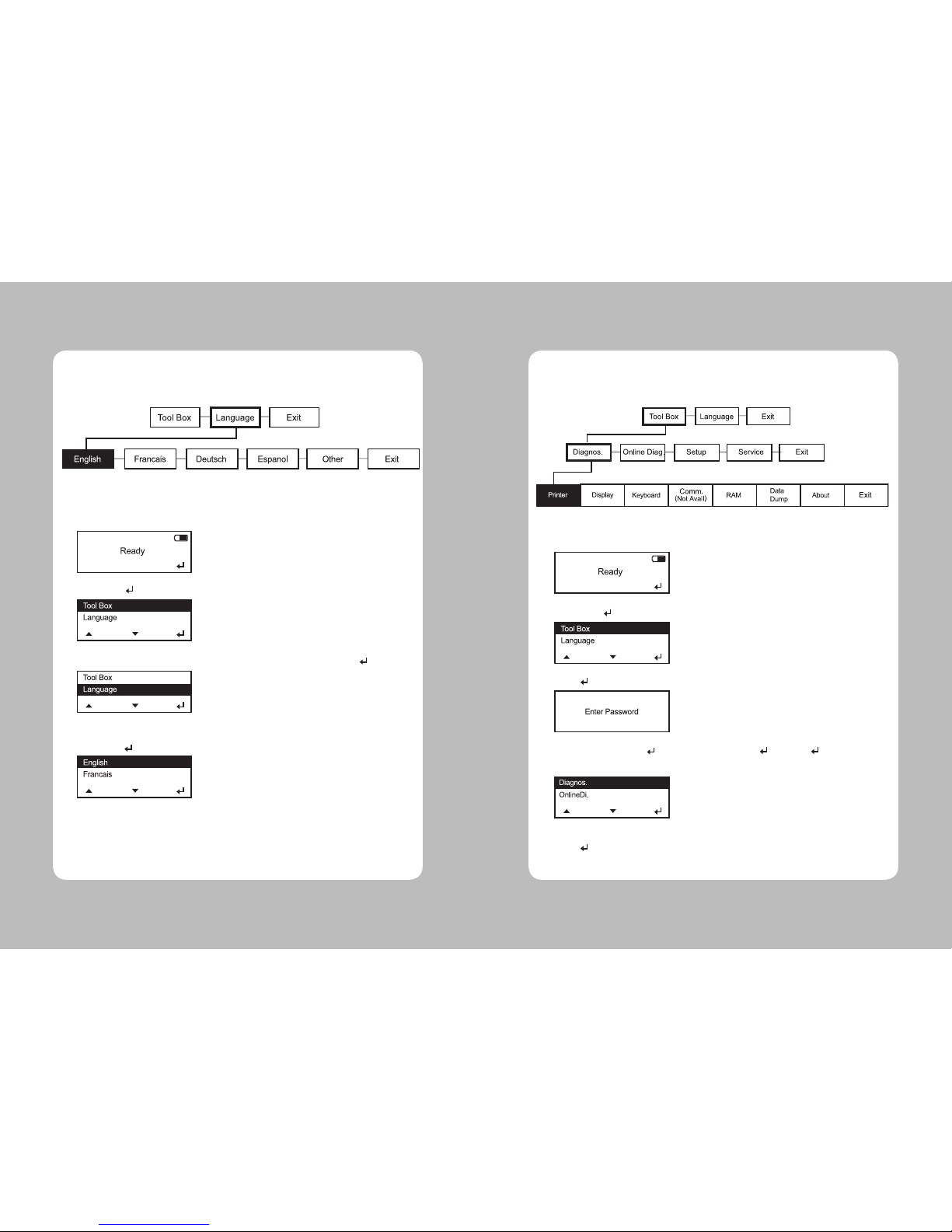

1-4. Selecting a Language

2-1. Diagnostics

You can read Menu names or messages of the printer in English, French,

Spanish, German.

This chapter describes how to use Diagnostics in the Tool Box.

You can view test results through this Menu; however, you cannot change the setting.

1. Turn on the printer. The printer name and software version information are displayed.

Then you see

1. Turn on the printer. The printer name and software version information are displayed.

Then you see

2. Press Enter( ) button and then you see

3. Enter( ) button and you see

5. If correct password is typed in then you see

4. Press Up(▲) and Enter( ) button in the sequence of ,▲, ▲, ▲,

6. Cursor is positioned on the Diagnostics Menu. Enter into Diagnostics Menu by pressing

Enter( ) button.

2. Press Enter( ) button.

3. Move cursor to language by pressing Down(▼)button and then press Enter( ) button.

4. Move the cursor to the language you want by pressing Up(▲)/Down(▼) button then

press Enter( ) button.

5. The selected language is displayed on the screen.

6. Select exit to return to the diagnostics menu or press the power button to return to the

ready screen

2. Using Diagnostics

2-1-1. Printer

To return to initial screen, press power( )button

Four test labels can be printed: Diag Label, Test Pattern, Gray Scale,

MIF (Monarch Initialization Files) Info

**Test Label

1. Select Printer - Test Label - Diag Label in Diagnostics Menu

2. Select Printer – Test Label– Test Pattern in Diagnostics Menu

Checkerboard pattern is printed

Gray Scale printed

MIF Info printed

3. Select Printer - Test Label - Gray Scale in Diagnostics Menu.

4. Select Printer – Test Label – MIF Info in Diagnostics Menu.

Printer Diagnostics Labels are printed

10 11

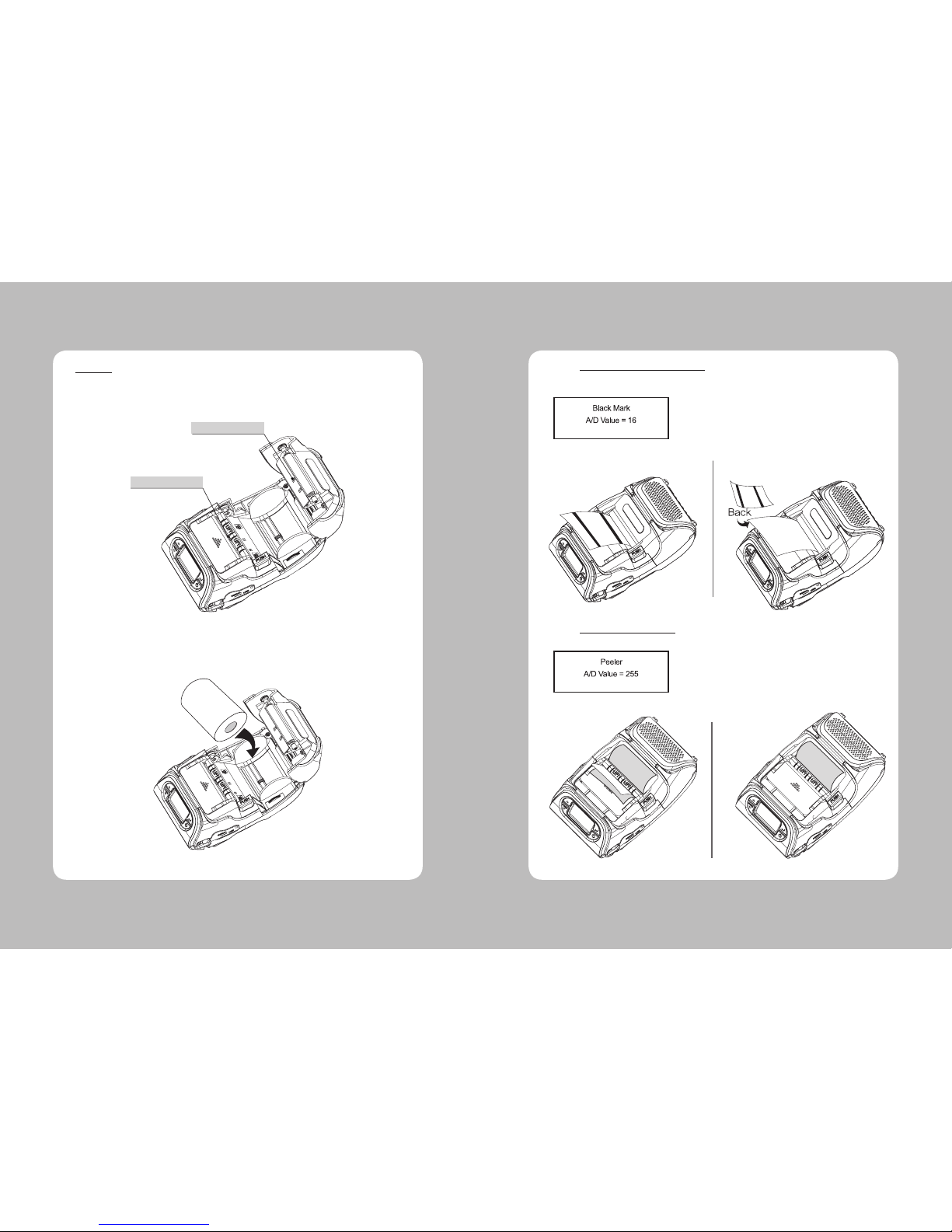

In this Menu, you can read each A/D value of the Black Mark, Gap, or Peeler,

Peel-SW sensors. Position of each sensor is as shown in following picture.

**Sensors

1. Load stock in the printer.

2. Select Printer – Sensors – Black Mark in the Diagnostics Menu.

Check whether A/D value is changing in Black Mark sensor position while feeding

Black Mark stock manually.

3. Select Printer – Sensors – Peel in Diagnostics Menu. Check whether A/D value is

changing by covering the Peeler Sensor with stock

Make sure the stock is loaded in line with upper/lower Black Mark sensor.

PEELER SENSOR

B/M & GAP SENSOR

12 13

4. Select Printer – Sensors – Gap in Diagnostics Menu.

Check whether A/D value is changing in Gap sensor position by feeding Gap stock

manually.

5. Select Printer – Sensors – Gap in Diagnostics Menu.

Check whether A/D value is changing by Peeler S/W position.

1. Select Printer – Printhead – Temperat in the Diagnostics Menu.

1. You can check it in the battery shape located at upper right side of the ready screen.

In this Menu, You can check Printhead temperature(TPH) in ℃(Centigrade) unit.

The temperature of Printhead must be lower than 60℃ to print.

Press Enter( ) button to return to the previous menu.

**Printhead

There are two ways to check the battery level.

2. Select Printer – Battery in the Diagnostics Menu Battery level is displayed in

voltage on the screen

**Battery

NOTE

(7.8v above) (7.5v above)

(7.2v above) (6.8v below)

Press Enter( ) button to return to the previous menu.

1. Select Printer – View Total – Print Inch in Diagnostics Menu.

In this Menu, you can view Total inches printed

**View Total

Press Enter( ) button to return to the previous menu.

Remaining electricity of battery

Peel-SW

A/D Value = 194

With a roll of stock installed, slide the

peeler body towards the back of the printer.

Lift the peeler wing and slide the peeler body

towards the front of the printer.

6. Press Enter( ) button to return to the previous menu.

14 15

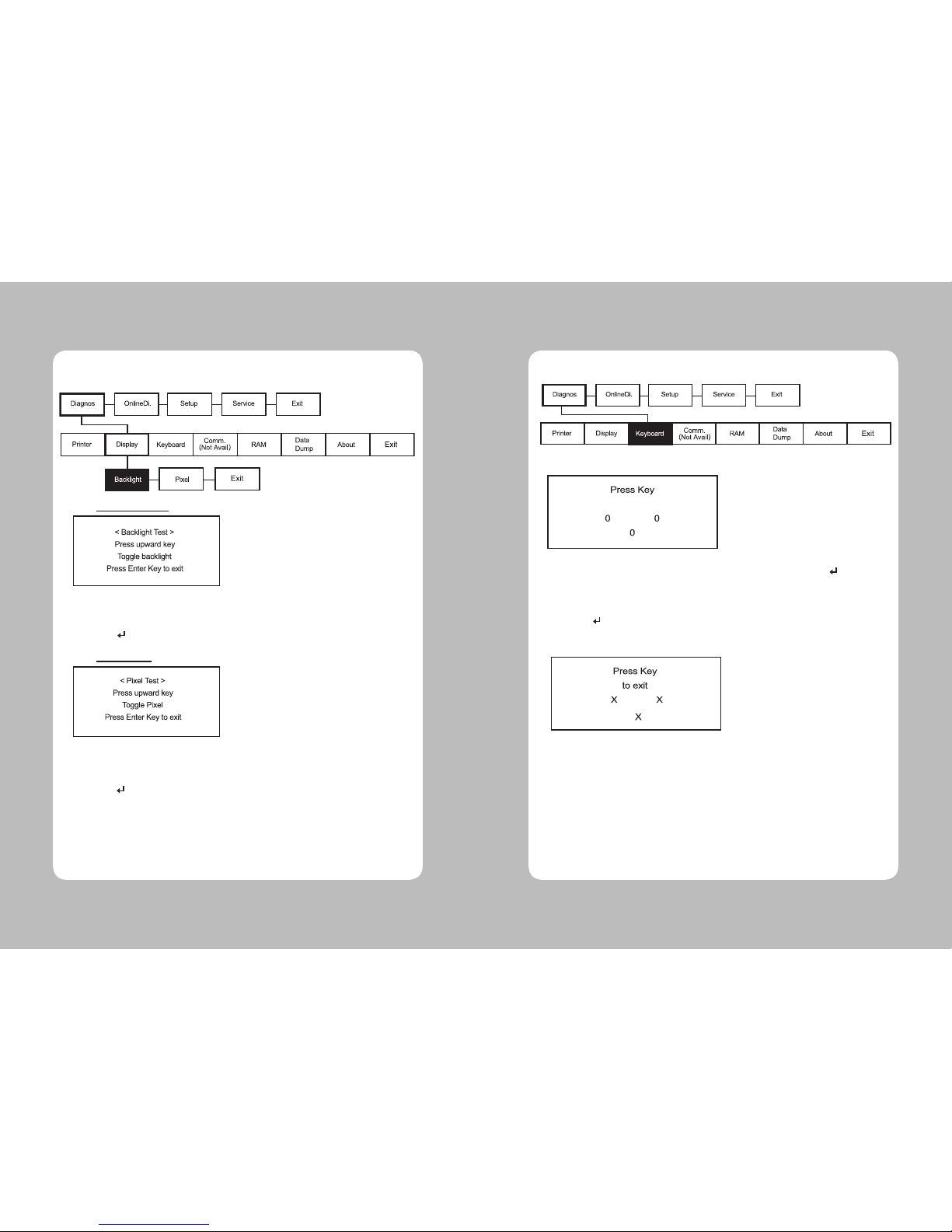

2-1-2. Display 2-1-3. Buttons

1. Select Display – Backlight in the Diagnostics Menu

You can check the display in this Menu.

1. Select Keyboard in Diagnostics Menu.

2. Press the upper left Up(▲) button, press the Down(▼) button, and press Enter( ) button.

3. Each should change from O shape to X shape when pressed.

4. Press Enter( ) button to from keyboard test.

2. Press the Up(▲) button Backlight is turned off, if the same button is pressed once more then it

is turned on.

3. Press Enter( ) button to exit from Backlight Test.

4. Select Display – Pixel in the Diagnostics Menu.

5. Press the Up(▲) button all Pixels on the screen are changed into black color and if it is

pressed once more then all Pixels are changed into white color.

6. Press Enter( ) button to exit from Pixel Test.

16 17

2-1-4. RAM 2-1-5. Data Dump

Select this Menu and check memory of the printer. Use this menu if you are having problems with a data stream. Data Dump captures the

data from the communications port and prints that information to a label.

1. Select RAM in Diagnostics Menu.

2. The message of RAM test running is displayed

For CPCL, previous command data printed on the paper

For MPCL, previous command data printed on the paper

1. Select Data Dump in Diagnostics Menu.

2. The labels print with data from the communication port.

3. If RAM test result is okay, then you see:

4. If RAM test result is not okay, then you see:

5. Press Enter( ) button to return to the previous menu.
