Award 5AX Manuale utente

R-10-02-080721

5AX

USER'S MANUAL

¯Support Intel Pentium, MMX, Cyrix/IBM 6x86MX, M2, AMD K5, K6,

K6-2 & IDT C6 CPUs.

¯Support auto detect CPU Voltage.

¯Support Parity check or Ecc Function.

¯Support Fully AGP 1.0 Specification.

¯Support switching mode Voltage regulator on Board.

¯Support 66/75/83 MHz and 100MHz are optional.

¯Support Modem Ring On (COM B).

¯Support Wake on Lan(The ATX power supply supports larger

than 600 mA).

¯Thermal Protection

Pentium



Processor PCI - ISA BUS MAINBOARD

REV. 1.0 Second Edition

Release Date 98.07.21

5AX

The author assumes no responsibility for any errors or omissions which may

appear in this document nor does it make a commitment to update the information

contained herein.

¯THIRD-PARTY BRANDS AND NAMES ARE THE PROPERTY OF THEIR

RESPECTIVE OWNERS.

JULY 21, 1998 Taipei, Taiwan

Quick Installation Guide

I. CPU Jumper Setting Table:

tSW: CPU INT./ EXT. FREQ. RATIO

SW 4 5 6 7

OON AUTO X X X O

XOFF 2.0 V X X X X

2.1 V X X OX

2.2 V XOX X

2.3 V XO O X

2.4 V OX X X

SW 238 2.5 V OXOX

x 1.5 XXX 2.6 V O O X X

x 2 OX X 2.7 V OOOX

x 2.5 O O X2.8 V XXXO

x 3 XOX2.9 V X X O O

x 3.5 XXX 3.0 V XOXO

x 4 OXO3.1 V XOOO

x 4.5 OOO 3.2 V OX X O

x 5 XO O 3.3 V OXO O

x 5.5 X X O3.4 V O O XO

3.5 V OOOO

MHz SW1 SW4

66 X2-3

75 X1-2

83 O2-3

100 O1-2

5AX

II. Quick Installation Guide:

CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 JP4

1. Pentium



Processor 100 MHz OFF OFF OFF OFF OFF OFF ON OFF 2-3

2. Pentium



Processor 133 MHz OFF ON OFF OFF OFF OFF ON OFF 2-3

3. Pentium



Processor 166 MHz OFF ON ON OFF OFF OFF ON OFF 2-3

4. Pentium



Processor 200 MHz OFF OFF ON OFF OFF OFF ON OFF 2-3

5. Intel MMX-166MHz OFF ON ON OFF OFF OFF ON OFF 2-3

6. Intel MMX-200MHz OFF OFF ON OFF OFF OFF ON OFF 2-3

7. Intel MMX-233MHz OFF OFF OFF OFF OFF OFF ON OFF 2-3

8. P54CT-166 MHz OFF ON ON OFF OFF OFF ON OFF 2-3

9. P54CTB-166 MHz OFF ON ON OFF OFF OFF ON OFF 2-3

10. P54CTB-200 MHz OFF OFF ON OFF OFF OFF ON OFF 2-3

11. AMDK5-PR133 OFF ON OFF OFF OFF OFF ON OFF 2-3

12. AMDK5-PR166 OFF ON ON OFF OFF OFF ON OFF 2-3

13. AMD-K6/166 (2.9V) OFF ON ON OFF OFF ON ON OFF 2-3

14. AMD-K6/200 (2.9V) OFF OFF ON OFF OFF ON ON OFF 2-3

15. AMD-K6/233 (3.2V) OFF OFF OFF ON OFF OFF ON OFF 2-3

16. AMD-K6/266 (66*4 2.2V)

AMD-K6-2/266 (66*4 2.2V)

OFF ON OFF OFF ON OFF OFF ON 2-3

17. AMD-K6/266 (100*2.5

2.2V)

ON ON ON OFF ON OFF OFF OFF 1-2

18. AMD-K6/300 (66*4.5 2.2V) OFF ON ON OFF ON OFF OFF ON 2-3

Quick Installation Guide

19. AMD-K6/300 (100*3 2.2V)

AMD-K6-2/300 (100*3

2.2V)

ON OFF ON OFF ON OFF OFF OFF 1-2

CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 JP4

20. Cyrix/IBM 6x86-150MHz-

PR200+ (75*2) OFF ON OFF OFF OFF OFF ON OFF 1-2

21. Cyrix/IBM 6x86L-PR166+

(2.8V) OFF ON OFF OFF OFF OFF ON OFF 2-3

22. Cyrix/IBM 6x86MX-PR200+

(75*2 2.9V) OFF ON OFF OFF OFF ON ON OFF 1-2

23. Cyrix/IBM 6x86MX-PR166

(66*2 2.9V) OFF ON OFF OFF OFF ON ON OFF 2-3

24. Cyrix/IBM 6x86MX-PR200

(66*2.5 2.9V) OFF ON ON OFF OFF ON ON OFF 2-3

25. Cyrix/IBM 6x86MX-PR200

(75*2 2.9V) OFF ON OFF OFF OFF ON ON OFF 1-2

26. Cyrix/IBM 6x86MX-PR233

(66*3 2.9V) OFF OFF ON OFF OFF ON ON OFF 2-3

27. Cyrix/IBM 6x86MX-PR233

(75*2.5 2.9V) OFF ON ON OFF OFF ON ON OFF 1-2

28. Cyrix/IBM 6x86MX-PR233

(83*2 2.9V) ON ON OFF OFF OFF ON ON OFF 2-3

29. Cyrix/IBM 6x86MX-PR266

(66*3.5 2.9V) OFF OFF OFF OFF OFF ON ON OFF 2-3

30. Cyrix/IBM 6x86MX-PR266

(75*3 2.9V) OFF OFF ON OFF OFF ON ON OFF 1-2

31. Cyrix/IBM 6x86MX-PR266

(83*2.5 2.9V) ON ON ON OFF OFF ON ON OFF 2-3

32. Cyrix M2-PR300

(66*3.5 2.9V) OFF OFF OFF OFF OFF ON ON OFF 1-2

33. IDT C6-200 (66*3 3.52V) OFF OFF ON OFF OFF OFF ON OFF 2-3

34. IDT C6-225 (75*3 3.52V) OFF OFF ON OFF OFF OFF ON OFF 1-2

35. IDT C6-266 (66*4 3.52V) OFF ON OFF OFF OFF OFF ON ON 2-3

5AX

¬Note: If Cyrix 6x86 is being used, please check the CPU Date Code after 605.

1. Pentium



Processor 100 MHz

CPU

JP8

JP5JP4

1 1

JP7JP6

JP10

1 1

1JP4

JP4

2. Pentium



Processor 133 MHz

JP4

1ON

1 2 3 4 5 6 7 8

OFF

3. Pentium



Processor 166 MHz

1 2 3 4 5 6 7 8

OFF

JP4

4. Pentium



Processor 200 MHz

Quick Installation Guide

1 2 3 4 5 6 7 8

OFF

JP4

5AX

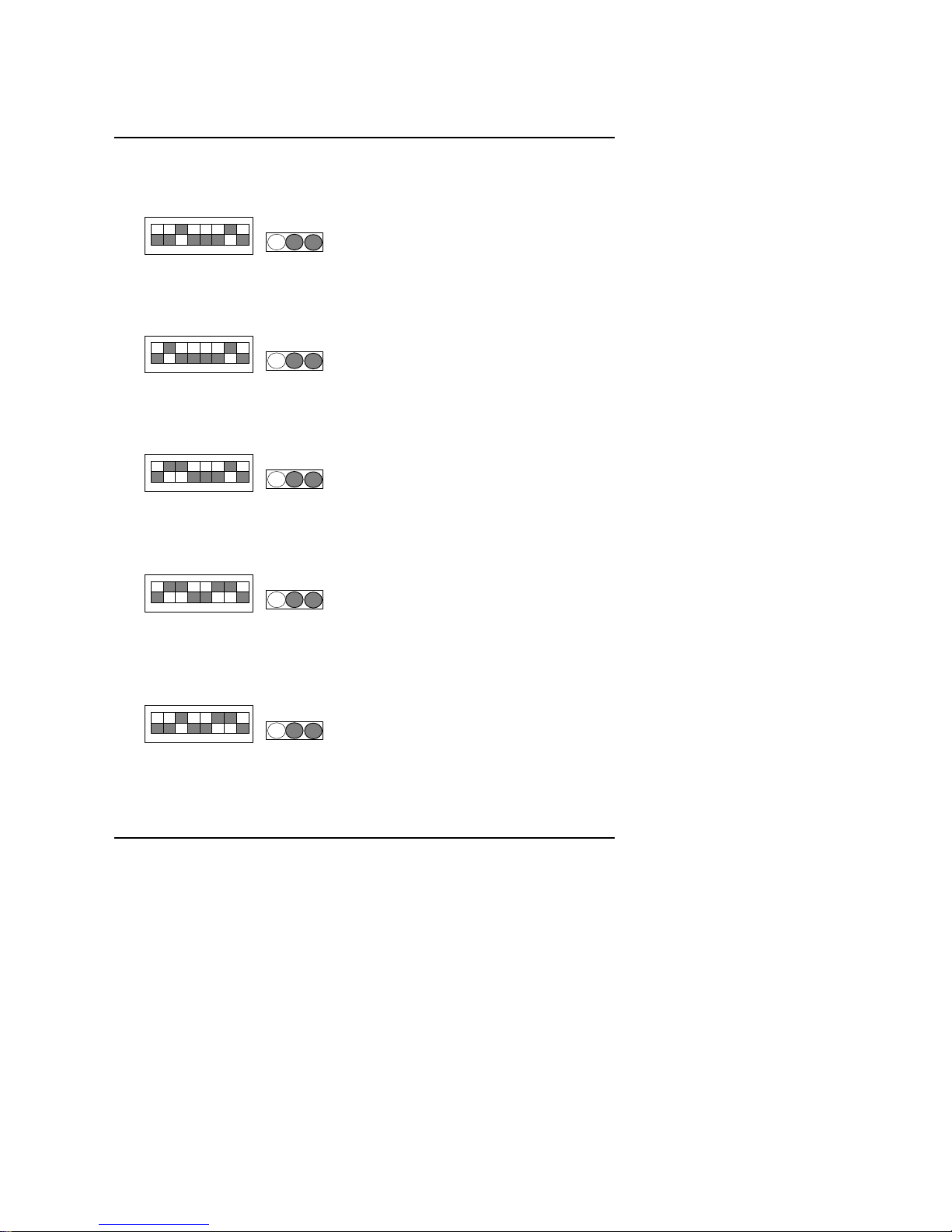

5. Intel MMX-166 MHz

1 2 3 4 5 6 7 8

OFF

JP4

6. Intel MMX-200 MHz

1 2 3 4 5 6 7 8

OFF

JP4

7. Intel MMX-233 MHz

1 2 3 4 5 6 7 8

OFF

JP4

8. P54CT-166 MHz

1 2 3 4 5 6 7 8

OFF

JP4

9. P54CTB-166 MHz

1 2 3 4 5 6 7 8

OFF

JP4

Quick Installation Guide

10. P54CTB-200 MHz

1 2 3 4 5 6 7 8

OFF

JP4

11. AMDK5-PR133

1 2 3 4 5 6 7 8

OFF

JP4

12. AMDK5-PR166

1 2 3 4 5 6 7 8

OFF

JP4

13. AMD-K6/166 (2.9V)

1 2 3 4 5 6 7 8

OFF

JP4

14. AMD-K6/200 (2.9V)

1 2 3 4 5 6 7 8

OFF

JP4
