AWS PK-110 Manuale utente
American Weigh Scales
PK-110 (0-44lb x 0.05lb /
44-110lb x 0.1lb)
User Manual
PK-110
Copyright © 2012 American Weigh Scales, Inc.
All rights reserved. Rev. 1.1
PK-110 Manual
Thank you for purchasing the American Weigh
PK-110 multi-use hanging scale. Please read all operating
instructions carefully before use. Scales are precision
measuring devices and should always be handled with
proper care. To ensure years of reliable service, keep these
simple tips in mind:
• Do not exceed the scale’s maximum capacity.
• Store your scale in a clean, dry location. Dust, dirt,
and moisture can accumulate on the weighing
sensors and electronics causing inaccuracy or
malfunction.
• Avoid using your scale in close proximity to strong
radio wave emitting devices such as cordless phones.
• When weighing heavy items, use proper lifting
technique to avoid back injury.
• Do not drop items onto the weighing hook. This may
cause damage to the load sensor.
• Avoid dropping your scale. The warranty does not
cover damage due to rough treatment or overload.
• Checkthebatteriesrstifyouarehavinganytrouble
with your scale. This simple step can remedy most
scale issues.
• Calibration should be checked and adjusted
occasionally as part of routine scale maintenance.
I. Part List
1. Scale
2. AAA Batteries (x2)
II. Key Description
1. ON/OFF - Turns the scale on or off.
2. Zero/Tare Key - Re-zeros the scale. Used to
remove the weight of a tray or container.
3. Unit Key - Tap to change the displayed unit of
measure. Hold to enter calibration (see IX).
III. Battery Installation
Proper Battery Installation
2.
1. 3.
lb
Z/T
Unit
lb
Z/T
Unit
PK-110 Manual
Low batteries can cause inaccuracy in digital scales. If
youareexperiencingissueswithyourscale,rsttrynew
batteries. Most times, this will solve the problem.
1. Beforeusingthescaleforthersttime,check
the battery compartment and remove any plastic
insulation strips or packaging that may be in place to
prevent battery drainage during shipping/storage.
2. If you are replacing the batteries, make sure the
positive and negative contacts are properly aligned.
IV. Operation
1. Press the ON/OFF ( ) key to turn the scale on.
2. Once the start-up process completes and the scale
goes to zero you are ready to weigh.
3. Place the quantity to be weighed onto the weighing
hook.
4. Wait a couple seconds for the display to stabilize
before taking a weight reading.
5. To turn the scale OFF, press the ON/OFF key again.

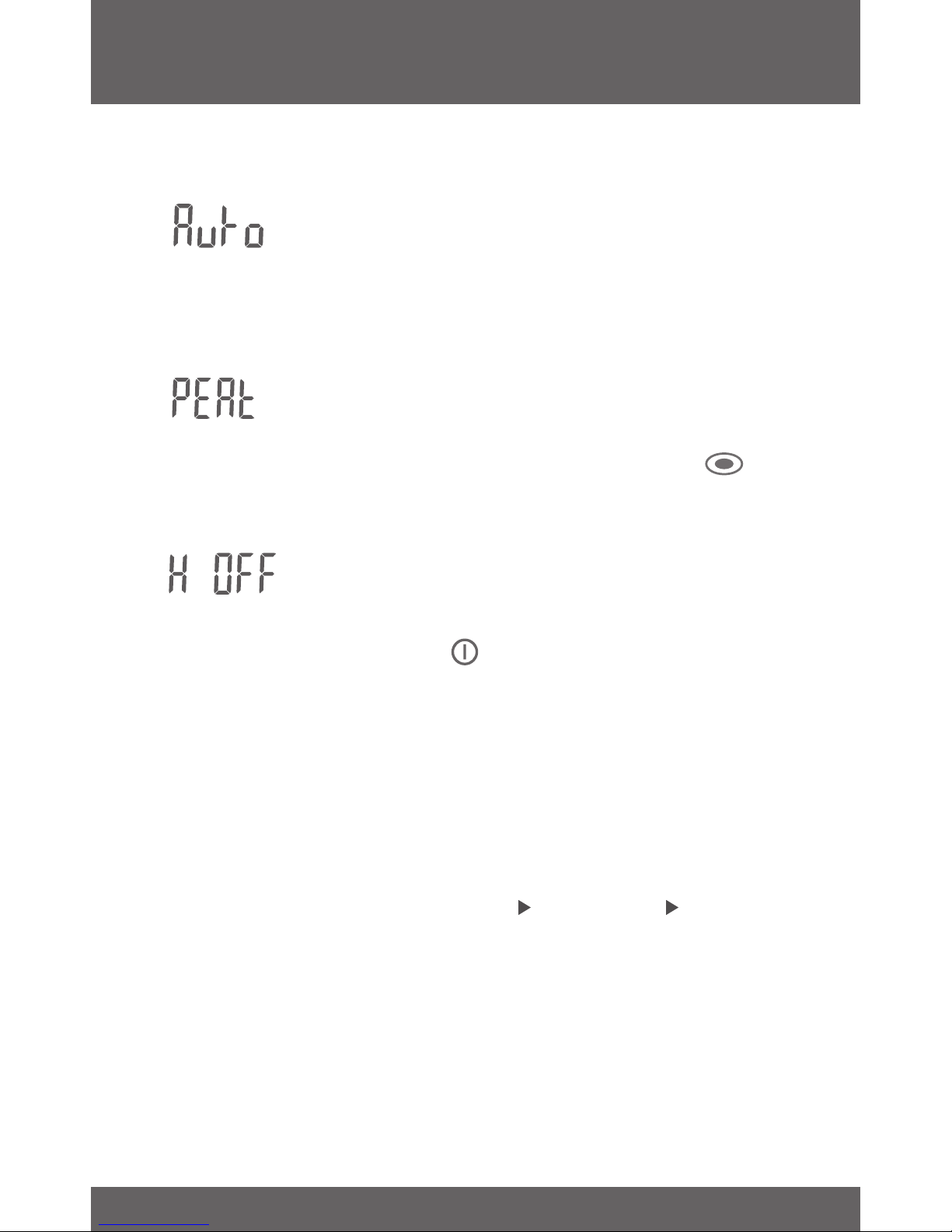

V. Hold Settings
This scale has three different hold settings. Follow these
instructions to change the hold setting:
1. With the scale OFF, press and hold the Z/T key, then
tap the ON/OFF ( ) key. Release both keys when
you see “------” on the display.
2. Tapping the Unit key will cycle through the three
hold settings:
Auto Hold: Weight reading is held on the
display after stabilization. This allows you to
read the weight even after removing the item
from the weighing hook. “Hold” will display
underneath the weight when locked.
Peak Hold: Highest weight reading is held
on the display. This mode can be used to
measure a bow’s draw weight or for other
force measuring applications. “Hold ” will
display underneath the weight when locked.
Hold Disabled: Weight is no longer held on
the display.
3. Press the ON/OFF ( ) keytoconrmyourselection
and turn the scale off.
VI. Changing the Unit of Measure
1. Press the Unit key to change the scales displayed
unit of measure.
2. If the scale is turned off then back on, it will default
to the last unit used.
• PK-110 Units: lb (pound) oz (ounce) kg
(kilogram)
VII. Using the Tare Feature
You can use this scale’s tare feature to subtract the weight
of an empty container for net weight determination. NOTE:
The weight of the container will subtract from the available
capacity (subtractive taring).
PK-110 Manual
1. Place the empty container or vessel on the weighing
hook.
2. Press the Z/T key once. The display will then reset
to zero. If the container is removed, its weight will be
displayed as a negative number.
3. Youmaynowllthecontainerwiththequantityto
be weighed. The display will show the net weight of
the contents.
4. To return to normal weight display (gross weight),
remove any items from the weighing hook and press
the Z/T key again to re-zero the scale.
VIII. Calibration
Initial calibration is performed at the factory. However,
calibration may need to be checked and adjusted in some
rare cases, or after heavy usage. To check calibration:
1. Place the required calibration weight on the scale
and note the displayed value.
2. If the displayed value is not within acceptable
tolerance (see chart below), adjustment is required.
Model Acceptable
Tolerance (±)
Calibration
Weight
Recommended
Accuracy Class
PK-110 60g 20kg OIML M2
IX. Adjustment
1. Press and hold the Unit key until the display shows
“CAL” followed by a random number (ISN).
2. Make sure nothing is on the weighing hook then
press the Z/T key.
3. Thedisplaywillash“20.00kg”.Placeexactly
20.00kg on the weighing hook, and press Z/T when
the weight has steadied.
4. Thedisplaywillash“PASS”thenreturntonormal
weighing mode. Adjustment is complete!
X. Troubleshooting
• Problem: Scale will not turn on
• Solution: Check the batteries and battery contacts.
• Problem: Displayedweightuctuatesrandomly
• Solution: Make sure to hold the device as still as
possibleorhangitfromaxedpoint.Insomecases,
nearby radio wave emitting devices can cause
uctuations.
• Problem: Displayed weight is inaccurate
• Solution: Perform a calibration adjustment. If
you are still having trouble, contact our warranty
department.
XI. Error Codes
1. OUTZ - Zero point has drifted out of the acceptable
range. Try to perform a calibration adjustment. If the
problem persists, the load cell may be permanently
damaged due to overloading.
2. EEEE - Overload. The maximum capacity has
been exceeded. Remove the extra weight to avoid
permanently damaging the load cell.
3.
+
-
- Batteries are low. Replace the batteries.
XII. Specications
PK-110 Manual
American Weigh Scales, Inc.
Norcross, GA 30092
Made In China to our exact
specicationsandqualitycontrol.
PK-110
Max. Capacity 0-44lb 44-110lb
Readability 0.05lb 0.1lb
Min. Weight 100g / 0.2lb
Power 2 x 1.5V “AAA” Alkaline
Dimensions 4.8 x 3.5 x 1.0 in.
Hook Dimensions Gap: 0.8 in / Throat: 1.0 in.
Warranty 10 Year Limited Warranty
XIII. Capacity/Readability Chart
Dual Range
Range1: 0-44lb Range2: 44-110lb
0-44lb x 0.05lb
0-20kg x 0.02kg
0-705oz x 1oz
44-110lb x 0.1lb
20-50kg x 0.05kg
705-1762oz x 2oz
