AXIOMTEK OPS520 Series Manuale utente

OPS520 Series

Intel Open Pluggable Specification Box

User’s Manual

Disclaimers

This manual has been carefully checked and believed to contain accurate information.

Axiomtek Co., Ltd. assumes no responsibility for any infringements of patents or any third

party’s rights, and any liability arising from such use.

Axiomtek does not warrant or assume any legal liability or responsibility for the accuracy,

completeness or usefulness of any information in this document. Axiomtek does not make

any commitment to update the information in this manual.

Axiomtek reserves the right to change or revise this document and/or product at any time

without notice

No part of this document may be reproduced, stored in a retrieval system, or transmitted, in

any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written permission of Axiomtek Co., Ltd.

April 2021, Version A1

Printed in Taiwan

iii

Safety Approvals

◼CE Marking

◼FCC Class A

◆FCC Compliance

This equipment has been tested in compliance with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are mean to provide reasonable protection

against harmful interference in a residential installation. If not installed and used in

accordance with proper instructions, this equipment might generate or radiate radio frequency

energy and cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following methods:

A. Increase the separation between the equipment and receiver.

B. Connect the equipment to another outlet of a circuit that does not connect with the

receiver.

C. Consult the dealer or an experienced radio/TV technician for help.

Shielded interface cables must be used in order to comply with the emission limits.

Safety Precautions

Before getting started, please read the following important safety precautions.

1. The OPS500-520-H Series does not come equipped with an operating system.

An operating system must be loaded first before installing any software into the

computer.

2. Be sure to ground yourself to prevent static charge when installing the internal

components. Use a grounding wrist strap and place all electronic components

in any static-shielded devices. Most electronic components are sensitive to

static electrical charge.

3. Disconnect the power cord from the OPS500-520-H Series before any

installation. Be sure both the system and external devices turned OFF already.

Make sure the OPS500-520-H Series set to ground properly.

4. The brightness of the flat panel display will be getting weaker as frequently

used. However, the operating period varies depending on the application

environment.

5. The flat panel display is not susceptible to shock or vibration. When assembling

the OPS500-520-H Series, make sure toinstall it securely.

6. Do not leave this equipment in an uncontrolled environment where the storage

temperature is below 0℃or above 45℃. It may damage the equipment.

7. External equipment intended for connection to signal input/out or other

connectors shall comply with relevant UL/IEC standard.

8. Do not open the back cover of the system. If opening the cover for

maintenance is necessary, only allow technicians to implement it. Integrated

circuits on computer boards are sensitive to static electricity. To avoid

damaging chips from electrostatic discharge, observe the following precautions:

9. Before handling a board or integrated circuit, touch an unpainted portion of the

system unit chassis for a few seconds. This will help to discharge any static

electricity on your body.

10. Please wear a wrist-grounding strap if you handling boards and eletronic

components.

Trademarks Acknowledgments

Axiomtek is a trademark of Axiomtek Co., Ltd.

IBM, PC/AT, PS/2, VGA are trademarks of International

Business Machines Corporation.

Intel®and Atom™ are registered trademarks of Intel Corporation.

MS-DOS, Microsoft C and Quick BASIC are trademarks of Microsoft Corporation.

VIA is a trademark of VIA Technologies, Inc.

SST is a trademark of Silicon Storage Technology, Inc.

UMC is a trademark of United Microelectronics Corporation. Other brand names and

trademarks are the properties and registered brands of their respective owners.



v
Table of Contents

Disclaimers.............................................................................................................ii
Safety Approvals...................................................................................................iii
Safety Precautions................................................................................................ iv
SECTION 1 INTRODUCTION.........................................................................1
1.1 General Description...........................................................................1
1.2 System Specifications.......................................................................2
1.2.1 Main CPU Board...............................................................................................2
1.2.2 I/O System ........................................................................................................2
1.3 Mechanical Assembly........................................................................ 4
1.3.1 Dimensions.......................................................................................................4
1.3.2 I/O outlet ...........................................................................................................5
1.3.3 Mechanical Specifications..............................................................................5
1.3.4 Reference Design ..........................................................................................11
1.4 Package List.....................................................................................12
SECTION 2 HARDWARE INSTALLATION .................................................13
2.1 DRAM, Storage, Wireless module Installations .............................13
2.1.1 DDR4 SO-DIMM DRAM Installation (SO-DIMM1).........................................13
2.1.2 DDR4 SO-DIMM DRAM Installation (SO-DIMM 2)........................................14
2.1.3 M.2 SSD Installation ......................................................................................16
2.1.4Wireless Module (M.2 Key E Card) ..............................................................17
2.2 Pluggble Module Method................................................................. 19
SECTION 3 CONNECTORS ........................................................................21
3.1 Connectors....................................................................................... 21
3.1.1 JAE TX25A Connector (CN1)........................................................................23



vi
1.2CPU FAN Connector (CN3)...........................................................................24
1.3M.2 2230 Key E Wi-Fi & Bluetooth (CN3).....................................................24
1.4USB 2.0 Port (CN4) ........................................................................................25
1.5USB 3.1 / USB 2.0 Stack Port (CN5).............................................................25
1.6DisplayPort Connector (CN6) .......................................................................26
1.7USB3.1 Type-C Port (CN7) ............................................................................26
1.8Audio Combo Jack (CN8)..............................................................................27
1.9 HDMI Connector (CN9)..................................................................................27
1.10 Power & Reset Button (CN10)......................................................................28
1.11RJ45 (LAN1) ...................................................................................................28
1.12 M.2 2280 Key M SSD (SCN1) ........................................................................29
1.13SW1 Setting....................................................................................................29
SECTION 4 AMI BIOS SETUP UTILITY ......................................................31
1 Starting............................................................................................. 31
2 Navigation Keys............................................................................... 31
3Main Menu ........................................................................................ 32
4Advanced Menu ............................................................................... 33
5 Chipset Menu ................................................................................... 41
6 Boot Menu ........................................................................................42
7 Security Menu ..................................................................................43
8 Save & Exit Menu............................................................................. 44
APPENDIX A WATCHDOG TIMER .............................................................47
Watchdog Timer Setting.................................................................................. 47
Using the Watchdog Function Start............................................................... 47


OPS520 User’s Manual

Introduction

SECTION 1

INTRODUCTION

This chapter contains general information and detailed specifications of the OPS520 Series.

Chapter 1 includes the following sections:

◼General Description

◼Specification

◼Michanical Assembly

◼Package List

1.1 General Description

Intel Open Pluggable Specification (OPS) Compliance

OPS520 Series is based on the 11th generation Intel®Core™ processor on board with Intel®

Q570/H510 Express Chipset platform and it also future products. The Pluggable Module is

dedicated to provide an interchangeable solution to the digital signage media players with

compatible connector. This document provides the module form factor, connector

specification, reference thermal solution, and boundary conditions in order to ensure the

functionally of the module in all compatible display panel system.

OPS520 Series meets Intel Open Pluggable Specification for design and development,

simplifying system upgrade maintenance for manufacturers and developers that supports

Intel®11th Generation Core i series family, which stand for high flexible and user-friendly

digital signage applications.

Easy maintenance

OPS520 Series offers a best solution for digital signage market. Compliant with Intel OPS

architecture, digital signage players are capable of deploying interchangeable systems faster

and easing upgrading/maintenance, while lowering costs for development and implementation.

Additionally, having the ability to simply slot-in and out the unique pluggable engine box

makes daily hassle easier and faster for users.

OPS520 Series has pluggable engine box design; you can change storage, DRAM and

update configurations more easily

OPS520 User’s Manual

Introduction

1.2 System Specifications

1.2.1 Main CPU Board

⚫CPU

◼11th Gen. Intel®Core™ i7/i5/i3/Celeron Processors, LGA1200, 35W TDP

⚫System Chipset

◼Intel®Q570/H510 PCH

⚫BIOS

◼American Megatrends Inc. UEFI (Unified Extensible Firmware Interface).

⚫System Memory

◼Two 260-pin DDR4 2933MHz SO-DIMM, maximun up to 64GB

1.2.2 I/O System

⚫Front I/O

◼One HDMI 2.0 (Up to 4096 x 2160@60Hz)

◼One DP 1.4 (Up to 4096 x 2160@60Hz)

◼One USB ports 3.2 Gen2

◼Two USB ports 2.0

◼One USB Type-C

◼One Audio jack

◼One Power On/Off button

◼One Reset button

◼Two LED Indicaters (PWR & Storage Active LED)

⚫Rear I/O

◼One 80Pin JAE TX25A

◼1 x HDMI 2.0 (Up to 4096 x 2160@60Hz)

◼1 x DP 1.4 (Up to 4096 x 2304@60Hz)

【Note】:1 x DP 1.4 will not be supported when adopting Intel Comet Lake CPU.

◼1 x USB 3.0

◼2 x USB 2.0

◼1 x UART (TX/RX)

◼1 x Audio out L/R

◼Control signals (PWR_STATUS, PS_ON#, PB_DET, SYS_FAN)

⚫Ethernet

◼10/100/1000Mbps Ethernet (with Intel®I219-LM)

⚫Expansion

◼One M.2 2230 Key E (USB+PCIe signal supported)

OPS520 User’s Manual

Introduction

⚫Storage

◼One M.2 Key M 2280 for NvME SSD

⚫Antenna opening

◼Two Antenna openings in the front I/O side

⚫Net Weight

◼0.9kg (1.99 lb) without cooler

⚫Dimension (Main Body Size)

◼200 mm(W) x 119 mm(D) x 30 mm(H)

⚫Operation Temperature

◼00C to 450C (with airflow 1.2 m/s)

⚫Power Input

◼12V~19VDC

NOTE: All specifications and images are subject to change without notice.

OPS520 User’s Manual

Introduction

1.3 Mechanical Assembly

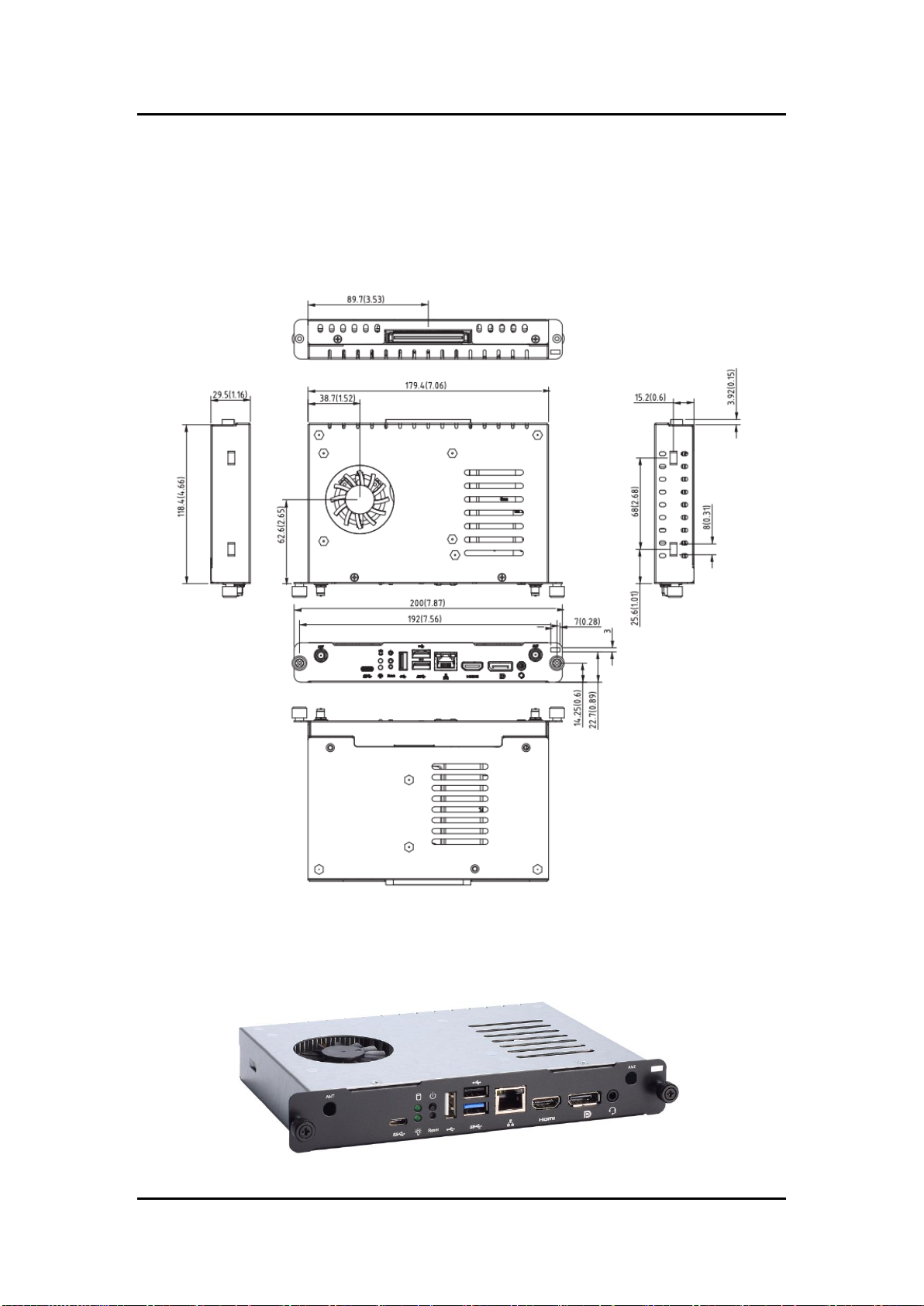

1.3.1 Dimensions

This diagram shows you dimensions and outlines of the OPS520 Series

The overall dimension of the module including the mounting frame is 200mm x 119mm x

30mm, and it shows the location of the screw holes of front panel as well as the security lock.

※While plugging the OPS module, please make sure the heat sink side of OPS

module toward the outside. Axiomtek will be out of reasonability if there is any

damage occurred due to it.

Altri manuali per OPS520 Series

Indice

Altri manuali AXIOMTEK Hardware per computer

AXIOMTEK

AXIOMTEK SBC81200 Series Manuale utente

AXIOMTEK

AXIOMTEK SHB160 Series Manuale utente

AXIOMTEK

AXIOMTEK UST500-517-FL Series Manuale utente

AXIOMTEK

AXIOMTEK STX88831 Series Manuale utente

AXIOMTEK

AXIOMTEK CEM880 Manuale utente

AXIOMTEK

AXIOMTEK AIE100-ONX Series Manuale utente

AXIOMTEK

AXIOMTEK eBOX560-880-FL Series Manuale utente

AXIOMTEK

AXIOMTEK CEB94022 Manuale utente

AXIOMTEK

AXIOMTEK SHB105 Series Manuale utente

AXIOMTEK

AXIOMTEK ETM830 Series Manuale utente

AXIOMTEK

AXIOMTEK SBC8233 Manuale utente

AXIOMTEK

AXIOMTEK eBOX670-883-FL Series Manuale utente

AXIOMTEK

AXIOMTEK eBOX532-100-FL Series Manuale utente

AXIOMTEK

AXIOMTEK CAPA13S Series Manuale utente

AXIOMTEK

AXIOMTEK AX92320 Manuale utente

AXIOMTEK

AXIOMTEK KIWI310 Manuale utente

AXIOMTEK

AXIOMTEK ETM831 Series Manuale utente

AXIOMTEK

AXIOMTEK eBOX800-900-FL Series Manuale utente

AXIOMTEK

AXIOMTEK DASP-52282 Manuale utente

AXIOMTEK

AXIOMTEK AIE100-ONA Series Manuale utente

AXIOMTEK

AXIOMTEK eBOX710-521-FL Series Manuale utente

AXIOMTEK

AXIOMTEK tBOX312-870-FL Manuale utente

AXIOMTEK

AXIOMTEK CAPA318 Manuale utente

AXIOMTEK

AXIOMTEK SHB250R Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
