AXIOMTEK PICO512 Series Manuale utente

4 9418H512000E

Ver ion A1 March 2017

Printed in Taiwan

Quick Start

CN14 on PICO512

Note: When powering on PICO512 for the first time, video device must be

plugged into HDMI port (CN15). Then, after first power on, you can set

VGA on AX93A00 or HDMI on AX93A01 as primary IGFX boot display

from BIOS setting.

The basic procedures required to power on PICO512:

(1). Require at least 60W DC power adapter. Make sure that all

necessary peripheral devices are plugged properly.

(2). Check all jumper and switch settings and make sure they are

at default settings; especially SW1 (2-3 close).

(3). To ensure normal functioning, DDR4 memory module must be

installed into connector SCN2 until fully seated.

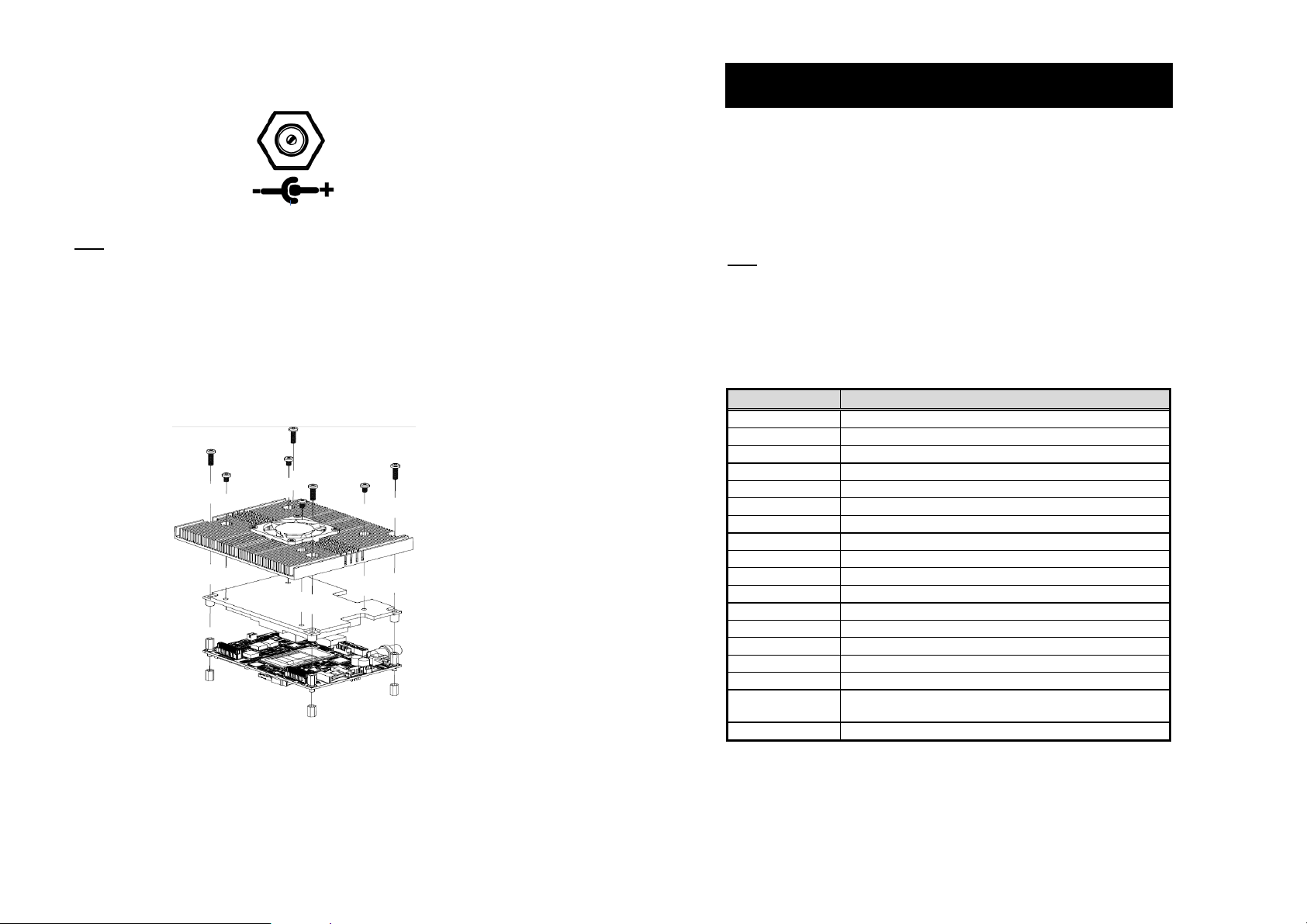

(4). Attach thermal solution as indicated in image below.

(5). Firmly insert the DC adapter into CN14 and power on

PICO512 by inserting power plug.

PICO512 Series Quick Installation Guide

9418H512000E 1

Ver ion A1 March 2017

Printed in Taiwan

Checklist



CPU

Board x1



Product Information



USB Cable x1



Quick Installation Guide



SATA

Cable x1



Heatspreader x1



SATA Power Cable x1



Heatsink w/Fan x1



Fan C

ble x1

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Please refer to the PICO512 series product information CD for the

complete user’s manual, drivers and utilities. User’s manual and related

documents are in Acrobat PDF format.

Connectors

Connector Description

CN2 Board to Board Connector 1 (Low Speed)

CN3

Board to Board Connector 2

(

High Speed

)

CN4

SATA Connector

CN5

CMOS Battery Connector

CN6 Fan Power Connector

CN7

Digital I/O

Connector

CN8

SATA Power C

onnector

CN9

Front Panel Connector

CN10

USB 2.0 Wafer Connector

CN11

Inverter Connector

CN12 (Optional)

Power Wafer Connector

CN13 Ethernet Port

CN14

DC Jack Power Connector w/ Screw

CN15

Connector

CN16

LVDS Connector

CN17

I2C Connector

SCN1 Full-size PCI-Express Mini Card and mSATA

Connector

CN2

DDR

DIMM Connector

PICO512 7

Generation Intel

Core

i7/ i5/ i3 and Celeron

Processors Pico ITX Board

2 9418H512000E

Ver ion A1 March 2017

Printed in Taiwan

Jumper and Switch Settings

Before applying power to the PICO512, please make sure all of the jumpers

and switch are in factory default positions.

Jumper and Switch Description Setting

JP1 Restore BIOS Optimal Defaults

Default: Normal Operation 1-2 Close

JP2 LVDS Voltage Selection

Default: +3.3V Level 1-2 Close

SW1 Auto Power On

Default: Enable 2-3 Close

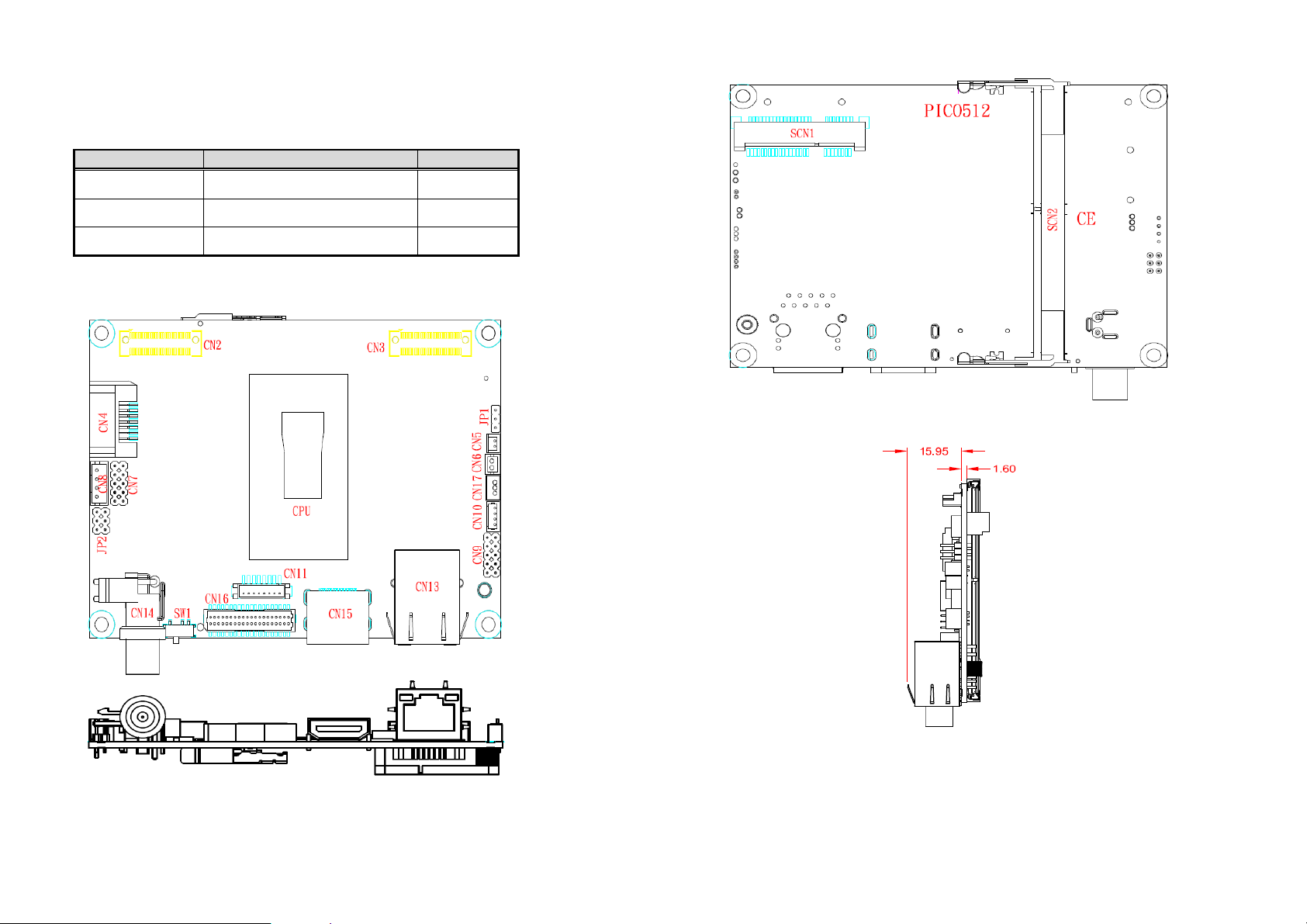

Board Layout

Top View

Side View

9418H512000E 3

Ver ion A1 March 2017

Printed in Taiwan

Bottom View

Side View
