rBOX111-FL Quick Installation Guide

©Copyright 2012 Axiomtek Co., Ltd.

VersionA1 November 2012

Printed in Taiwan

9416M111010E

4

V. Installing the Hard Disk Drive

Step 1 Turn off the system.

Step 2 Loosen these screws, and remove the cover from the system.

Step 3 Loosen these screws and remove the Hard Disk Drive fixing

bracket.

Step 4 Insert the Hard Disk Drive into the socket until it is firmly seated.

Put the Hard Disk Drive fixing bracket back to the system, and

fasten screws tight close the Hard Disk Drive fixing bracket.

Step 5 Put the cover back to the system, and fasten screws tight close the

chassis.

All Components are fragile and sensitive. If you need to replace or return any components for repair, you must

contact authorized technicians for a professional handling.

rBOX111-FL Quick Installation Guide

©Copyright 2012 Axiomtek Co., Ltd.

Version A1 November 2012

Printed in Taiwan

9416M111010E

1

I. Packing List

9rBOX111-FL System Unit x 1 9Power terminal block

9rBOX111-FL Quick Installation

Guide x 1 9CD x 1 (for Driver and

User’s Manual)

9Screws 9Din-rail Kit x1

II. Dimensions

There is a User’s Manual CD-ROM for the CPU card installed in your rBOX111-FL system. Please consult your local

vendor for assistance if you have any difficulties in installing. the system.

rBOX111-FL Quick Installation Guide

©Copyright 2012 Axiomtek Co., Ltd.

VersionA1 November 2012

Printed in Taiwan

9416M111010E

2

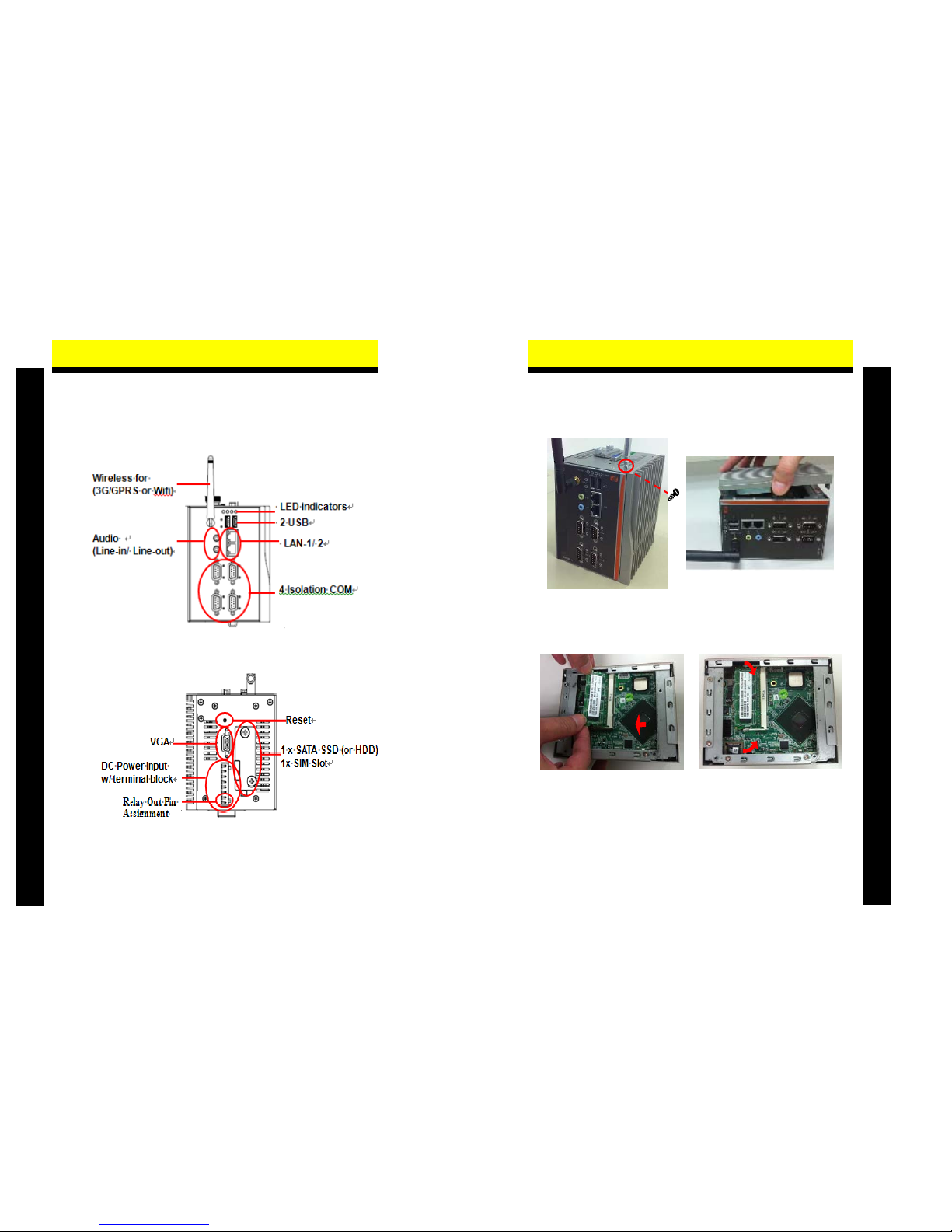

III. I/O Outlets

The following figures show you I/O outlets on front view and top view

of the rBOX111-FL.

zFront View

zTop View

All Components are fragile and sensitive. If you need to replace or return any components for repair, you must

contact authorized technicians for a professional handling.

rBOX111-FL Quick Installation Guide

©Copyright 2012 Axiomtek Co., Ltd.

Version A1 November 2012

Printed in Taiwan

9416M111010E

3

IV Installing the Memory Module

Step 1 Turn off the system.

Step 2 Loosen these screws, and remove the top cover from the system.

Step 3 Hold one side of the module, and insert the gold colored contact

into the socket. Push the module down. The memory module is

locked by two latches on the sides.

Step 4 Close the cover to the chassis, and fasten all screws.

There is a User’s Manual for the Memory & Compact Flash Card installed in your rBOX111-FL system.

Please consult your local vendor for assistance if you have any difficulties in installing. the system.
