AXIS 5400+/AXIS 5600+ Installation Guide Page 3

AXIS 5400+/AXIS 5600+ Installation Guide

Package contents

Overview

To install your print server in Windows

2000, Windows XP and Windows

Server 2003, see the instructions on

the following page. To install on

Macintosh, see page 6. For all other

operating systems, please see the user's

manual.

To perform the installation in Windows you will need:

• The Axis print server and its power adapter.

• A printer with a parallel port (or serial port for the AXIS 5600+).

• AXIS AddPrinter, the free installation tool included on the CD supplied with your Axis print

server, or download it from www.axis.com

You may also need a printer driver for your printer. Some printer drivers are already included in

Windows, or may be on your Windows installation CD. Printer drivers can often be found on the CD

supplied with the printer, or they can be downloaded from the manufacturer's web site.

Item Notes

Network Print Server AXIS 5400+ or AXIS 5600+.

Power adapter Model PS-H. Country-specific.

CD Documentation and installation software.

Printed Materials • AXIS 5400+ / AXIS 5600+ Installation Guide (this document)

•AxisWarrantyDocument

AXIS 5400+

LPT1

Parallel printer port Test button

Network connector

Power connector

Network

indicator

Power

indicator

AXIS 5600+

Network connector

Power indicator

Network indicator

Power connector

(LPT1)

Parallel printer port

(LPT2)

Parallel printer port

(COM1)

Serial printer port

Test button

Page 4 AXIS 5400+/AXIS 5600+ Installation Guide

Installation in Windows

1. a) Connect the printer to the Axis

print server.

b) Power up the printer.

c) Connect the print server to the

network.

d) Power up the print server.

2. Start AXIS AddPrinter and click

Next.

3. Now identify and select your

network printer from the list shown

in the window. Click Next.

4. If your print server is configured to

use a dynamic IP address you will

now have the opportunity to

change this to a static IP address

(recommended).

If the print server already has a

static IP address, this step will be

skipped. For more information on

network settings you may need to

contact your network administrator.

After the IP address has been

configured, click Next.

Notes:

• Some printers may show in the list as "parallel printer"

or “serial printer”, but this will change when the

printer driver is installed.

• The print server’s serial number can be found on the

label on the product’s casing.

• If the function is supported by your printer, pressing

the print server’s Test button once will print a test

page showing the IP address.

❶

❷

❸

❹

AXIS 5400+/AXIS 5600+ Installation Guide Page 5

5. If AXIS AddPrinter does not

automatically find a suitable driver

for your printer, this dialog will be

displayed. If your printer brand

and model is available from this

list, select it and click Next.

If your printer is not listed, click

Have Disk. You can now browse to

the driver file, e.g. on the CD that

came with the printer, or use the

Search Folder feature to let AXIS

AddPrinter find the driver for you.

6. After the printer driver has been

selected and installed, you will see

a summary of the printer

installation. The printer name can

be changed and you can e.g.

choose to print a test page. Click

Finish.

Ready to print

Your printer has now been installed on

the network and is ready for use.

For installation on all other operating

systems, and for help on all aspects of

printing, please consult the user’s

manual for your print server.

To reset the print server to the factory default settings, please see page 7.

❺

❻

Notes:

• Printer driver files are often named setup.inf. Alternatively, the file name may include part of the printer name, e.g. mynewprinter.inf

• When inserting the CD provided with your printer into the CD drive, this may start an automatic installation process that will

interfere with the installation via AXIS AddPrinter. Click Cancel to stop the automatic installation and instead let AXIS AddPrinter

find the .inf file.

Page 6 AXIS 5400+/AXIS 5600+ Installation Guide

Installation in Mac OS X

This section describes how to set up your Axis print server for printing in Mac OS X 10.2 and

later. For installation on an older Mac OS, refer to the user’s manual on www.axis.com

1. From the Apple menu, select

Go > Applications > Utilities

and start the Print Center.

2. Click Add in the Printer List.

3. From the drop-down list, select

Rendezvous.

4. Highlight the printer you wish

to install. The default print

server name is AXISxxxxxx

Network Print Server_<port>,

where xxxxxx represents the

last six digits of the print

server’s serial number.

5. Select the printer brand and

model from the drop-down list.

If the printer’s PPD is already

installed, the brand and model

are selected automatically.

6. To complete the installation,

click Add. The printer is now

added to the Printer List.

Notes:

• The print server’s serial number can be found on

the label on the product casing.

• To configure printer settings, click Printers >

Configure Printer.

• If the print server using Rendezvous is already

installed and the print server name or service

name is changed, the print server must be

removed from the Printer List and then

re-installed with the new Rendezvous service

name.

• If you change the service name from Setup >

TCP/IP > Rendezvous > Service Name, this name

will then override the Print Server Name setting

as set in the admin tools in the product’s web

interface.

AXIS 5400+/AXIS 5600+ Installation Guide Page 7

Resetting to the Factory Default Settings

This will reset all the product parameters (including the IP address) to the factory default

settings:

1. Disconnect the power adapter cable.

2. Press and hold the Test button and reconnect power, keeping the button pressed the whole

time.

3. Keep the button pressed until the Network indicator remains constantly lit. This should

take about 20 seconds. Then release the button.

4. Restart the print server again, by disconnecting and reconnecting the power adapter.

Guide d’installation AXIS 5400+/AXIS 5600+ Page 9

Guide d’installation AXIS 5400+/AXIS 5600+

Contenu de l’emballage

Présentation

Pour installer votre serveur

d’impression sous Windows

2000, Windows XP et Windows

Server 2003, reportez-vous aux

instructions de la page suivante.

Pour une installation sur un

Macintosh, reportez vous à la

rubrique page 12. Pour les autres

systèmes d’exploitation,

reportez-vous au manuel de l’utilisateur.

Pour effectuer une installation sous Windows, les éléments suivants sont nécessaires :

• Le serveur d’impression Axis et son alimentation.

• Une imprimante dotée d’un port parallèle (ou d’un port série pour AXIS 5600+).

• AXIS AddPrinter, l’outil d’installation gratuit inclus dans le CD fourni avec votre serveur d’impression

Axis ou téléchargeable sur www.axis.com.

• Il est possible que vous ayez également besoin d’un pilote pour votre imprimante. Certains pilotes

d’imprimante sont inclus dans Windows ou peuvent se trouver sur le CD d’installation de Windows.

Les pilotes d’imprimante sont généralement inclus sur le CD fourni avec l’imprimante ou peuvent

être téléchargés sur le site Internet du fabricant.

Article Remarques

Serveur d’impression réseau AXIS 5400+ ou AXIS 5600+.

Transformateur Modèle PS-H. Propre à chaque pays.

CD Documentation et logiciel d’installation.

Documentation imprimée • Guide d’installation AXIS 5400+ / AXIS 5600 (ce document)

• Document de garantie d’Axis

AXIS 5400+

imprimante (LPT1)

Port parallèle

Connecteur de réseau

Connecteur

d’alimentation

Voyant

d’alimentation

Voyant

de réseau

Bouton de test

AXIS 5600+

imprimante (LPT1)

Port parallèle

imprimante (LPT2)

Port parallèle

Connecteur de réseau Connecteur

d’alimentation

Voyant

d’alimentation

Bouton de test

Voyant

de réseau

imprimante (COM1)

Port série

Page 10 Guide d’installation AXIS 5400+/AXIS 5600+

Installation sous

Windows

1. a) Connectez l’imprimante au serveur

d’impression Axis.

b) Allumez l’imprimante.

c) Connectez le serveur d’impression au

réseau.

d) Allumez le serveur d’impression.

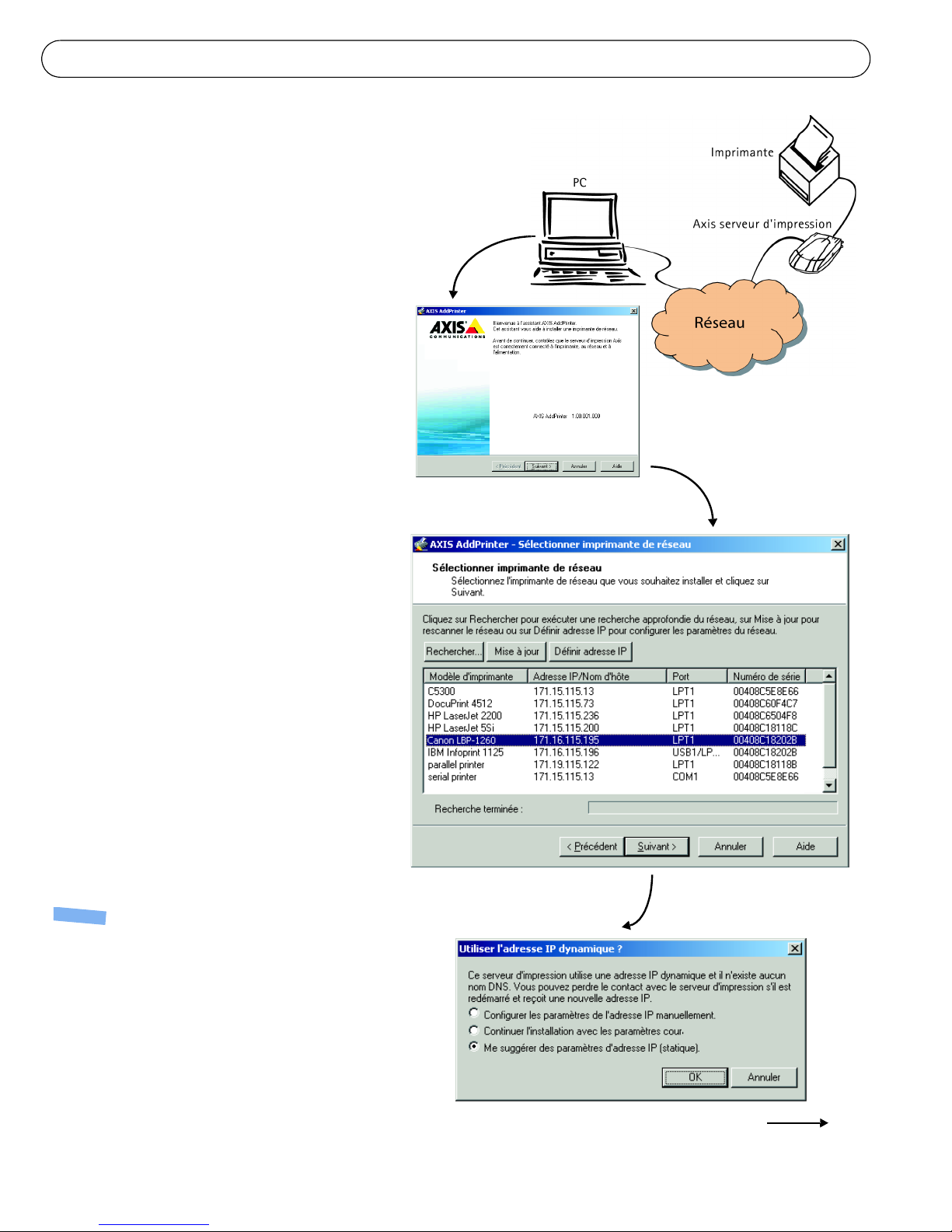

2. Lancez AXIS AddPrinter et cliquez sur

Suivant.

3. Identifiez et sélectionnez votre

imprimante réseau dans la liste affichée

dans la fenêtre. Cliquez sur Suivant.

4. Si votre imprimante réseau est

configurée pour utiliser une adresse IP

dynamique vous pouvez à cette étape

la modifier pour en faire une adresse IP

statique (recommandé).

Si le serveur d’impression est déjà doté

d’un adresse IP statique, cette étape ne

s’affiche pas à l’écran. Pour de plus

amples informations à propos de vos

paramètres réseau, contactez votre

administrateur réseau.

Une fois l’adresse IP configurée, cliquez

sur Suivant.

Remarques :

• Il est possible que certaines imprimantes soient

indiquées dans la liste comme étant des « imprimantes

parallèles » ou des « imprimantes série », mais cela

sera modifié une fois le pilote d’imprimante installé.

• Le numéro de série du serveur d’impression est indiqué

sur l’étiquette du boîtier du produit.

• Si cette fonction est prise en charge par votre

imprimante, une pression sur le bouton Test du

serveur d’impression entraînera l’impression d’une

page de test indiquant l’adresse IP.

❶

❷

❸

❹
