Ayra Flash 30 LED Manuale utente
Flash 30 LED / Flash 60 LED
LED stroboscope
User manual
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:02-02-2017 RV Revision date and author's initials: -
Introduction
Thank you for purchasing the Flash 30 or Flash 60 LED. This powerful armature is equipped with strong
bright white 5050 SMD LEDs that yield an enormous amount of light. This device is designed to generate
flashing pulses of light but can also be used statically thanks to advanced technology.
We advise that you read this user manual in its entirety before unpacking the contents of the box so that you
are familiar with all of the functionality that this product has to offer. Please be sure to check that all of the
parts and accessories listed below under 'Box contents' are included in the package. In the event that the
Flash 30 / 60 LED does not function properly or if you have any issues while operating it please remove the
plug from the power socket and contact your dealer for assistance.
Box contents:
- Ayra Flash 30 LED or Flash 60 LED stroboscope
- connection cable from IEC C13 to Schuko 1.5 mm²
- connection cable from IEC C13 to UK plug 1.5 mm²
Please inspect the de ice and the included accessories.
Should you discover that either the device or one or more of the included parts have been damaged or
rendered defective while in transit please contact your dealer directly.
Please note that the pictures in this user manual serve illustrative purposes only and may differ from the
actual product.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:02-02-2017 RV Revision date and author's initials: -
Safety instructions
Everyone involved with the installation operation and maintenance of this device must:
- Be qualified
- Be skilled
- Have read the instructions in this user manual
- Be sure that neither the device nor the included accessories are damaged. Should the device or the
included accessories be damaged please contact your dealer for more information.
- Ensure that the device is in good working condition and is safe to operate. Please follow the advice and
instructions as they are described in this user manual.
Damage caused by misuse and/or modifications made to the device are not covered by the warranty.
This device does not contain any parts that can be repaired or replaced by the user. Should maintenance or
repairs be necessary they must be handled by a qualified technician.
The light source of this device is not replaceable. If the light source no longer functions the entire device
needs to be replaced.
Important information regarding safety and health:
- Do not remove any labels or stickers from this device.
- Do not leave any cables lying around.
- The device should not be opened up and any hardware or software that may be present should not be
modified.
- To achieve optimal performance inputs on this device should not be fed with a signal higher than
necessary.
- The device should only be used indoors; contact with water rain and moisture should always be avoided.
Do not place any objects containing liquid on top of the device.
- Remove the device from any nearby flames or heat sources; do not place it near flammable fluids gasses
or objects.
- Disconnect this device from a power source if it will not be used for a longer period of time if maintenance
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:02-02-2017 RV Revision date and author's initials: -
WARNING!
Keep this de ice away from moisture, water and rain to a oid the chance of electric shocks.
WARNING!
Only connect this de ice to a suitable power socket. This de ice functions on a specific power
oltage. If it is plugged into a power socket with a different oltage, it could result in permanent
damage and e en dangerous situations such as fire or electric shocks.
WARNING!
Be careful when operating this de ice. Touching the wires that are connected to the mains,
inside or outside the de ice, could result in electric shocks.
is necessary or if it needs to be cleaned.
- Do not pull on the cable to remove a connector as it can cause damage.
- Do not use any cables other than the ones described in this manual. Do not use defective cables. Please
contact your dealer if the included or necessary cables do not function properly with this device.
- Only use this device with a stable AC power supply.
- Only use this device with power form a grounded power source.
- In the event that the device is exposed to extreme temperature changes (e.g. transported through a cold
outside environment into a warm indoor environment) it should not be turned on until it has reached room
temperature. This is necessary to prevent moisture from forming in the device which could lead to electric
shocks.
Guidelines and operation of this de ice:
- This device is intended for use by professionals on stage in theatres in clubs and in similar entertainment
locations.
- This device is not suitable for use by children and should always be operated by an adult.
- This device is designed to create light effects for entertainment purposes. It is not suitable for household
illumination.
- This device may only be used in a suitable environment where no damage to the device can occur. Do not
use the device in moist or dusty environments such as:
- indoor swimming pools where chlorine is used
- beaches where there is sand and salt
- outdoors
- indoors in spaces where intense heat sources are present or where it reaches temperature levels
that would be considered uncomfortable for a person
- Avoid impact and collisions during use and transport. Do not transport the device while it is in use. Avoid
using excessive force when installing and operating the device.
- The user should become familiar with the functions of this device before using it.
- Should the device not be used in the manner described in this user manual damages or even injuries could
occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of
this product.
Storage and transport:
- This product was designed for mobile use. Please only transport the device in the original packaging or in
a flight case with a suitable foam inlay.
- This device was not designed for permanent (24/7) use. The expected lifespan of the device will not be
affected by occasionally turning the device off. Disconnect the device or turn off the power when it is not
actively in use.
- If the device will not be used for a longer period of time it should be disconnected and stored in a dust-free
environment.
- Do not expose the device to extreme temperature differences.
Housing
- Inspect the device's housing frequently and always just before use. Avoid operating the device if there are
large dents or cracks or if screws are missing. Do not use the device if the housing is not in good condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the screws for corrosion. Corrosion must not be present on this device. Contact your
dealer or a qualified technician if you find any corrosion on the screws.
Every power and signal connector should be securely mounted. Do not use the device if the connectors are
not secure.
- Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the power supply and
wiping it down with a dry or slightly moist cloth. If the device is used frequently the cleaning intervals should
increase.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:02-02-2017 RV Revision date and author's initials: -
Symbol explanation:
WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE
(Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply
to all manufacturers and producers of electronic devices in the EU. Do not throw this product
away with regular rubbish. Please contact your local authority for more information about how
to recycle and dispose of these products in your region. By recycling this product in the proper
manner we can work together to ensure that we can continue to enjoy these kinds of
products and still protect the environment as much as possible from pollution.
CE: The CE logo indicates that this product meets the European norms and requirements to
which it must legally conform.
Only suitable for indoor use: this product was only designed for indoor use. The maximum
environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit).
Contact:
Ayra professional lighting products
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products to this correspondence address.
Should you wish to send in a product for repairs or for a refund, please contact your dealer for an RMA
re uest (Return Merchandise Authorisation).
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:02-02-2017 RV Revision date and author's initials: -

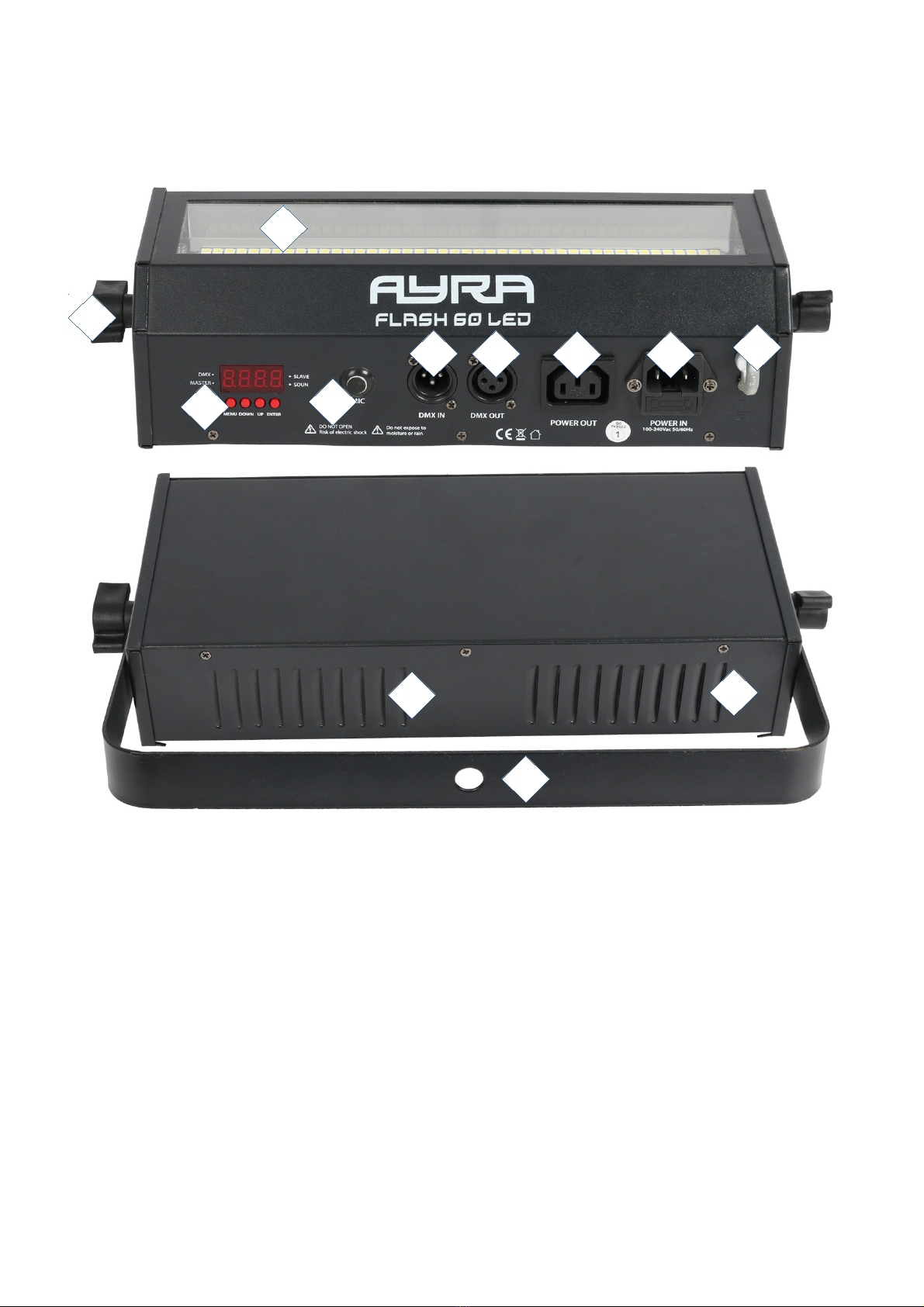

Guidelines and operation of this de ice
1. light output with transparent protective cover
2. tightening knob mounting bracket
3. LED display with menu buttons
4. microphone for sound-controlled operation modes
5. 3-pin XLR DMX input
6. 3-pin XLR DMX output
7. power output for linking multiple armatures (IEC C13)
8. power input with built-in fuse holder (IEC C14)
9. safety eyelet for optional safety cable
10. mounting bracket
11. ventilation slots
Please note: The image on this user manual shows the Flash 60 LED stroboscope. The Flash 30 LED has
the same connections and functions but they are partly located in a different place.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:02-02-2017 RV Revision date and author's initials: -
2
4
567 8 9
1
3
10
11 11
Operation and mounting
To activate the device plug it into a mains socket. Once it's connected to an active power source it will turn
on automatically.
During calibration ‘AYRA’ will be shown on the display which means the device is not ready to be operated.
Once the device has fully started up it will jump to the last-used mode. Operation modes and other settings
shown on the display can now be adjusted or changed by means of the menu buttons.
Should the device detect a DMX signal it will automatically switch to DMX mode and will display the last-
used address. For new devices this will normally be DMX address 001. Of course you can change the DMX
address via the display using the menu buttons.
Using the display and the menu buttons you can adjust the functions and settings of the device. Press
'Enter' to confirm an adjustment or select a function use ‘Up’ and ‘Down’ to change amounts and ‘Menu’ to
go back to the menu. By holding the ‘Menu’ button down for 2 seconds after saving a specific setting the
device will return to operation mode and adopt the setting. This will also be done after any changes in the
operation mode or DMX address. This operation is not always necessary considering the device
automatically does this after a new setting is confirmed.
The menu contains the following options and functions
display Mode Function
ADDR / A001 DMX address configuration Address A001 … A512
SLAV Slave mode SLAV
F-.00 Standalone stroboscope mode Stroboscope speed: F-.00 – F-.99
F-.00 = static mode
D-.00 Standalone dimmer mode Dimmer level: D-.00 – D-.99
D-.00 = dimmer 0%
SU00 Sound-controlled mode +
sensitivity
Adjustable sensitivity: SU00 - SU99
You'll find an explanation of the various functions below:
ADDR: With this function you can determine the DMX start address of the device. Set it channel 001 and
the device will respond from DMX channel 1. Set it to channel 003 then the device will respond from DMX
channel 3 etc.
SLAV: The master-slave mode is designed to sync multiple devices. A copy of the internal program is sent to
the daisy-chained devices so that each one projects the same effect. The master-slave function works by
means of standard 3-pole XLR cables. The only difference is that the first device in the chain does not
receive DMX input.
F-.00: This function allows you to set the speed of the stroboscope while the device is in standalone mode. It
ranges from 00 to 99 where 00 is static (full-on) mode and 01 to 99 are the increasing flash speeds.
D-.00: This function is to set the intensity of the dimmer while the device is in standalone automatic mode. It
can be combined with the stroboscope speed which ranges from 00 to 99 00 being completely off.
SU00: This mode allows you to determine the sensitivity of the internal microphone. The further the device is
from the speaker the higher the sensitivity of the microphone needs to be so it can react properly to the
music. The microphone is built to handle high sound pressure levels but the louder the signal the higher the
microphone sensitivity level the more difficulty the device will have detecting the beat of the music.
Experiment with the level of sensitivity and distance/positioning of the device to find the best results.
In sound-controlled mode the Flash 30 / 60 LED will flash three times in a row at full output at every trigger
(on the beat).
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:02-02-2017 RV Revision date and author's initials: -
Operating modes
The following overview is designed to show the differences between the various operation modes that are
supported by the above-mentioned menu functions.
Auto:
In automatic mode (D-.00 and F-.00)the device is set to a fixed speed and will function according to the
preset parameters. The device does not requite input from the built-in microphone master-slave signals or
DMX.
By setting the flashing speed to static (value 00) you can also use the Flash 30 / 60 LED as a static projector
to temporarily light up certain surfaces.
Sound:
The sound-controlled mode uses an internal microphone which detects the music and flashes three times at
full intensity on the beat. This ensures the light effect syncs perfectly with your music.
When no music is detected due to a break in the music or the presence of only high tones the device will not
flash.
Sla e
In Slave mode you can daisy-chain multiple devices of the same type so they all function a specific way.
This way you can coordinate your light show by having multiple separate devices moving the same way
instead of all different directions which can be chaotic. Basically you can connect an unlimited number of
slave devices to a master device but a DMX booster is required in between. Generally speaking you can
connect up to four armatures together without the need for a DMX booster.
Be aware that when you attempt to connect devices of different types and brands they may behave
strangely and you may not get the desired effect because certain functions are linked to the wrong channels.
This is true of DMX lighting of all brands and types.
In case of the FLASH 30 / 60 LED mixing these units in master or slave mode is possible as they share the
same channel values and controls.
DMX
The DMX mode is the most comprehensive way to maintain ultimate control over all the functions this device
has to offer. It enables you to determine exactly how many functions you want to control via the DMX
controller or DMX software.
2CH mode:
CH Function Values
CH1 Dimmer: 0 - 100% 000-255: 0-100%
CH2 Stroboscope speed slow – fast + sound-controlled option 000-007: Stroboscope blackout
008-247: Stroboscope mode slow - fast
248-255: Sound-controlled mode
Power supply
The Flash 30 / 60 LED is equipped with a power input to supply the device with power but also an output to
supply power to other devices which means you won't need power strips or other power distributors.
The power connectors for the Flash 30 / 60 LED have a power capacity of 10A subtracted by the maximum
power consumption of the device. With a small built-in safety margin the output on the Flash 30 / 60 LED
should be fed with a maximum of 9 A.
This is more than enough to supply power to multiple devices of the same type via a single power line.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:02-02-2017 RV Revision date and author's initials: -
Bear in mind that the installed fuse in the Flash 30 / 60 LED is designed to only protect the device itself. The
power output is not protected.
Installation and connection requirements
Now that you know how the Flash 30 / 60 LED works it's important to know how to use it correctly and
safely according to the installation and connection requirements.
Make sure the device and connection cables are out of reach of children and that if children are present
they are under adult supervision at all times. Because this device can be used upright or suspended children
could pull on the cables causing the device to fall on top of them. To avoid injury it is important to pay close
attention to the position and/or installation of this device.
Upright use
The Flash 30 / 60 LED is not suitable for use in an upright position unless the mounting bracket is attached
to a stable surface like a floor stand or a metal foot with sturdy materials.
Suspended use (bracket)
If you want to suspend the Flash 30 / 60 LED use the mounting bracket that has already been attached to
the device. Use the tightening knobs to adjust the bracket.
The Flash 30 / 60 armature is already equipped with a hanging bracket and contains holes to mount a
standard G-hook or coupler. You can find standard hooks and/or brackets for 35 or 50mm tubes (truss or
light stand) at your local dealer.
Hardware for mounting the Flash 30 / 60 LED to the wall ceiling or beam is not included. Contact a
specialist if you're not sure which hardware is required for your situation. A wooden beam and stone wall
require different mounting methods.
Should you want to suspend the Flash 30 / 60 LED you will need to attach a safety cable to the armature.
This is not included but is available at your local dealer. The Flash 30 / 60 LED is equipped with an eyelet for
hooking safety cable. Once it's hooked on you can wrap the cable around the truss or light stand and attach
it again by means of the same hook. This ensures the device is secured and prevents it from falling even if
one or both of the brackets should come loose.
Ensure that the safety cable has a load capacity of 10x the weight of the armature and that the device can
not fall farther than 30 cm. You can wrap the safety cable around the truss or light stand several times to
ensure the fall is as short as possible. The shorter the fall the less chance of damage or injury.
Light source
The Flash 30 / 60 LED has powerful LED modules that create an even more powerful effect thanks to a
special lens that bundles the beams together. Never look directly into the lens from at close range as the
human eye can't adjust to the sudden intensity of the beam of light this device produces. It won't result in
permanent damage but it can cause temporary blind spots which may cause disorientation and discomfort.
Cooling
The Flash 30 / 60 LED is not equipped with active cooling by means of fans. Cooling the light source is done
by means of a passive cooling block and ventilation slots in the housing.
Parts and repair
This product does not include spare parts and can not be repaired by the user. All inspections and overall
maintenance should be done by a specialist.
Cleaning and maintenance
Clean the exterior of this device monthly with a dry or slightly damp microfibre cloth. Ensure that the device
is unplugged before cleaning it.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:02-02-2017 RV Revision date and author's initials: -
Check if all the screws are intact and secured and tighten or replace them where needed. Check all metal
parts of the device for any signs of corrosion. If corrosion is found the device needs to be checked
thoroughly.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:02-02-2017 RV Revision date and author's initials: -
Questo manuale è adatto per i seguenti modelli
4
Indice
Altri manuali Ayra Apparecchiature di prova
Manuali Apparecchiature di prova popolari di altre marche
SMART
SMART KANAAD SBT XTREME 3G Series Manuale utente
Agilent Technologies
Agilent Technologies BERT Serial Manuale utente
Agilent Technologies
Agilent Technologies N3280A Manuale utente
Vernier
Vernier Go Direct Voltage Manuale utente
Lifeloc
Lifeloc R.A.D.A.R. Manuale utente
Fluke
Fluke T5-600 Istruzioni per l'uso e l'installazione
