Azio RETRO CLASSIC Manuale utente
VINTAGE TYPEWRITER BLUETOOTH/USB
BACKLIT MECHANICAL KEYBOARD
USER GUIDE
AZIO RETRO CLASSIC
00
AZIO
RETRO
CLASSIC

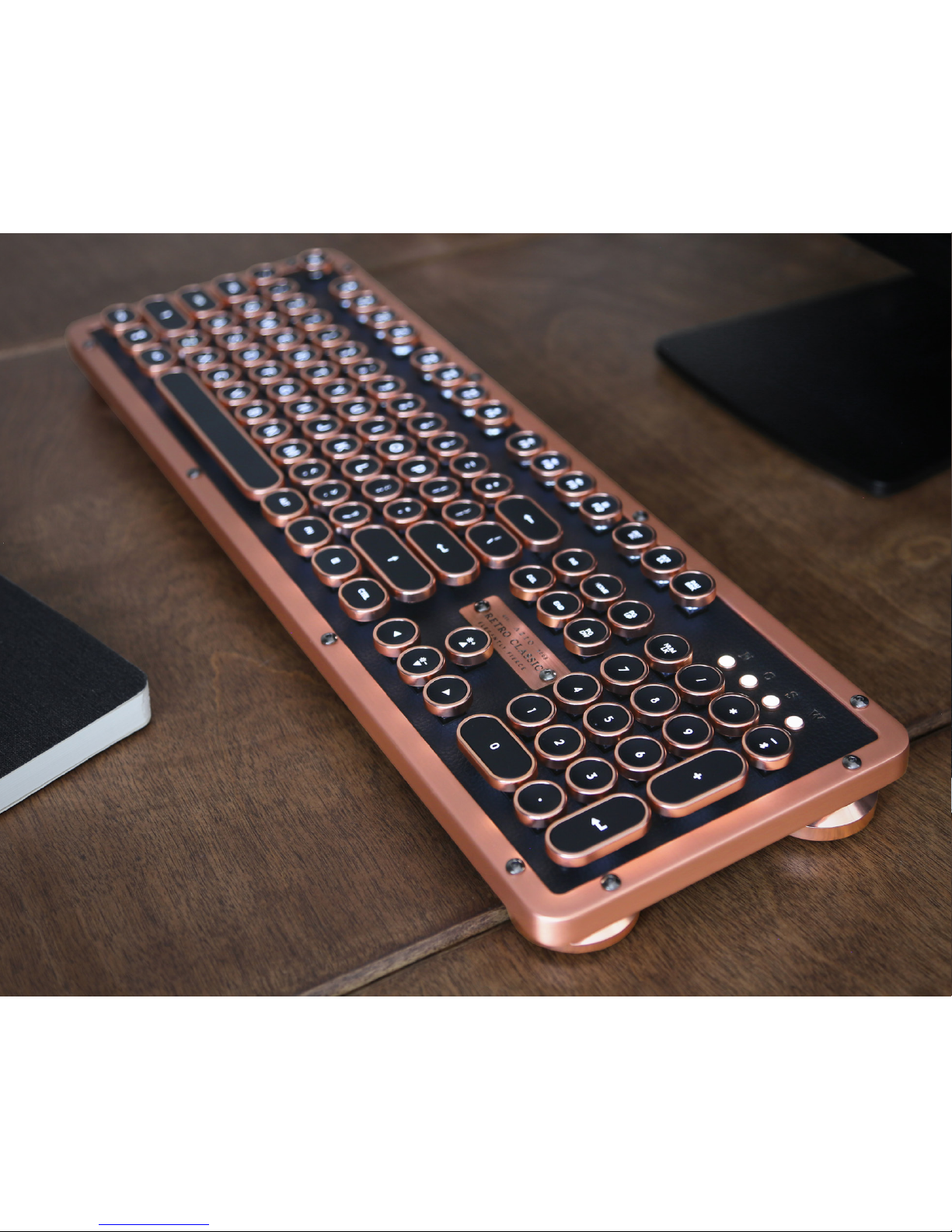

Vintage Inspired Luxury Mechanical Keyboard
A blast from the past. A nostalgic classic reborn with modern innovations. A timeless design
fit for composing literary masterpieces. Introducing the AZIO RETRO CLASSIC, a typewriter
inspired mechanical keyboard.
Inspired by vintage typewriters and crafted with ultramodern features, the AZIO Retro Classic
is the perfect amalgam of past, present and future. A backlit mechanical keyboard with round
keycaps that evoke nostalgia of yesteryear complemented with durable Zinc alloy frame and
a sumptuous genuine leather and wood surface. Utilizing feedback from our customers, we
present not only the evolution of our original MK Retro, but the most luxurious mechanical
keyboard available today.
01
THANK YOU FOR PURCHASING THE AZIO RETRO CLASSIC &
WELCOME TO THE AZIO FAMILY!
01
PRODUCT
BASICS
• Model: MK-RETRO-BT-L / MK-RETRO-BT-W / MK-RETRO-BT-S / MK-RETRO-BT-CF
MK-RETRO-BT-M / MK-RETRO-BT-F / MK-RETRO-BT-PL / MK-RETRO-BT-CE
MK-RETRO-BT-G / MK-RETRO-BT-P
• Interface: Bluetooth+USB Hybrid
• Mechanical Switch: Tactile & Clicky
• N-Key Rollover: 6KRO
• Backlight: Yes (Adjustable Brightness)
• Battery: 6000 mAh
• Rechargeable: Yes (USB Type-C Port)
• OS Support: Windows & macOS
• Dimensions (LxWxH): 147x455x40mm / 5.80x17.91x 1.58 inches
• Weight: 3.5 lbs / 1588 g
Specifications
Package Contents
• AZIO Retro Classic BT Edition
• User Guide
• Warranty Card
• USB Type-C Cable
• Keycaps for Mac-specific Keys
• Cleaning Cloth
02 AZIO RETRO CLASSIC
System Requirements
• Available USB port or Blutooth HID
• IBM-compatible PC or Mac
• Windows XP, Vista, 7, 8, 10 or macOS
USB Type-C Charging Port
Charging the keyboard is made simplified with Type-C port. Unlike older USB ports, it
doesn’t matter which side of the connector is up or down. Just plug it in and charge.
Duel USB and Bluetooth Interface
Connect via Bluetooth or USB. When USB mode is selected, simply connect the
included Type-C cable to the computer and type away.
Long Usage Time
Built-in is a high-capacity 6,000 mAh Lithium Ion rechargeable battery. With the
backlight off, usage time is about 1 year. With the backlight on, about 1 to 3 months
depending on backlight intensity.
02
PRODUCT
FEATURES
03
Tactile. Clicky. Backlit
The mechanical keys are tuned to be tactile and “clicky”, reminiscent of the vintage
typewriter. Each mechanical switch is customized so that the backlight LED is in
the center of each key, allowing the keyboard to illuminate evenly and beautifully.
Genuine & Luxurious
Genuine top plate. Leather and wood has always been associated with high-end
customized goods and exclusiveness. It reflects taste, craftsmanship, and culture
while emitting a unique charm that inspires.
Supports Both PC & MAC Layouts
Both Windows and Mac layouts are supported. When Mac mode is selected, simply
pop on the included Mac-specific keycaps.
03
SETUP Setting Up
The Retro Classic BT is a very versatile keyboard that supports both MAC/PC and can be
connected wirelessly via Bluetooth or wired via USB. The operating system selection and
interface mode switches are both located on the back side of the keyboard.
Pairing the Keyboard in Bluetooth Mode
Switch the keyboard to BT mode. The mode switch is located on the back side of the
keyboard.
Put the keyboard in Pairing Mode by holding down (FN) key and the ( - ) key on the
number pad. Hold down these two keys for a few seconds until the blue LED (Marked
“W”) changes from a quick flash to a slow continuous flash. The keyboard is now in
Pairing Mode.
On your Mac, navigate to ‘System Preferences’ and select ‘Keyboard’. Next, click on
‘Set Up Bluetooth Keyboard’. For Windows 10, go to Bluetooth Settings and select ‘Add
Bluetooth or other device’.
Once the setup wizard finds ‘AZIO Retro Classic BT’, click on ‘Pair’.
Once pairing is successfully completed, the blue flashing LED (Marked “W”) will stop
flashing. The keyboard is now ready for use.
1.
2.
3.
4.
5.
04 AZIO RETRO CLASSIC
03
SETUP Charging the Keyboard
Battery Life
When the battery is less than 20%, the status indicator LED labeled ‘S’ will start blinking in
red. Plug the included USB cable into the keyboard and a USB port or a USB charger. The
same LED will stop blinking and light up a steady red, indicating the keyboard is charging.
Once fully charged, the red LED will turn off. Charging a completely drained battery to full on a
USB 3.0 port will take approximately 8+ hours due to its large power capacity. Actual charging
time may vary depending on the power output of the charging source. The keyboard can only
be charged under BT or USB mode.
This keyboard uses an industry leading 6,000mAh Li-ion rechargeable battery and will only be
used when in Bluetooth mode. With the backlight off, the keyboard can last for about 7 months
to a year on a single charge. With the backlight on, depending on intensity, can last for about
1 to 3 months on a single charge. Under Bluetooth mode, the keyboard backlight will turn off
after 5 minutes of inactivity to conserve battery. After an hour of inactivity, the keyboard will
enter sleep mode. Press any key to wake up the keyboard and reestablish connection. The ‘W’
status indicator LED may flash blue during re-connection and stop flashing once connection is
reestablished.
05
MODES
04
MAC/PC Modes
Device Layout - Back
By default, the keyboard will be in PC mode. To change it to Mac mode, please toggle the
switch to “MAC” position. Once in Mac mode, replace the PC key caps with the included Mac
key caps according to the diagram on the DEVICE LAYOUT section.
1. PC mode 2. MAC mode
06 AZIO RETRO CLASSIC
Interface Mode MAC/PC Mode USB/Charging Port
LED Indicator Abbreviations
MODES &
INDICATOR
05
N: Steady White Light / Number Lock (PC mode)
C: Steady White Light / Caps Lock (Mac & PC mode)
S: Steady White Light / Scroll Lock (PC mode)
Blinking Red light / Low on battery (PC/Mac modes)
Steady Red light / Keyboard charging (PC/Mac modes)
W: Steady White Light / Windows Key Lock (PC mode)
Fast Blinking Blue light: Bluetooth Reconnecting
Slow Blinking Blue Light: Bluetooth Pairing Mode
1.
2.
3.
4.
07
Interface Modes
BT: Bluetooth mode allows you to connect the keyboard to your computer
wirelessly. In BT mode, the backlight will automatically turn off after 5
minutes of inactivity to conserve battery.
USB: In USB mode, please connect the included USB Type-C cable to the
keyboard and your computer. The status indicator LED labeled ‘S’ may
light up red, indicating the keyboard is simultaneously charging. In USB
mode, the keyboard will not go into battery saver mode.
OFF: In OFF mode, all circuitry will be off. This is ideal if the keyboard
will not be used for an extended duration of time. Please note that the
keyboard cannot be charged in OFF mode.
1.
2.
3.
06

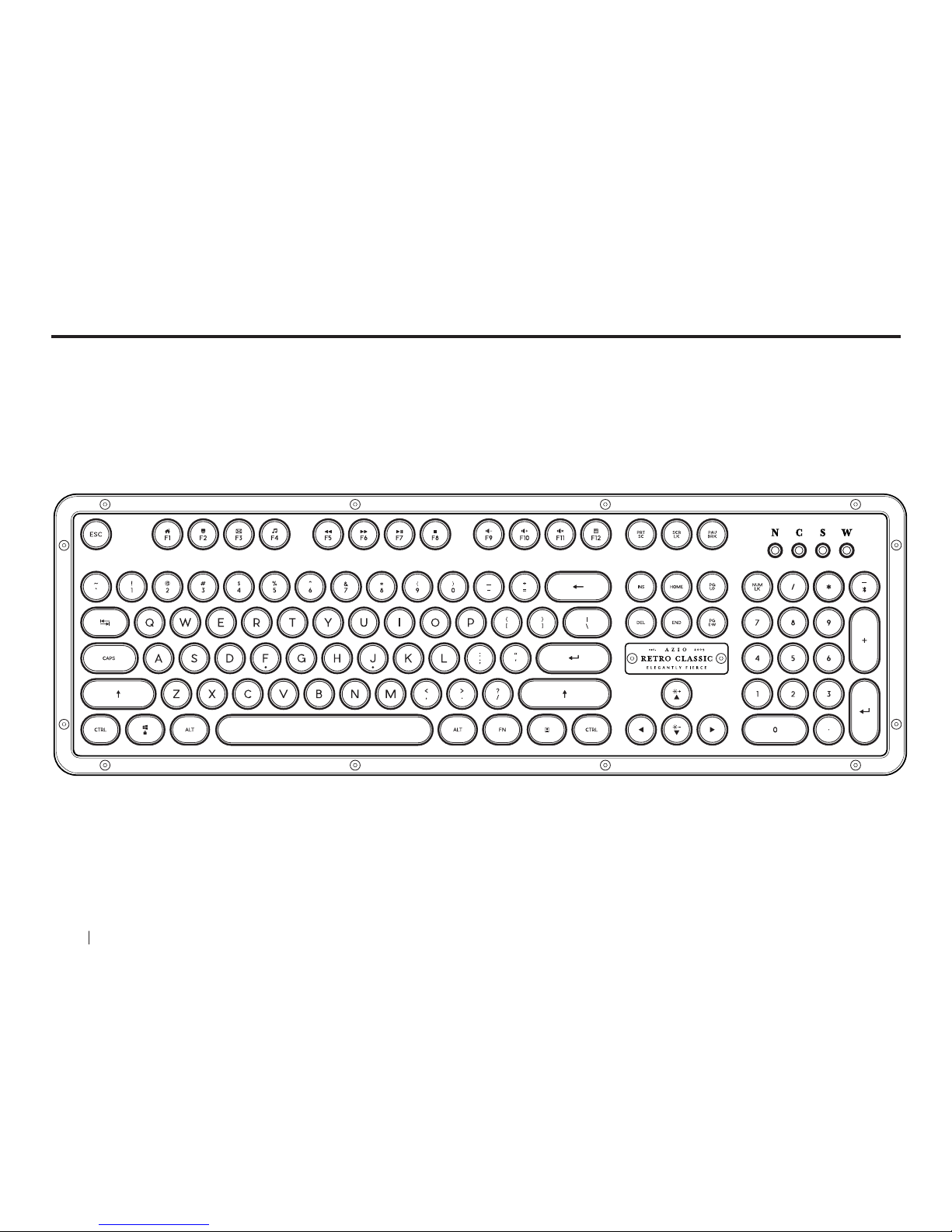

L AYOUT
PC MODE
08 AZIO RETRO CLASSIC
