Aztech 56K PCI Modem Manuale utente
Easy Start
(Read Me First)
Version 1.0
56K PCI Modem
Windows® 95, 98, Me, XP, 2000 and Windows NT® 4.0 supported.
Contents
About this Easy Start ......................................... 2
Package ............................................................ 2
Step 1: Installing Your Modem Card ................... 3
Step 2: Connecting Your Modem ........................ 4
Step 3: Installing Your Modem Driver .................. 5
3.1 For Windows® XP users ............. 5
3.2 For Windows® Me users ............ 8
3.3 For Windows® 98 users ............ 10
3.4 For Windows® 95 users ............ 12
3.5 For Windows® 2000 users ........ 14
3.6 For Windows NT® 4.0 users ...... 16
2
56K PCI Modem Easy Start
About this
Easy Start
This booklet contains information on setting up your 56K
PCI Modem. It touches on the key installation procedures
to help you setup your modem.
Product warranty does not apply to damage caused by lightning, power surges or wrong voltage.
For more detailed descriptions of your card and installation procedures,
you may refer to the ReadMe.txt file and 56K PCI Modem User Manual
found on your Installation CD. The manual also includes the sections on
frequently asked questions and troubleshooting guide.
For users who have not install a modem card before, it is recommended that you
refer to the User Manual on the Installation CD for detailed installation instructions.
Package
Please check that you have the following items in your package. If you found any
missing items, please contact your dealer immediately.
1 56K PCI Modem Card
1 Installation CD
1 Telephone extension cable (optional)
1 56K PCI Modem Easy Start
3
56K PCI Modem Easy Start

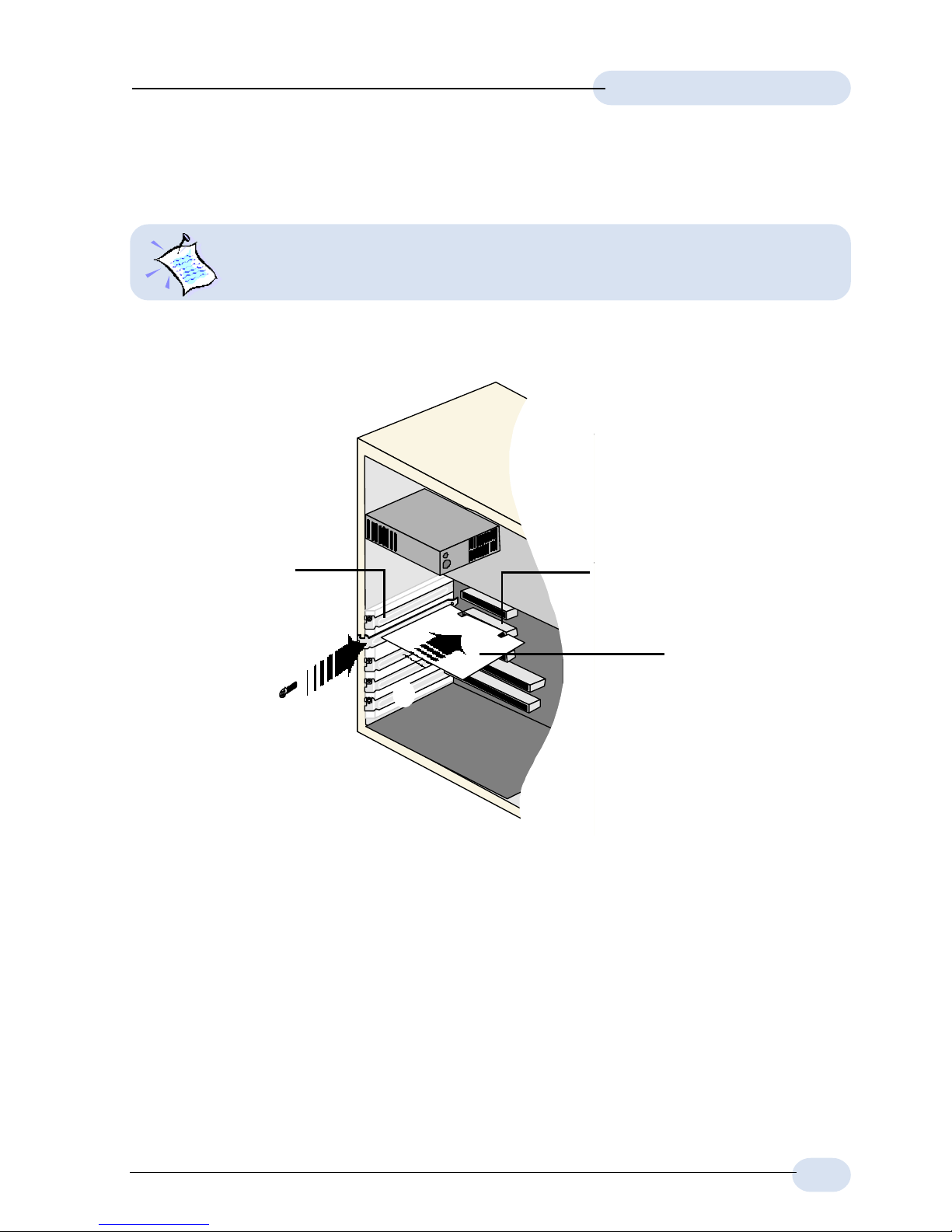

Step 1: Installing Your Modem Card
Modem Card
PCI-Bus Slot
Cover Plate
Mounting
Screw
Ê
Ë
Power off your computer and any connected devices before connecting
your modem card!
After removing the cover of your computer, locate any available PCI-Bus slot and
remove its cover plate.
ÊInsert your modem card firmly into the PCI-Bus slot.
ËSecure the modem card with the mounting screw and replace the cover of
your computer.
4
56K PCI Modem Easy Start

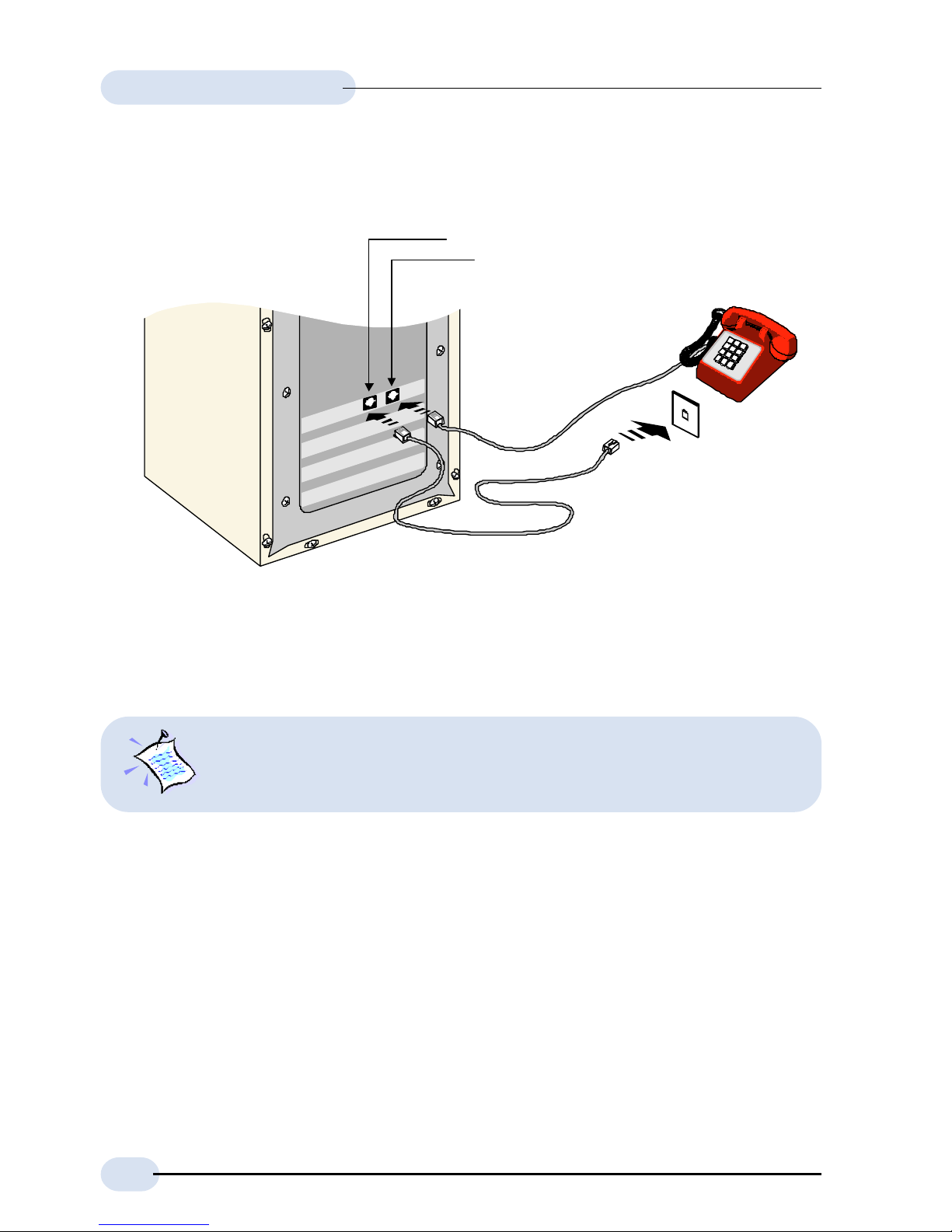

Step 2: Connecting Your Modem
Line Jack to Wall Socket
Phone Jack to telephone
Telephone Set
Telephone Wall
Socket
Telephone extension
cable
Connect your card as illustrated above. Upon completion, please proceed to the
following section to install the card driver.
The connection for the Telephone set is optional. The Phone jack
provides convenience to users who need to use the phone when accessing
the computer.
5
56K PCI Modem Easy Start
3.1 For Windows® XP users
1. Power on your computer to start Windows. It will detect your newly-installed
modem card and install a generic driver for your modem.
2. From your Windows taskbar, click Start > Settings > Control Panel. Double-
click on the Phone and Modems Options icon.
3. Click the Modems tab. You will see the generic modem listed. Click on the
Modem and select Properties.
Step 3: Installing Your Modem Driver
1. The screens shots in this section assume that your CD-ROM Drive
is ‘D’. Please change the letter according to your own CD-ROM
drive.
2. Depending on your system configurations, you may prompt for your
Windows CD-ROM during the driver installation. Have it ready by
your side.
3. The screen shots, screens information and steps illustrated in
this booklet serve only as a guide. The exact information you
see on your system may vary, depending on your system
configurations. For any dissimilarities, follow closely to the
instructions prompted on your computer.
4. Select the Driver tab and
click Update Driver.
6
56K PCI Modem Easy Start
5. The Hardware Update Wizard will appear. Place the Installation CD into your
CD-ROM drive.
Select Install from a list or specific location (Advanced) option and click
Next.
6. Click Dont search. I will choose the driver to install option and click Next.
7. Click the Have Disk button.
8. Click Browse and navigate to the WinXP folder on your Installation CD and
click OK.
7
56K PCI Modem Easy Start
9. Click on 56K PCI Modem and click Next.
10. At the Hardware Installation prompt, click Continue Anyway.
11. Click Finish to complete the installation.
Close the Modem Properties dialog box. This completes the installation of the
modem driver in Windows®XP.
8
56K PCI Modem Easy Start
3.2 For Windows®Me users
1. Power on your computer to start Windows. It will detect your newly-installed
56K PCI Modem and prompt for its driver.
Select Specify the
location of the driver
(Advanced) option and
then click Next.
2. Place the Installation CD into
your CD-ROM drive.
Click Specify a location. Click
Browse and navigate to Winme
folder on the Installation CD.
Click Next.
3. Click Next again to
proceed installation with
the driver found.
(Do not worry if the driver
name (.inf) on your
computer differs from
what is illustrated here.
They are all referring to
the same installation files.)
9
56K PCI Modem Easy Start
4. To complete the driver
installation, click Finish.
This completes the installation of the modem driver in Windows®Me.
10
56K PCI Modem Easy Start

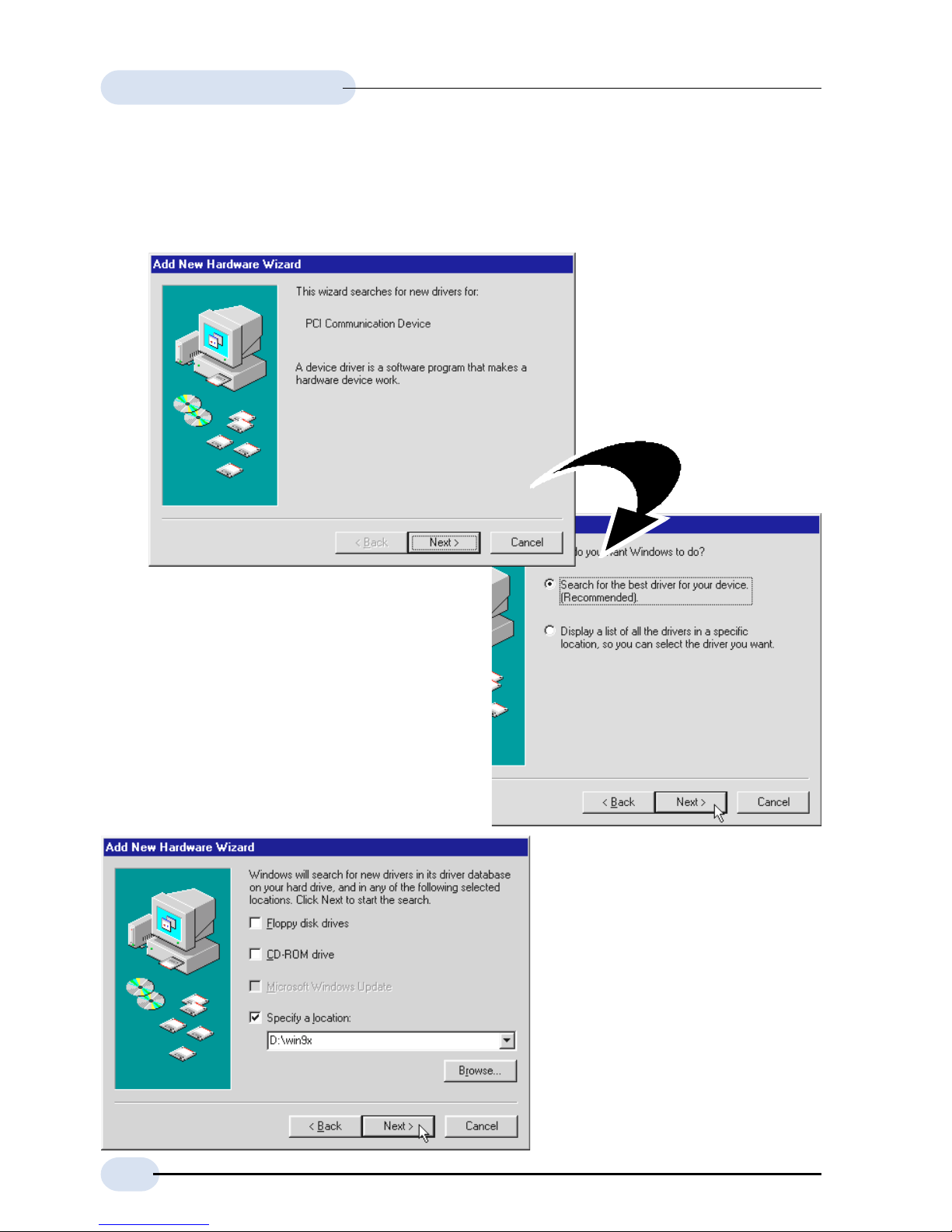

3.3 For Windows®98 users
1. Power on your computer to start Windows. It will detect your newly-installed
56K PCI Modem and prompt for its driver.
2. Place the Installation CD
into your CD-ROM drive.
Select Search for the best
driver for your device
(Recommended) and click
Next.
3. Select Specify a
location. Click Browse
and navigate to Win9x
folder on your
Installation CD.
Click Next.
Altri manuali Aztech Modem
