Read all instructions BEFORE assembly and USE of product.

KEEP INSTRUCTIONS FOR FUTURE USE.

05.07

Instruction Manual

Convenience through innovation and thoughtful design

Sit N Stand Plus Tandem Stroller

with Car Seat Snap N Go Attachment System

Model #: 7574 Plus

US PATENT #5,664,795

WARNING: Please follow all of these instructions to ensure the

safety of your child. Keep these instructions for future reference.

WARNING: Failure to follow these instructions could result in

serious injury or death. Avoid serious injury from falling or sliding out.

Always use the safety belts and insure that the children are properly

positioned according to these instructions.

WARNING: Never leave children unattended.

* Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of the stroller and

cause a hazardous, unstable condition.

* The maximum weight that can be carried in the storage basket is 5 lbs. The maximum weight that can be carried

in the Parent Tray is 3 lbs. Excessive weight may cause a hazardous unstable condition to exist.

* Be certain the stroller is completly opened and locked in place before allowing a child near the stroller.

* The rear stand on platform is designed for a child who is at least 2 1/2 years old and is not over 40 inches tall.

Use of the stroller with two (2) children weighing more than 40 pounds each, or children totaling more than

80 pounds, will cause excessive wear and stress on the stroller and may cause a hazardous unstable

condition to exist.

* DO NOT use the stroller on stairways or escalators.

* Never allow your stroller to be used as a toy.

* To clean use only mild household soap or detergent and warm water on a sponge or clean cloth.

* Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or

repair parts as needed.

* Discontinue use of stroller should it malfunction or become damaged. Please contact our customer service

department to arrange for repair or obtain replacement parts.

Please: If you experience any difﬁculty with the use of our product or have a question regarding these instructions,

please contact our Customer Service Department at (800) 328-7363 between the hours of 8:00 am and 4:30 pm

Paciﬁc Standard Time or visit us online at www.babytrend.com. Please do not return to the store as once it is

returned it cannot be resold and the materials and energy used to make it are wasted.

To contact us:

Baby Trend, Inc. Parts Hotline:

1567 S. Campus Ave. (800) 328-7363

Ontario, CA 91761 8:00 am and 4:30 pm Paciﬁc Standard Time

WARNINGS

ASSEMBLY

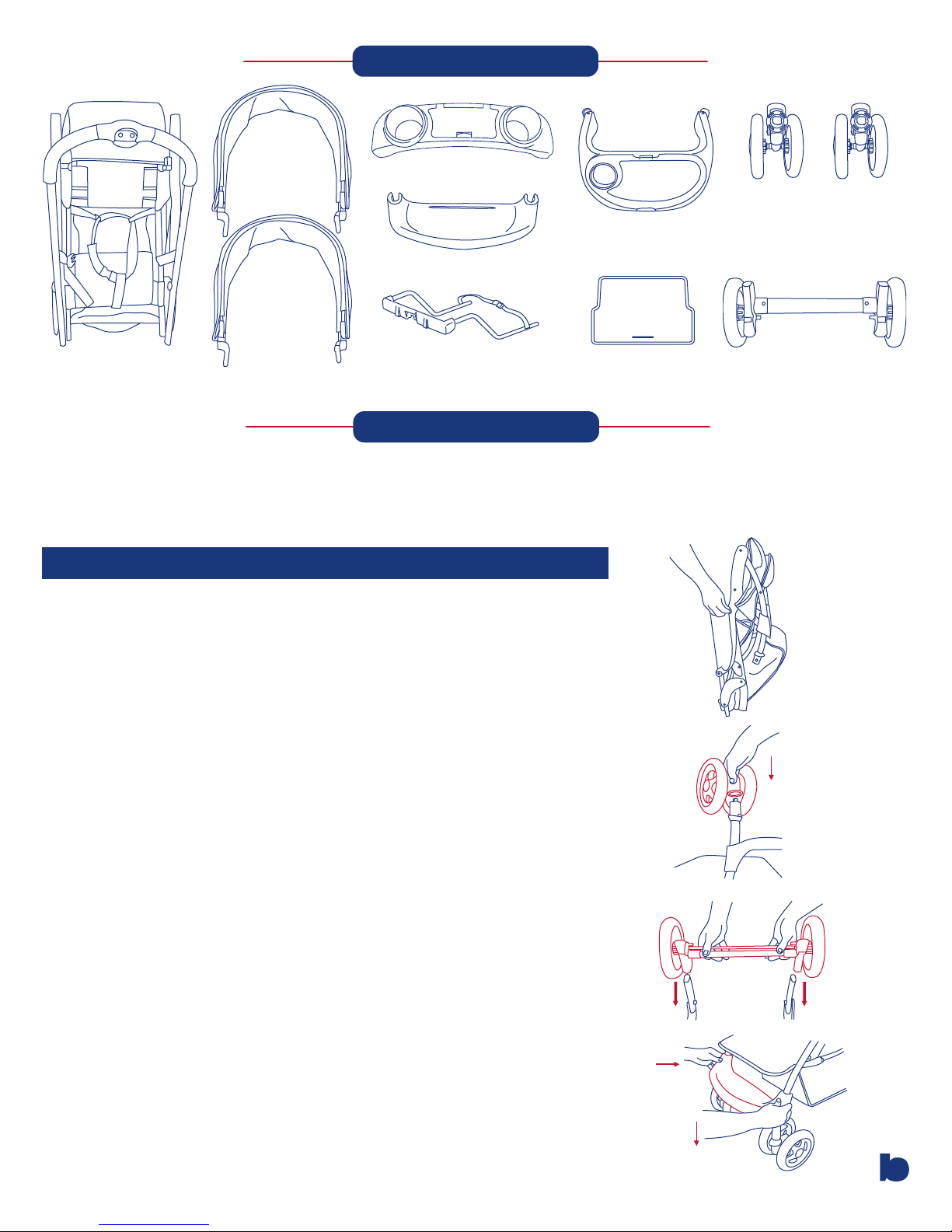

1. Remove stroller from box. The front wheels, rear wheels, child tray, and

canopies need to be installed prior to use.

2. To attach the front wheels, unfold stroller as described in the section

following. Fig. 1. Lean the stroller backwards so that it rests on the

handle and rear frame tubes and the front wheel tubes are pointing

upward. Position the front wheel assembly at the front tube such that

the large hole in the swivel assembly will slide onto the front tube. Push

each front wheel assembly onto the front tube being careful that wheel

assembly locks onto the front leg. Pull on the wheel assembly to ensure

that it is securely attached to the stroller. Fig. 2.

3. Lean the stroller forward to rest on the front wheels. To attach the rear

wheels, position the rear axle and wheel assembly such that the brake

levers are facing to the rear of the stroller. Press the rear wheel assembly

onto the rear frame tubes being careful that the push buttons on the

forward side of each rear tube engage the hole on the forward side of

each rear wheel housing. Pull on the rear wheel assembly to ensure that

it is securely attached to the stroller. Fig. 3.

4. Ensure that the wheels are ﬁrmly locked into place. Do Not use the

stroller if the wheels are not locked into place, but rather contact our

customer service department immediately at (800) 328-7363, between

the hours of 8:00am and 4:30pm PST, for assistance.

5. Snap footrest onto front legs of stroller just below the seat. Push

downward on the footrest until it locks onto the rivets protruding from

both sides of each leg and snaps onto the U-shaped frame cross member.

Fig. 4.

PARTS

ASSEMBLING

Child Tray

Foot Rest

Front Wheels

Stroller

Snap N Go

Attachment Bar

Rear Wheels

Parent Tray

Front/Rear Canopies

TO ENSURE SAFE OPERATION OF YOUR STROLLER, PLEASE FOLLOW

THESE INSTRUCTIONS CAREFULLY. RETAIN THESE INSTRUCTIONS FOR

FUTURE REFERENCE.

Snap On

Push

Down

Fig. 1.

Fig. 2.

Fig. 3.

Fig. 4.

Jump Seat Pad

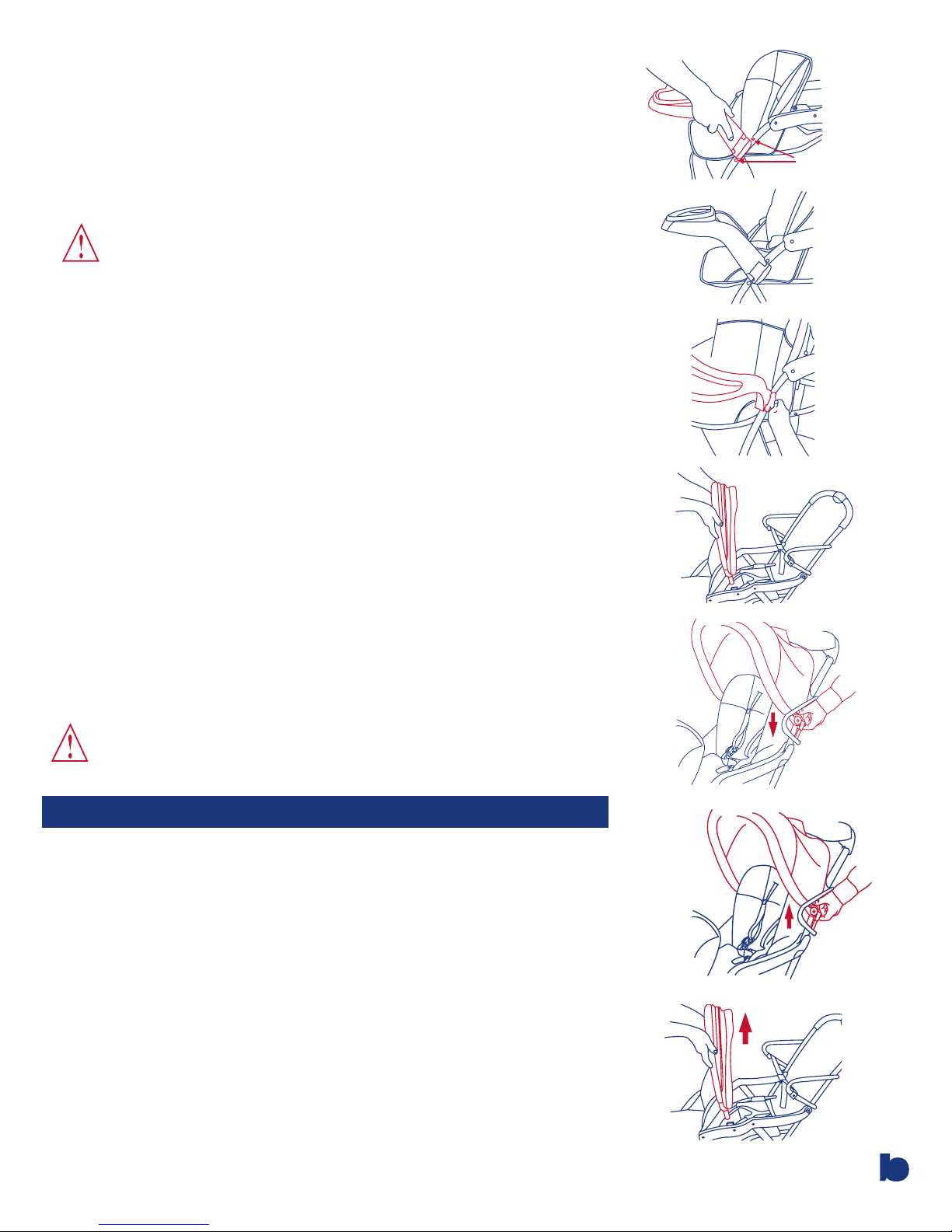

6. To attach the front child tray, push the tray onto the front frame tube,

lining up the tray between the protruding rivets. Push backward on the

latch until snapped into place. The protruding rivets on the outside of

the frame tube should be between the tray latch. Check that the tray is

securely latched in place. Fig. 5 and Fig. 6.

7. To remove front child tray, pull outward on the latches and pull outward

on the tray. Fig. 7. Please note that you may attach or remove one end

at a time.

WARNING: The childʼs tray is not a

restraint device: always secure your child with

the seat belt. DO NOT lift the stroller by the

childʼs tray. Use care when attaching the childʼs

tray on the stroller with a child in the stroller.

8. To attach the front canopy, line up the male ﬁttings on the canopy with

the female ﬁttings on the armrest and push both ﬁttings downward until

snapped into place. Fig. 8. Push forward on the front edge of the canopy

to open.

Fig. 5.

Fig. 6.

Fig. 7.

Fig. 8.

Rivet

9. To attach the rear canopy line up the female ﬁttings of the canopy with

the male ﬁttings on the handle frame tube and push downward. Fig. 9.

10. To remove rear canopy reverse installation steps and pull up to remove.

Fig. 9A.

11. To remove front canopy depress the plastic attachment and pull upward

to remove. Fig. 9B.

Fig. 9.

Fig. 9A.

Fig. 9B.

WARNING: Avoid serious injury from

falling or sliding out. Always use the seat belt.

TO SECURE FRONT/REAR SITTING CHILDREN

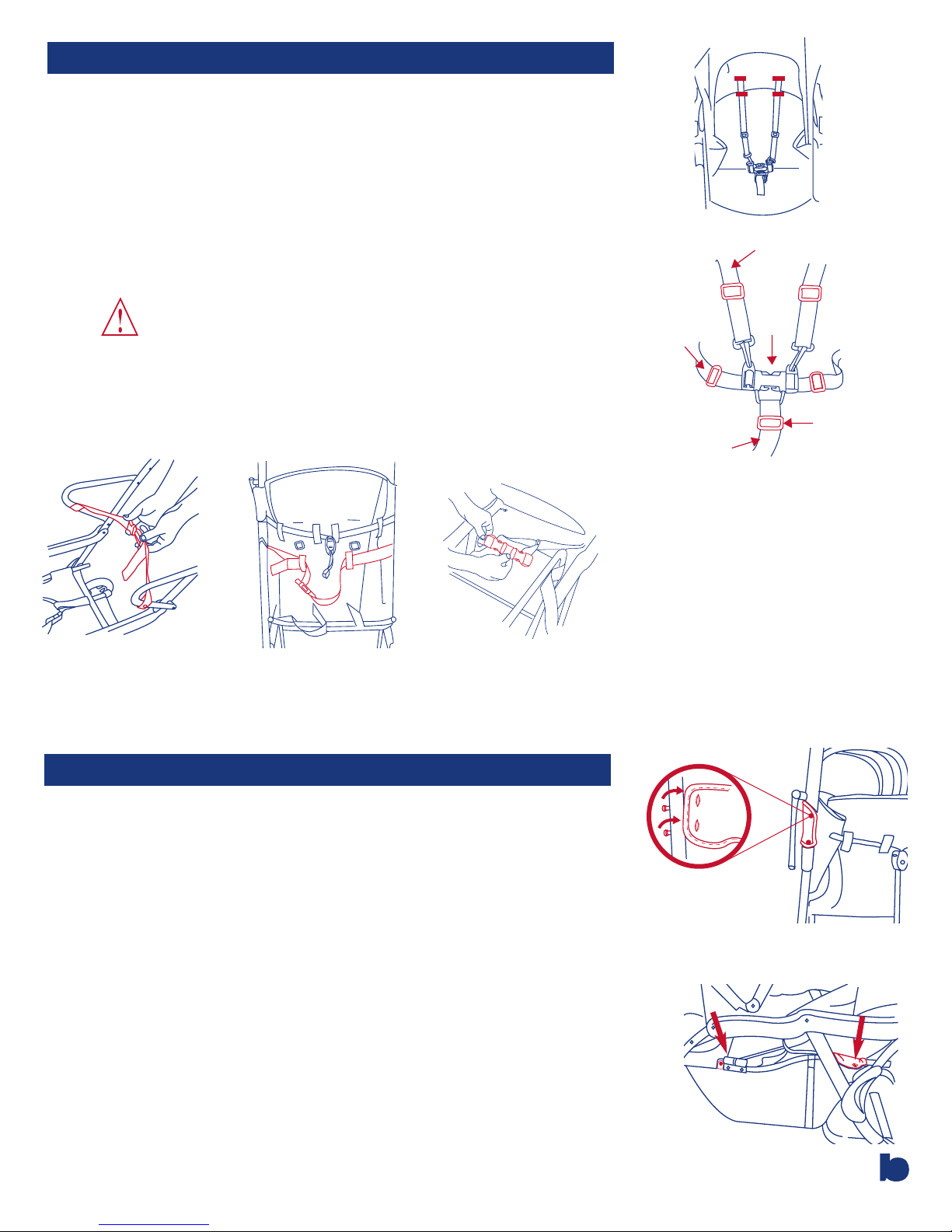

1 The shoulder straps of the 5-point harness has 2 attachment positions.

Select the loop position that places the shoulder strap level with, or below

the top of the childʼs shoulder and feed the shoulder harness under the

correct loop. Fig. 10.

2. Carefully place the child in the stroller seat and bring the safety harness

around the childʼs waist and over the shoulders. Place the crotch strap

and between the childʼs legs. Insert the male end of each shoulder / waist

belt into the buckle on the crotch strap. Tighten the harness to be snug

around the childʼs waist and over the childʼs shoulders. Fig.11.

3. To release, apply pressure to both sides of each male clip until the clip

is released. This process requires a moderate amount of effort so as to

prevent an accidental release by your child. NOTE: Buckles may be hard

to release when 1st used.

TO SECURE CHILD

1. The rear platform and jump seat are designed to accommodate a child

who is at least 2 1/2 years old, has good balance and coordination, and is

not over 40 inches tall. Position the child on the platform on the back of

the stroller. Be sure child is facing forward and hands are holding frame.

Secure the safety belt behind child and engage buckle. Fig. 12.

2. Be sure that the childʼs feet are fully on the platform at all times.

PLEASE NOTE: When using the rear SEAT you must put the STAND

FEATURE SAFETY BELT in the storage location located on the rear of

the seat. Please See Fig. 12A

WARNING: To avoid a possible

choking hazzard when using the rear seat, put

the STAND FEATURE SAFETY BELT in the

storage location on the rear of the seat.

TO SECURE REAR STANDING CHILD

Fig. 11.

Fig. 12.

Shoulder Strap

Squeeze

Crotch Strap

Waist

Strap

Adjust for a

snug fit

Fig. 10.

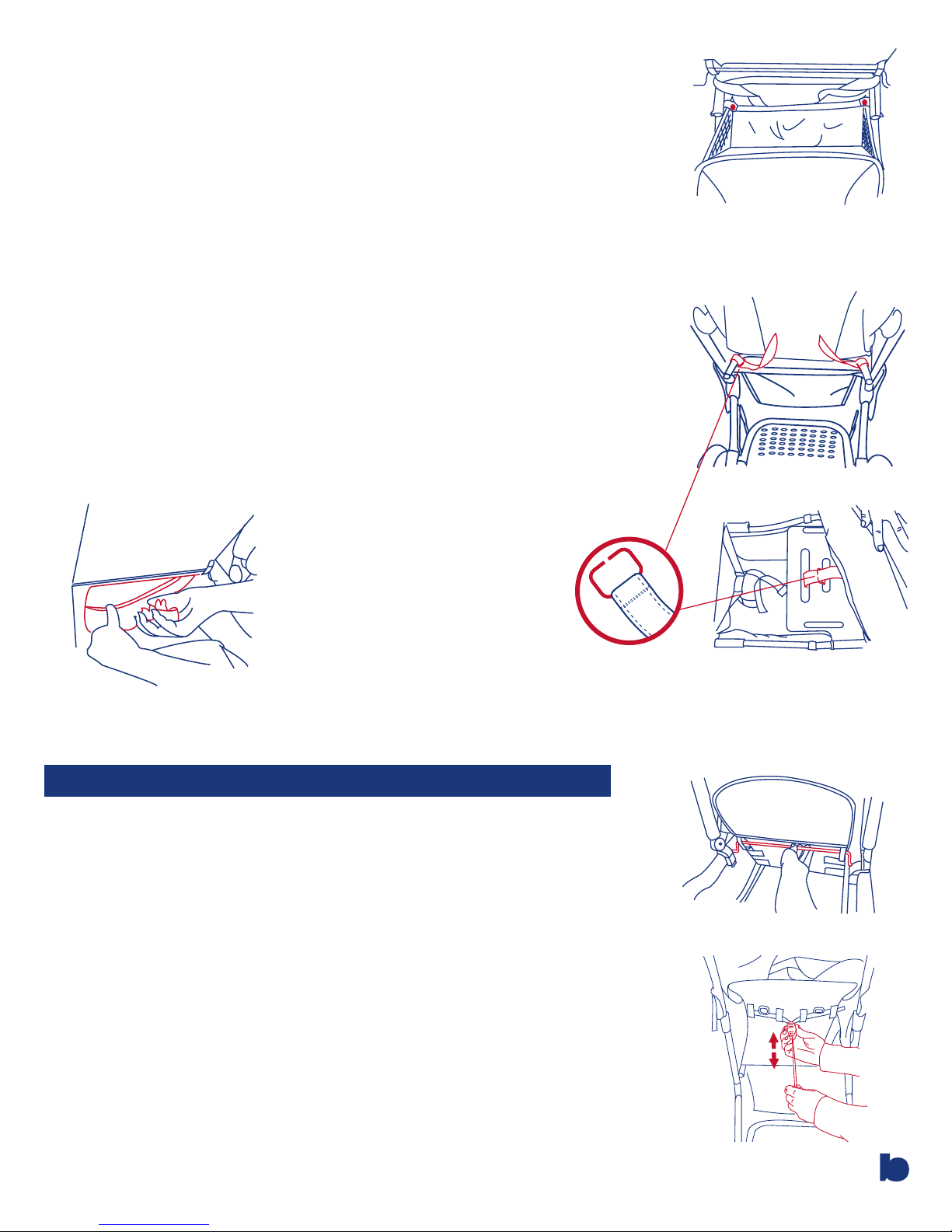

STEP ONE: REMOVING THE REAR SEAT

1. Remove the rear canopy by sliding the square ﬁttings upward until they

disconnect from the frame.

2. Remove the rear seat from the frame by un-buttoning the upper and lower

seat back fabric from the frame (Fig. 13 & 14) and un-snaping both front

connection points. Fig. 15

3. Detach the (2) shoulder straps from the frame by folding and sliding the

strap through the “D-ring” located on the end of each strap. Fig. 16.

4. Detach the center crotch strap from the frame by folding and sliding the

strap through the “D-ring” located on the end of the strap. Fig. 17.

TO USE JUMP SEAT

Fig. 12A. Fig. 12B.

Upper

Lower

Snap point

Fig. 13

Fig. 14

SEATBACK POSITIONING

1. The front seat has a two position recline. To recline the seat, rotate the

recline bar and press backward on the seat back. Fig. 19. To place the

seat in the upright position, press upward on the seat back while rotating

the recline bar.

2. The upright position should be used only for a child that is at least 6

months old. Note: Seat does not fully recline.

3. To recline the rear seat locate the plastic adjuster and squeeze the ends.

Loosen or tighten the strap to your desired recline position. Fig. 20.

TO RECLINE SEATS

Fig. 19.

Fig.20. 6

STEP TWO: INSTALLING JUMP SEAT PAD

1. Slide the Pad over the front of the Jump Seat platform and into the front

pocket of the Pad cover.

2. Insert the safety harness, crotch strap through the Pad in the

slot provided.

3. Fold the Pad over the seat and secure conneting the straps together.

4. Have child sit on the jump seat facing backwards. Secure the seat belt,

which is attached to the back of the seat, around the childʼs waist, and

buckle to the crotch strap. Fig. 12B. Adjust the seat belt to be snug around

the childʼs waist.

5. To release, apply pressure to both sides of the male clip until the clip

is released. This process requires a moderate amount of effort so as to

prevent an accidental release by your child.

6. Be sure that the childʼs feet are fully on the platform at all times.

When you are not using the jump seat harness, place it in the storage location

on the rear of the front seat. Fig. 18

D-ring

Fig. 16

Fig. 17

Fig. 18

Fig. 15

WARNING: Always set brakes when

the stroller is not being pushed so that the

stroller will not roll away. Never leave stroller

unattended on a hill or incline as the stroller

may slide down the hill.

1. To engage brakes, apply light downward pressure to the brake lever located

on each rear wheel. The stroller may require slight forward or rearward

movement in order to line up the teeth on the brake with each wheel

brake cluster. Fig. 21. Check that the stroller will not move and that the

brakes are properly applied. To release, gently lift up on the brake lever.

Fig. 22.

CANOPIES

1. To open the canopies, push forward on the front frame of the canopies.

To close canopies, pull the front edge toward the rear of the stroller until

folded. Always fold the canopies prior to folding the stroller frame.

Fig. 23.

2. The canopies will ratchet forward or back to block the sun. Pull forward

on the front canopy frame tube to move forward. Pull backward on the

rear frame tube to move back.

TO REMOVE FRONT CHILD TRAY

1. To remove front child tray, pull forward on the locking lever on the tray

arms to unlock. Please see Fig. 7. Please note that you may attach or

remove one end at a time. Also, the tray may be released on either side

and will swing away for easy access to your child.

Do Not allow children near stroller while folding.

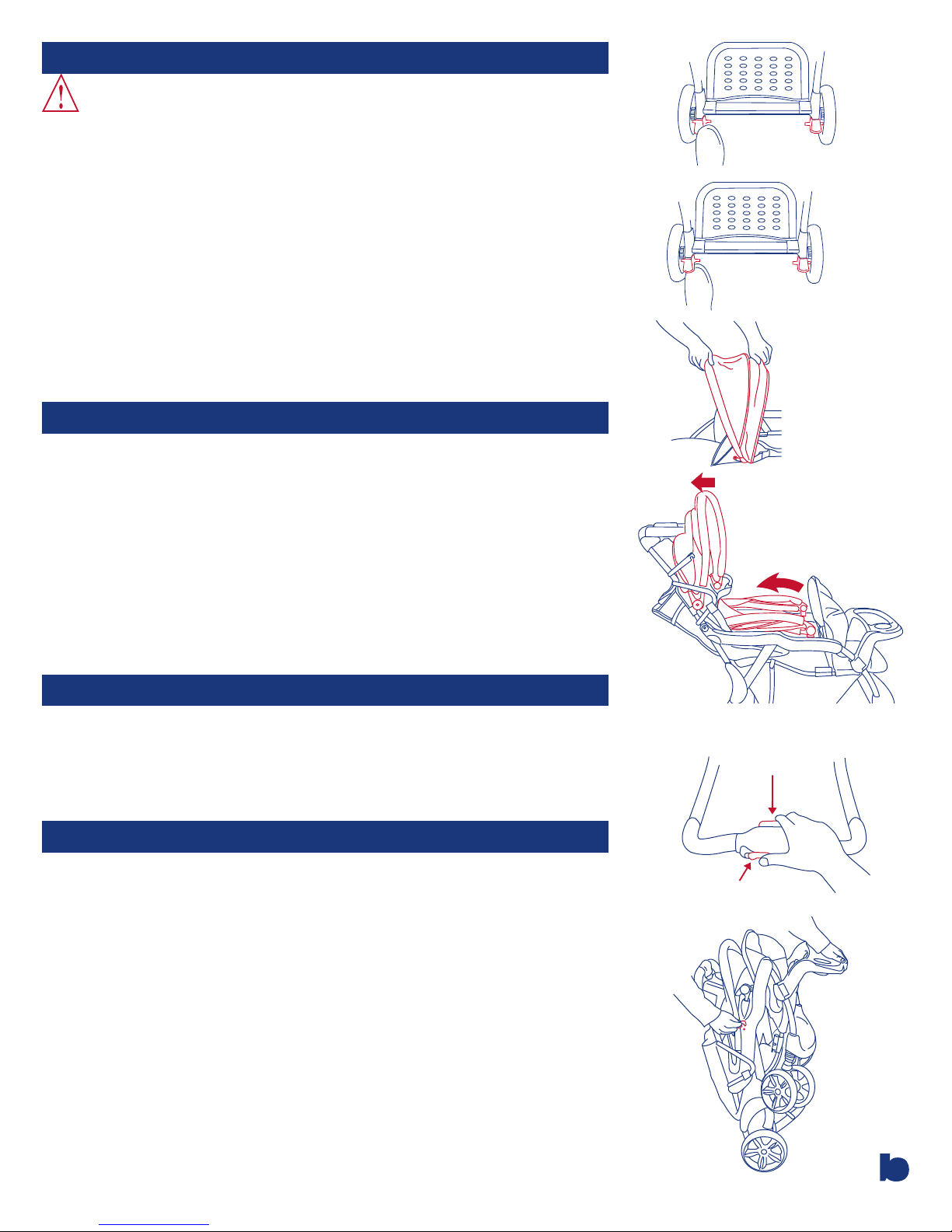

1. Close the canopies as described in the Canopies section above. Ratchet

the front canopy all the way back. Fig. 24.

2. Unbuckle rear standing safety belt. Fig. 12.

3. To fold the stroller slide the red fold latch safety button in the center of the

handle and squeeze the red handle while pushing forward on the handle.

Once the stroller begins to fold, release the red handle and pull upward on

the child tray until the stroller is folded. Fig. 25.

4. Secure the stroller in the folded position by latching the fold latch, located

on the right side of the stroller handle, over the extended rivet on the

armrest. You may have to rotate the front wheels to fold the stroller

completely. Fig. 26.

Fig. 23.

Fig. 24.

Fig. 21.

Fig. 22.

Release Button

Fold Button

Fig. 26.

TO FOLD STROLLER

BRAKES

Fig. 25.

TO UNFOLD STROLLER

Do Not allow children near stroller while unfolding.

1. Release the folding latch, which is located on the right side. Fig. 26.

2. Lift up on the stroller handle with both hands until the stroller frame is

erect and locked in the open position. The stroller has spring-loaded

latches on both sides of the frame. Test that both latches are fully engaged

prior to placing your child in the stroller.

STOP

IF YOU EXPERIENCE ANY DIFFICULTY IN USING THIS PRODUCT,

PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AT

(800) 328-7363 BETWEEN THE HOURS OF 8:00AM AND 4:30PM PACIFIC

STANDARD TIME FOR ASSISTANCE.

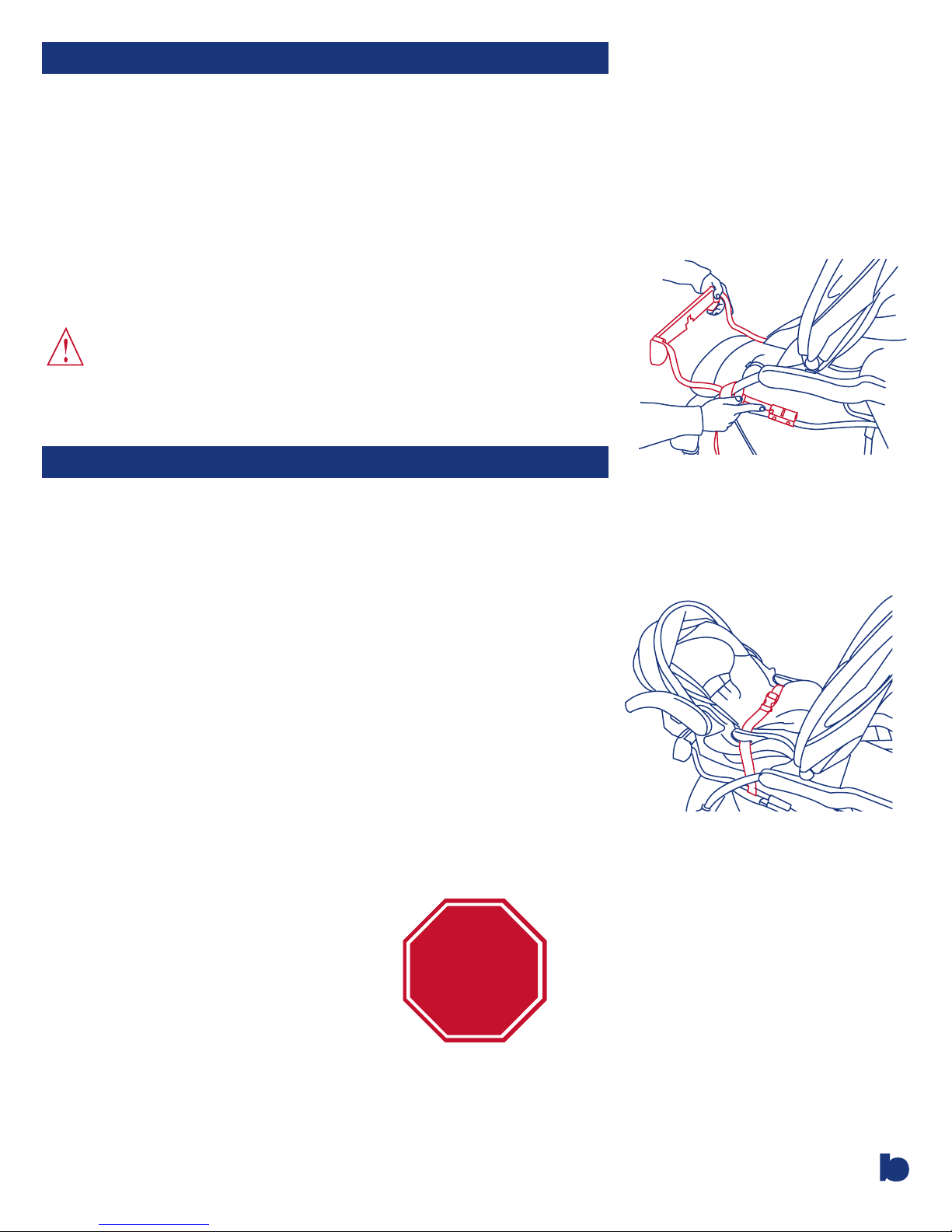

TO ATTACH AN INFANT CAR SEAT

1. Recline the front seat back. Remove the child tray.

2. Slide snap n go attachment bar into the female slots located on the

frame tube. Make sure the snap n go attachment bar locks in place

before attaching the car seat. Fig. 27.

3. Place car seat onto front bar. Fig. 28. NOTE: Most brands of

infant car seats will lock onto the front bar, and some brands may

simply rest on the front bar, FOR SAFE OPERATION, IT IS

VERY IMPORTANT THAT THE CAR SEAT STRAP IS

ALWAYS TIGHTLY FASTENED AROUND THE CAR SEAT.

4. Strap the safety belt over the car seat and through the seat belt slots

on your car seat, connect the buckles together. Tighten the strap so

the car seat ﬁts snug and can't move. Fig. 28. Check that the car

seat is secure before using the stroller.

Fig. 27.

Fig. 28.

WARNING: Avoid serious injury from

falling, Do Not use the Snap N Go bar if it is not

securely locked onto both sides of the stroller.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Baby Trend Passeggino

Baby Trend

Baby Trend 1st Debut TS86 Manuale utente

Baby Trend

Baby Trend TS41 A Series Manuale utente

Baby Trend

Baby Trend TS42 Manuale utente

Baby Trend

Baby Trend 1140RC Manuale utente

Baby Trend

Baby Trend Tango TS08 A Series Manuale utente

Baby Trend

Baby Trend Royal SE TS86B Manuale utente

Baby Trend

Baby Trend TS12 D Series Manuale utente

Baby Trend

Baby Trend Rocket Stroller ST21 Manuale utente

Baby Trend

Baby Trend SS67 Manuale utente

Baby Trend

Baby Trend Go Lite Propel 35 TJ16 Manuale utente

Baby Trend

Baby Trend Expedition ELX Manuale utente

Baby Trend

Baby Trend DOUBLE SNAP N GO 1305TW Manuale utente

Baby Trend

Baby Trend Expedition DLX Travel System TJ75 P Series Manuale utente

Baby Trend

Baby Trend JG94 Expedition Manuale utente

Baby Trend

Baby Trend Expedition 2-in-1 Stroller Wagon PLUS WG01 A... Manuale utente

Baby Trend

Baby Trend Sit N Stand Double Manuale utente

Baby Trend

Baby Trend Navigator DJ86 B Series Manuale utente

Baby Trend

Baby Trend Expedition DLX TJ75 K Series Manuale utente

Baby Trend

Baby Trend Expedition TJ93 A Series Manuale utente

Baby Trend

Baby Trend EZ Ride TS40 A Series Manuale utente

Baby Trend

Baby Trend Safari 1866CT Manuale utente

Baby Trend

Baby Trend Sit N' Stand Snap Gear SS88 Manuale utente

Baby Trend

Baby Trend Snap-N-Go SG88B Manuale utente

Baby Trend

Baby Trend SS66XXX Manuale utente

Manuali Passeggino popolari di altre marche

Hauck

Hauck Priya Trioset Manuale utente

CHILDHOME

CHILDHOME CWQDN Manuale utente

Dreamer Design

Dreamer Design Rebound GST Manuale utente

Britax

Britax STEELCRAFT AGILE Manuale utente

Graco

Graco 7427 Manuale utente

Comfort

Comfort COMPASS Manuale utente

OBaby

OBaby Aura Manuale utente

Tutek

Tutek Tirso Manuale utente

Babify

Babify Dual Plus Manuale utente

Graco

Graco Stroller Manuale utente

Special Tomato

Special Tomato Jogger Manuale utente

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manuale utente

Otto Bock

Otto Bock Kimba neo Manuale utente

Milly Mally

Milly Mally ROYAL Guida rapida

Hauck

Hauck DUETT 3 PRAM Manuale utente

BOB

BOB DUALLIE Manuale utente

Nuna

Nuna Pepp Manuale utente

Britax

Britax B2 Manuale utente
