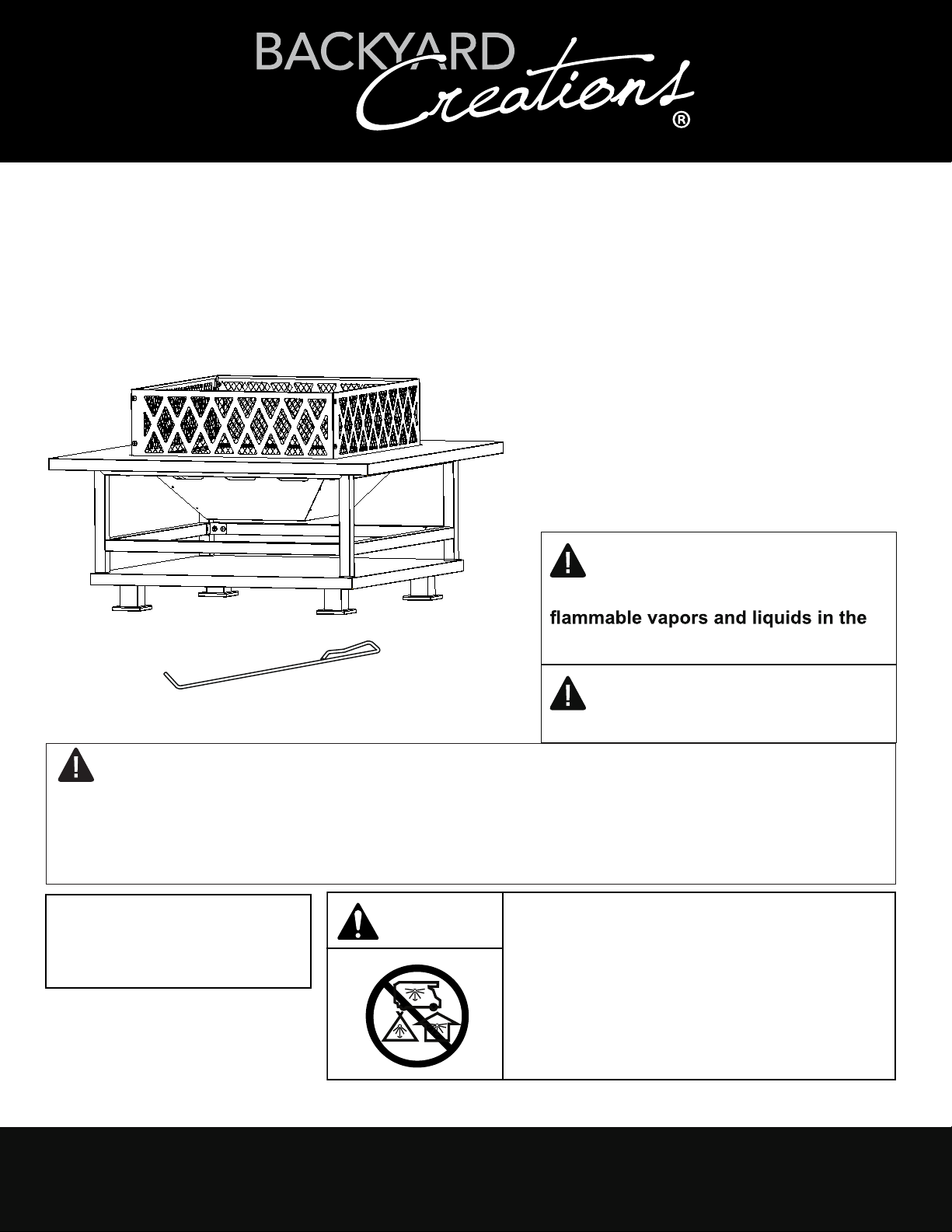

Backyard Creations 52286 Manuale utente

WARNING

Do not store or use gasoline or other

vicinity of this or any other appliance.

For outdoor use only.

DANGER CARBON MONOXIDE HAZARD

This appliance can produce carbon

monoxide which has no odor.

Using it in an enclosed space can kill you.

Never use this appliance in an enclosed

space such as a camper, tent, car or

home.

INSTALLER: Leave this manual

with the appliance.

CONSUMER: Retain this manual

for future reference.

Owner’s Manual

WARNING

with this appliance. Installation and service must be performed by a qualified installer,

service agency, or the gas supplier.

Improper installation, adjustment, alteration, service or maintenance can cause property

damage, personal injury or loss of life. Refer to the owner's information manual provided

36" Wood Fire Pit With Storage

Item# 52286

Sku# 2595244

WARNING

Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so

SAFETY INFORMATION

• FOR OU DOOR USE ONLY! his fire pit shall be used only outdoors in a well-ventilated space

and shall not be used in a building, garage, or any other enclosed area.

• DO NO add gasoline, kerosene, diesel fuel, lighter fluid or alcohol to relight or enhance flame.

Excessive heat may damage the integrity of the structure. he ONLY method of lighting used

should be a match or lighter. Do not use any flammable fuels.

• Never use charcoal or any other solid fuel in the fire pit.

• DO NO use the unit indoors due to hazard of carbon monoxide fumes. Lack of ventilation can

cause death.

• his fire pit was designed for burning untreated wood ONLY. Do not use with chemically treated

fire logs.

• DO NO pour water into fire pit when it is burning; this will cause rusting.

• Check the local bylaws before using the fire pit.

• Never leave a lighted fire pit unattended.

• DO NO use under any unprotected combustible structure. Keep combustible surfaces at least

48 inches away from all sides of the fire pit.

• Protective gloves and long-handled tools are recommended for use with this fire pit.

• Dispose of packing materials properly.

• DO NO use fire pit on wooden decks or on other combustible surface.

• Keep children away from hot fire pit.

• Fire pit will remain very hot for a period of time after using.

• Be sure fire pit is cooled before moving.

• Use with extreme care and at your own risk.

• his fire pit must be attended at all times!

• Do not operate fire pit unless it is completely assembled and all parts are in place.

• Pay attention when operating the fire pit. It is hot when in use and should never be left

unattended. Do not move it while in operation.

• Do not use this fire pit for cooking.

• Do not put any other fire pit cover or anything flammable on, beneath or around the fire pit.

• Never place clothing or other flammable materials on or near the fire pit.

• Users should be alerted to the hazards of high surface temperatures and keep a safe distance to

avoid burning or clothing ignition.

• Never lean over the open fire pit or place hands or fingers on the upper portion of an operational

unit.

This product can expose you to carbon monoxide, which is a combustion

by product known to the State of California to cause birth defects and other reproductive harm.

For more information go to www.P65Warnings.ca.gov.

WARNING :

Page 2

BCC

Item Description Qty

SAFETY INFORMATION

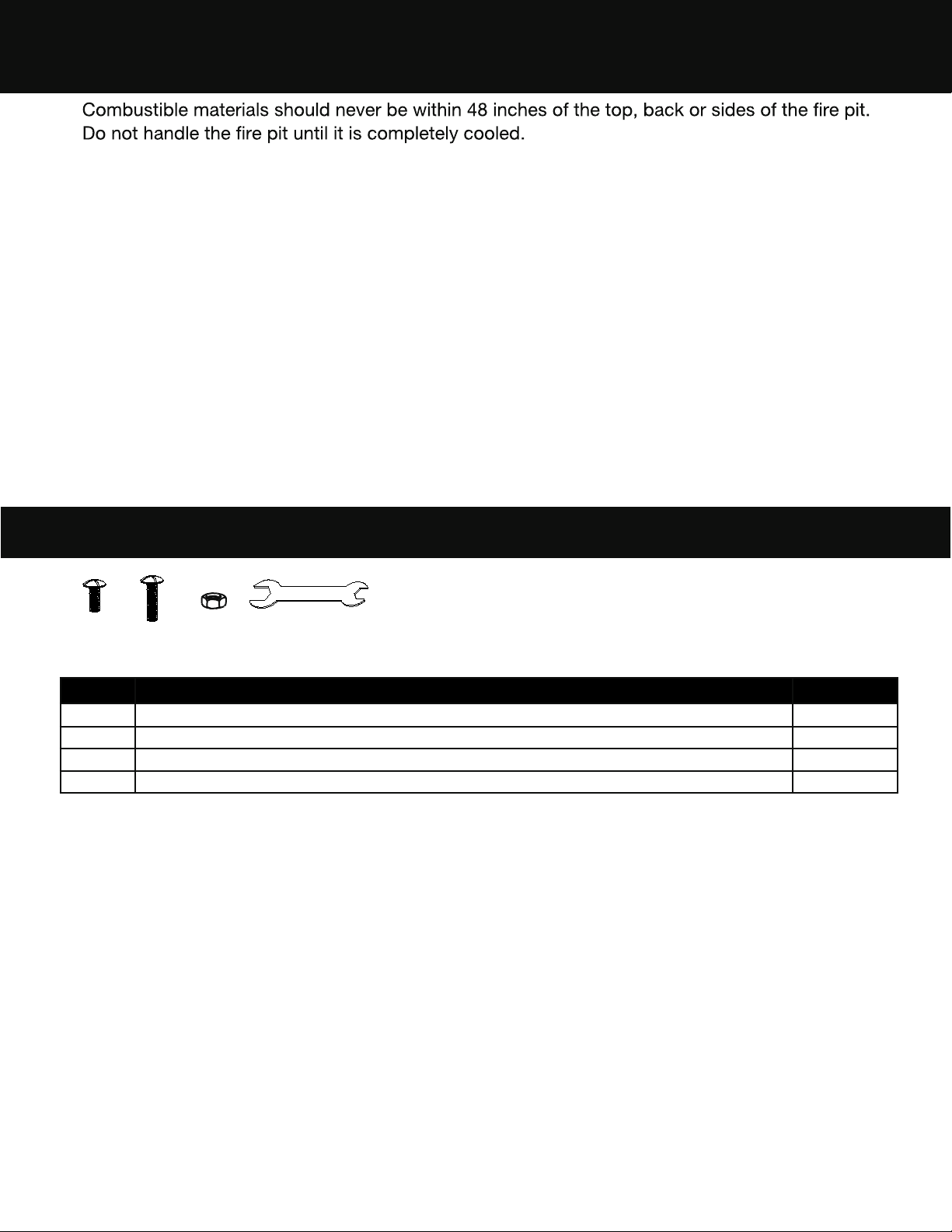

HARDWARE

This heating appliance should not be used on plastic or artificial wood decks.

Page 3

M6x12 Screw

M6x40 Screw

M6 Nut

Wrench

• Children should never operate this unit. Children must be supervised while near this unit.

• Children and adults should be alerted to the hazards of high surface temperatures and

should stay away to avoid burns or clothing ignition.

•Young children should be carefully supervised when they are in the area of the fire pit.

•Clothing or other flammable materials should not be hung from the fire pit or placed on or

near the fire pit.

•Any guard or other protective device removed for servicing the fire pit shall be replaced

prior to operating the fire pit.

Maximum safe fuel capacity: 10 lbs.

•

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and hardware contents list. If any part appears missing or damaged, don't use this product

and call customer service immediately.

Tools Required for Assembly: Wrench (included) and Phillips Screwdriver (Not Included)

Estimated assembly time: 20 minutes

Item Description Qty

CONTENTS

Page 4

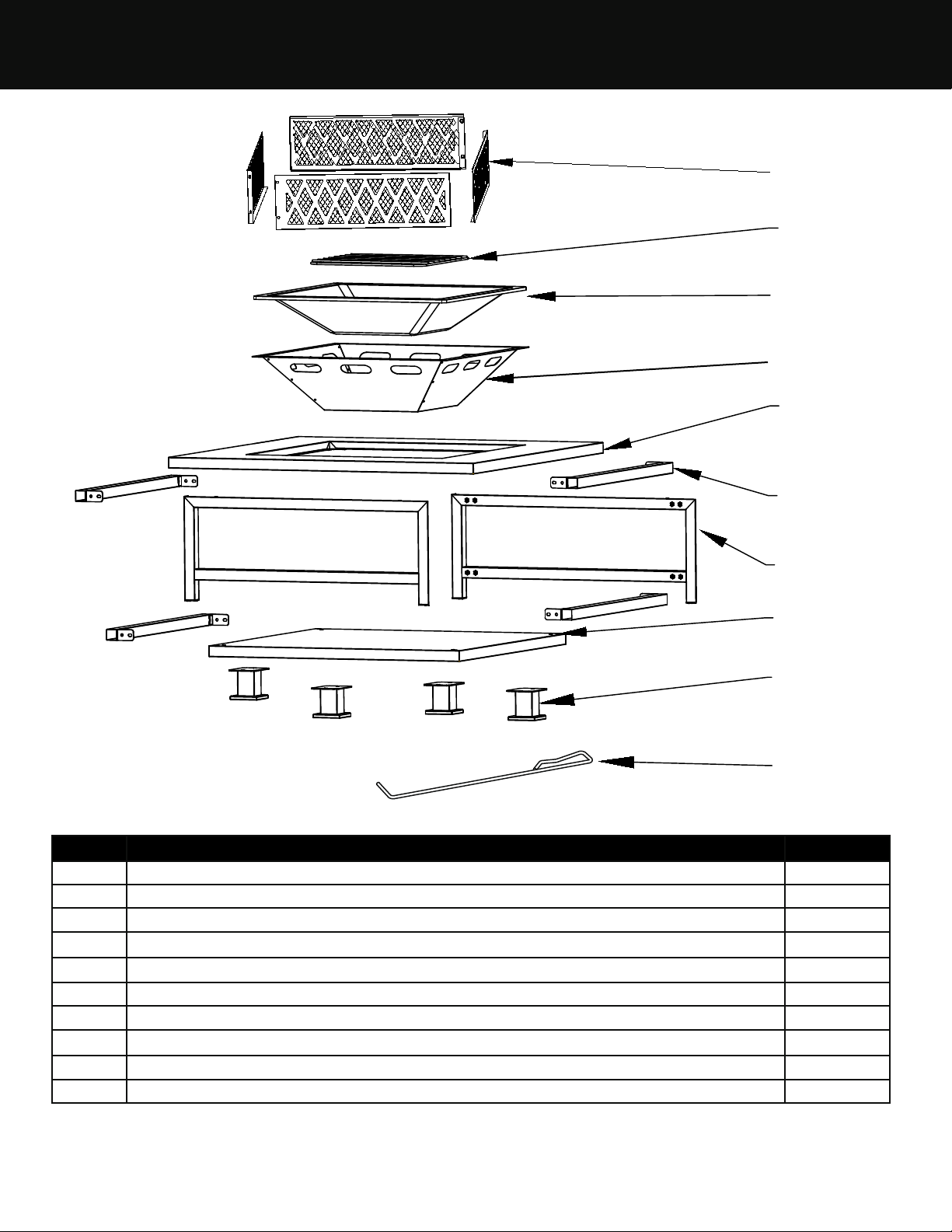

Mesh Panel

Log Rack

Fire Bowl

Heat Shield

Table Top

Connecting Rod

Support Frame

Bottom Panel

Feet

Fire Poker

ASSEMBLY INSTRUCTIONS

Page 5

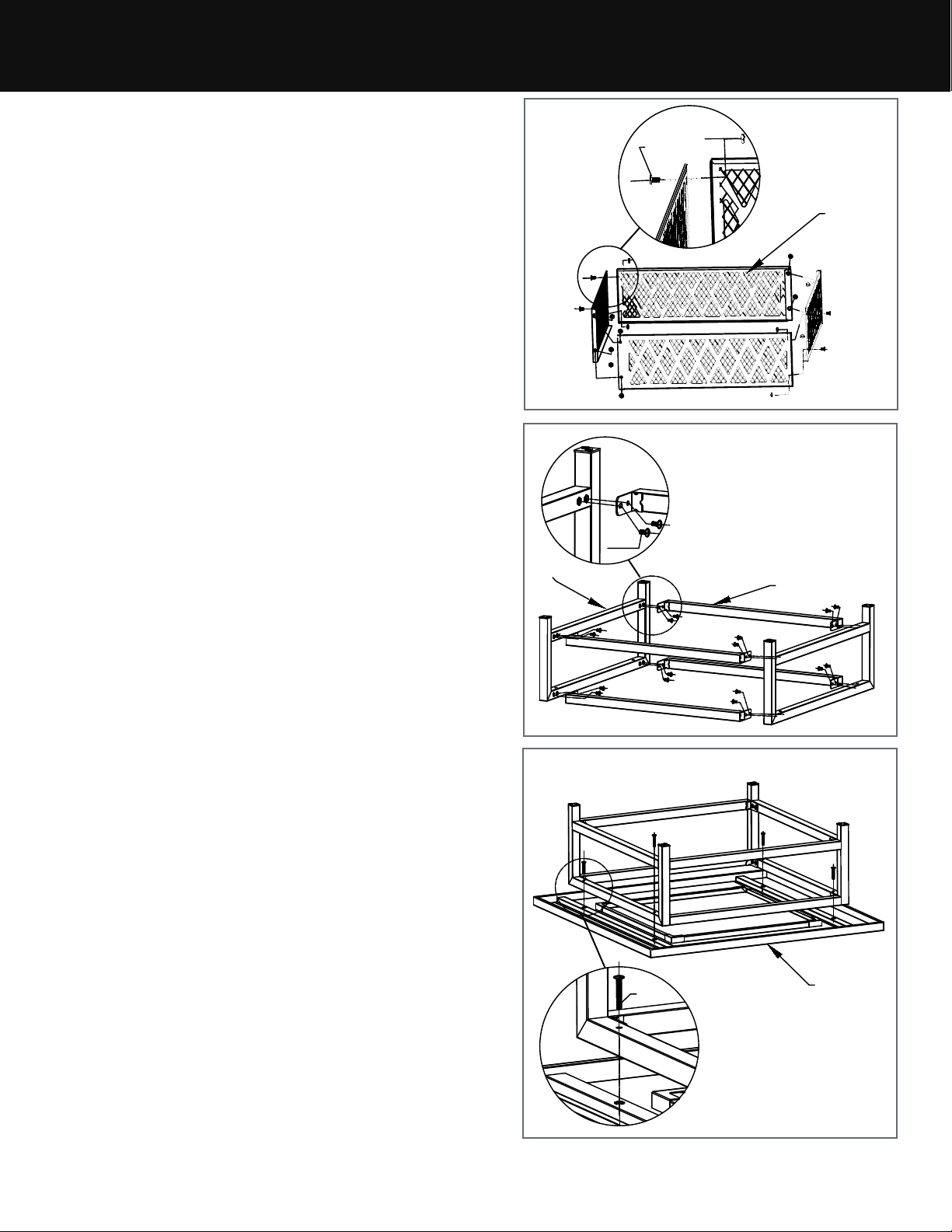

1. Attach 4 pcs mesh panels (A) together using 8 pcs

3. Attach support frame assembly to table top (E)

using 4 pcs M6 x 40 screws (BB).

GAA

2. Attach 4 pcs connecting rods (F) to 2 pcs support

M6x12 screws (AA) and 8 pcs M6 nuts (CC).

frames (G) using 16 pcs M6x12 screws (AA).

AA CC

Page 6

4. Attach bottom panel (H) to support frame

assembly using 8 pcs M6x12 screws (AA).

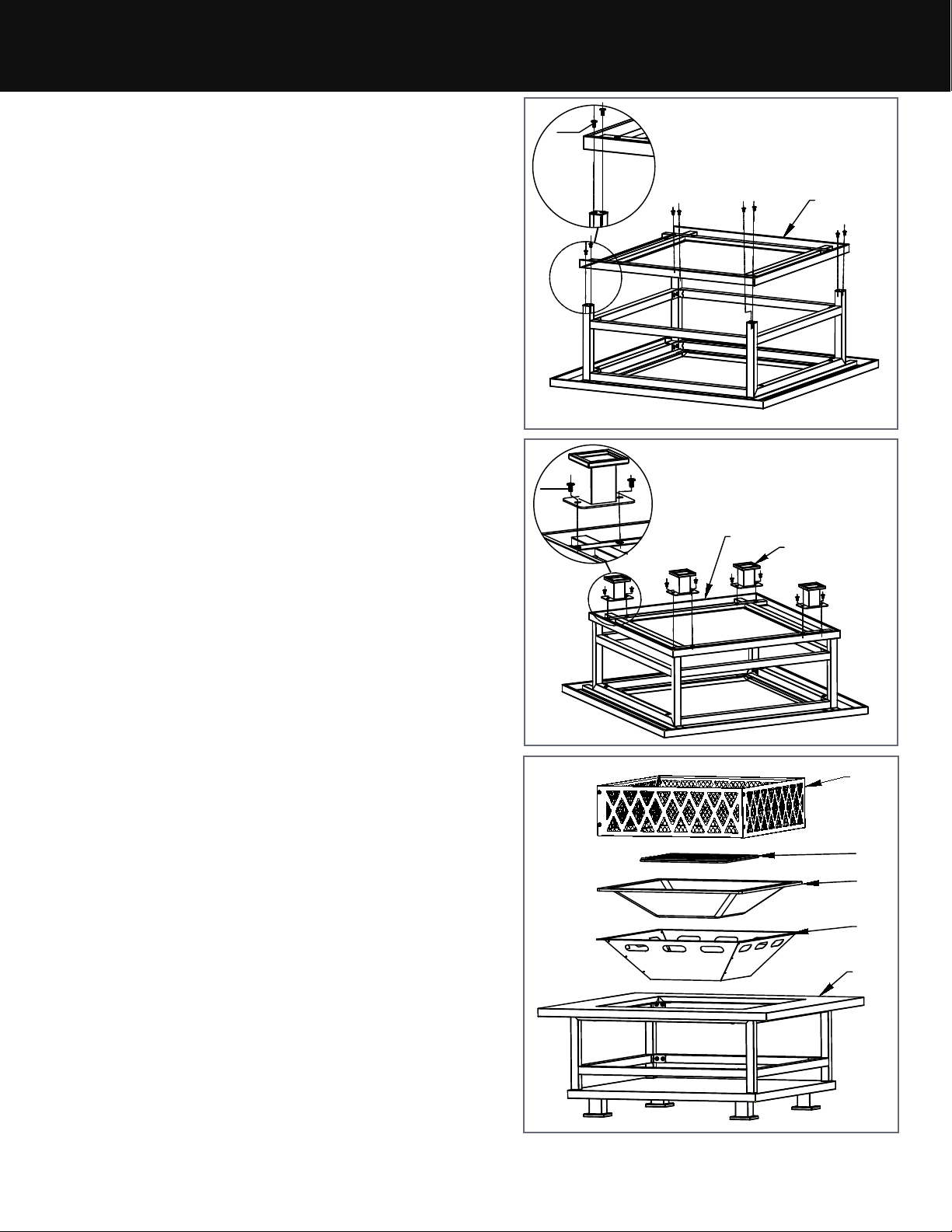

6. Place heat shield (D) into table top (E) and place

fire bowl (C) onto heat shield (D) and place log rack

5. Attach 4 pcs feet (I) to bottom panel (H) using 8

pcs M6 x12 screws (AA).

(B ) into fire bowl (C), then place mesh panel

assembly (A) on table top (E).

Important Notice:

Please purchase a protective cover or use a

waterproof tarp to keep unit covered when

cooled, and not in use.

To avoid rainwater collecting in the fire bowl,

please wipe out the fire bowl and store it

upside down when not in use.

This will extend the longevity of your fire pit,

and retard rusting.

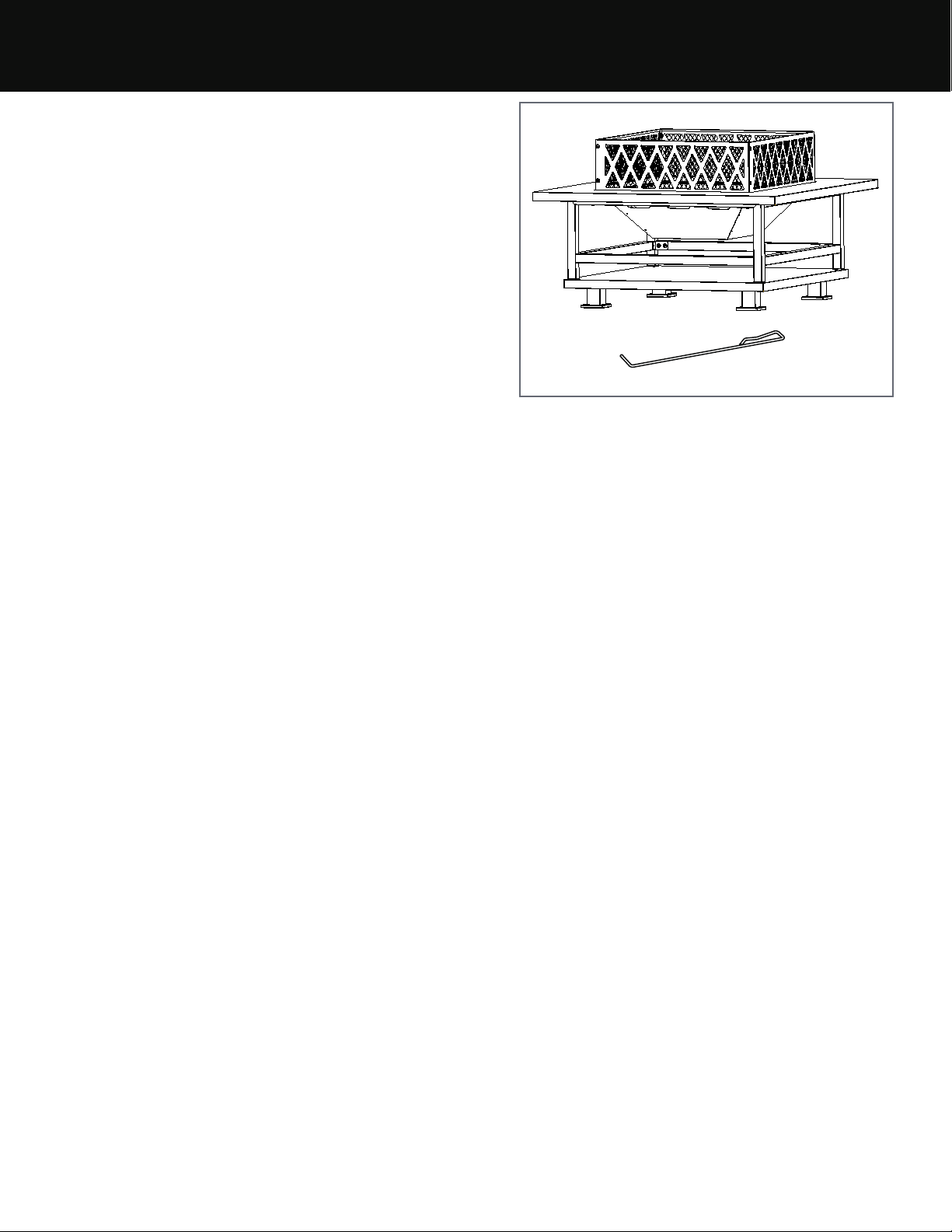

7. Your fire pit is now ready for use. Keep poker

near the fire pit for use anytime.

Page 7

OPERATION

MAINTENANCE

•This outdoor re pit should be inspected on a regular basis to ensure product safety and long

product life.

•Check handles to make sure they are secure.

•Check components for any signs of damage.

•Wipe exterior surfaces with a mild cleaning product and water.

•For stubborn surfaces use a citrus based degreaser and soft cloth.

•Rinse surfaces clean of any cleaning product with water after cleaning is complete.

•Remove built-up creosote from components with a chimney cleaning product.

•Store re pit in a cool dry place.

•Use manufacturer-approved or supplied replacement parts and accessories only. Otherwise it

may void the warranty of this product and result in a hazardous condition.

•Keep the re pit free and clear from combustible materials and debris.

Page 8

To Extinguish

Tending The Fire

To Light

1. Make sure all debris is removed from the re pit.

3. Use a long match to light the kindling.

2. Place dry logs that are no longer than 3/4 the width of the fire bowl into the center of the fire bowl.

Add dry kindling of your choice to the base of your wood stack.

1. Use the fire poker to shift embers/wood logs to allow for additional airflow.

2. Wait until the fire is going strong to add any additional wood. While adding wood, be careful

not to smother the fire and leave plenty of room for oxygen between the logs.

1. Allow fire to burn itself out.

2. Do not use water to put out your fire, it will cause damage to your fire pit.

WARRANTY

Page 9

This product has a one-year warranty against manufacturing defects in workmanship, or materials.

The manufacturer warranty will be voided by, and manufacturer disclaims any responsibility for, the

following actions:

•Modifcation of the unit and/or components.

•Use of any component part not manufactured or approved by manufacturer.

•Use and installation other than what is listed in this manual.

Please contact the manufacturer for replacement parts.

CONTACT

If you have any questions or concerns, please contact manufacturer at the below resources:

Website

1-877-447-4768 | Monday - Friday,

8:00 am - 4: 30 pm CST

[email protected]

www.ghpgroupinc.com

Toll free phone

Page 10
