Banner World-Beam QS30 Manuale del proprietario
QS30 Sensor Features
• Teach mode functionality
• Compact housing, rated IP67 and
IP69K for selected models
• Exceptional quality and price
• Easy to read status indicators
and 8-segment bargraph display
• Visible spot for easy alignment
• PNP and NPN bipolar digital
outputs
• Selectable 30 ms OFF-delay
• Integral M12x1 connector or
2 meter length cable
• M30 threaded nose allows
versatile positioning
• Various mounting
accessories available
• Offered in following modes:
- polarised retro-reflective
- diffuse (class 1 or 2 laser)
- adjustable field
- opposed
A019 11/03 TB Ltd.

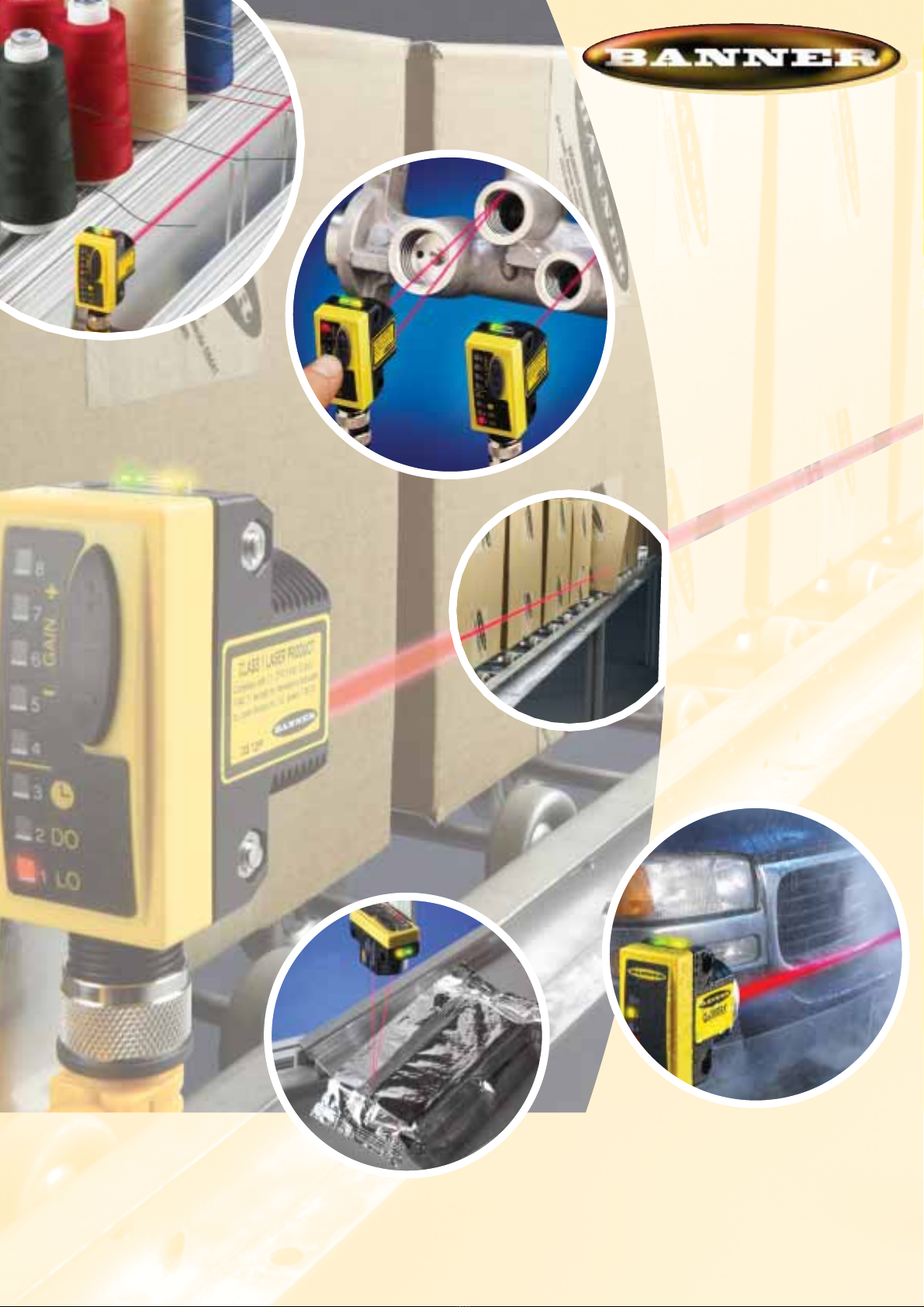

Superb optical performance for highest sensing
power and accuracy, with LED bargraph display!
A019 11/03
TB Ltd.
TURCK BANNER Ltd.:
Sensors and equipment for industrial control and
automation:
• Inductive, magnet-inductive, photoelectric,
ultrasonic, capacitive, pressure, temperature
and flow sensors
• Ex interfaces
• Bus systems
• Cables and cordsets
• Safety systems
• Laser measurement and inspection devices
• Vision systems
Turck Banner Ltd
Blenheim House
Hurricane Way, Wickford
Essex SS11 8YT
Phone: +44 (0)1268 578 888
Fax: +44 (0)1268 763 648
info@turckbanner.co.uk
www.turckbanner.co.uk
QS30AF
Adjustable field
Range 50 to 300 mm
Red 660 nm
Diffuse mode:
QS30LD: Cl. I laser, red
650 nm, 400 mm range
QS30LDL: Cl. II laser, red
658 nm, 800 mm range
QS30LLP Long-range
Retro-reflective
Class I laser, red 650 nm
Range 0,2 m to 18 m
QS30LLPC Low con-
trast Retro-reflective
Class I laser, red 650 nm
Range 0,2 m to 18 m
QS30EX Emitters &
QS30ARX or QS30RRX
Receivers - Opposed
Range > 213 m
Infrared 875 nm
Integral M12x1
connector or
2meter length cable
8-segment bargraph
display: signal
strength, threshold
level, timing options,
N.O./N.C., contrast
level
Teaching options via
push-button or remote
wire
Easy to read status
indicators
M30 threaded
nose
Mounting
holes
