USER MANUALTWO LOCKS CONTROL MODULESH-42

SH-42The control module is designed to connect two locks to the outdoor panelto the call panel through the RS-485 interface. This module can be used in systems with enhanced security, if you need to connect locks remotely from the call panel.The version with 8 contacts has additional inputs for connecting buttons for opening the ﬁrst and second locks, as well as an additional input for a ﬁre alarm.and control them from an internal monitor or SIP client. The module is connectedFull User ManualFunctionalityDevice descriptionwiki.bas-ip.comTWO LOCKS CONTROL MODULEMain featureModule supply voltage: +12 V.Power consumption in operating mode: 1 W.Standby power consumption: 0.06 W.Maximum current of connected load: 7 A (per channel).Maximum constant load voltage: +30 V.Maximum AC load voltage: ~ 250 V.Operating temperature: -40 - +75° C.Storage temperature: -15 - +65° C.Permissible humidity: 20 - 80%.Degree of protection: IP30C.Overall dimensions: 114.5 × 57.5 × 34 mm.Weight: 0.11 kg.Two built-in relays to control two locks.The ability to connect as electromechanical locks and latchesand electromagnetic locks.Switchable contact group on each relay.Communication with the call panel via RS-485 interface.Input for control low-voltage analog signal.

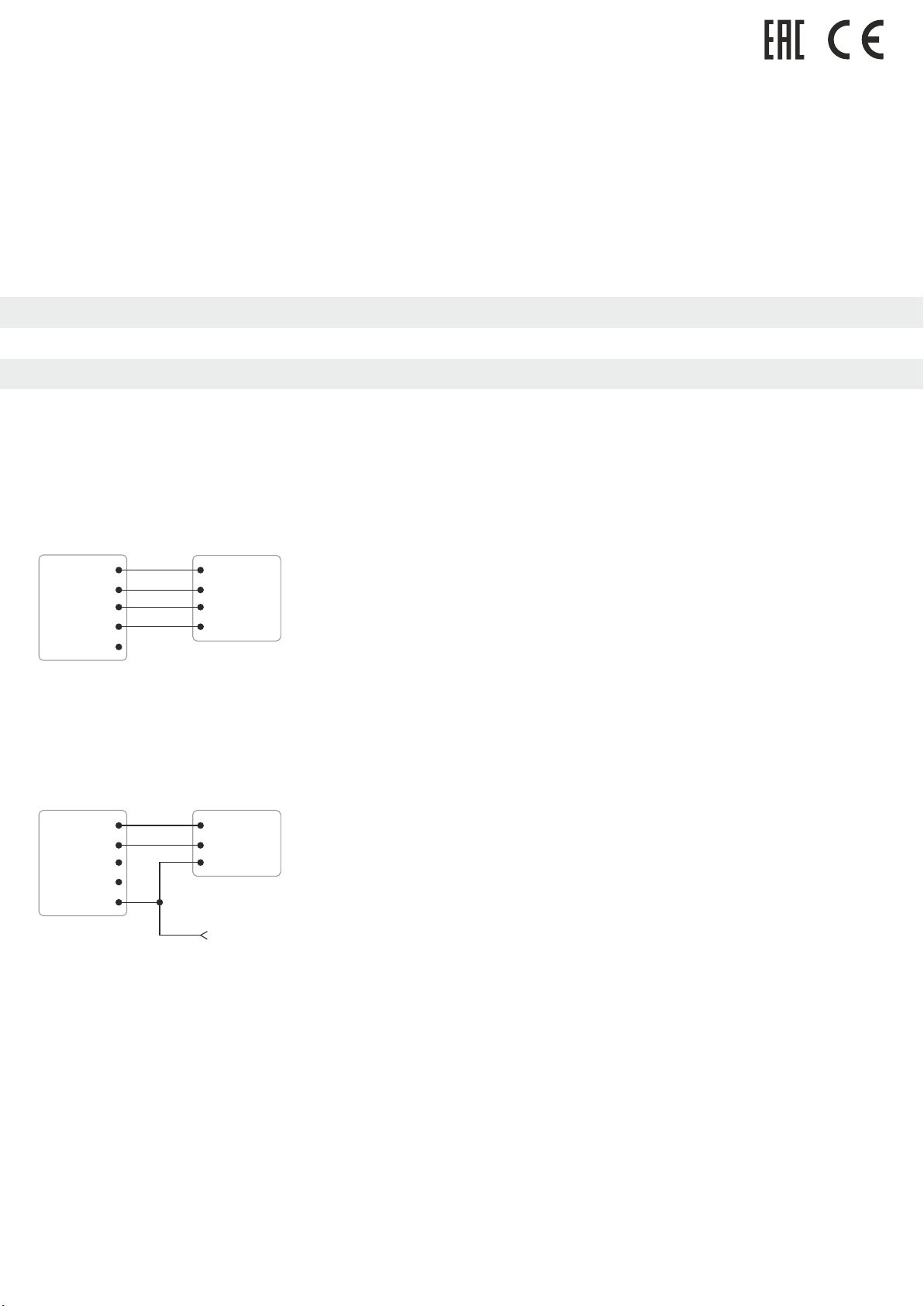

EAN: 5060514910559Connection optionsRS-485 inputThe option of connecting to an individual or multi-apartment call panelusing the RS-485 interface.In this case, the call panel is connected to the module via four wires: + 12 V power supply, Ground, 485+ and 485-.With such a connection, it is possible to control two relays independently of each other.+12V DCGround485+485-Lock+12V DCGround485+485-SH-42(RS-485)Outdoor panel(RS-485)The option of connecting to a multi-unit call panel or to an externallow-voltage signal source using the control input «Lock».In this case, the module is connected to the call panel with three wires: +12 V power supply, Ground, and Lock.With this connection, it is possible to control only the ﬁrst relay. When an external control signal module is appliedto the «Lock» input, only the ﬁrst relay will act on switching. For the «Lock» input, it is necessary to usea low-voltage external signal with a DC voltage from +9 to +12 V.+12V DCGround485+485-Lock+12V DCGroundLockSH-42(RS-485)Outdoor panelFrom the externalsignal sourceRelay OutputsIt is possible to connect both electromagnetic and electromechanical locksto the relay outputs. In this case, two relays are independent of each otherand allow you to connect two electromagnetic locks or two electromechanicallocks. It is also possible to connect to the ﬁrst relay of an electromechanicallock, and to the second relay of an electromagnetic lock, and the oppositeis allowed to the ﬁrst relay of an electromagnetic lock, and to the secondelectromechanical lock.Completness check of the productBefore installing the module, be sure to check that it is complete and allcomponents are available.The module kit includes: ModuleManual Wire with connectorInstallation screws 1 pc1 pc1 pc2 pcs

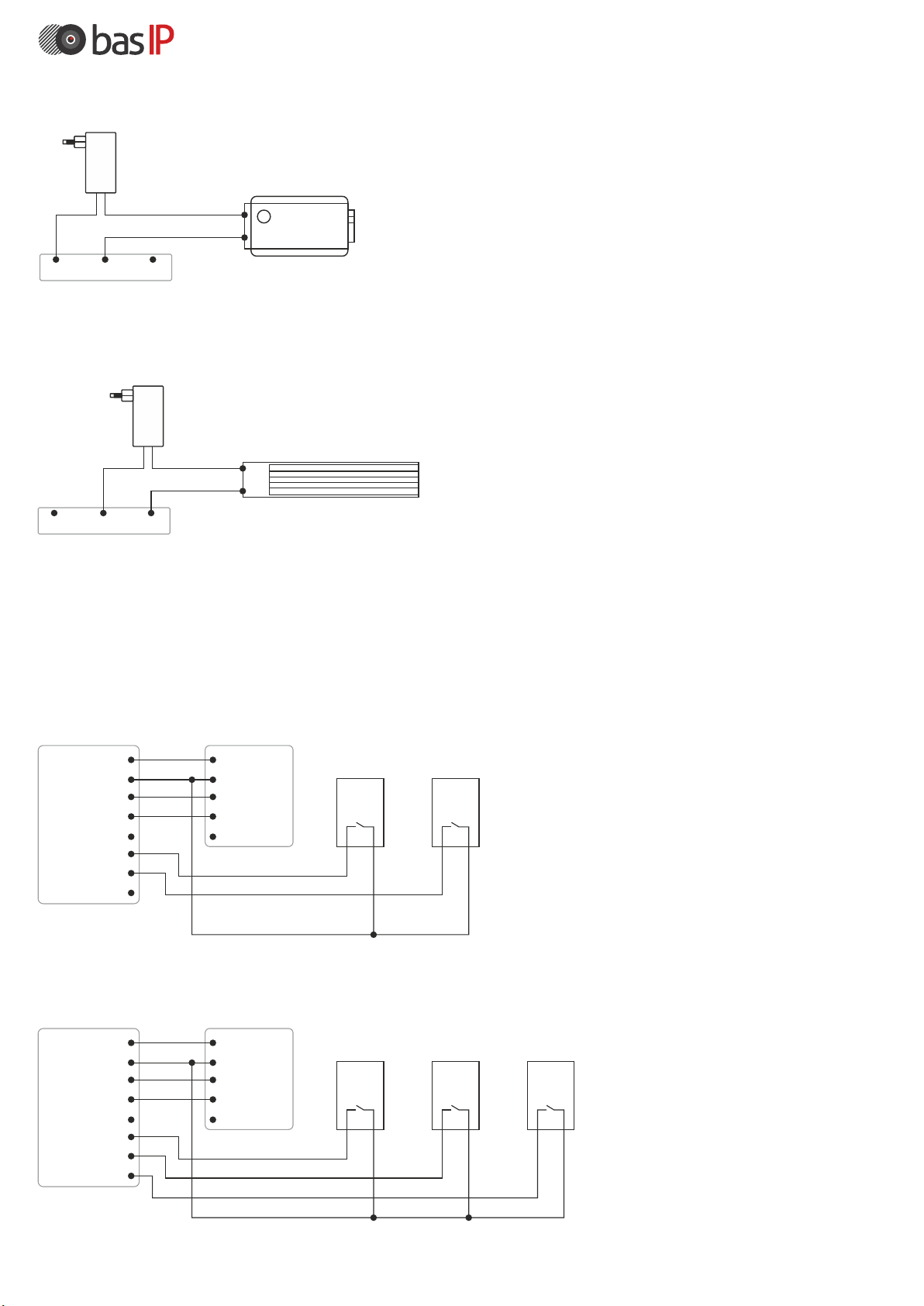

The option of connecting the electromagnetic lock.With such a connection in the power circuit of the lock, you must use the contacts: COM (switchable contact)and N.C. (normally closed contact).+12VDC+-N.O. COM N.C.Electromagnetic LockPowersupplyFire alarm input and exit buttons (for 8 pin module)Two exit buttons can be connected to this module, which will control the ﬁrstand second relays, respectively. Also, the module is equipped with a ﬁrealarm input.The option of connecting the exit buttons.The exit button for controlling the ﬁrst relay is connected to the «Exit 1» and «GND» contacts, and the exit buttonto control the second relay is connected to the «Exit 2» and «GND» contacts.+12V DCGround485+485-LockExit 1Exit2Fire input+12V DCGround485+485-LockSH-42 moduleOutdoor panelExit Button 1Exit Button 2+12V DCGround485+485-LockExit 1Exit2Fire input+12V DCGround485+485-LockSH-42 moduleOutdoor panelExit Button 1Exit Button 2Fire alarmThe option of connecting the exit and ﬁre alarm buttons.To connect the output control button of the ﬁrst relay, use contacts «Exit 1» and «GND», and to connectthe control output button with the second relay, contacts «Exit 2» and «GND». The «Fire input» and «GND»contacts are used to connect the ﬁre alarm output contacts.The option of connecting the electromechanical lock.With such a connection in the power circuit of the lock, you must use the contacts: COM (switchable contact)and N.O. (normally open contact).+12VDC+-N.O. COM N.C.Electromechanical lockPowersupply

EAN: 5060514910559Opening delay time (for 8 pin module)The delay module is equipped with a controller, which is responsible forthe response time of the relay. This is the time at which the relays will switchfrom one position to another when the opening signal to them is received viathe RS-485 interface, the “Lock” input and the exit buttons are pressed.Openinglock timeadjustmentLessMoreThe use of electromagnetic locks.When connecting electromagnetic locks, the controlling resistor needsto be rotated to the right, and adjust the delay time so that it is in the rangeof 4 to 8 seconds. If you need to use other values, this time can set more or lessrecommended values, but not less than 2 seconds.The use of electromechanical locks.When connecting electromechanical locks, the controller must be turnedto the left, and the delay time is adjusted so that it is in the rangeof 0.5 to 1 second. If necessary, the time can be slightly increased, butit is absolutely not recommended to set this time for more than 2 seconds!If you set a delay time of more than 2 seconds and use electromechanicallocks as part of a system, there is a high probability of failure of theselocks due to the technological design features of the magnetic coilsin these types of locks!

WarrantyThe warranty card numberModel nameSerial numberSeller nameWith following stated terms of warranty is familiar, functional test wasperformed in my presence: Customer signatureWarranty conditionsThe warranty period of the product — 36 (thirty-six) months fromthe date of sale.Transportation of product must be in its original packaging or supplied oneby the seller.The product is accepted in warranty repair only with a properly ﬁlled warrantycard and the presence of intact stickers or labels.The product is accepted for examination in accordance with the casesprovided by law, only in the original packaging, in a full complete set,appearance corresponding to the new equipment and presence of all relevantproperly ﬁlled documents.This warranty is in addition to the constitutional and other consumer rightsand in no way restrict them. Terms of warrantyThe warranty card must indicate the name of the model, serial number,purchase date, name of the seller, seller company stamp andthe customer’s signature. Delivery to the warranty repair is carried out by the buyer himself.Warranty repairs carried out only during the warranty period speciﬁedin the warranty card.The service center is committed to do everything possible to carry outthe repair warranty products, up to 24 working days. The period spenton the restoration of product functionality is added to the warranty period.
