Baumatic PV972GL Manuale utente

PV372SS 35 cm Island

cooker hood

PV972GL 90 cm Glass

island cooker hood

User Manual for your Baumatic

PV372SS 35 cm Island cooker hood

PV972GL 90 cm Glass island cooker

hood

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 23/09/10

Contents Page

Environmentalnote 4

IMPORTANT SAFETY INFORMATION 5 – 7

Specifications of your cooker hood 8 – 10

PV372SS 8

PV972GL 9

Optionalextras(allmodels) 10

Using your Baumatic cooker hood 10 - 11

Beforefirstuse 10

To use your cooker hood 10 - 11

Cleaning your Baumatic cooker hood 11 - 12

The grease filter 12

Maintenance 12 - 17

Removing and cleaning the grease filter 12 - 13

Changingalightbulb 13-15

Fitting the carbon filter 16 - 17

Installation 17 - 27

Electricalconnection 18

Before beginning installation 19

Positioning 20-21

Installing your cooker hood 21

Installing the glass canopy 22 - 24

Supplied installation components 24

Fixing the cooker hood to the ceiling 24 – 27

Completing the installation 28

Extraction mode or recirculation mode? 28

Externalducting 28

Troubleshooting 29 - 30

Contactdetails 31

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

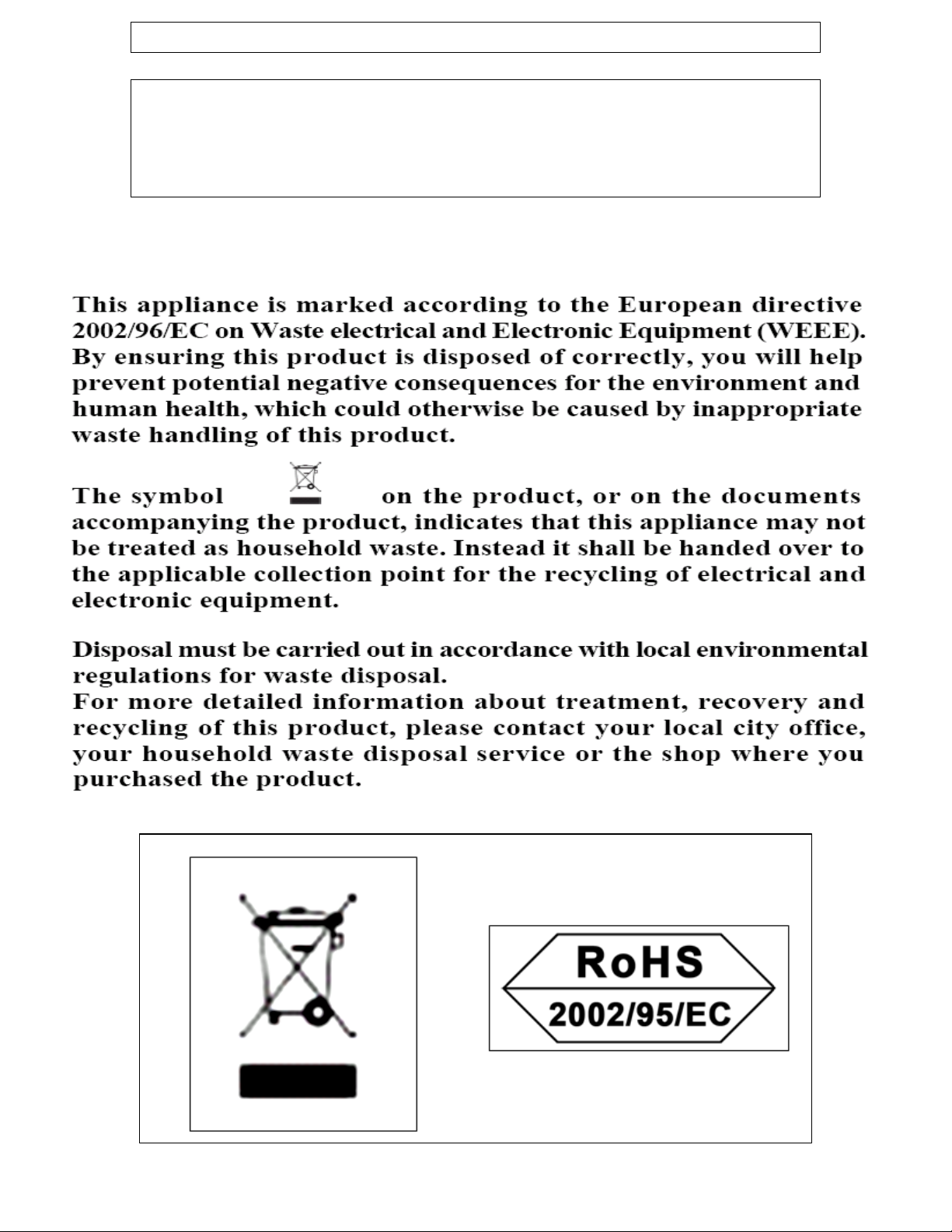

CONFORMITY TO W.E.E.E. DIRECTIVE

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product. Do not tamper with it or attempt to modify the

appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

¾Electric cookers: 700 mm

¾Gas cookers: 700 mm

¾Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

oThe edges of the cooker hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in its extractor function, ensure

that the ducting is fire retardant and that there are no bends

sharper than 90 degrees as this will reduce the efficiency of the

hood.

oEnsure the ducting for the extractor function has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or it catching on fire, from a failure

to observe the fire safety advice contained in this instruction

booklet.

oRemember that when in extraction mode, your cooker hood is

removing air from your room. Ensure that proper ventilation

measures are being observed.

oNote: Your cooker hood is designed to remove cooking

odours from the room and not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including replacing light bulbs.

oDo not connect the ducting system of this appliance to any

existing ventilation system which is being used for any other

purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oThe lights on this appliance should only be used during operation

of the cooker hood. They should not be left on permanently and

used as a lighting source.

oThe cooker hood should not be exposed to a direct heat source

from the cooking device underneath it, i.e. a naked flame from a

gas burner or heat from electric hob zones without a pan on

them.

oDo not attempt to use the cooker hood if it is damaged in any

way. Never attempt to use it without the grease filters fitted or

if the filters are excessively greasy!

oNever flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

Specifications of your cooker hood

PV372SS

PRODUCT DIMENSIONS

Height: 875 - 1100 mm*

Width: Ø 350 mm

Depth: Ø 350 mm

Your stainless steel cooker hood is fitted with:

oHigh extraction tangential motor

oElectronic push button control operation

o3 speeds

o1 washable stainless steel grease filter

o3 LED lights

oSuitable for extraction or recirculation

Extraction capacity: 750 m³/hr

Noise level min/max: 58 – 62 dB

* IMPORTANT: Please see the positioning

instructions on pages 18 - 19 to obtain precise

information on the height requirements for this

product.

If you are using the appliance in recirculation mode, then

PLEASE NOTE that some of the vent in the upper chimney

section must be exposed. You will have to take this into

account when calculating the minimum height of the

cooker hood when installed.

PV972GL

PRODUCT

DIMENSIONS

Height: 875 mm -

1100 mm*

Width: 900 mm

Depth: 600 mm

Your stainless steel cooker hood is fitted with:

oHigh extraction tangential motor

oElectronic push button control operation

o3 speeds

o1 washable stainless steel grease filter

o3 LED lights

oSuitable for extraction or recirculation

Extraction capacity: 750 m³/hr

Noise level min/max: 58 – 62 dB

* IMPORTANT: Please see the positioning

instructions on pages 18 - 19 to obtain precise

information on the height requirements for this

product.

If you are using the appliance in recirculation mode, then

PLEASE NOTE that some of the vent in the upper chimney

section must be exposed. You will have to take this into

account when calculating the minimum height of the

cooker hood when installed.

Optional extras (all models)

S1 1 pair of carbon filters

DK5 1 Metre length Ducting Kit 125 mm Ø.

DK10 3 Metre length Ducting Kit 125 mm Ø with flat channelling

included.

oAvailable from the Baumatic Spares Department.

Using your Baumatic cooker hood

Before first use

IMPORTANT: THIS PROCESS MUST BE FOLLOWED

BEFORE THE COOKER HOOD IS USED FOR THE FIRST

TIME.

oYou should use a good quality stainless steel cleaner and polish

on ALL of the stainless steel areas of your cooker hood, before it

is used for the first time.

oThis will help to leave a silicone water-resistant film to protect

the stainless steel surfaces.

To use your cooker hood

oA = Speed selection buttons

= Low speed

= Medium speed

= High speed

oB = Light on/off button
