Bayliner 175 Manuale utente

Engine Serial Number: _____________________________________________

Hull Identification Number:__________________________________________

Hull Identification Number

•The Hull Identification Number

(HIN) is located on the star-

board side of the transom.

•Record the HIN (and the engine

serial number) in the space pro-

vided above.

•Please refer to the HIN for any

correspondence or orders.

No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,

recording or otherwise, without prior written permission of Bayliner.

Printed in the United States of America.

General Notes

The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this

document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.

Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equipment at any time

without notice or obligation. Illustrations and/or photos may show optional equipment.

All Bayliner products meet or exceed USCG (Unites States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) construction standards.

Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the

upper atmosphere.

Proprietary Rights

This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the prop-

erty of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any

information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. This document is to

be returned upon request to Bayliner.

HIN LOCATION

CONTENTS

1 Chapter 1: Welcome Aboard!

1 Specifications

1 Layout View

1 Dealer Service

1 Warranty Information

2 Boating Experience

2 Engine & Accessories Guidelines

2 Engine & Accessories Literature

2 Qualified Maintenance

3 Safety Standards

3 Special Care For Moored Boats

4 Carbon Monoxide (CO)

4 Facts about CO

5 Where and How CO Can Accumulate

5 How to Protect Yourself and Others

From CO

6 Trip Checklist

6 Monthly Checklist

6 Annual Checklist

6 More Information

7 Chapter 2: Locations

7Views

7 Hull Exterior Views

8 Deck Views

9 Helm Gauges & Switches

10 Component Locations

11 Chapter 3: Propulsion &

Related Systems

11 Engine

11 Special Starting Instructions for

Carbureted Engines (If Equipped)

11 Engine Room Ventilation System

12 Fuel System

13 Fuel Fill and Vent

13 Fuel Filters

13 Anti-siphon Valve

14 Quick Oil Drain System

15 Chapter 4: Controls & Gauges

15 Steering

15 Shift/Throttle Lever

15 Power Trim and Tilt

16 Gauges

16 Cleaning Gauges

16 Gauge Fogging

16 Radio Transmission Interference

16 Fuel Gauge

17 Chapter 5: Plumbing

17 Bilge Pump

19 Chapter 6: Deck Equipment

19 Ski-Tow Tower (If Equipped)

19 Attaching the Ski-Tow Rope

20 Ski Tow Ring

20 Cleats and Tow Eyes

21 Chapter 7: Convertible Seats

21 Sleeper Seats

21 Operating Positions

21 Lounge positions

22 Chapter 8: Lights

22 Care and Maintenance

22 Navigation Lights

23 Chapter 9: Electrical System

24 12-Volt DC System

24 Battery

24 Fuses

24 Alternator

25 Electrical Routings

25 Deck Electrical Harness

26 Battery Cables

27 Wiring Diagram

28 Important Records

29 Float Plan

Hazard Boxes & Symbols

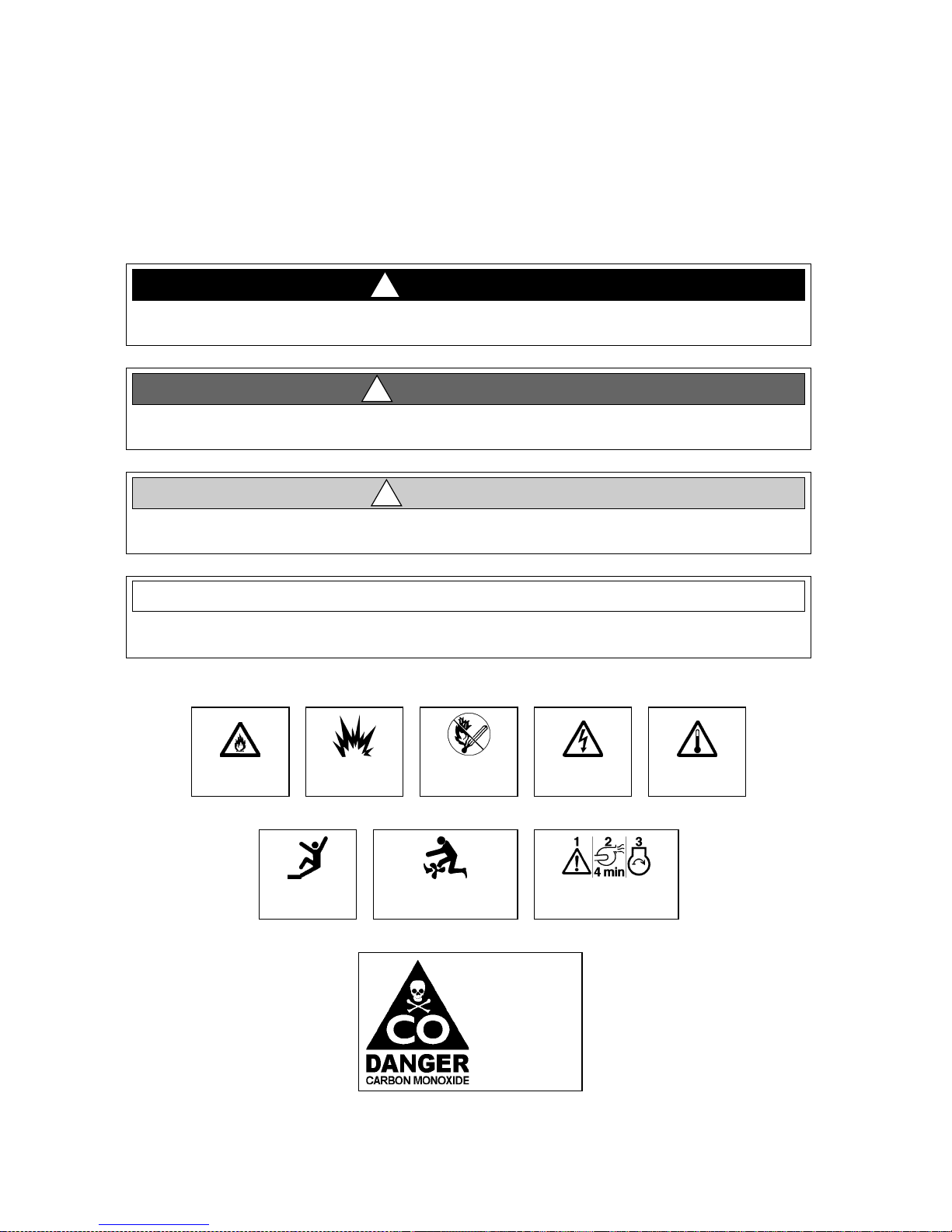

The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dan-

gerous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and

follow all safety instructions.

This box alerts you to immediate hazards which WILL cause severe personal injury or death if

the warning is ignored.

DANGER!

This box alerts you to hazards or unsafe practices which COULD result in severe personal

injury or death if the warning is ignored.

WARNING!

This box alerts you to hazards or unsafe practices which COULD result in minor personal

injury or cause product or property damage if the warning is ignored.

CAUTION

This box calls attention to installation, operation or maintenance information, which is impor-

tant to proper operation but is not hazard related.

NOTICE

EXPLOSION

HAZARD! NO OPEN

FLAME! HOT

HAZARD!

ROTATING

PROPELLER HAZARD!

FALLING

HAZARD!

ELECTRICAL

HAZARD!

CO POISONING

HAZARD!

FIRE

HAZARD!

RUN BILGE BLOWERS

FOR 4 MINUTES!

175 •Owner’s Manual Supplement

Chapter 1: Welcome Aboard!

This Owner’s Manual Supplement provides specific information about your boat that is not covered in the Sport Boat

Owner’s Manual. Please study the Sport Boat Owner’s Manual and this supplement carefully. Keep the Sport Boat

Owner’s Manual and this supplement on your boat in a secure, yet readily available place.

Specifications

Layout View

Dealer Service

•Your dealer is your key to service.

•Ask your dealer to explain all systems before taking delivery of your boat.

•Contact your dealer if you have any problems with your new boat.

•If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235.

•Buy replacement parts from any authorized Bayliner dealer.

Warranty Information

•Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer.

•A copy of the Limited Warranty was included in your owner’s packet.

•If you did not receive a copy of the Limited Warranty, please contact your dealer or call 360-435-8957 for a copy.

Overall Length Beam Bridge

Clearance Draft

(Drive Up) Draft

(Drive Down) Fuel Capacity

(gallons)

17' 5" 6' 11" 3' 8" 1' 6" 2' 11" 21

Chapter 1: Welcome Aboard! 175 •Owner’s Manual Supplement

Boating Experience

If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and

safety, obtain handling and operating experience before assuming command of the boat.

Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For

more course information, including dates and locations of upcoming classes, contact the organizations directly:

•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org

•In Canada, for the CPS courses call 1-888-CPS-BOAT.

•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org

Outside the United States, your selling dealer, national sailing federation or local boat club can advise you of local

sea schools or competent instructors.

Engine & Accessories Guidelines

•Your boat’s engine and accessories were selected to provide optimum performance and service.

•Installing a different engine or other accessories may cause unwanted handling characteristics.

•Should you choose to install a different engine or to add accessories that will affect the boat’s running trim, have

an experienced marine technician perform a safety inspection and handling test before operating your boat again.

Certain modifications to your boat can result in cancellation of your warranty protection. Always check with

your dealer before making any modifications to your boat.

Engine & Accessories Literature

•The engine and accessories installed on your boat come with their own operation and maintenance manuals.

•Read and understand these manuals before using the engine and accessories.

•Unless noted otherwise, all engine and accessory literature referred to in this supplement is included in your

owner’s packet.

Qualified Maintenance

•Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your

jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.

•Follow the instructions provided in the Sport Boat Owner’s Manual, this Owner’s Manual Supplement, the engine

owner’s manual and all accessory instruction sheets and manuals.

CONTROL HAZARDS!

•A qualified operator must be in control of the boat at all times.

•DO NOT operate your boat while under the influence of alcohol or drugs.

WARNING!

When storing your boat please refer to your engine’s operation and maintenance manuals.

NOTICE

To maintain the integrity and safety of your boat, allow only qualified personnel to perform

maintenance on, or in any way modify: The steering system, propulsion system, engine control

system, fuel system, environmental control system, electrical system or navigational system.

WARNING!

175 •Owner’s Manual Supplement Chapter 1: Welcome Aboard!

Safety Standards

•Your boat’s mechanical and electrical systems were designed to meet safety standards in effect at the time it

was built.

•Some of these standards were mandated by law, all of them were designed to insure your safety, and the safety of

other people, vessels and property.

In addition to this Owner’s Manual Supplement, please read the Sport Boat Owner’s Manual and all accessory

instructions for important safety standards and hazard information.

Special Care For Moored Boats

•Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom.

•This will detract from the boat’s beauty, greatly affect its performance and may damage the gelcoat.

•Periodically haul the boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap

and water.

FALLING and ROTATING PROPELLER HAZARD!

NEVER allow anyone to ride on parts of the boat not designed for

such use.

•Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding or occupy-

ing the transom platform while underway is especially hazardous and will cause personal

injury or death.

DANGER!

ROTATING PROPELLER and CARBON MONOXIDE

POISONING HAZARD!

•NEVER allow anyone to occupy, or hang from, the

back deck or swim platform while the engine(s)

are running.

•Teak surfing, dragging, or water skiing within 20 feet

of a moving watercraft can be fatal.

DANGER!

PERSONAL SAFETY HAZARD!

ALWAYS secure the anchor and other loose objects before getting underway. The anchor and

other items that are not properly secured can come loose when the boat is moving and cause

personal injury or death.

DANGER!

•To help seal thehull bottom and reduce the possibilityof gelcoat blistering on moored boats,

apply an epoxy barrier coating. The barrier coating should be covered with several coats of

anti-fouling paint.

•Many states regulate the chemical content of bottom paints in order to meet environmental

standards. Check with your local dealer about recommended bottom paints, and about the

laws in effect in your area.

NOTICE

Chapter 1: Welcome Aboard! 175 •Owner’s Manual Supplement

Carbon Monoxide (CO)

Facts about CO

•CO poisoning causes a significant number of boating deaths each year.

•Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.

•CO can harm or even kill you inside or outside your boat.

•CO can affect you whether you’re underway, moored, or anchored.

•CO symptoms are similar to seasickness or alcohol intoxication.

•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.

•Breathing CO blocks the ability of your blood to carry oxygen.

•The effects are cumulative, even low levels of exposure can result in injury or death.

Factors That Increase the Effects of CO Poisoning

•Age

•Smokers or people exposed to high concentrations of cigarette smoke

•Consumption of alcohol

•Lung disorders

•Heart problems

•Pregnancy

•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and

extremely dangerous.

•All engines, generators, and fuel burning appliances produce CO

as exhaust.

•Prolonged exposure to low concentrations or very quick exposure to high

concentrations will cause BRAIN DAMAGE or DEATH.

•Teak surfing, dragging, or water skiing within 20 feet of a moving water-

craft can be fatal.

DANGER!

Altri manuali per 175

Indice

Altri manuali Bayliner Barca

Bayliner

Bayliner 2859 Classic Cruiser Guida alla configurazione

Bayliner

Bayliner 1995 Capri Manuale utente

Bayliner

Bayliner 160 Bowrider Guida alla configurazione

Bayliner

Bayliner 265 Manuale utente

Bayliner

Bayliner 3488 Manuale utente

Bayliner

Bayliner 245 Cruiser Guida alla configurazione

Bayliner

Bayliner Trophy 1703FS Guida alla configurazione

Bayliner

Bayliner Ciera 2858 Command Bridge Manuale utente

Bayliner

Bayliner Trophy 1703FS Manuale utente

Bayliner

Bayliner 3388 Guida alla configurazione

Bayliner

Bayliner 305 Guida alla configurazione

Bayliner

Bayliner 16 Element Guida alla configurazione

Bayliner

Bayliner 1995 3587 Manuale utente

Bayliner

Bayliner 285 Cruiser Manuale utente

Bayliner

Bayliner 185 Manuale utente

Bayliner

Bayliner Capri 16' Guida alla configurazione

Bayliner

Bayliner 160 Bowrider Manuale utente

Bayliner

Bayliner 246 Discovery Guida alla configurazione

Bayliner

Bayliner 1995 3288 Manuale utente

Bayliner

Bayliner 3788 Command Bridge Manuale utente

Bayliner

Bayliner 285 Cruiser Manuale utente

Bayliner

Bayliner 4788 Manuale utente

Bayliner

Bayliner 249 Guida alla configurazione

Bayliner

Bayliner 1950 1952 1954 2150 2152 Guida alla configurazione

Manuali Barca popolari di altre marche

Raymarine

Raymarine ST70 Instrument Manuale utente

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuale utente

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuale utente

Tiara Yachts

Tiara Yachts C49 2024 Manuale utente

Monterey Boats

Monterey Boats Sport Yacht 330 Manuale utente

J 105 Manuale utente

PURSUIT

PURSUIT OS 335 Manuale utente

Boston Whaler

Boston Whaler CONQUEST 345 Manuale utente

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuale utente

Meridian

Meridian 490 Pilothouse Manuale utente

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuale utente

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuale utente

Swallow Boats

Swallow Boats BayRaider Manuale utente

Intex

Intex Excursion 5 Set Manuale utente

X SHORE

X SHORE EELEX 8000 Manuale utente

ISLAND PACKET

ISLAND PACKET 370 Manuale utente

Sea Ray

Sea Ray 175 Sport Manuale utente

Regal

Regal 2300 Manuale utente
