Bayliner 2859 Classic Cruiser Guida alla configurazione

Engine Serial Number: _____________________________________________

Hull Identification Number:__________________________________________

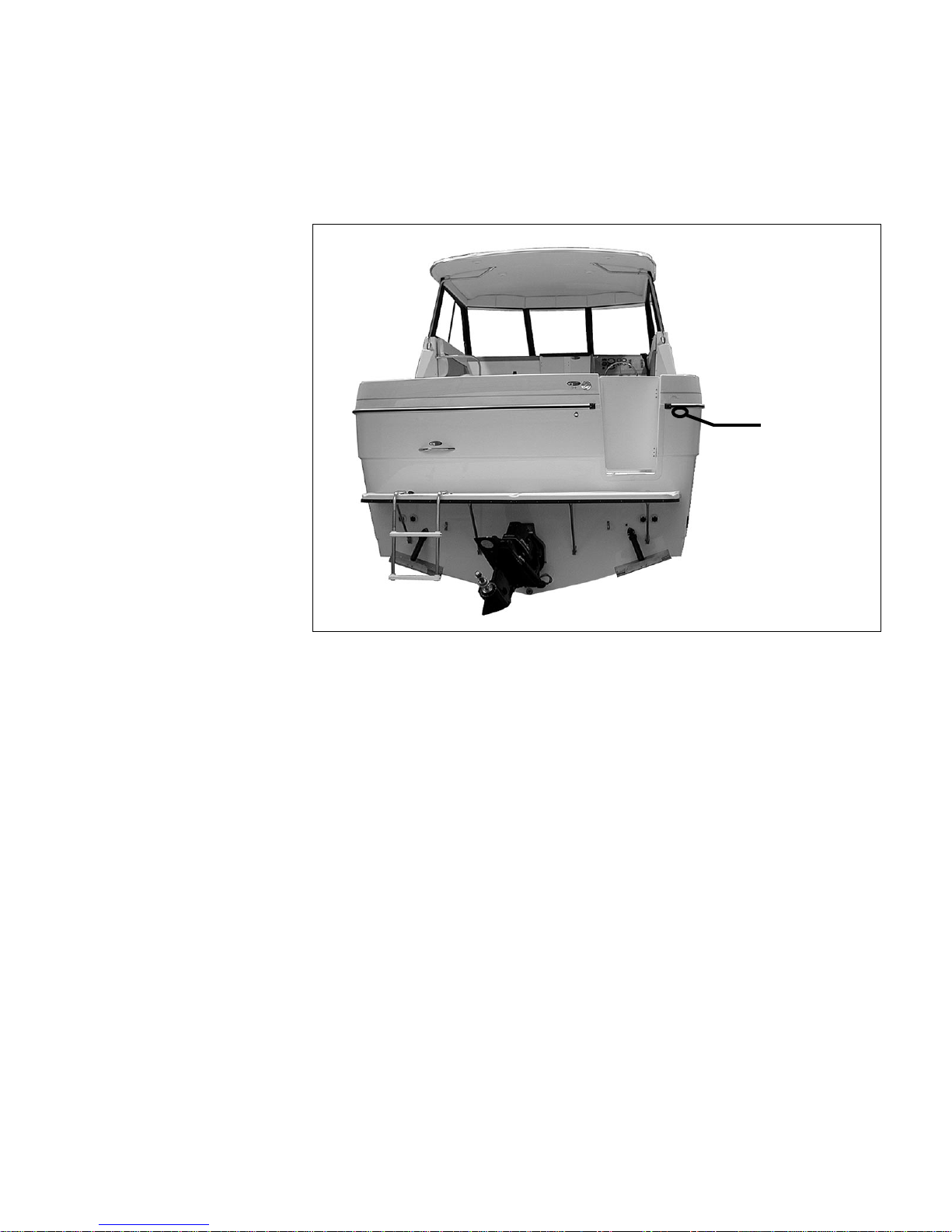

Hull Identification Number

•The Hull Identification

Number (HIN) is located on

the starboard side of

the transom.

•Record the HIN (and the

engine serial numbers) in the

space provided above.

•Include the HIN with any

correspondence or orders.

No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,

recording or otherwise, without prior written permission of Bayliner.

Printed in the United States of America.

General Notes

The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this

document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.

Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equipment at any time

without notice or obligation. Illustrations and/or photos may show optional equipment.

All Bayliner products meet or exceed USCG (Unites States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) construction standards.

Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the

upper atmosphere.

Proprietary Rights

This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the prop-

erty of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any

information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. This document is to

be returned upon request to Bayliner.

HIN LOCATION

CONTENTS

1 Chapter 1: Welcome Aboard!

1 Dimensions and Tank Capacities

1 Layout View

1 Dealer Service

1 Warranty Information

2 Boating Experience

2 Engine & Accessories Guidelines

2 Engine & Accessories Literature

2 Structural Limitations

3 Safety Standards

3 Qualified Maintenance

4 Special Care For Moored Boats

4 Sacrificial Anodes (Zincs)

5 Carbon Monoxide (CO)

5 Facts about CO

6 Where and How CO Can Accumulate

6 How to Protect Yourself and Others From CO

7 Trip Checklist

7 Monthly Checklist

7 Annual Checklist

7 Carbon Monoxide Alarm System

8 More Information

9 Boat Lifting

10 Chapter 2: Locations

10 Exterior Views

10 Hull Views

11 Forward Deck Views

12 Aft Deck Views

13 Helm

14 Component Locations

15 Chapter 3: Propulsion &

Related Systems

15 Engine

15 Engine Room Ventilation System

16 Fuel System

16 Diagram

17 Fuel Fill and Vent

17 Fuel Filters

17 Anti-siphon Valve

18 Quick Oil Drain System

19 Chapter 4: Controls

19 Steering

19 Shift/Throttle

19 Power Trim and Tilt

20 Trim Tabs

21 Chapter 5: Navigation &

Communication Equipment

21 VHF Radio (If Equipped)

21 Compass

21 Depth Finder

22 Chapter 6: Plumbing

22 Bilge Pumps

23 Bilge Pump Testing

23 Autofloat Switches

24 Seawater Systems

24 Seacocks

24 Seawater Strainers

25 Freshwater System

26 Water Heater

27 Drain Systems

27 Deck Drains

27 Sink Drains

27 Shower Drain Systems

28 Marine Head with Holding Tank

29 Chapter 7: Deck Equipment

29 Cleats and Tow Eyes

30 Chapter 8: Appliances &

Entertainment Systems

30 Refrigerator

31 Alcohol/Electric Stove (If Equipped)

31 Audio & Visual Equipment

32 Chapter 9: Convertible Seats,

Beds, & Tables

32 Dinette/Mid Berth

33 Chapter 10: Lights

33 Care and Maintenance

33 Navigation Lights

33 Interior & Exterior Lights

34 Chapter 11: Heating & Air Conditioning

34 Air Conditioning System (If Equipped)

35 Chapter 12: Electrical System

36 12-Volt DC System

36 Batteries

36 Fuses and Circuit Breakers

36 Battery Switch

36 Battery Switch Positions

37 Alternator

37 Battery Charger

37 12-Volt Accessory Outlet

38 120-Volt AC System

39 Shore Power

41 Connecting To Shore Power

42 Transfer Switch (If Equipped With Dual

Shore Power)

43 Electrical Routings

43 Deck Electrical Harness

44 Hull Electrical Harness

44 120-Volt AC System

45 Battery System

46 Wire Diagrams

46 Single Dockside

47 Dual Dockside

48 Engine Electrical System

49 Important Records

50 Float Plan

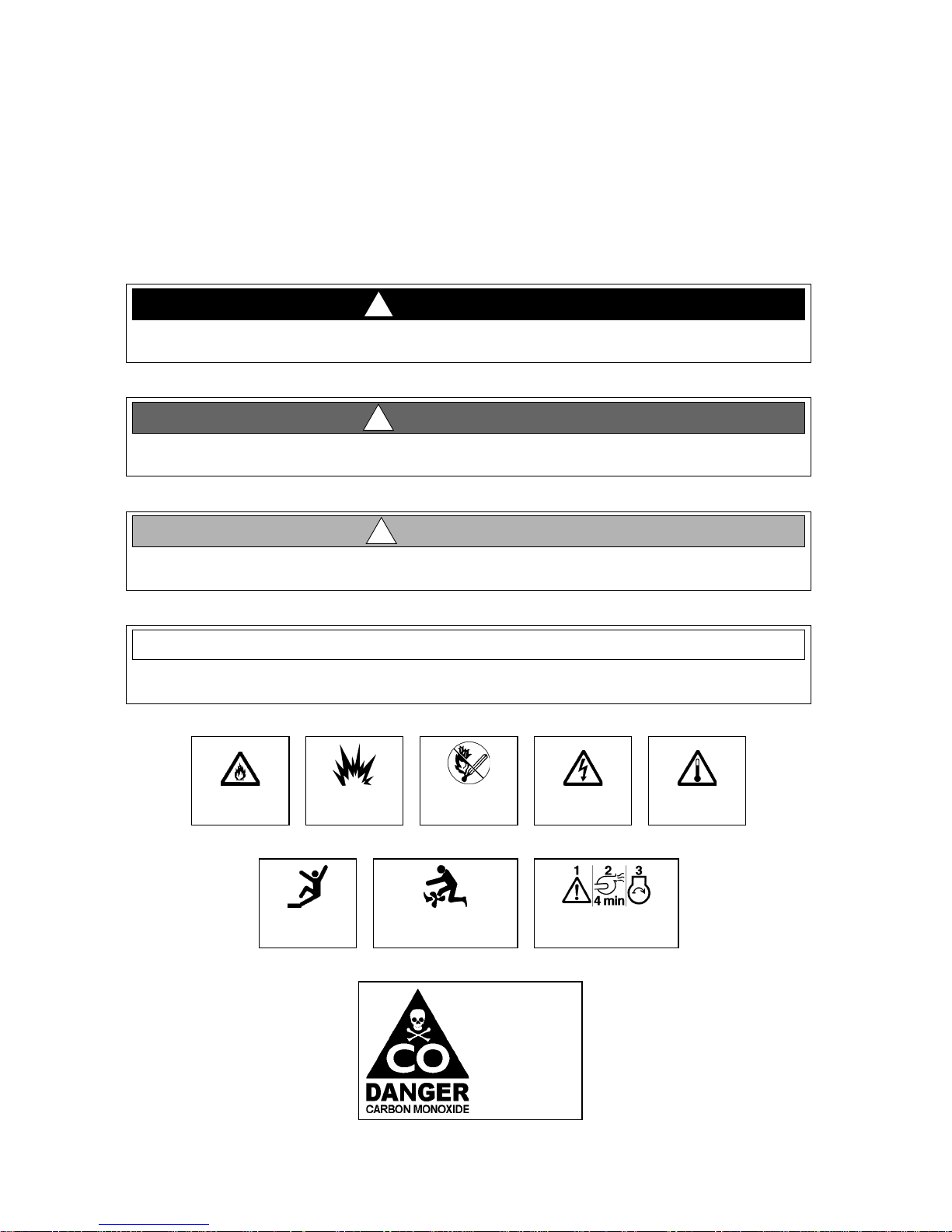

Hazard Boxes & Symbols

The hazard boxes and symbols shown below are used throughout this Supplement to call attention to potentially dan-

gerous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and

follow all safety instructions.

DANGER!

This box alerts you to immediate hazards which WILL cause severe personal injury or death if

the warning is ignored.

This box alerts you to hazards or unsafe practices which COULD result in severe personal

injury or death if the warning is ignored.

WARNING!

This box alerts you to hazards or unsafe practices which COULD result in minor personal

injury or cause product or property damage if the warning is ignored.

CAUTION!

NOTICE

This box calls attention to installation, operation or maintenance information, which is impor-

tant to proper operation but is not hazard related.

EXPLOSION

HAZARD! NO OPEN

FLAME! HOT

HAZARD!

ROTATING

PROPELLER HAZARD!

FALLING

HAZARD!

ELECTRICAL

HAZARD!

CO POISONING

HAZARD!

FIRE

HAZARD!

RUN BILGE BLOWERS

FOR 4 MINUTES!

2859 Classic Cruiser •Owner’s Manual Supplement

Chapter 1: Welcome Aboard!

This Owner’s Manual Supplement provides specific information about your boat that is not covered in the Cruiser &

Yacht Owner’s Manual. Please study the Cruiser & Yacht Owner’s Manual and this Supplement carefully. Keep the

Cruiser & Yacht Owner’s Manual and this Supplement on your boat in a secure, yet readily available place.

Dimensions and Tank Capacities

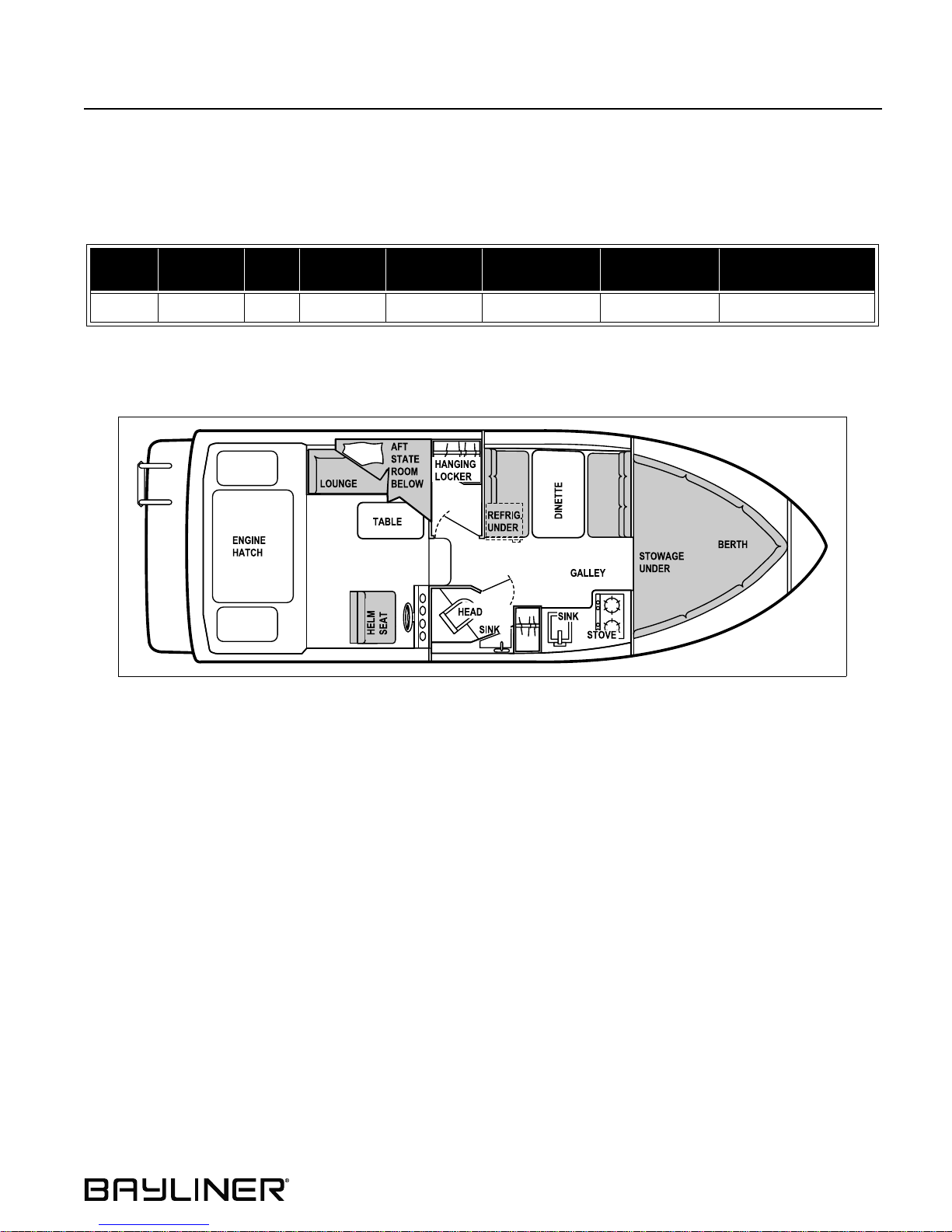

Layout View

Dealer Service

•Ask your dealer to explain all systems before taking delivery of your boat.

•Your dealer is your key to service.

•Contact your dealer if you have any problems with your new boat.

•If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235.

•Buy replacement parts from any authorized Bayliner dealer.

Warranty Information

•Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer.

•A copy of the Limited Warranty was included in your owner’s packet.

•If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235.

Overall

Length Bridge

Clearance Beam Draft

(Drive Up) Draft(Drive

Down) Fuel Capacity

(gal.) Freshwater

Capacity (gal.) Waste Holding

Tank Capacity (gal.)

27' 8" 9' 1" 9' 9" 1' 7" 3' 0" 102 36 30

Chapter 1: Welcome Aboard! 2859 Classic Cruiser •Owner’s Manual Supplement

Boating Experience

If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and

safety, obtain handling and operating experience before assuming command of the boat.

Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For

more course information, including dates and locations of upcoming classes, contact the organizations directly:

•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org

•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org

Outside the United States, your selling dealer, national sailing federation or local boat club can advise you of local

sea schools or competent instructors.

Engine & Accessories Guidelines

•Your boat’s engine and accessories were selected to provide optimum performance and service.

•Installing a different engine or other accessories may cause unwanted handling characteristics.

•Should you choose to install a different engine or to add accessories that will affect the boat’s running trim, have

an experienced marine technician perform a safety inspection and handling test before operating your boat again.

Certain modifications to your boat can result in cancellation of your warranty protection. Always check with

your dealer before making any modifications to your boat.

Engine & Accessories Literature

•The engine and accessories installed on your boat come with their own operation and maintenance manuals.

•Read and understand these manuals before using the engine and accessories.

•Unless noted otherwise, all engine and accessory literature referred to in this Supplement is included in your

owner’s packet.

Structural Limitations

The transom platform and bow platform are designed to be lightweight for proper boat balance. The load limit for

these platforms is 30 pounds per square foot, evenly distributed.

CONTROL HAZARD!

A qualified operator must be in control of the boat at all times. DO NOT operate your boat

while under the influence of alcohol or drugs.

WARNING!

When storing your boat please refer to your engine’s operation and maintenance manuals.

NOTICE

2859 Classic Cruiser •Owner’s Manual Supplement Chapter 1: Welcome Aboard!

Safety Standards

•Your boat’s mechanical and electrical systems were designed to meet safety standards in effect at the time it

was built.

•Some of these standards were mandated by law, all of them were designed to insure your safety, and the safety of

other people, vessels and property.

In addition to this Owner’s Manual Supplement, please read the Cruiser & Yacht Owner’s Manual and all accessory

instructions for important safety standards and hazard information.

Qualified Maintenance

•Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your

jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.

•Follow the instructions provided in the Cruiser & Yacht Owner’s Manual, this Owner’s Manual Supplement, the

engine owner’s manual and all accessory instruction sheets and manuals.

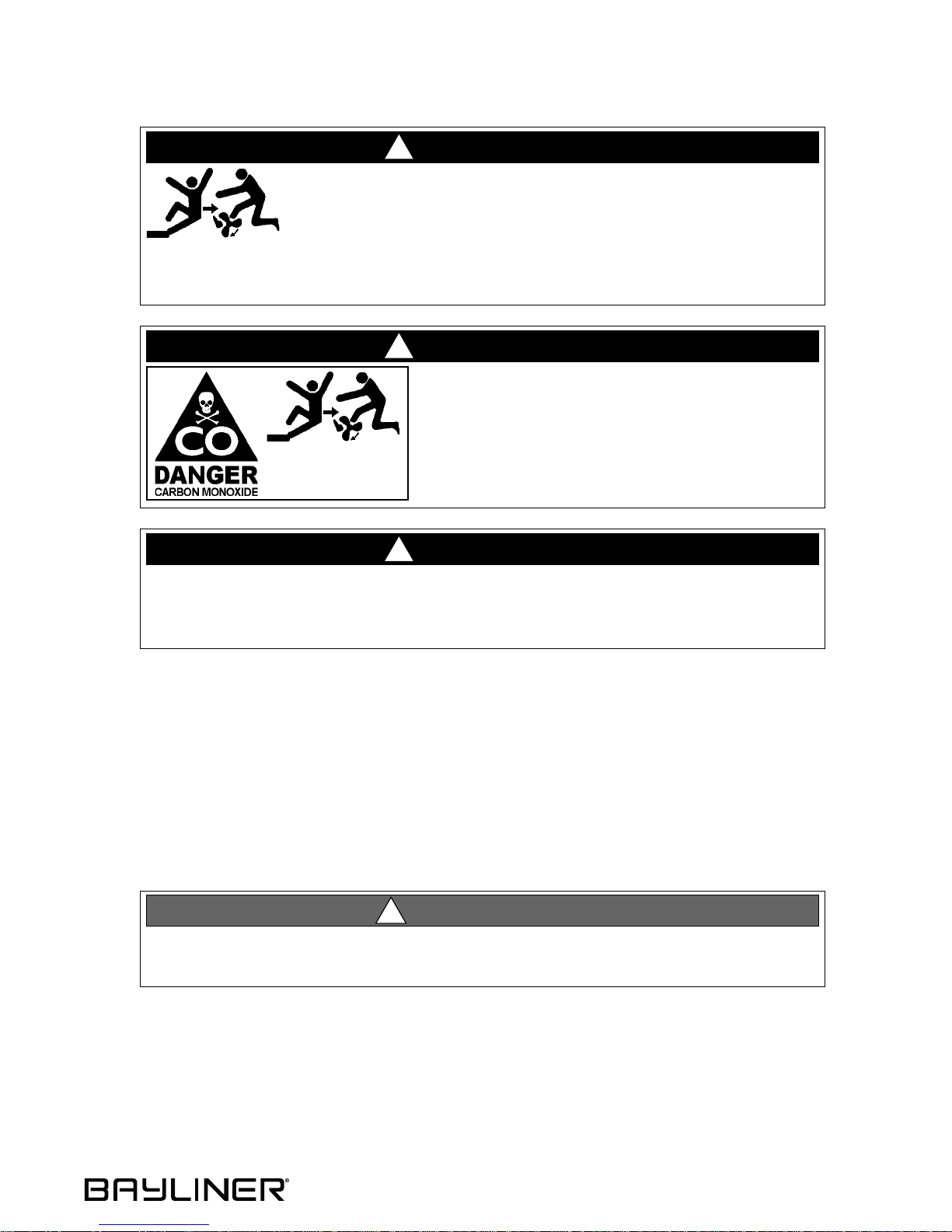

FALLING and ROTATING PROPELLER HAZARD!

NEVER allow anyone to ride on parts of the boat not designed for

such use.

•Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding or occupy-

ing the transom platform while underway is especially hazardous and will cause personal

injury or death.

DANGER!

ROTATING PROPELLER and CARBON MONOXIDE

POISONING HAZARD!

•NEVER allow anyone to occupy, or hang from, the

back deck or swim platform while the engine(s)

are running.

•Teak surfing, dragging, or water skiing within 20 feet

of a moving watercraft can be fatal.

DANGER!

PERSONAL SAFETY HAZARD!

ALWAYS secure the anchor and other loose objects before getting underway. The anchor and

other items that are not properly secured can come loose when the boat is moving and cause

personal injury or death.

DANGER!

To maintain the integrity and safety of your boat, allow only qualified personnel to perform

maintenance on, or in any way modify: The steering system, propulsion system, engine control

system, fuel system, environmental control system, electrical system or navigational system.

WARNING!

Chapter 1: Welcome Aboard! 2859 Classic Cruiser •Owner’s Manual Supplement

Special Care For Moored Boats

•Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom.

•This will detract from the boat’s beauty, greatly affect its performance and may damage the gelcoat.

•Periodically haul the boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap

and water.

Sacrificial Anodes (Zincs)

Your boat is equipped with sacrificial anodes (zincs) to protect underwater metal parts from excessive deterioration.

Check the zincs regularly and replace them if they have deteriorated more than 70%.

There are many factors that affect the rate at which the zincs deteriorate, including:

•Water temperature

•Salinity

•Water pollution

Stray electrical current from the boat or dock may cause complete deterioration in just a few weeks. If there is rapid

zinc deterioration, measure the electrolytic corrosion around your boat with a Corrosion Test Meter. If the zincs are

not bonded correctly, they will not provide protection.

•To help seal thehull bottom and reduce the possibility of gelcoatblistering on moored boats,

apply an epoxy barrier coating. The barrier coating should be covered with several coats of

anti-fouling paint.

•Many states regulate the chemical content of bottom paints in order to meet environmental

standards. Check with your local dealer about recommended bottom paints, and about the

laws in effect in your area.

NOTICE

Do not paint between the zinc and the metal surface it contacts and do not paint over the zincs.

NOTICE

Indice

Altri manuali Bayliner Barca

Bayliner

Bayliner 3788 Command Bridge Manuale utente

Bayliner

Bayliner 2452 Classic Cruiser Manuale utente

Bayliner

Bayliner Capri 16' Guida alla configurazione

Bayliner

Bayliner 1995 Capri Manuale utente

Bayliner

Bayliner 2150 Ciera Sunbridge Manuale utente

Bayliner

Bayliner 185 Manuale utente

Bayliner

Bayliner Ciera 2455 Sunbridge Manuale utente

Bayliner

Bayliner Capri 21' Manuale utente

Bayliner

Bayliner 245 Bowrider Guida alla configurazione

Bayliner

Bayliner Classic Runabouts Manuale utente

Bayliner

Bayliner 175 Manuale utente

Bayliner

Bayliner 175 Manuale utente

Bayliner

Bayliner Capri 1704 SF Manuale utente

Bayliner

Bayliner 185 Manuale utente

Bayliner

Bayliner Trophy 1703FS Manuale utente

Bayliner

Bayliner 300 CRUISER Guida alla configurazione

Bayliner

Bayliner 222 Classic Guida alla configurazione

Bayliner

Bayliner Capri 1950 Bowrider Manuale utente

Bayliner

Bayliner 2005 289 Classic Manuale utente

Bayliner

Bayliner 190 Bowrider Guida alla configurazione

Bayliner

Bayliner 16 Element Guida alla configurazione

Bayliner

Bayliner 2858 Classic Cruiser Guida alla configurazione

Bayliner

Bayliner Classic Runabouts Manuale utente

Bayliner

Bayliner 3388 Guida alla configurazione

Manuali Barca popolari di altre marche

Raymarine

Raymarine ST70 Instrument Manuale utente

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuale utente

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuale utente

Tiara Yachts

Tiara Yachts C49 2024 Manuale utente

Monterey Boats

Monterey Boats Sport Yacht 330 Manuale utente

J 105 Manuale utente

PURSUIT

PURSUIT OS 335 Manuale utente

Boston Whaler

Boston Whaler CONQUEST 345 Manuale utente

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuale utente

Meridian

Meridian 490 Pilothouse Manuale utente

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuale utente

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuale utente

Swallow Boats

Swallow Boats BayRaider Manuale utente

Intex

Intex Excursion 5 Set Manuale utente

X SHORE

X SHORE EELEX 8000 Manuale utente

ISLAND PACKET

ISLAND PACKET 370 Manuale utente

Sea Ray

Sea Ray 175 Sport Manuale utente

Regal

Regal 2300 Manuale utente
