Bayliner Classic Runabouts Manuale utente

Engine Serial Number: _____________________________________________

Hull Identification Number:__________________________________________

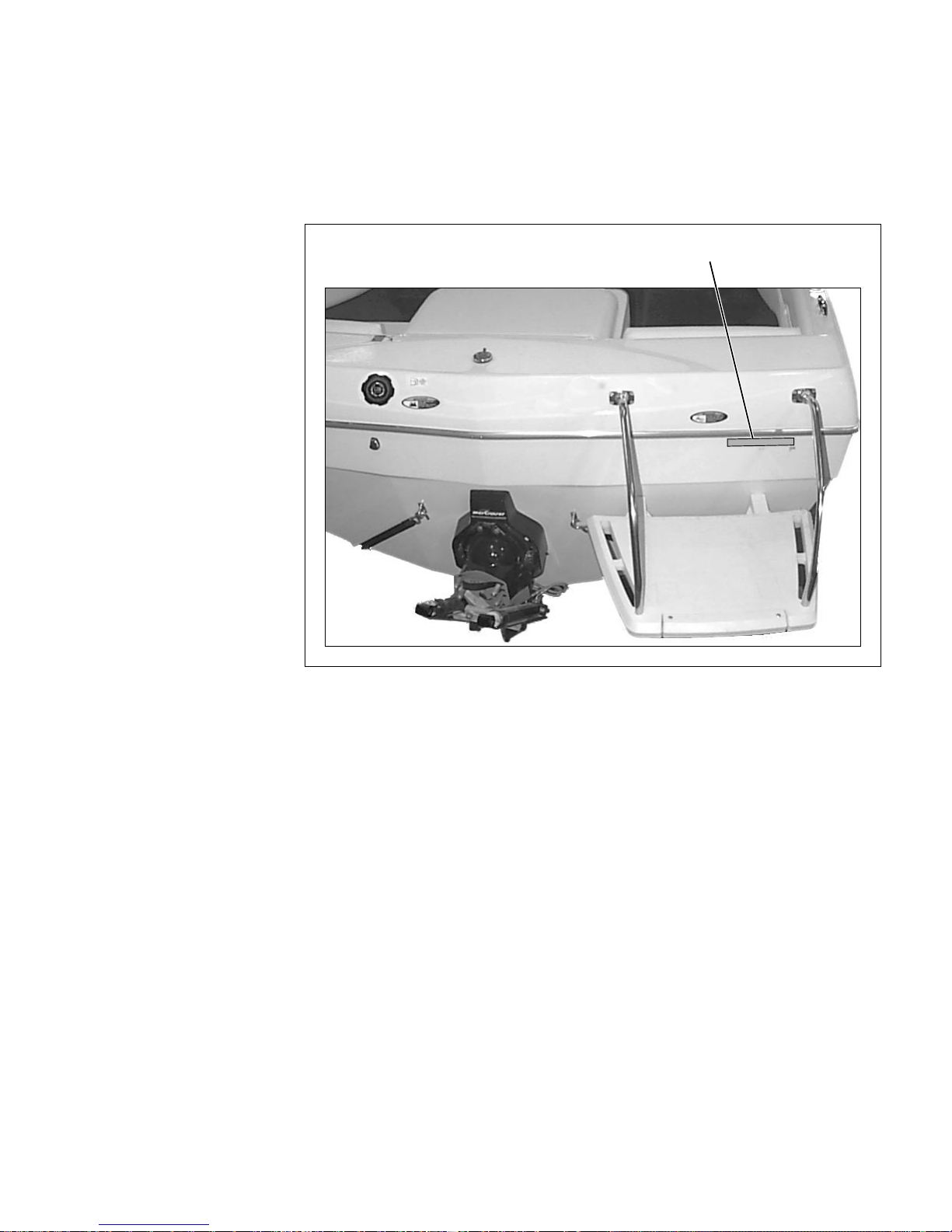

Hull Identification Number

•The Hull Identification

Number (HIN) is located

on the starboard side of

the transom.

•Record the HIN (and the

engine serial numbers) in

the space provided above.

•Refer to the HIN for any

correspondence or orders.

No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,

recording or otherwise, without prior written permission of Bayliner.

Printed in the United States of America.

General Notes

The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this

document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.

Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equipment at any time

without notice or obligation. Illustrations and/or photos may show optional equipment.

All Bayliner products meet or exceed USCG (Unites States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) construction standards.

Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the

upper atmosphere.

Proprietary Rights

This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the prop-

erty of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any

information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. This document is to

be returned upon request to Bayliner.

HIN LOCATION

CONTENTS

1 Chapter 1: Welcome Aboard!

1 Dealer Service

1 Warranty Information

1 Boating Experience

2 Safety Standards

2 Engine & Accessories Guidelines

3 Engine & Accessories Literature

3 Qualified Maintenance

3 Special Care For Moored Boats

4 Carbon Monoxide (CO)

4 Facts about CO

5 Where and How CO Can Accumulate

5 How to Protect Yourself and Others From CO

6 Trip Checklist

6 Monthly Checklist

6 Annual Checklist

6 More Information

7 Chapter 2: Product Specifications

7 195

7 192

8 194

8 215

9 210

10 Chapter 3: Locations

10 Exterior Views

10 Hull Views

10 195, 192 & 194

11 215 & 210

12 195 Deck View

13 192 Deck View

14 194 Deck View

15 215 Deck View

16 210 Deck View

17 Component Locations

18 Chapter 4: Propulsion &

Related Systems

18 Engine

18 Engine Room Ventilation System

19 Fuel System

19 Fuel Fill and Vent

19 Fuel Filters

19 Anti-siphon Valve

20 Quick Oil Drain System

21 Chapter 5: Controls

21 Steering

21 Shift/Throttle Lever

21 Power Trim and Tilt

21 Gauges

21 Cleaning Gauges

21 Gauge Fogging

21 Radio Transmission Interference

21 Fuel Gauge

22 Chapter 6: Plumbing

22 Drain Systems

22 Deck Drains

22 Bilge Pump

24 Seawater System (If Equipped)

24 Seacock

24 Portable Toilet (If Equipped)

25 Baitwell System (194 Only)

26 Chapter 7: Deck Equipment

26 Cleats and Tow Eyes

26 Ski Tow Ring

26 Pre-rigging For Trolling Motor (194 Only)

27 Canvas (If Equipped)

27 195 & 192 Canvas Top (If Equipped)

28 194 Canvas Top (If Equipped)

29 215 & 210 Canvas Top (If Equipped)

30 195 & 194 Bimini Top (If Equipped)

31 215 Bimini Top (If Equipped)

32 Chapter 8: Entertainment Systems

32 Audio System

33 Chapter 9: Convertible Seats,

Beds, & Tables

33 Sleeper Seats (If Equipped)

33 Operating Positions

33 Lounge positions

34 Jump Seat To Sunlounge Conversion

35 Removable Fishing Seats (194 Only)

36 Chapter 10: Lights

36 Care and Maintenance

36 Navigation Lights

37 Chapter 11: Electrical System

38 12-Volt DC System

38 Battery

38 Fuses and Circuit Breakers

38 Alternator

38 12-Volt Accessory Outlet

39 Electrical Routings

39 192 Deck Electrical Harness

40 194 Deck Electrical Harness

41 195 Deck Electrical Harness

41 210 Deck Electrical Harness

42 215 Deck Electrical Harness

42 195, 192 & 194 Hull Electrical Harness

43 210 & 215 Hull Electrical Harness

43 210 & 215 Battery Cable Harness

44 Wiring Diagram

45 Important Records

46 Float Plan

Hazard Boxes & Symbols

The hazard boxes and symbols shown below are used throughout this Supplement to call attention to potentially dan-

gerous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and

follow all safety instructions.

DANGER!

This box alerts you to immediate hazards which WILL cause severe personal injury or death if

the warning is ignored.

This box alerts you to hazards or unsafe practices which COULD result in severe personal

injury or death if the warning is ignored.

WARNING!

This box alerts you to hazards or unsafe practices which COULD result in minor personal

injury or cause product or property damage if the warning is ignored.

CAUTION!

NOTICE

This box calls attention to installation, operation or maintenance information, which is impor-

tant to proper operation but is not hazard related.

EXPLOSION

HAZARD! NO OPEN

FLAME! HOT

HAZARD!

ROTATING

PROPELLER HAZARD!

FALLING

HAZARD!

ELECTRICAL

HAZARD!

CO POISONING

HAZARD!

FIRE

HAZARD!

RUN BILGE BLOWERS

FOR 4 MINUTES!

Classic Runabouts • Owner’s Manual Supplement

Chapter 1: Welcome Aboard!

This Owner’s Manual Supplement provides specific information about your boat that is not covered in the Sport Boat

Owner’s Manual. Please study the Sport Boat Owner’s Manual and this Supplement carefully. Keep the Sport Boat

Owner’s Manual and this Supplement on your boat in a secure, yet readily available place.

Dealer Service

•Your dealer is your key to service.

•Ask your dealer to explain all systems before taking delivery of your boat.

•Contact your dealer if you have any problems with your new boat.

•If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235.

•Buy replacement parts from any authorized Bayliner dealer.

Warranty Information

•Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer.

•A copy of the Limited Warranty was included in your owner’s packet.

•If you did not receive a copy of the Limited Warranty, please contact your dealer or call 360-435-8957 for a copy.

Boating Experience

If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and

safety, obtain handling and operating experience before assuming command of the boat.

Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For

more course information, including dates and locations of upcoming classes, contact the organizations directly:

•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org

•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org

Outside the United States, your selling dealer, national sailing federation or local boat club can advise you of local

sea schools or competent instructors.

CONTROL HAZARD!

A qualified operator must be in control of the boat at all times. DO NOT operate your boat

while under the influence of alcohol or drugs.

WARNING!

Chapter 1: Welcome Aboard! Classic Runabouts • Owner’s Manual Supplement

Safety Standards

•Your boat’s mechanical and electrical systems were designed to meet safety standards in effect at the time it

was built.

•Some of these standards were mandated by law, all of them were designed to insure your safety, and the safety of

other people, vessels and property.

In addition to this Owner’s Manual Supplement, please read the Sport Boat Owner’s Manual and all accessory

instructions for important safety standards and hazard information.

Engine & Accessories Guidelines

•Your boat’s engine and accessories were selected to provide optimum performance and service.

•Installing a different engine or other accessories may cause unwanted handling characteristics.

•Should you choose to install a different engine or to add accessories that will affect the boat’s running trim, have

an experienced marine technician perform a safety inspection and handling test before operating your boat again.

Certain modifications to your boat can result in cancellation of your warranty protection. Always check with

your dealer before making any modifications to your boat.

FALLING and ROTATING PROPELLER HAZARD!

NEVER allow anyone to ride on parts of the boat not designed for

such use.

•Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding or occupy-

ing the transom platform while underway is especially hazardous and will cause personal

injury or death.

DANGER!

ROTATING PROPELLER and CARBON MONOXIDE

POISONING HAZARD!

•NEVER allow anyone to occupy, or hang from, the

back deck or swim platform while the engine(s)

are running.

•Teak surfing, dragging, or water skiing within 20 feet

of a moving watercraft can be fatal.

DANGER!

PERSONAL SAFETY HAZARD!

ALWAYS secure the anchor and other loose objects before getting underway. The anchor and

other items that are not properly secured can come loose when the boat is moving and cause

personal injury or death.

DANGER!

NOTICE

When storing your boat please refer to your engine’s operation and maintenance manuals.

Classic Runabouts • Owner’s Manual Supplement Chapter 1: Welcome Aboard!

Engine & Accessories Literature

•The engine and accessories installed on your boat come with their own operation and maintenance manuals.

•Read and understand these manuals before using the engine and accessories.

•Unless noted otherwise, all engine and accessory literature referred to in this supplement is included in your

owner’s packet.

Qualified Maintenance

•Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your

jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.

•Follow the instructions provided in the Sport Boat Owner’s Manual, this Owner’s Manual Supplement, the engine

owner’s manual and all accessory instruction sheets and manuals.

Special Care For Moored Boats

•Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom.

•This will detract from the boat’s beauty, greatly affect its performance and may damage the gelcoat.

•Periodically haul the boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap

and water.

To maintain the integrity and safety of your boat, allow only qualified personnel to perform

maintenance on, or in any way modify: The steering system, propulsion system, engine control

system, fuel system, environmental control system, electrical system or navigational system.

WARNING!

•To help seal thehull bottom and reduce the possibility of gelcoatblistering on moored boats,

apply an epoxy barrier coating. The barrier coating should be covered with several coats of

anti-fouling paint.

•Many states regulate the chemical content of bottom paints in order to meet environmental

standards. Check with your local dealer about recommended bottom paints, and about the

laws in effect in your area.

NOTICE

Chapter 1: Welcome Aboard! Classic Runabouts • Owner’s Manual Supplement

Carbon Monoxide (CO)

Facts about CO

•CO poisoning causes a significant number of boating deaths each year.

•Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.

•CO can harm or even kill you inside or outside your boat.

•CO can affect you whether you’re underway, moored, or anchored.

•CO symptoms are similar to seasickness or alcohol intoxication.

•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.

•Breathing CO blocks the ability of your blood to carry oxygen.

•The effects are cumulative, even low levels of exposure can result in injury or death.

Factors That Increase the Effects of CO Poisoning

•Age

•Smokers or people exposed to high concentrations of cigarette smoke

•Consumption of alcohol

•Lung disorders

•Heart problems

•Pregnancy

•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and

extremely dangerous.

•All engines, generators, and fuel burning appliances produce CO

as exhaust.

•Prolonged exposure to low concentrations or very quick exposure to high

concentrations will cause BRAIN DAMAGE or DEATH.

•Teak surfing, dragging, or water skiing within 20 feet of a moving water-

craft can be fatal.

DANGER!

Altri manuali per Classic Runabouts

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Bayliner Barca

Bayliner

Bayliner Capri Guida alla configurazione

Bayliner

Bayliner 1994 4788 Motoryacht Manuale utente

Bayliner

Bayliner 305 Guida alla configurazione

Bayliner

Bayliner 1950 1952 1954 2150 2152 Guida alla configurazione

Bayliner

Bayliner Discovery 266 Guida alla configurazione

Bayliner

Bayliner 4587 Manuale utente

Bayliner

Bayliner E21 Manuale utente

Bayliner

Bayliner 245 Cruiser Manuale utente

Bayliner

Bayliner 2858 Classic Cruiser Guida alla configurazione

Bayliner

Bayliner 1995 Ciera Manuale utente

Bayliner

Bayliner 255 Cruiser Manuale utente

Bayliner

Bayliner 245 Bowrider Guida alla configurazione

Bayliner

Bayliner 245 Cruiser Manuale utente

Bayliner

Bayliner 3388 Manuale utente

Bayliner

Bayliner 2005 289 Classic Manuale utente

Bayliner

Bayliner 265 Manuale utente

Bayliner

Bayliner Capri 21' Manuale utente

Bayliner

Bayliner 3388 Guida alla configurazione

Bayliner

Bayliner 197 Manuale utente

Bayliner

Bayliner 300 CRUISER Guida alla configurazione

Bayliner

Bayliner 212 Runabout Guida alla configurazione

Bayliner

Bayliner 285 Cruiser Manuale utente

Bayliner

Bayliner 1996 Ski Challenger Manuale utente

Bayliner

Bayliner 2302 DXILX Guida alla configurazione

Manuali Barca popolari di altre marche

Raymarine

Raymarine ST70 Instrument Manuale utente

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuale utente

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuale utente

Tiara Yachts

Tiara Yachts C49 2024 Manuale utente

Monterey Boats

Monterey Boats Sport Yacht 330 Manuale utente

J 105 Manuale utente

PURSUIT

PURSUIT OS 335 Manuale utente

Boston Whaler

Boston Whaler CONQUEST 345 Manuale utente

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuale utente

Meridian

Meridian 490 Pilothouse Manuale utente

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuale utente

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuale utente

Swallow Boats

Swallow Boats BayRaider Manuale utente

Intex

Intex Excursion 5 Set Manuale utente

X SHORE

X SHORE EELEX 8000 Manuale utente

ISLAND PACKET

ISLAND PACKET 370 Manuale utente

Sea Ray

Sea Ray 175 Sport Manuale utente

Regal

Regal 2300 Manuale utente
