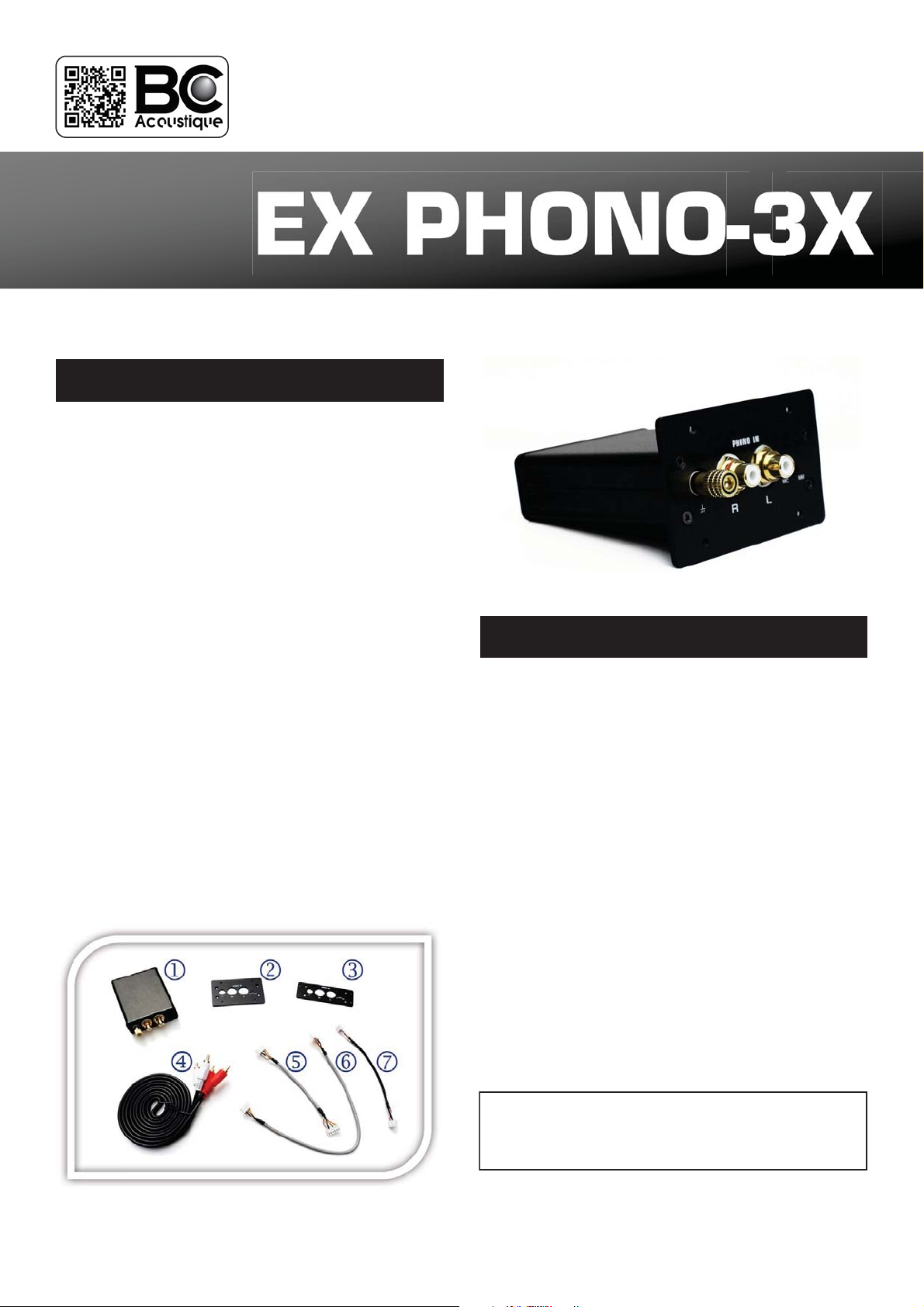

The oponal EX PHONO-3X module is a dedicated
pre-amplifier that will allow you to connect your turntable
to your BC components. The EX PHONO is compable with
MM (Moving Magnet) and MC (Moving Coil) cartridges.
The EX PHONO-3X module is dedicated to be used with
BC Acousque EX products equipped with an « OPTIONAL
BOARD » slot. The board is compable with EX312 - EX322 -
EX332 - EX362 - EX888 - EX322.1 - EX888.1 products.
INSIDE THE PACKAGING
①1x EX PHONO-3X card with its 4 Phillips screws
②1x Large metal plate
-> Fit for amplifiers EX322, EX888 specs
③1x Small metal plate
-> Fit for amplifiers EX332D specs
④1x Stereo RCA cable
⑤1x 6 pin MOLEX cable - Short / POWER
-> For EX332D type amplifiers
⑥1x 6 pin MOLEX cable - Long / POWER
-> For EX322 type amplifiers
⑦1x 3 pin cable / LINE OUT
⑦1x This manual
Tools needed: Philips 2 screwdriver
Phono card MM & MC
WARNING !
Before starng the installaon of the EX PHONO-3X card,
make sure that your amplifier EX Series is powered off AND
disconnected from the wall power cord.
Warning, never operate inside the product if the power
cord is connected. When opened, some internal parts of
the product might cause sever injuries as they are working
at high voltage.
All other internal operaons apart the one described in this
manual about oponal module installaon, must be done
by a qualified technician.
We invite you to contact our accredited service staons if
your product has been chocked, exposed to moisture or
humidity or if any parts has been introduce inside the
product. Internal fuses replacement is also an operaon
which should be done by accredited technician.
IMPORTANT !
PLEASE FOLLOW THESE STEPS IN THE ORDER INDICATED
Important safety instrucons
Introducon
QUICK INSTALLATION GUIDE
