BCM Advanced Research Advanced Socket 370 Manuale utente

Advanced

Socket 370

Motherboard

FX816ELV

User’s Manual

http://www.bcmcom.com

Declaration

Rights:

No part of this manual, including but not limited to the products and software described in it,

may be reproduced, transmitted, transcribes, stored in a retrieval system, or translated in any

form or by any means without the expressed written permission from the manufacturer.

Products and corporate names appearing in this manual may or may not be registered

trademarks or copyrights of their respective companies and are used only for identification or

explanation purposes without intent to infringe.

 Intel, MMX and Pentium are registered trademarks of Intel Corporation.

 Microsoft and Windows are registered trademarks of Microsoft Corporation.

 Whizpro and WHIZPROBIOS are registered trademarks of Whizpro Software, Inc.

 Winbond is registered trademark of Winbond Corporation

Responsibility:

This manual is provided “As-Is” with no warranties of any kind, either expressed or implied,

including, but not limited to the implied warranties or conditions of this product’s fitness for

any particular purpose. In no event shall we be liable for any loss of profits, loss of business,

loss of data, interruption of business, or indirect, special, incidental, or consequential

damages of any kind, even the possibility of such damages arising from any defect or error in

this manual or product. We reserve the right to modify and update the user manual without

prior notice.

WARNING: Replace your system’s CMOS RAM battery only with the identical CR-2032

3V Lithium-Ion coin cell (or equivalent) battery type to avoid risk of personal injury or

physical damage to your equipment. Always dispose of used batteries according to the

manufacturer’s instructions, or as required by the local ordinance (where applicable).

References:

This manual is created and written by BCM Technical Team, but not limited, to the

information from the FX816ELV External Production Specifications, and FX816ELV

Specifications. If any comments, suggestions, or errors for this manual, please e-mail to

support@bcmcom.com.

Compliance & Certificate

ISO 9001 Certificate:

This device was produced in our plant with advanced quality system certified by DNV QA

Ltd. in according to ISO 9001. This Certificate is valid for:

DESIGN & MANUFACTURE OF MOTHERBOARD AND PERSONAL COMPUTERS.

CE Declaration:

CE marking is a visible declaration by the manufacturer or his authorized representatives that

the electrical equipment to which it relates satisfies all the provisions of the 1994

Regulations.

FCC Compliance:

FCC stands for Federal Communications Commission.

This product complies with FCC Rules Part 15 and has been tested, and complied with the

EMI rules by a certified body. In normal operation, there shall be no harmful interference

caused by this device nor shall this device accept any interference received, including

interference that may cause undesired operation of this product.

Year 2000 Compliance:

This product is test to be qualified to bear the NSTL Year 2000 Compliant logo. Year 2000

problem is mainly a problem of computer software (OS), and the hardware issue. With the

support of BIOS on motherboard, the Y2K problem can be thoroughly conquered.

Easy Installation

Easy Installation Steps

The following “Easy Installation” steps are for users accustomed

to the assembly of a computer system. For those individuals

requiring more specific information, please refer to the more

detailed descriptions located within the latter chapters of this

manual.

Note: You must keep your power cable unplugged until the

following installation steps are completed.

Getting Started

Touch a grounded metal surface to release static electricity

stored in your body before unpacking your motherboard. For

details please refer to Precaution section in Chapter 3.

Install the CPU by correctly aligning the CPU with the socket

370 as noted in the motherboard diagram. Once aligned, press

down on the CPU gently but firmly and lock it. Next, install the

3.3 volt un-buffered SDRAM into the 168 pin DIMM slots.

Please see Sec. 3.4.

Plug in any peripheral card(s) that you want to be included in the

setup. Please see Sec. 3.5.

Plug in all cables included in the package except for the power

cord. Please see Sec. 3.6.

Please recheck all steps to ensure no mistakes have been made

and then plug in the power cord and turn on the power to enter

the BIOS setup, Chapter 4.

Table of Contents

Declaration............................................................................................................... 2

Compliance & Certificate ....................................................................................... 3

Easy Installation...................................................................................................... 4

1. Introduction ......................................................................................................... 6

1.1 How To Use This Manual ................................................................................ 6

1.2 Check Your Device Items ................................................................................ 6

2. Features ............................................................................................................... 7

2.1 Features Of The Motherboard ......................................................................... 7

3. Installation ........................................................................................................... 9

3.1 Motherboard Layout & Main Parts................................................................... 9

3.2 Connectors and Jumpers ..............................................................................12

3.3 CPU (Central Processing Unit)...................................................................... 13

3.4 System Memory (DRAM)............................................................................... 14

3.5 Expansion Slots ............................................................................................. 15

3.6 Connectors, Headers, and Ports ................................................................... 16

4. BIOS Setup ........................................................................................................ 21

4.1 BIOS Setup.................................................................................................... 21

4.2 Main Setup Menu...........................................................................................22

4.3 General Configuration Menu ......................................................................... 23

4.4 Advanced Configuration Menu ......................................................................25

4.5 System Specific Setup................................................................................... 27

4.6 Primary IDE Drives ........................................................................................28

4.7 Secondary IDE Drives ................................................................................... 29

4.8 Peripherals Setup Menu ................................................................................30

4.9 Power Management Setup Menu ..................................................................31

4.10 PCI /PnP Configurations Menu.................................................................... 34

4.11 Hardware Monitor ........................................................................................ 35

4.12 Restore Default Settings..............................................................................36

4.13 Exit ............................................................................................................... 36

5. Troubleshooting................................................................................................37

5.1 General Troubleshooting Tips ....................................................................... 37

Introduction

1.1 How To Use This Manual

This manual provides information necessary for Original

Equipment Manufactures (OEMs) and home users to build

for ATX compatible system using Intel Socket 370 CPU

motherboard. Follow the installation procedure presented

on the Easy Installation Page and refer to the section

number following each step if you require more detailed

instructions.

USER MANUAL

1.2 Check Your Device Items

The standard package should contain the following items. If

you find any of these items be missing or damaged, please

contact your retailer.

 1 FX816ELV motherboard

 1 IDE ribbon cable (80-pin for ATA100)

 1 floppy ribbon cable

 1 CD with drivers for FX816ELV Motherboard and all

of the components

 1 Users Manual (In Driver CD)

 1 Quick Start Guide

CHECK ITEMS

Features

2.1 Features Of The Motherboard

This product is based on the Flex ATX form factor. It features the advanced

multimedia function and provides support for business PC maker. This motherboard

incorporates Intel 815 chipset. Providing features such as integrated 2D/3D AGP VGA

controller with AGP In-Line Memory Module, DVO Pin Header, Ultra DMA 33/66 IDE

interface, ACPI Power Management, 10/100Mbps LAN, USB, IEEE 1394 connectivity,

and soft sound support.

Processor

 Single Intel Socket-370 mechanism for Intel Flip-Chip PGA Celeron or Intel Flip-Chip

PGA Pentium III/ Tualatin Processor

 Supports 100/133 MHz FSB

Core Logic Chipset

 Intel 815E Chipset includes GMCH (Graphics and Memory Controller Hub Rev. B

Chipset), ICH2 (I/O Controller Hub) and FWH (Firm Ware Hub)

System Memory

 Two 168-pin DIMM sockets up to 512MB

 Supports up to 2 double sided DIMMs

Graphics Support

 230MHz RAMDAC; Integrated Hardware Motion Compensation (30 frames per sec.)

 Desktop display modes up to 1600 x 1200 x 8 @ 75Hz refresh rate

 1 VGA output port

 1 DVO Pin Header (Optional DVO to TTL TFT Interface Module )

PCI Bus Master IDE Controller

 2 IDE Connectors (support up to 4 IDE devices)

 Supports Ultra DMA: 33MB/s, 66MB/s, and 100MB/s

LAN Support (Optional)

 ICH2 integrated with LAN controller. With 82562ET (10/100 LAN)

Features

Integrated I/O

 Winbond W83627HF AW super I/O controller

 1 Parallel Port (SPP/ECP/EPP/ECP+EPP)

 2 Serial Port (16C550 Fast UART Compatible – 115kbps)

 1 PS/2 Mouse Port

 1 PS/2 Keyboard Port

 1 Floppy connector

 4 Standard USB Ports (2 from the header connector and 2 from the back ports)

 2 Fan connectors

 Hardware Monitor Capability (optional)

 2 IEEE 1394 Ports (1 from the header connector)

System BIOS

 4Mb Flash device in FWH

 PC-99 and PnP (Plug ‘n Play) compatible

 Supports ACPI (Advanced Configuration and Power Interface), and APM (Advanced

Power Management)

 Supports to boot from CD-ROM, SCSI, IDE, FDD, ZIP, and LS-120

Green Features

 Power Management APM version 1.2

 Intelligent Power Management fully supported by Windows 2000 with On-Now and

supports all wake-up states (S1 thru S5)

 WOL (Wake On LAN), and WOR (Wake On Ring).

Sound System

 AC97 Revision v. 2.1 integrated in ICH2.

 2 Audio Phone Jacks (Line-Out, Mic-In).

 Includes CD-In.

Expansion Slots

 1 PCI slot

Mechanical

 This motherboard complies with the Flex ATX Form Factor specification and has a four

layers with dimensions of 6.79.” x 7.25”

Installation

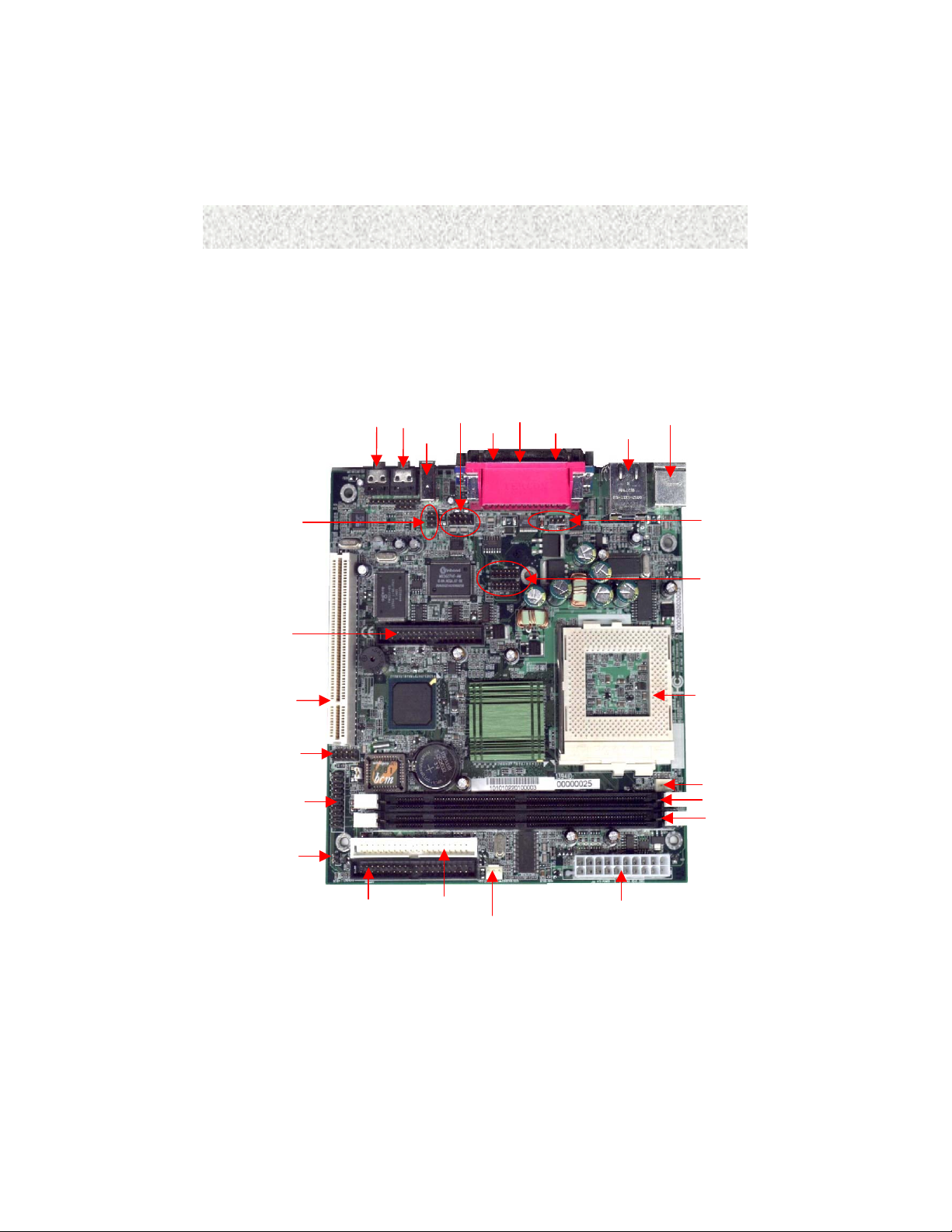

3.1 Motherboard Layout & Main Parts

Printer

COM 1

VGA LAN/USB

Keyboard/Mouse

1394

Mic-In Line-Out

ATX Power

Secondary

IDE

Primary

IDE

Front Panel

Connector

Front USB

PCI Slot

System Fan

Floppy

COM 2

Front 1394

WOR

CPU Socket

CPU Fan

DIMM 1

DIMM 2

DVO Pin Header

LAN LED

Installation

Significant Parts List

Expansion Slots

CPU Refer to Sec. 3.3

System Memory Refer to Sec. 3.4

Expansion Slots Refer to Sec. 3.5

Front Panel Connectors/Back Panel Ports

IrDA Connector (Part of Front Panel Header) Refer to Sec. 3.6.5

Power Switch Connector (Part of Front Panel Header) Refer to Sec. 3.6.5

Reset Switch Connector (Part of Front Panel Header) Refer to Sec. 3.6.5

HDD LED Connector (Part of Front Panel Header) Refer to Sec. 3.6.5

Power LED Connector (Part of Front Panel Header) Refer to Sec. 3.6.5

Keyboard/Mouse Ports Refer to Sec. 3.6.6

USB/LAN Ports Refer to Sec. 3.6.6

Printer/VGA/Serial Ports Refer to Sec. 3.6.6

Sound Ports Refer to Sec. 3.6.6

IEEE 1394 Port 1 Refer to Sec. 3.6.6

Connectors and Header

Primary IDE Connector Refer to Sec. 3.6.1

Secondary IDE Connector Refer to Sec. 3.6.2

Floppy Connector Refer to Sec. 3.6.3

Power Connector Refer to Sec. 3.6.4

CD-In (CD-ROM) Connector Refer to Sec. 3.6.7

WOR (Wake On Ring) Connector Refer to Sec. 3.6.7

CPU Fan Connector Refer to Sec. 3.6.7

System 2 Connector Refer to Sec. 3.6.7

Front USB Connector Refer to Sec. 3.6.7

Serial Port 2 Connector Refer to Sec. 3.6.7

IEEE 1394 Port 2 Connector Refer to Sec. 3.6.7

TV-Out Connector Refer to Sec. 3.6.7

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali BCM Advanced Research Scheda madre

BCM Advanced Research

BCM Advanced Research NX530Z Manuale utente

BCM Advanced Research

BCM Advanced Research FX815ELT Manuale utente

BCM Advanced Research

BCM Advanced Research BC77Q Manuale utente

BCM Advanced Research

BCM Advanced Research MX855EC10 Series Manuale utente

BCM Advanced Research

BCM Advanced Research RX110H Manuale utente

BCM Advanced Research

BCM Advanced Research RX67QV Manuale utente

BCM Advanced Research

BCM Advanced Research MX3965U Manuale utente

BCM Advanced Research

BCM Advanced Research MX310H Manuale utente

BCM Advanced Research

BCM Advanced Research MX690E2 Manuale utente

BCM Advanced Research

BCM Advanced Research SQ596 Manuale utente

BCM Advanced Research

BCM Advanced Research MX855 Manuale utente

BCM Advanced Research

BCM Advanced Research MX6210N Manuale utente

BCM Advanced Research

BCM Advanced Research NX260N Manuale utente

BCM Advanced Research

BCM Advanced Research MX87QD Manuale utente

BCM Advanced Research

BCM Advanced Research ECM-APL Manuale utente

BCM Advanced Research

BCM Advanced Research MX310HD Manuale utente

BCM Advanced Research

BCM Advanced Research MX610H Manuale utente

BCM Advanced Research

BCM Advanced Research DR742e Manuale utente

BCM Advanced Research

BCM Advanced Research MX45GM2 Manuale utente

BCM Advanced Research

BCM Advanced Research RX965QV Manuale utente

BCM Advanced Research

BCM Advanced Research BC77Q Manuale utente

BCM Advanced Research

BCM Advanced Research RX110H Manuale utente

BCM Advanced Research

BCM Advanced Research MX110HD Manuale utente

BCM Advanced Research

BCM Advanced Research ECM-3455J Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
