FlexIR

BEA’s Microcell

Beam Break Away

Solution!

The FlexIR is a flexible mounting

bracket that prevents BEA’s Microcell

infrared beam system from damage

when installed away from the

door jamb surface!

Perfect for industrial door and

residential garage door applications!

Quality, Intelligence, Precision

The FlexIR is BEA’s flexible mounting bracket that prevents BEA's

Microcell beam system from damage when installed in industrial or residential

garage door applications. The FlexIR is highly resistant to damage caused by a

vehicle or a heavy object.

UV-resistant, flexible material prevents damage to the Microcell beam heads,

thus optimizing the safety and reliability of the application.

If hit, the FlexIR will bend and flex back then resetting the Microcell heads

to their original position, thus preventing unnecessary service calls.

The bracket can be installed parallel or perpendicular to the mounting surface

thus allowing optimal flexibility for different types of applications.

The FlexIR is only compatible with BEA's Microcell system.

NEMA 4 accessory available for environments exposed to wet conditions.

www.beasensors.com

NEMA 4

ACCESSORY AVAILABLE

*PATENT PENDING

FlexIR Technical Specifications

Materials:

Flexible Beam Holder Silicone

Mounting Brack Galvanized Steel

Button Plug ABS and Lexan

Screws 18/8 Stainless Steel

Dimensions:

Overall Length 6” (150 mm)

Width (of Bracket) 1 ¾” (45 mm)

Height (of Bracket) 2 ¾” (70 mm)

Installation Height See Mechanical Installation

Instructions in User’s Guide

Operating Temperature -30° to + 131° F

Bracket when used with Microcell (sold separately)

Minimum Distance

between pairs of beams 12” (beams must not be crossed)

Range of Detection

Minimum 3’ (1 m)

Maximum 16.5’ (5m) if mounted 8” (0.2m)

above ground

33’ (10m) if mounted 16” (0.4m)

above ground

Minimum Distance

from Plane of Door 1”(25.4 mm)

Alignment Tolerance 8°

www.beasensors.com

Contact Information

BEA Inc.

RIDC Park West

100 Enterprise Drive

Pittsburgh PA, 15275

Phone +1.412.249.4100

Fax +1.412.249.4101

Toll Free 1-800.523.2462

BEA West

2401 Pine Street

Los Angeles, CA 91767

Phone +1.909.596.3011

Fax +1.909.596.5411

Toll Free 1-877.232.9378

SBK30 LO Linx

3

1

2

5

4

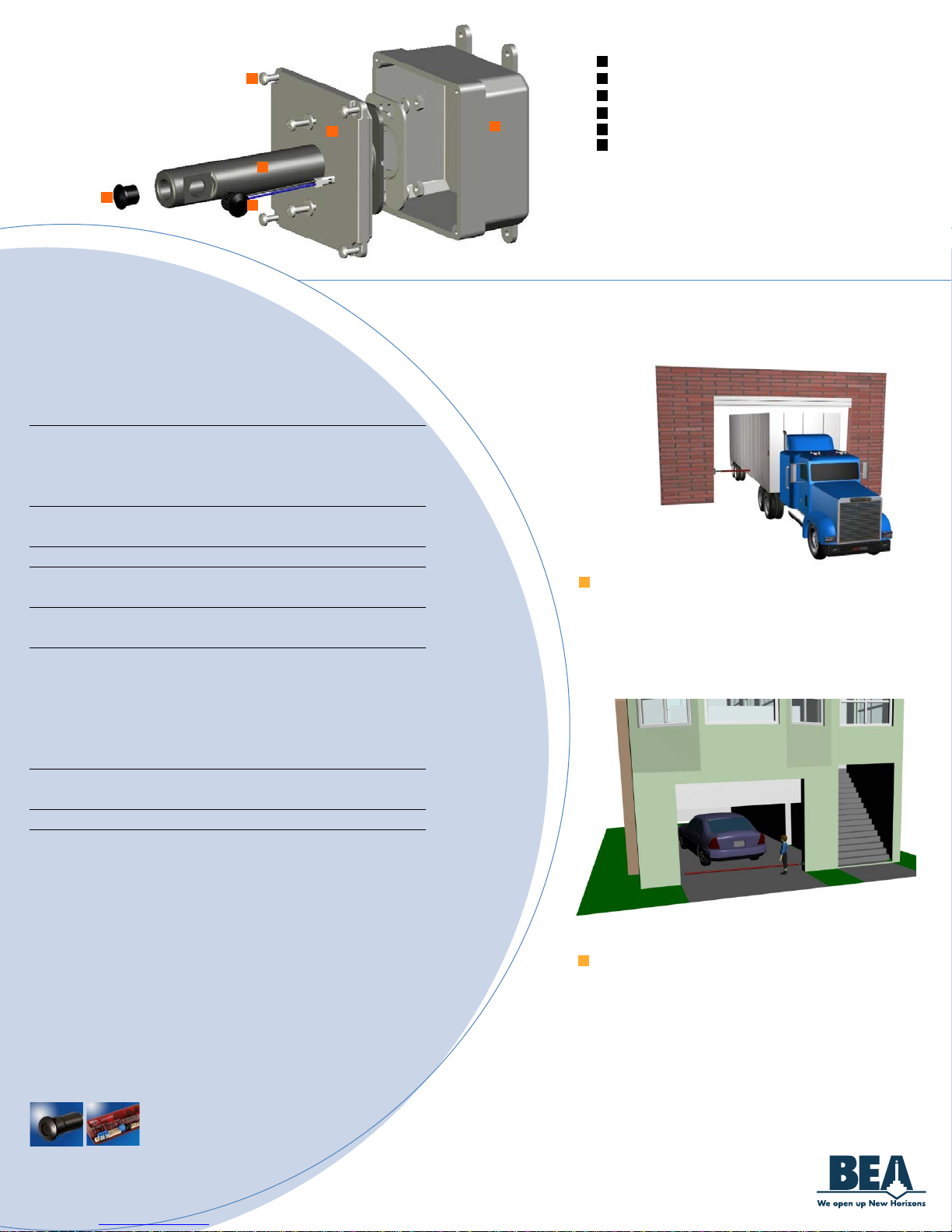

Flex IR Components

Phillips Head Screw (6)

Mounting Box

Flexible Beam Holder

Button Plug

Microcell Beam

NEMA 4 Accessory

1

2

3

4

5

Applications

Flex IR protects the microcell against blunt hits from

tractor trailers, forklifts, or heavy objects in the

industrial setting.

Flex IR with Microcell provides safety accross garage

door openings to help prevent injuries from a closing

garage door. The Flex IR protects the microcell from

getting hit by cars or other heavy objects.

6

6
