JetWave 2212X/S is a wireless access point. They equips with 2-port Fast
Ethernet and IEEE 802.11a/b/g/n 2.4G and 5G wireless radio. With the
JetWave 2212X/S wireless access point, a network designer will easily achieve
the integration of wired and wireless networks. JetWave2212S equips with 2
RS232/422/485 which could support versatile serial application, such as TCP
Server, TCP Client and UDP Listening. The serial data can be transmit
through the wireless interface.
Safety Instruction
Warning! Read the user manual before connecting the system to the
power source.
Radio Equipment Directive 2014/53/EU Declaration
The product may be operated in all European Union countries. While you see
the CE Marking printed on our product, it indicates the product complies
with the requirement of the Radio Equipment Directive 2014/53/EU.
We provides formal declaration of RED for wireless product, different
product may comfort to different standards of Health & Safety, EMC, Radio
and other specific standard. You can download the formal document of the
product in our website or apply from our Sales/Technical people.

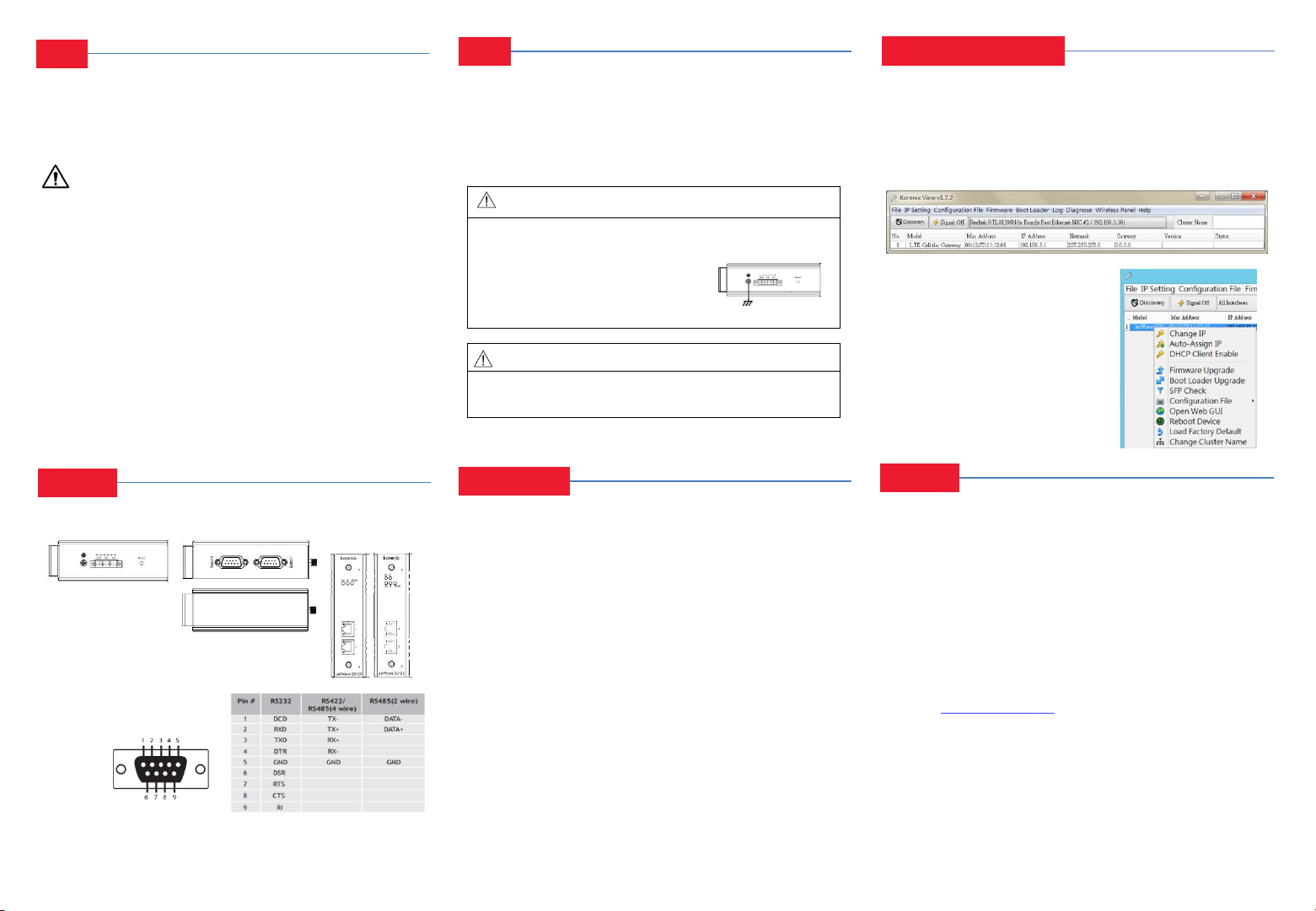

Appearance
Overview
The Korenix View Utility provides you a convenient way to scan the
network and configure the connected Korenix device.
Step 1: Open the Korenix View Utility. (V1.7 or later version)
Step 2: Select the correct NIC (Network Interface Card) from the NIC list
Step 3: Click “Discovery” , and then the Nodes and its IP address can be found
and listed in the Node list.
Step 4: After you scan the network, select the
device and click “ Open Web GUI” to access
the web management interface.
You can modify the IP address/Netmask directly
on the selected entry and then click “ Change IP”
to change IP settings.
JetWave 2212X/S
Industrial 802.11 a/b/g/n 2.4G/5G 2T2R MIMO Wireless AP
Quick Installation Guide V1.0
Installation
Power Input
The device supports dual DC power input. The typical power input is 24V
(Range from 9~26VDC).
Power the unit
Connect the power, the unit will power on .
When the unit is ready, the PWR LED turns Green.
Korenix View Utility
The JetWave 2212X/S provides web management interface for basic and
advanced settings. Before configuration, please make sure your system meets
the following requirements:
A computer coupled with 10/100 Base-T(X) adapter.
Configure the computer with a static IP address of 192.168.10.X
(X cannot be 0, 1 , or 255).
Connect JetWave 2212X/S to Eth 1/ Eth 2 by standard Ethernet cable. The
Eth 1 /Eth 2 LED turns Green means the link is activated.
The Ethernet default IP is “192.168.10.1”
Open web browser (Ex: IE, Chrome, Firefox…) and enter the IP address of
the product. You will see the System Login page.
Check User Manual for advanced settings.
Please access to the web interface via https://,if the web browser is not
access, please check your firewall or contact your support window for
further help.
Note: If you forget the IP Address, you can use Korenix View Utility to
search the device’s IP address, the program can be found at Download page
of the Korenix website.
Web GUI
5 Years Warranty
Each of Korenix’s product line is designed, produced, and tested with high
industrial standard. Korenix warrants that the Product(s) shall be free from
defects in materials and workmanship for a period of five (5) years from the
date of delivery provided that the Product was properly installed and used.
This is warranty is voided if defects, malfunctions or failures of the warranted
Product are caused by damage resulting from force measure (such as floods, fire,
etc.), other external forces such as power disturbances, over spec power input,
or incorrect cabling; or the warranted product is misused, abused, or operated,
altered and repaired in an unauthorized or improper way.
Attention! To avoid system damage caused by sparks, please DO NOT plug in
power connector when power is on.
The product is in compliance with Directive 2002/95/EC and 2011/65/EU of the
European Parliament and of the Council of 27 January 2003 on the restriction of
the use of certain hazardous substances in electrical and electronics equipment
(RoHS Directives & RoHS 2.0)
Korenix Customer Service
KoreCARE is Korenix Technology's global service center, where our professional
staff are ready to solve your problems at any time Korenix global service
center's e-mail is KoreCARE@korenix.com.
For more information and documents download please visit our website:
http://www.korenix.com/downloads.htm
Support
Front Panel
2212X 2212S
Notice
Mounting The Unit/Antenna and well Ground is Must: JetWave
2212X/S supports Din-Rail mounting, the mounting kit is pre-
installed. You can mount the device to the DIN Rail directly. Connect
the Ethernet cable, Antenna and Ground before power on system.
Ground is important and
MUST in field.
Quick Installation Guide
Din-Rail Kit
Eth1/Eth2: 2 x 10/100Base-TX
Antenna Socket: (A) WIFI-Main (B) WIFI-Aux
Reset: Press for 7 seconds to restore default setting
Serial: Connect the serial device
to the unit male DB9 port by the
pin assignment table. (Jetwave2212S)
Package Check List
JetWave 2212Xor 2212 S Product Unit
2x WIFI Antenna
6-pin terminal block
Grounding
Warning
•The DC connecting line must conform to the safety regulations of
the country in which the device is installed.
•Properly connect the device to a protective conductor.
Bottom Panel
Top Panel
JetWave 2212S
JetWwave 2212X
