Beisler 100/68 Manuale utente
Teileliste / Parts List
100/68
Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld
Telefon +49 (0) 521 / 9 25-2340 • Telefax +49 (0) 521 / 9 25-2583 • www.beisler-sewing.com
Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:
03/2010 Rev. index: 00.0 Printed in Federal Republic of Germany 0791 106801
Interimsliste 100/68
Halter
holder
012227.00
Stehbolzen
stay bolt
012282.00

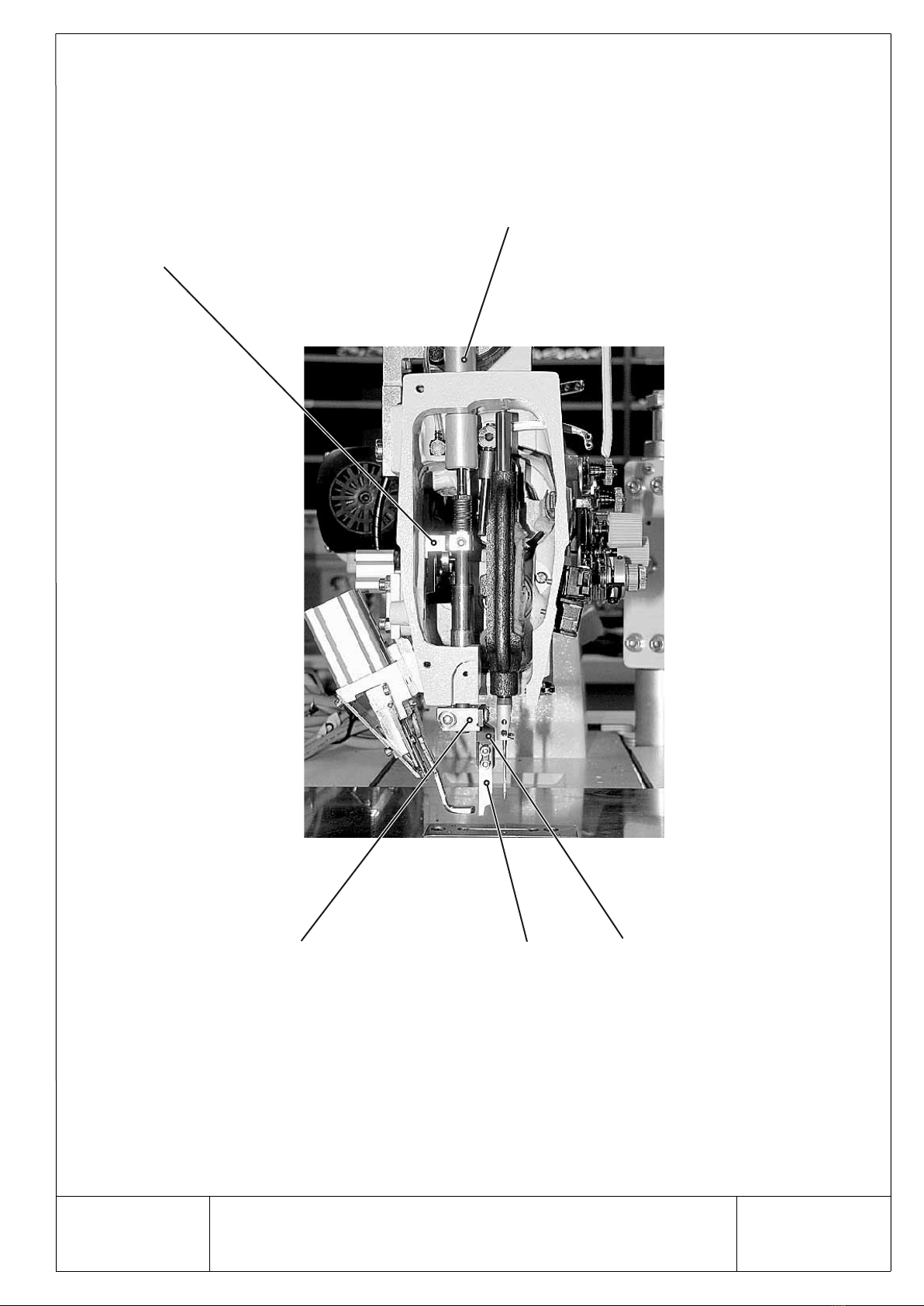

Reflexlichtschranke
photocell
2100743.10
Fadenwächter
thread monitor
3402126.00
Befestigung
mounting
012212.00
Achtung: Gültig ab 01.06.2007
ATTENTION: Valid from 01.06.2007
Interimsliste 100/68
Mittelmesser
knife
008688.00
Messerhalter
knife holder
008416.00
Messerhalter
knife holder
012134.00
Zylinder mit Feder
cylinder with spring
1000516.00
Führung
guide
008404.01
Interimsliste 100/68
Schraube
screw
3400105.00
Tastkopf
bobbin thread sensor
2100754.30
Schraube
screw
3400106.00

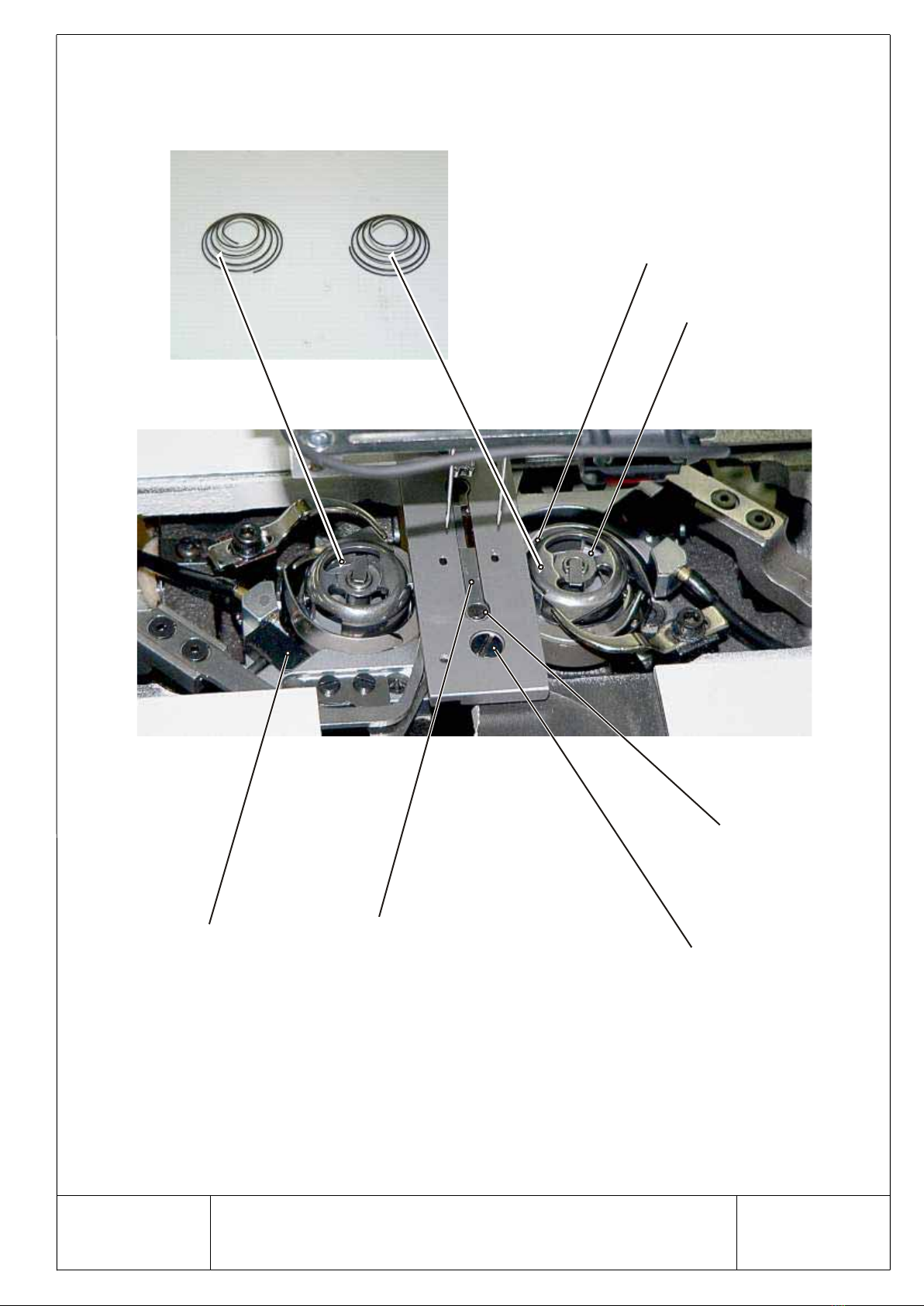

Spulenkapsel
bobbin case
008940.00
Spule
bobbin
008935.00
Messer
knife
3400107.00
Spulenbremsfeder
bobbin tension spring
3400159.00
Interimsliste 100/68
100223.00
NA4, 8
NA8
NA10
NA12
NA14
NA16
NA18
NA20
NA22
NA24
NA26
NA30
Messer Bewegl. Messer Federblech Messerschutz
Halter knife movable knife flat spring knife guard
012315.00 012312.00 012313.00 012314.00 012311.00
011135.01 3400608.15 3400608.16 3400608.17 3400610.10
011135.00 3400610.07 3400610.08 3400610.09 3400610.10
011135.00 3400610.07 3400610.08 3400610.09 3400610.10
011135.00 3400614.07 3400614.08 3400614.09 3400614.10
011135.00 3400614.07 3400614.08 3400614.09 3400614.10
011135.00 3400620.07 3400620.08 3400620.09 3400620.10
011135.00 3400620.07 3400620.08 3400620.09 3400620.10
011135.00 3400624.07 3400624.08 3400624.09 3400624.10
011135.00 3400624.07 3400624.08 3400624.09 3400624.10
011135.00 3400624.07 3400624.08 3400624.09 3400624.10
011134.00
Fadenfänger - thread catcher
Interimsliste 100/68

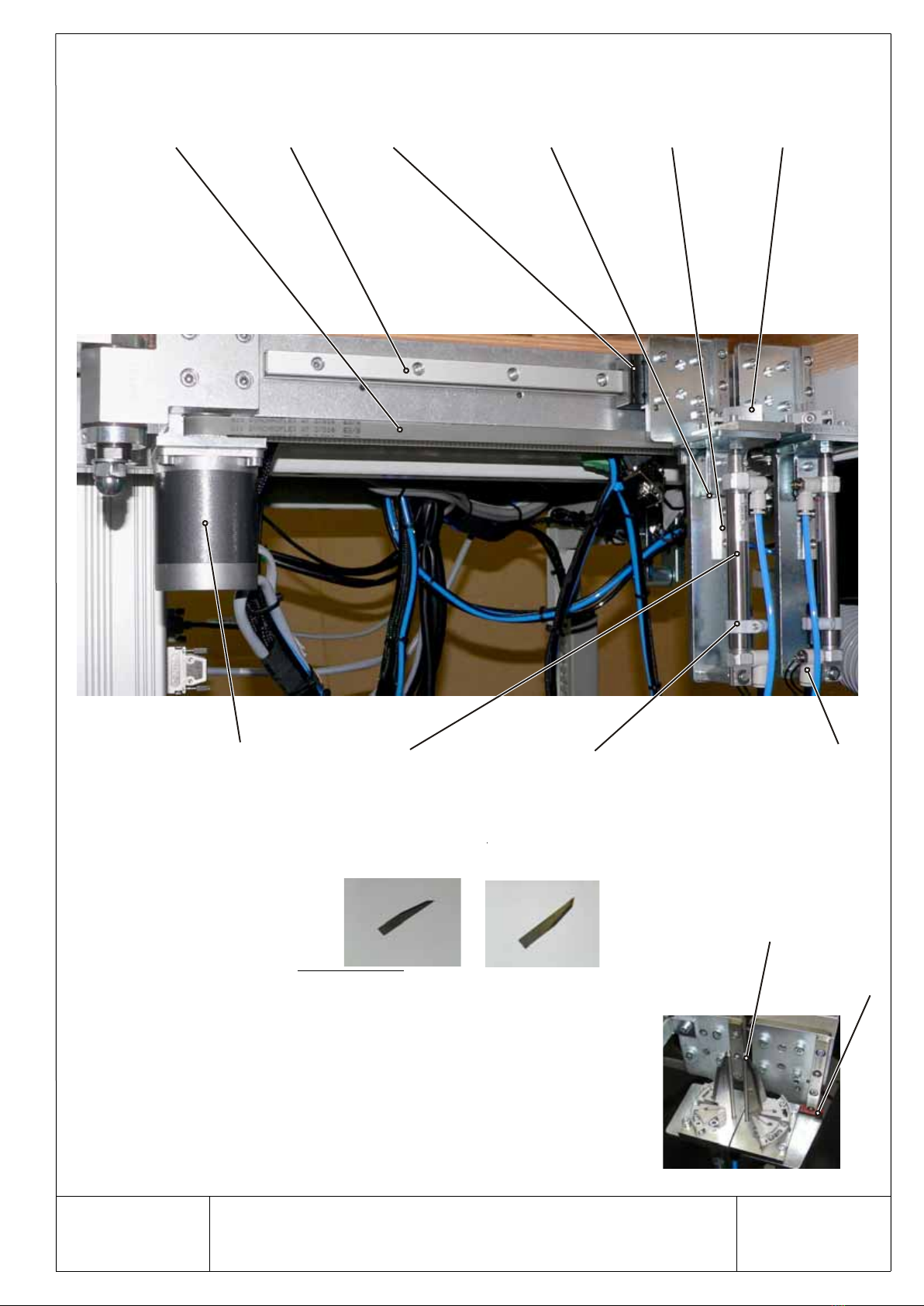

Zylinder
cylinder
1000507.00
Reedschalter + Befestigung + Gleitlager
reed switch + mounting + bush bearing
012186.00 + 1000508.10 + 012106.00
Schrittmotor
stepping motor
012191.00
Abluftdrossel
throttle valve
006927.00
1100161-31
1100500.05
Schiene
guide rail
1500546.00
1100500.99
Zahnriemen
toothed belt
011889.00
Messerkloben
knife holder
011778.00
Wagen
carriage
1500547.00
Eckenmesser R Eckenmesser L
3402229.00 3402230.00
3402219.00 3402220.00
3402221.00 3402222.00
3402223.00 3402224.00
3402223.00 3402224.00
3402223.00 3402224.00
3402223.00 3402224.00
3402225.00 3402226.00
3402225.00 3402226.00
3402227.00 3402228.00
Eckenmesser Standard
NA8
NA10
NA12
NA14
NA16
NA18
NA20
NA22
NA24
NA26
NA30
Vorstecher - Stift
punch
011779.00
Schiene
guide rail
1500550.00
Wagen
carriage
1500551.00
Wagen
carriage
1500551.00
Interimsliste 100/68
Zylinder
cylinder
1000507.00
Reedschalter + Befestigung + Gleitlager
reed switch + mounting + bush bearing
012186.00 + 1000508.10 + 012106.00
Schrittmotor
stepping motor
012191.00
Abluftdrossel
throttle valve
006927.00
Schiene
guide rail
1500546.00
Sensor
sensor
2102066.00
Zahnriemen
toothed belt
011889.00
Messerkloben
knife holder
011778.00
Wagen
carriage
1500547.00
NA8
NA10
NA12
NA14
NA16
NA18
NA20
NA22
NA24
NA26
NA30
Eckenmesser R Eckenmsser L
3402207.00 3402208.00
3402207.00 3402208.00
3402209.00 3402210.00
3402211.00 3402212.00
3402213.00 3402214.00
3402213.00 3402214.00
3402215.00 3402216.00
3402217.00 3402218.00
3402217.00 3402218.00
3402217.00 3402218.00
Eckenmesser Schrägstellung
Schrittmotor
stepping motor
2102073.00
Schiene
guide rail
1500546.00
Wagen
carriage
1500547.00
Schiene
guide rail
1500562.00
Interimsliste 100/68
Platine
circuit board
2102074.00
Einspeisung
start plate
1100500.01
Endplatte
finish plate
1100500.02
1100500.05
1100500.99 1100500.11 1100500.07
Platine
circuit board
2102075.00
Platine
circuit board
2102077.00
Interimsliste 100/68
Zylinder
cylinder
1000506.00
Zylinder
cylinder
1000515.00
Lagerplatte rechts
guide plate right
011859.00
1100500.05
Wagen
carriage
1500543.00
Schiene
guide rail
1500542.00
Abluftdrossel
throttle valve
006927.00
Rückschlagventil
return valve
1400337.00
Lagerplatte links
guide plate left
011860.00
Wegbegrenzung kompl.
Limiter complete
3402242.00
Zuluftdrossel
throttle valve
007418.00
