Belden DCX XCONNECT SPOOL Manuale utente

DCX XCONNECT SPOOL

QUICK START GUIDE

PX106857 - EN REV A Page 1 of 2

Before proceeding with Spool Kit installation, make sure to install (or determine the position of) the DCX Housings into the Cabinet.

The Housings positions will determine the location where to secure the Spools and the Brackets.

Spool kit assembly and installation

1.Determine the cable ow direction of the Cabinet.

For a left-to-right (LR) Cabinet, the Spool Kit will be installed at right.

For a right-to-left (RL) Cabinet, the Spool Kit will be installed at left.

Position 1

chosen as

example.

LR cabinet RL cabinet

Spool Kit installation area

DCX XCONNECT HOUSING PX106857 - EN REV A Page 2 of 4

QUICK START GUIDE

2. Set the Bracket at the required cable ow.

3. Slide the Spool into the Bracket and place it to the associated posistion.

Slots to secure

Fixed Spool

on position 1

LR cable ow

RL cable ow

Position related to the

installed Housing

Position related to the

installed Housing

Indicator related to the associated

position

Indicator related to the associated

position

DCX XCONNECT HOUSING PX106857 - EN REV A Page 3 of 4

QUICK START GUIDE

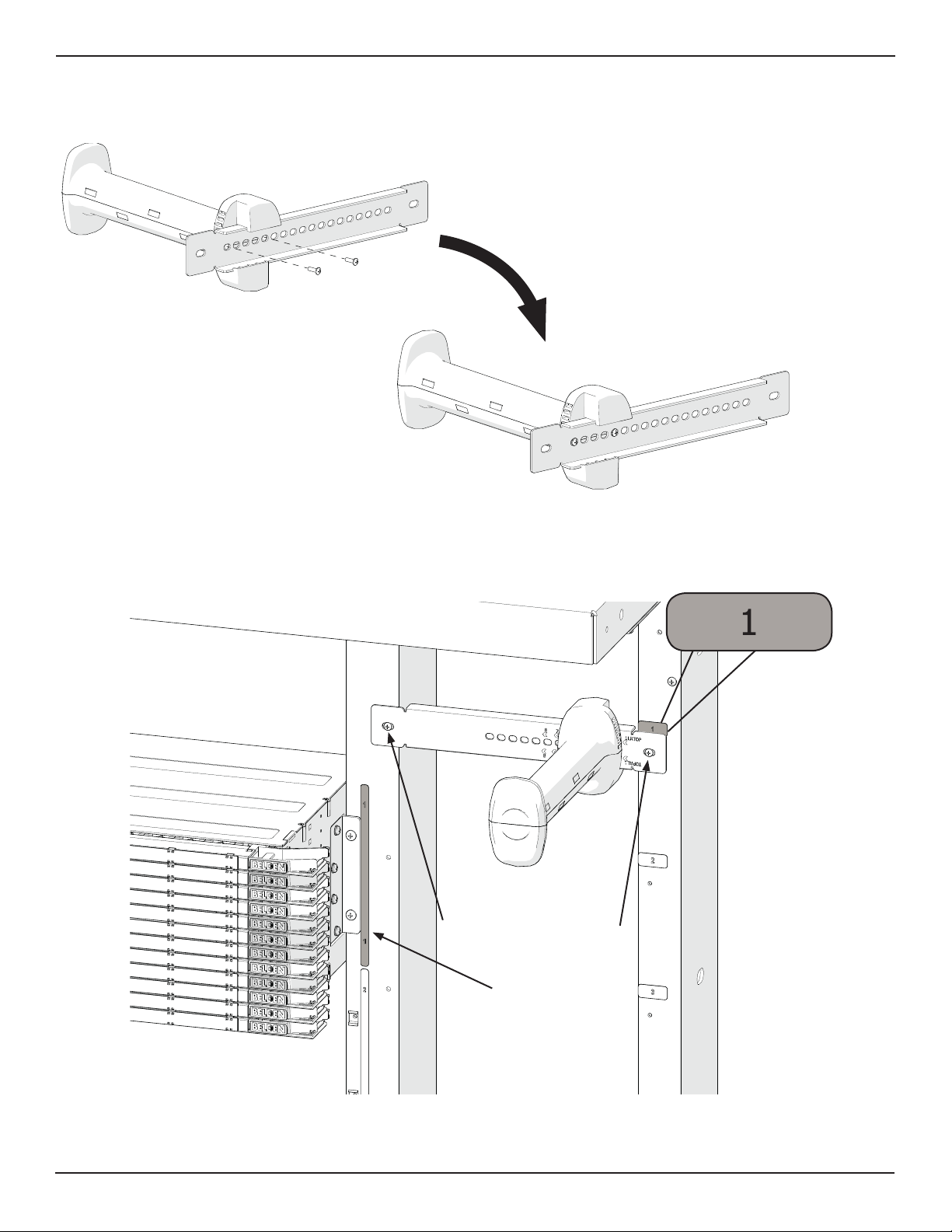

3. Once the Spool position is determined, secure the spool with the provided (plastic) screws and thigthen them to complete the assembly.

4. Locate the assembly position to the associated Housing and use the remaining screws (metallic) to secure the bracket.

Screws thighten at Position 1

Housing related to

Spool Kit installed.

Position 1 to place Spool Kit

DCX XConnect Spool- Quick Start Guide

PX106857 - EN REV A

This document is also available at our microsite:

www.belden.com/dcx

For more information about BELDEN Technical support, call:

1-800-BELDEN-1

Page 2 of 2

Scan this QR code to

access more technical

information of our

products and get

constant updates

5. (If required) repeat all previous steps to continue loading your management system.

NOTE: The example below show a Cross-Connection between the Housing 1 to the Housing 3.

Housing 1

Housing 2

Housing 3

Housing 4

Housing 5

Housing 6

Housing 7

Housing 8

Spool Kit at position 1

Spool Kit at position 2

Spool Kit at position 3

Spool Kit at position 4

Spool Kit at position 5

Spool Kit at position 6

Spool Kit at position 7

Spool Kit at position 8
