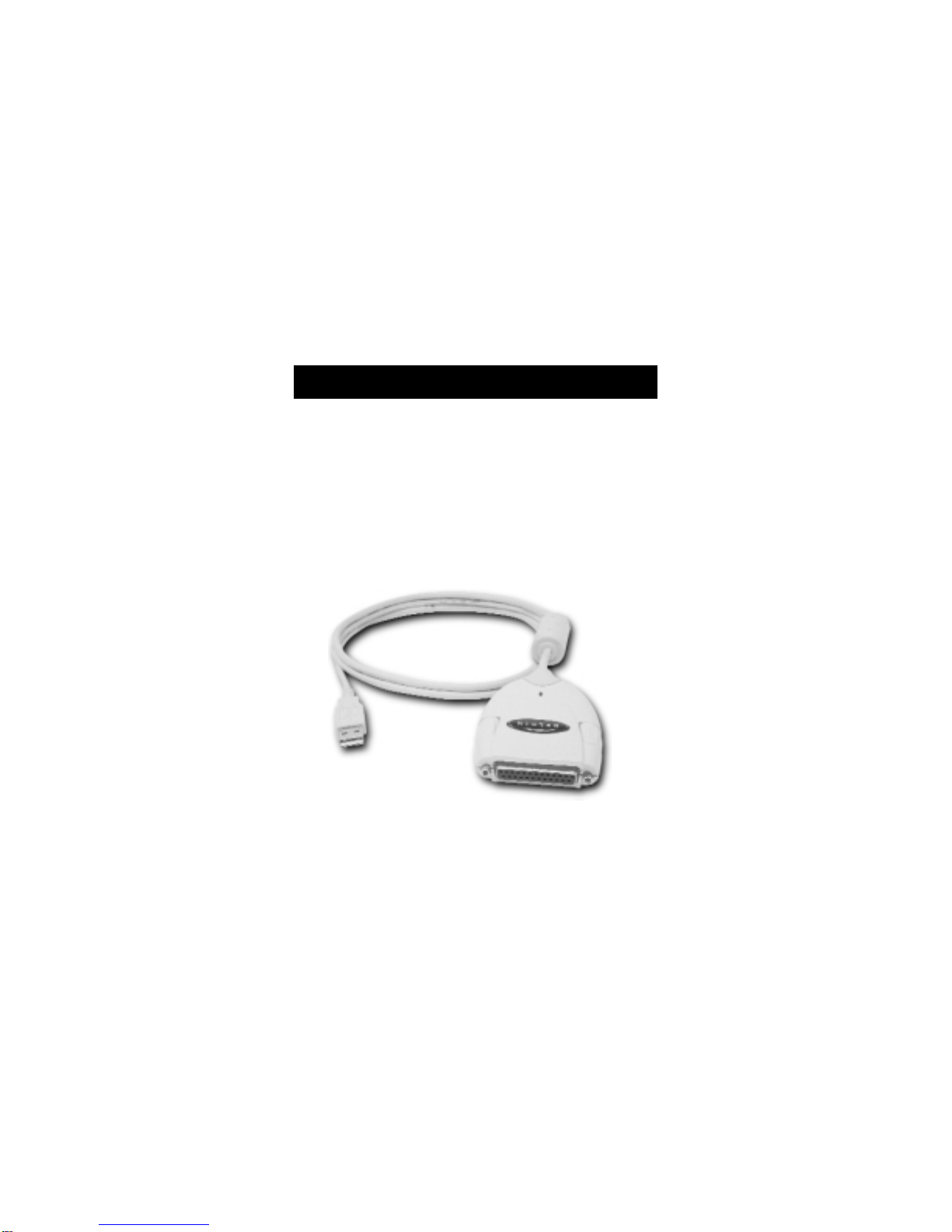

Belkin F5U015-TPW Manuale utente

P73276 F5U015-TPW

USB SCSI Adapter

with Termpower

Introduction and System Requirements

Thank you for purchasing the Belkin Components®USB-SCSI

Adapter. Now, you can easily add up to 7 SCSI devices on

your Windows®98 PC, or Mac™through USB port! No more

opening your computer case, no more IRQ conflicts or driver

problems! Simply plug it in!

Your PC must have:

• 486 processor or faster

• 16MB memory or more

• A free USB port (on the computer

or at a hub)

• Windows®98 or Windows®98 SE

Your Macintosh®must have:

• OS 8.6 or higher

• A free USB port (on the computer or at a hub)

Notes:

1. It is NOT recommended that you plug in the

USB-SCSI adapter to the USB ports on the

iMac™keyboard. The keyboard does not supply

enough power, and is a low-speed device.

2. If you own a non-iMac™machine and wish to add

USB ports, please obtain a Belkin USB BusPort™

for Mac®(model # F5U005-Mac®)

Your SCSI device must be able to supply termination power

to the USB SCSI Adapter. Some devices such as Iomega

Zip®Drives and some brands of scanners will not be able to

provide the required +5V termination power. In such an

event, a SCSI device that can provide termination power

must be connected to the device chain or you can use the

power supply adapter supplied with the package.

If you are going to plug the USB-SCSI Adapter into a USB

Hub, make sure that it is a self-powered hub.

(A self-powered hub has its own power supply.)

Package Contents

• Belkin Components®USB SCSI Adapter withTermpower

• CD containing both Windows®and Macintosh®drivers

• Power supply adapter (7.5VDC, 600mA) with DB25 adapter

• Registration card

• This manual

Macintosh®Installation and Usage

MACINTOSH®INSTALLATION:

1. Insert the Belkin USB to SCSI Adapter with Termpower CD

into your CD-ROM drive. Double-click on the CD icon.

You will see two folders: MAC®Driver and PC Driver.

Double click on the "MAC®Driver" folder. Now, you will

see two files named:

"Belkin USB-SCSI"

"Belkin USB-SCSI SIM"

2. Double click on your "Hard Drive" icon and look for

"System Folder". Double click on "System Folder".

3. In "System Folder", look for another folder called

"Extensions". Once you have located the "Extensions"

folder, you will need to select the two files in the Belkin

USB to SCSI CD (see #1 above), and drag the two files

onto the "Extensions" folder. You will see your system

copying both files over.

USAGE:

1. When copying is finished connect your SCSI device or

device chain to the USB SCSI Adapter. See appendices for

adapters and cables you may need. Make sure that the

devices are powered up.

Plug in the USB SCSI Adapter to a free USB port on your

computer, or USB Hub. Restart your computer. To do this

click on "Special" at the top menu bar, and choose "Restart".

2. After restart, icons of your SCSI device(s) should appear

on your desktop.

Note: If you unplug the USB SCSI Adapter from the

computer, or the device(s) from the SCSI chain,

the operating system may not recognize this and

might think that the device(s) are still connected. In

the event that the device(s) and/or the USB-SCSI

Adapter is unplugged from the computer, and an

application tries to access the device(s), your

computer will hang. You must cycle power in order

to recover your system.

Hence, to disconnect a device from the SCSI chain,

always drag its icon to the TRASH first, then

disconnect the USB SCSI Adapter or devices.

Macintosh®Installation and Usage (continued)

Windows®98 Installation and Usage

WINDOWS®98 INSTALLATION:

1. Connect your SCSI device or device chain to the

USB SCSI Adapter. See appendices for adapters and

cables you may need. Make sure that the device(s) are

powered up.

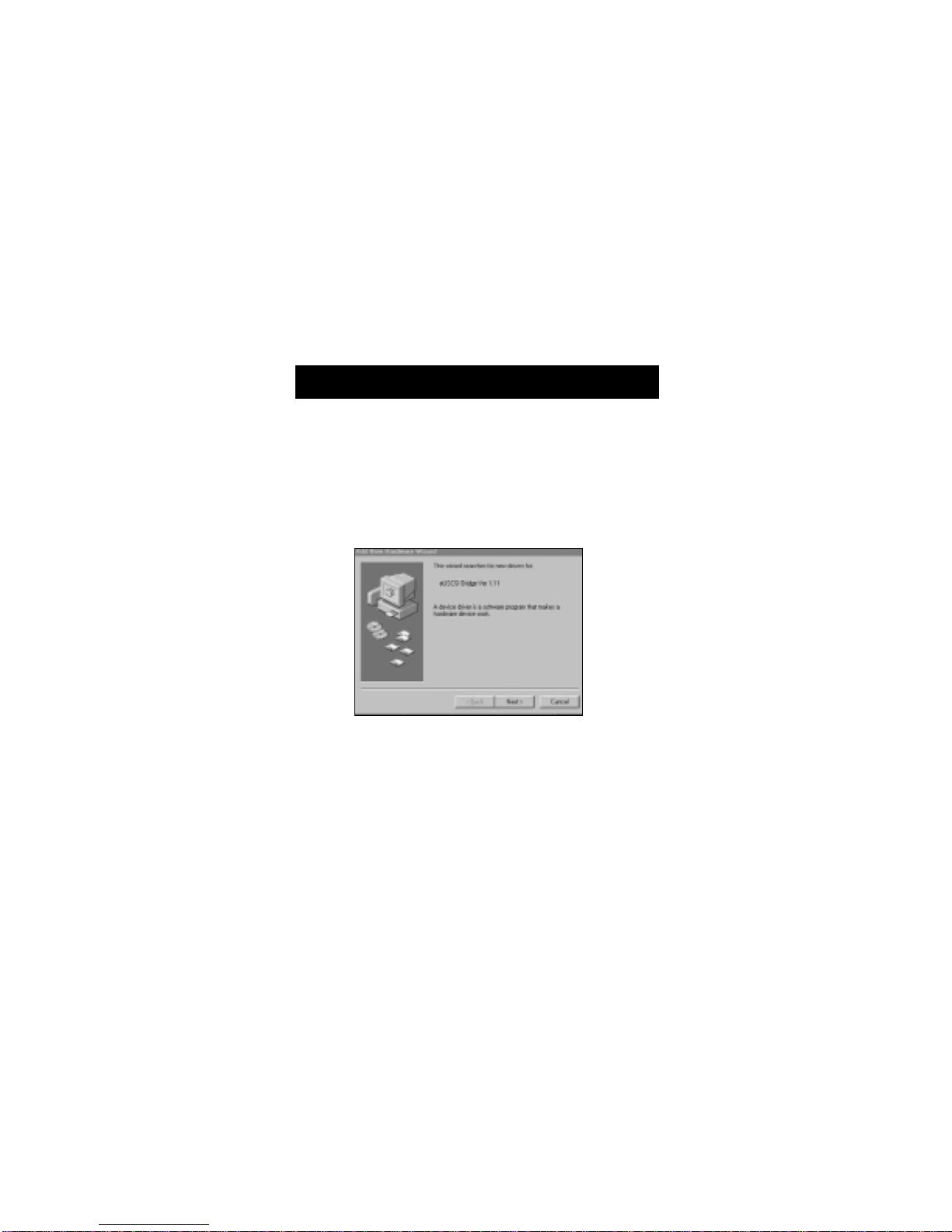

2. Plug in the USB SCSI Adapter to a free USB port on

your computer, or USB Hub. A "New Hardware

Found…" dialog box will appear:

Click on NEXT.

Note: Even if the Adapter is plugged into your USB

port (or Hub), it must first be plugged into a SCSI

device that provides termination power, before

Windows®will detect and enumerate the

Adapter, and the SCSI device(s). If your SCSI

device(s) does not provide termination power,

make sure the power supply adapter that came

with the package is connected.

Windows®98 Installation and Usage (continued)

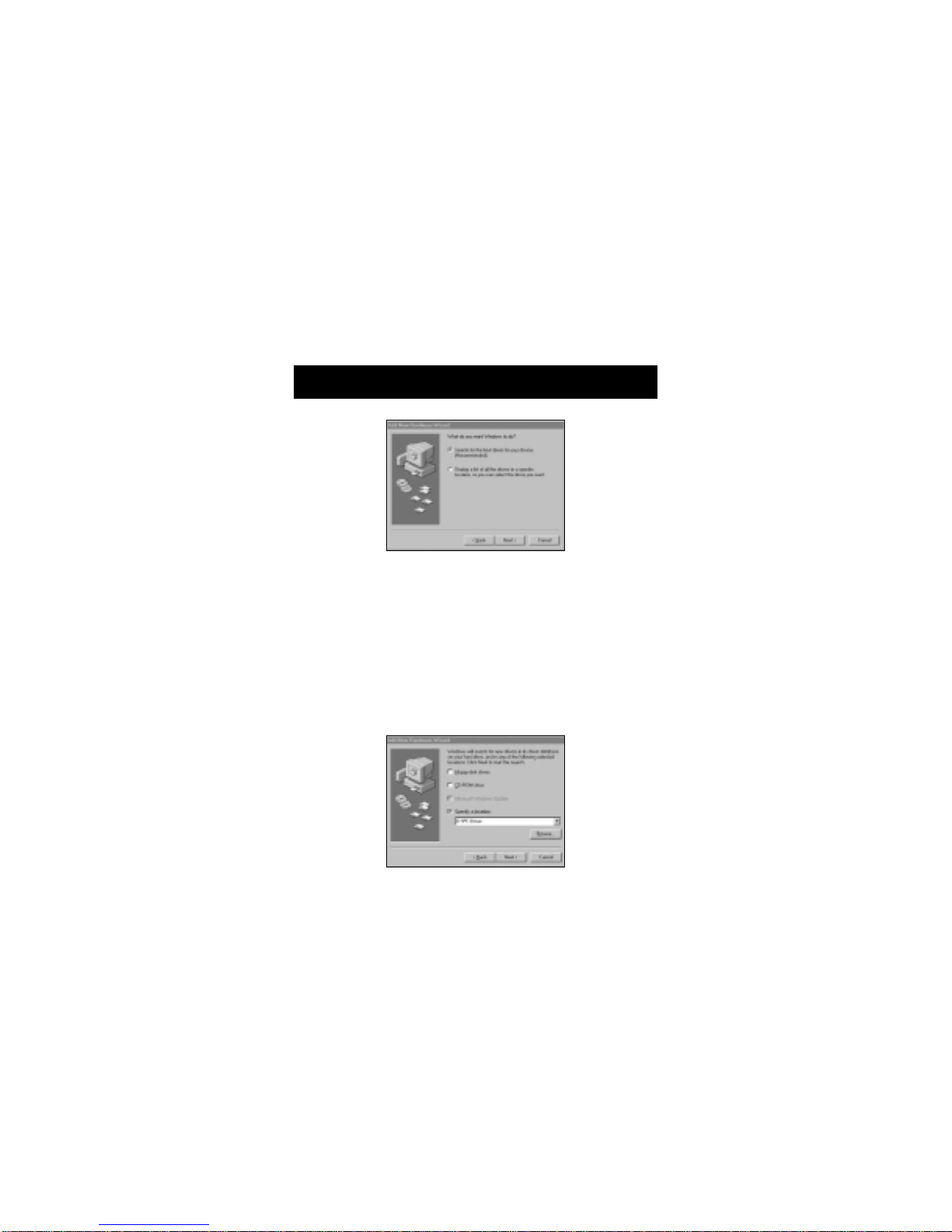

3. On the screen that appears select "Search for the best

driver for your device (Recommended)", and then

click Next.

4. Windows®will now prompt you for drivers. Insert the

Belkin USB SCSI Adapter CD-ROM in your CD-ROM

drive. Put a check mark at the box named "Specify a

location:". Type D:\PC Driver. (In this example, D is the

driver letter for the CD-ROM drive; it may be different on

your computer, you may need to check it.) Click Next.

Windows®98 Installation and Usage (continued)

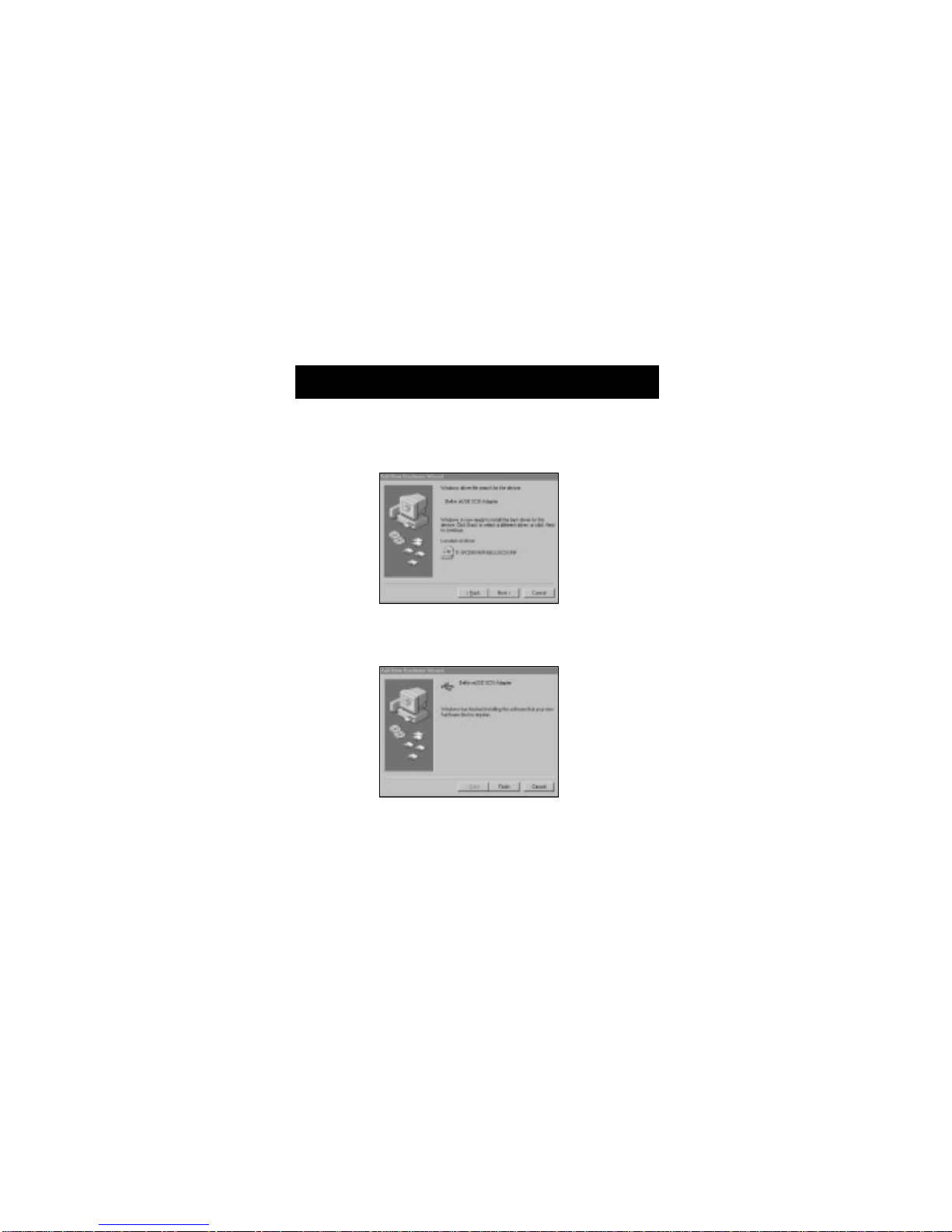

5. Windows®will automatically find and install the drivers

from the CD-ROM, and display the next dialog box,

confirming it has loaded the correct files:

Click on NEXT.

6. Lastly, Windows®will display this final dialog box.

Click FINISH.

Windows®will then detect the "USB Mass Storage

Class Adapter", and automatically install its drivers.

There will be no more prompts.

Appendices

Troubleshooting

The SCSI device(s) connected to the USB-SCSI Adapter is

not detected by my computer.

• Make sure the SCSI device(s) are powered up and at

least one device provides termination power necessary

for the Adapter’s operation. If you are just connecting

one device and that device does not have termination

power, make sure the power supply adapter provided

with the package is connected. The SCSI device(s) must

be powered up AND connected to the Adapter prior to

plugging into the USB port.

• If you are using a USB Hub or composite device that

has a built-in hub, make sure that the device is

self-powered, providing the full 500mA of current

required by the Adapter.

• After shutting down your computer, try unplugging then

plugging in the Adapter from the USB port.

• Try unplugging the Adapter, turn the power off and back

on of the SCSI device(s), then plugging the Adapter back

into the USB port.

• Restart your computer with the Adapter connect to the

USB port, and all the SCSI device(s) powered up.

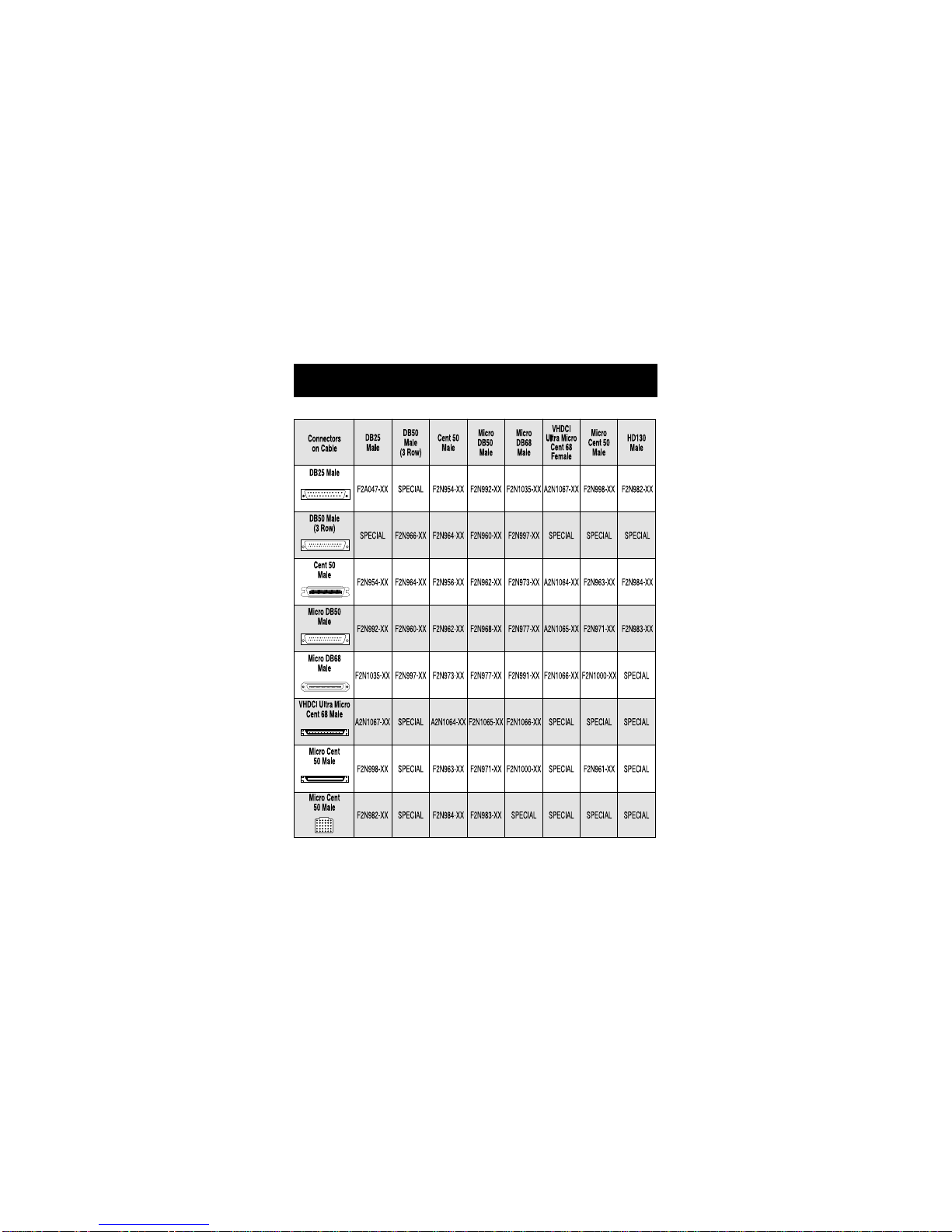

Belkin External SCSI Cross-Reference Table

This is only a partial listing of our most common SCSI Cable Assemblies. Contact your

Belkin sales representative for assistance in choosing the cable you need.
